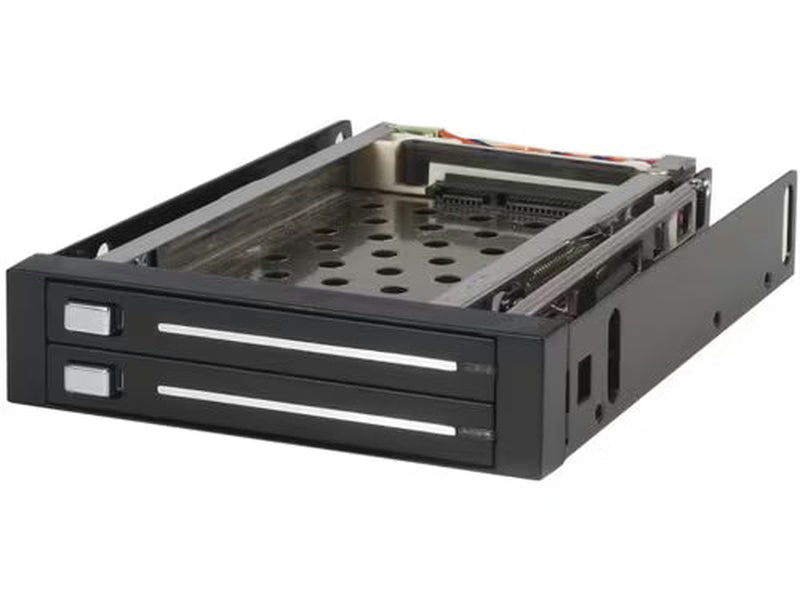

StarTech 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane, Serial ATA/600 Host Interface Internal - Black
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.
Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
Specification
| Controllers |
| Controller Type |
Serial ATA |
| Network & Communication |
| Wireless LAN |
No |
| I/O Expansions |
| Number of Total Expansion Bays |
2 |
| "Number of 2.5"" Bays" |
2 |
| Interfaces/Ports |
| Host Interface |
Serial ATA/600 |
| Drive Interface |
SATA/600 |
| Technical Information |
| Number of Hard Drives Supported |
2 |
| Number of Hard Drives Installed |
No |
| Number of Solid State Drive Supported |
2 |
| Number of Solid State Drive Installed |
No |
| General Information |
| Product Type |
Drive Enclosure |
| Manufacturer Part Number |
HSB220SAT25B |
|
| Manufacturer Website Address |
http://www.startech.com/au |
| Packaged Quantity |
1 Each |
| Manufacturer |
StarTech.com |
| Product Name |
2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane |
| Brand Name |
StarTech.com |
| Miscellaneous |
| Additional Information |
- Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design
- Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
|
| Environmentally Friendly |
Yes |
| REACH Declaration URL |
https://media.startech.com/cms/pdfs/hsb220sat25b_rohs.pdf |
| EU RoHS Declaration URL |
https://media.startech.com/cms/pdfs/hsb220sat25b_rohs.pdf |
| End of Life Manual Availability |
Yes |
| REACH free of SVHC |
Yes |
| WEEE Statement |
https://media.startech.com/cms/pdfs/hsb220sat25b_weee.pdf |
| Physical Characteristics |
| Weight (Approximate) |
286.3 g |
| Form Factor |
Internal |
| Height |
22.9 mm |
| Width |
101.6 mm |
| Depth |
134.6 mm |
| Compatible Drive Bay Width |
3.5" |
| Product Color |
Black |
| Color Family |
Black |
| Product Material |
Aluminium |
|
