Dual-Monitor DisplayPort 1.4 Splitter, DisplayPort to 2x DP Multi-Monitor Adapter, Dual 5K 60Hz Computer MST Hub, Extra-Long Built-in Cable - Windows Only
Create a high-performance dual-display workstation by connecting a DisplayPort™ device to two independent DisplayPort™ monitors
This DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device.
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
This MST Hub works with DisplayPort enabled Windows devices featuring 11th generation (and later) processors, or dedicated graphics cards that have a DisplayPort 1.4 output. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB Powered and comes with the USB Micro-B power cable.
Dual-Monitor DisplayPort 1.4 Splitter, DisplayPort to 2x DP Multi-Monitor Adapter, Dual 5K 60Hz Computer MST Hub, Extra-Long Built-in Cable - Windows Only
Create a high-performance dual-display workstation by connecting a DisplayPort™ device to two independent DisplayPort™ monitors
This DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device.
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
|
Host Connection |
Maximum Resolution Output 1 |
Maximum Resolution Output 2 |
Example Host Processor/Graphics |
|
DisplayPort 1.4 with DSC |
5K 60Hz |
5K 60Hz |
*Intel 11th Gen with DSC |
|
DisplayPort 1.4 |
4K 60Hz |
4K 60Hz |
Intel 10th Gen (Ice Lake Only) |
|
DisplayPort 1.2 |
4K 30Hz |
4K 30Hz |
Intel 8th - 10th Gen Processors & Later |
*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
This MST Hub works with DisplayPort enabled Windows devices featuring 11th generation (and later) processors, or dedicated graphics cards that have a DisplayPort 1.4 output. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB Powered and comes with the USB Micro-B power cable.
| DisplayPort MST Hub Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x DisplayPort 1 x USB Micro-B (5 pin) (Power) |
| Connector B | 2 x DisplayPort |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 90% RH (non-condensing) |
| Hardware | |
| Adapter Type | Active |
| AV Input | DisplayPort 1.4 |
| AV Output | DisplayPort 1.4 |
| Ports | 2 |
| Audio | Yes |
| Chipset ID | Synaptic VMM5220 |
| Packaging Information | |
| Package Length | 5.7 in (14.6 cm) |
| Package Width | 6.8 in (17.2 cm) |
| Package Height | 1.3 in (3.3 cm) |
| Shipping Weight | 4.7 oz (134.0 g) |
| Package Quantity | 1 |
| Performance | |
| Video Revision | DisplayPort 1.4 |
| Audio Specifications | DisplayPort - 2 Channel Audio |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Space Gray |
| Material | Plastic |
| Cable Length | 11.8 in (30 cm) |
| Product Length | 1.7 in (4.3 cm) |
| Product Width | 4.1 in (10.5 cm) |
| Product Height | 0.6 in (1.4 cm) |
| Weight of Product | 1.9 oz (53.0 g) |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows 11 Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7 (32/64) |
| What's in the Box | |

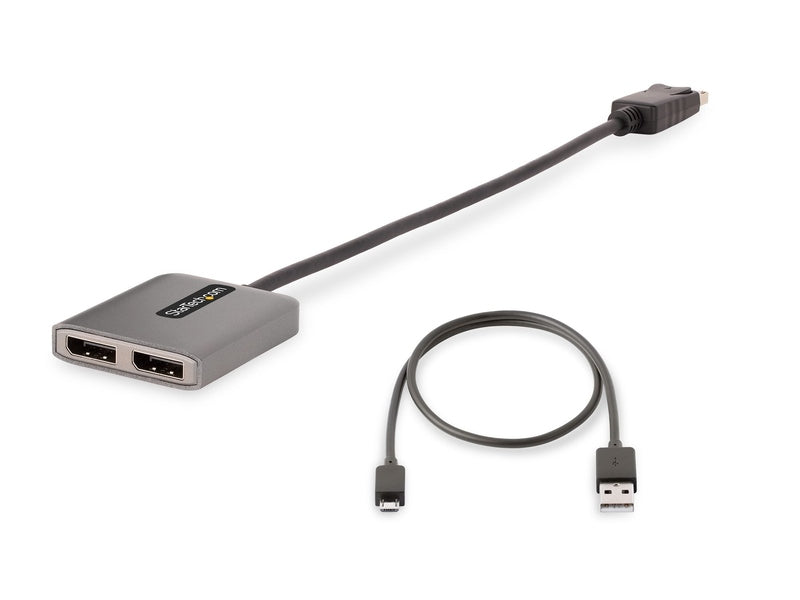

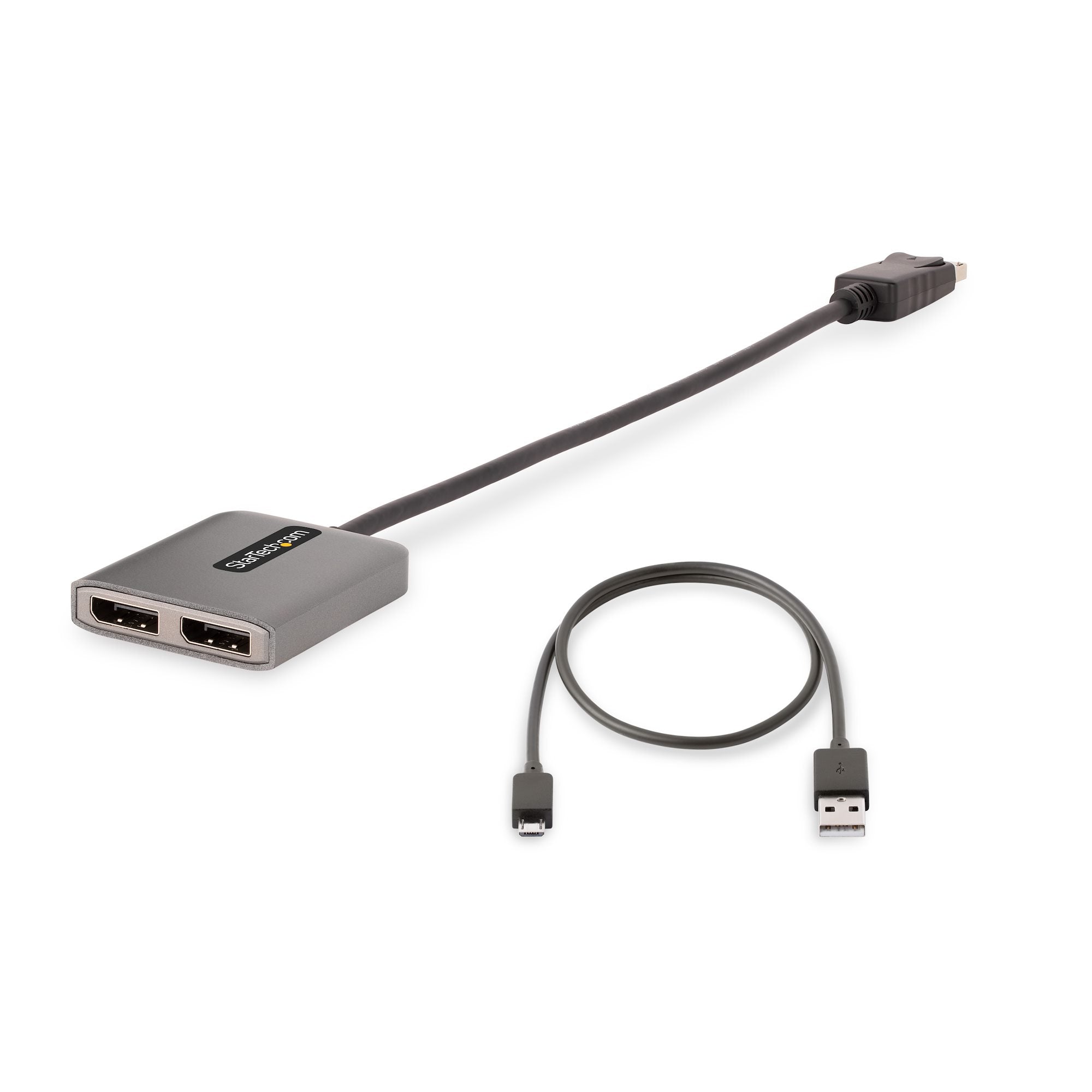

| Included in Package | 1 x DisplayPort MST Hub 1 x Micro-USB Power Cable |
