StarTech 2 Port Dual Displayport KVM Switch, 4K(60Hz), USB, Hotkey, 2Yr

StarTechSKU: SV231DPDDUA2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$585.00

Estimate shipping

Description

Overview

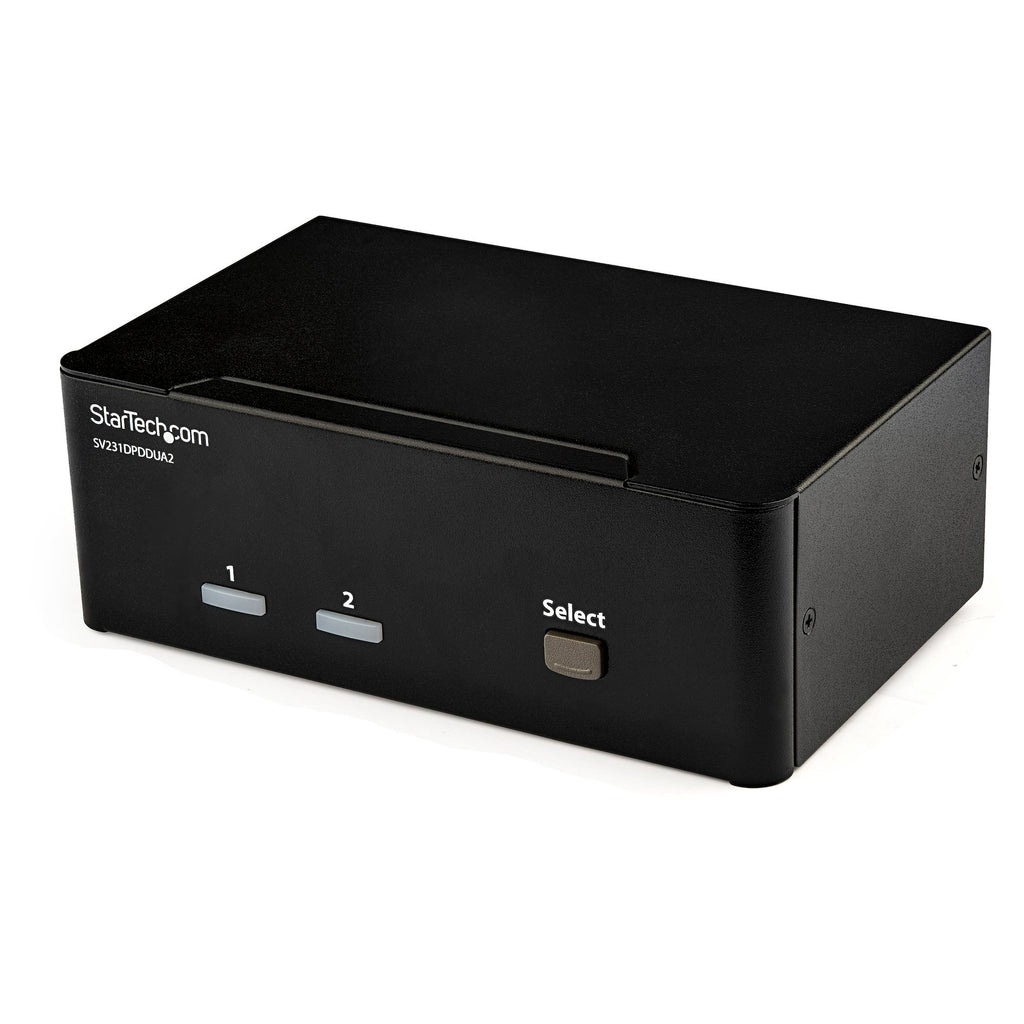

2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz - TAA
Access two dual-monitor computers and two shared USB peripherals from a single workstation

This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.

Maximize productivity with dual video
With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.

Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

Convenient peripheral sharing
This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.

2-Port Dual Display DisplayPort KVM Switch Specifications

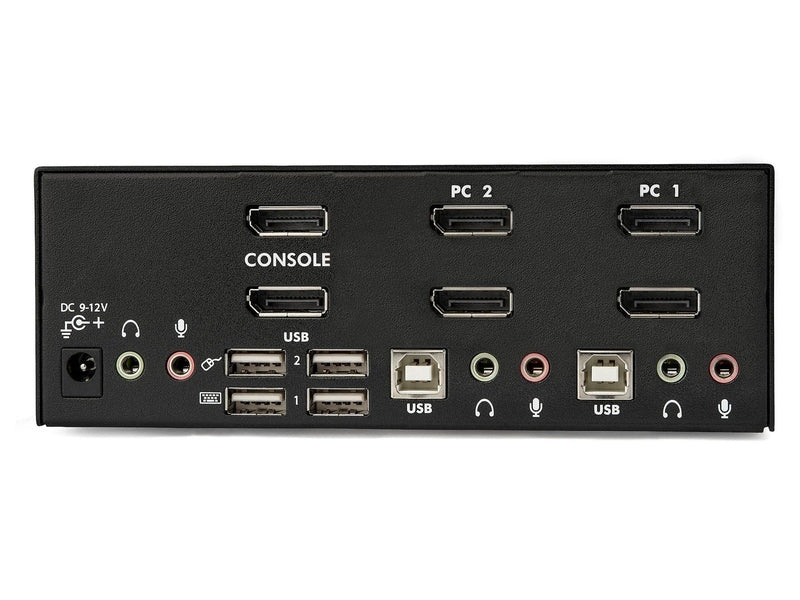

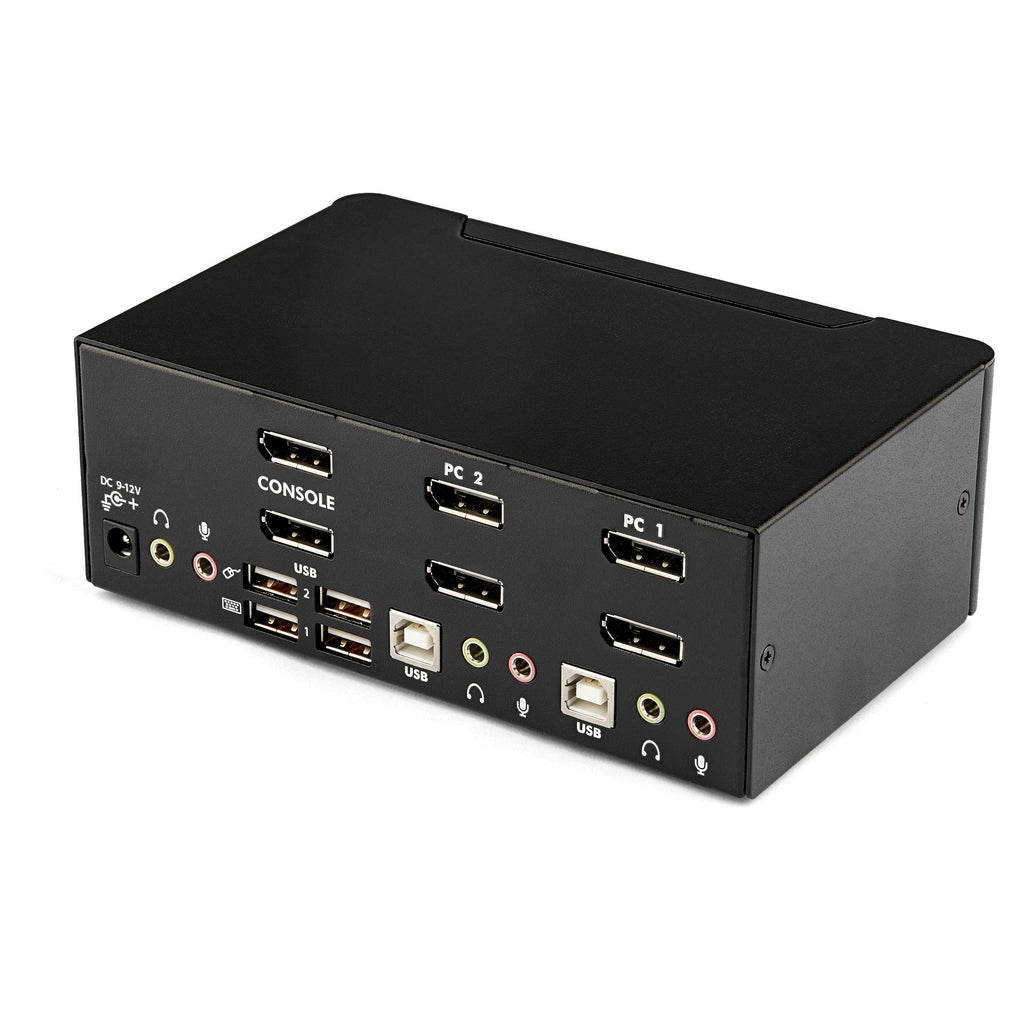

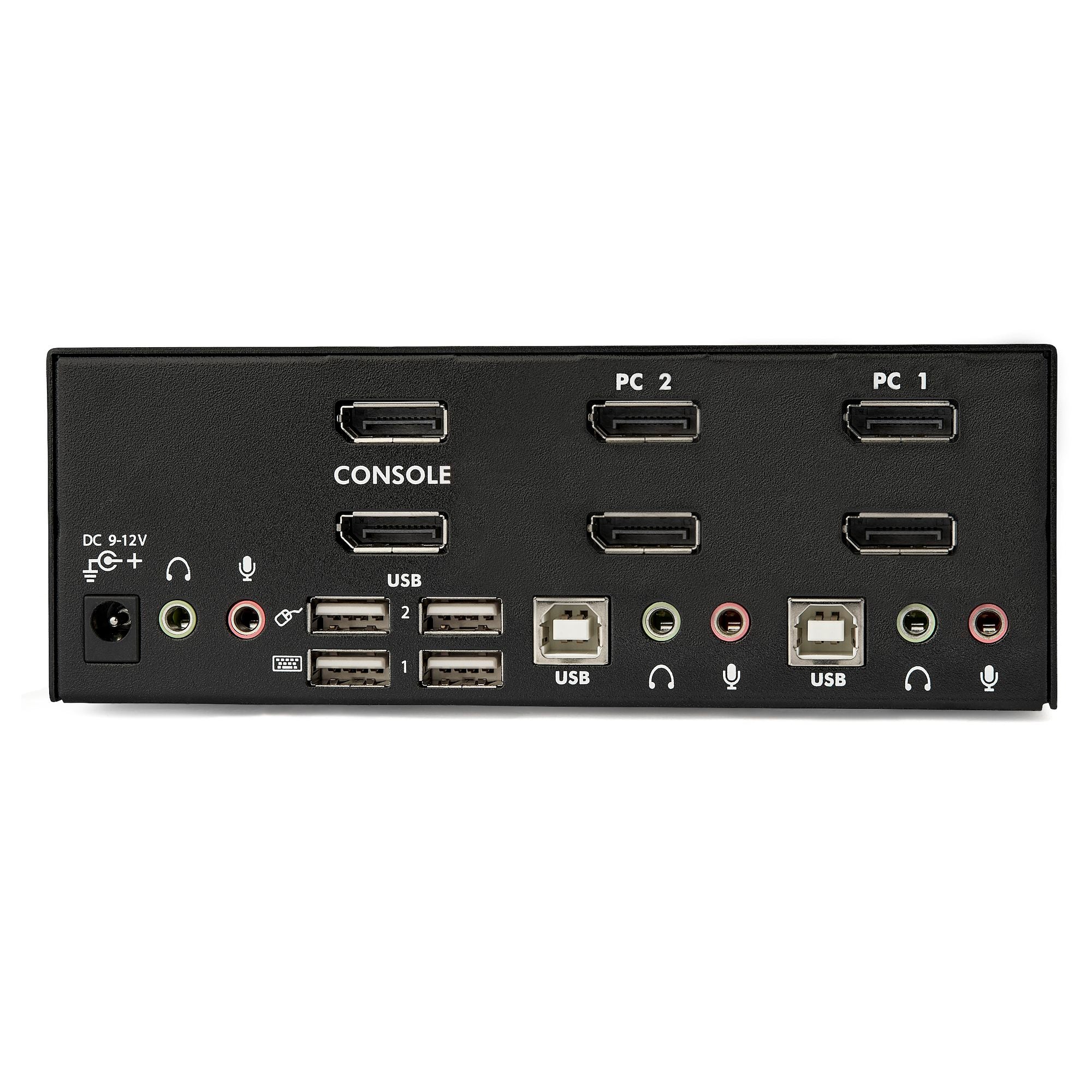

Connector(s)
Console Interface(s) 2 - 3.5 mm Mini-Jack (3 Position)
2 - DisplayPort (20 pin)
4 - USB 2.0 Type-A (4 pin, 480Mbps)
Host Connectors 2 - USB B (4 pin)
4 - 3.5 mm Mini-Jack (3 Position)
4 - DisplayPort (20 pin)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 50°C (-4°F to 140°F)
Humidity 0~80% RH
Hardware
Audio Yes
KVM Ports 2
PC Interface USB
PC Video Type DisplayPort
Number of Monitors Supported 2
Rack-Mountable No
Cables Included No
Daisy-Chain No

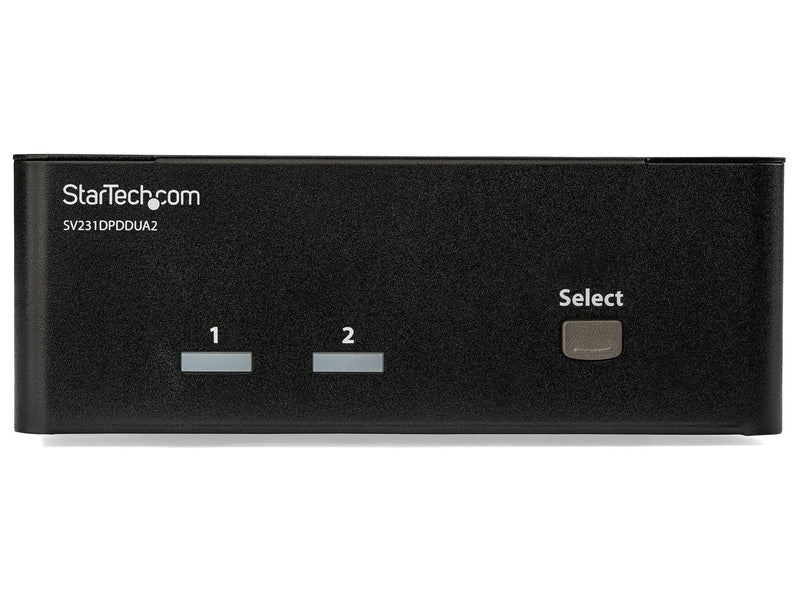

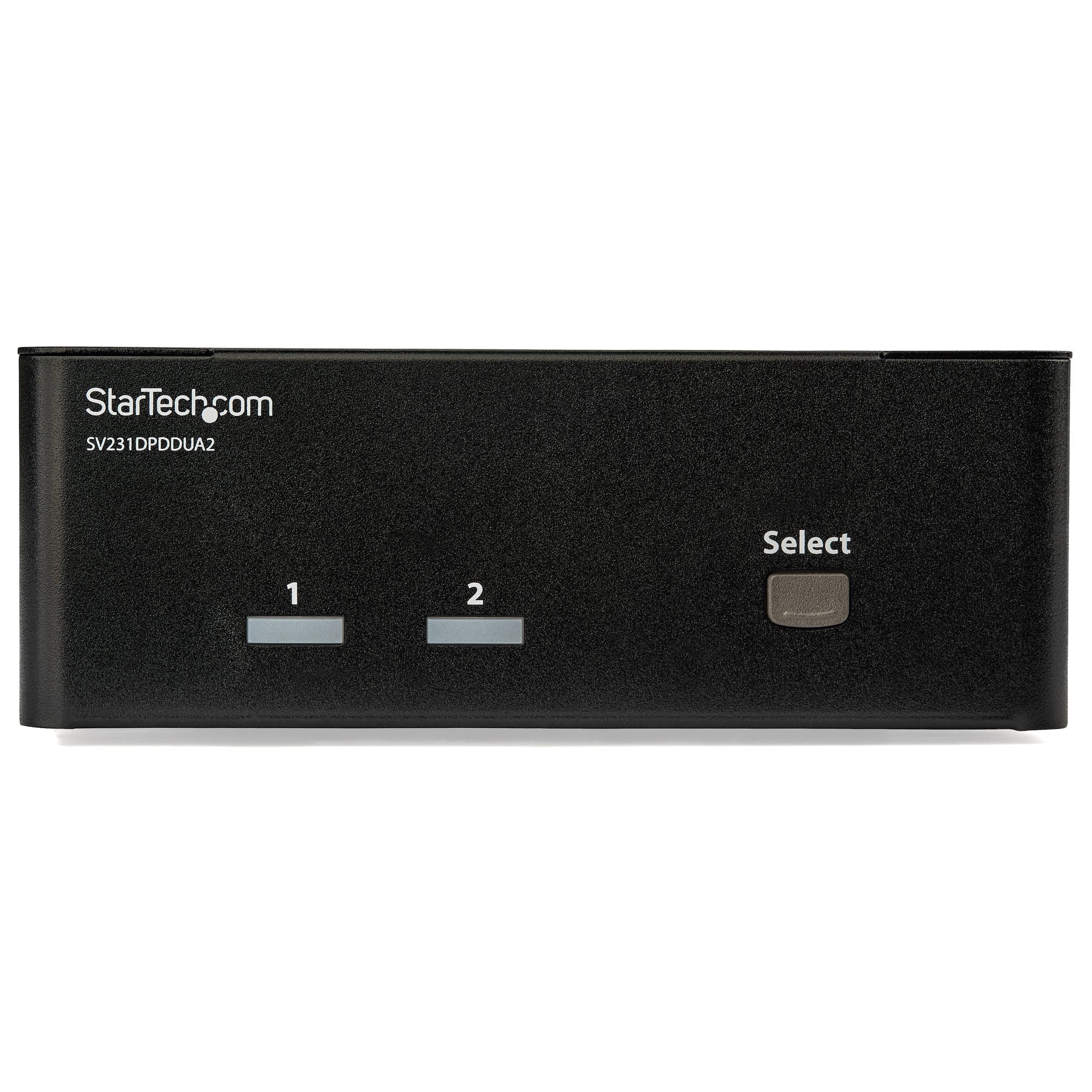

LED Indicators 2 - computer LEDs
Packaging Information
Package Height 3.9 in [10.0 cm]
Package Length 7.4 in [18.8 cm]
Package Width 9.8 in [25.0 cm]
Shipping (Package) Weight 2.7 lb [1.2 kg]
Package Quantity 1
Performance
On-Screen Display No
DVI Support No
IP Control No
Hot-Key Selection Yes
Maximum Digital Resolutions 3840 x 2160 (Ultra HD 4K) @ 60Hz
Supported Resolutions 1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1600
3840 x 2160 (4K) @ 60Hz
Aspect Ratio 16:9
Wide Screen Supported Yes
Maximum Number of Users 1
Port Selection Support Push Button and Hotkeys
MTBF 138000 hours
Physical Characteristics
Product Length 3.9 in [100.0 mm]
Product Width 6.3 in [16.1 cm]
Product Height 2.3 in [5.8 cm]
Product Depth 3.9 in [100 mm]
Weight of Product 25.9 oz [734.0 g]
Color Black
Material Steel
Power
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 0.6 A
Output Voltage 12V DC
Output Current 1.5 A
Center Tip Polarity Positive
What's in the Box
Included in Package 1 - KVM switch
1 - universal power adapter (NA/JP, EU, UK, ANZ)
4 - rubber feet
1 - instruction manual
