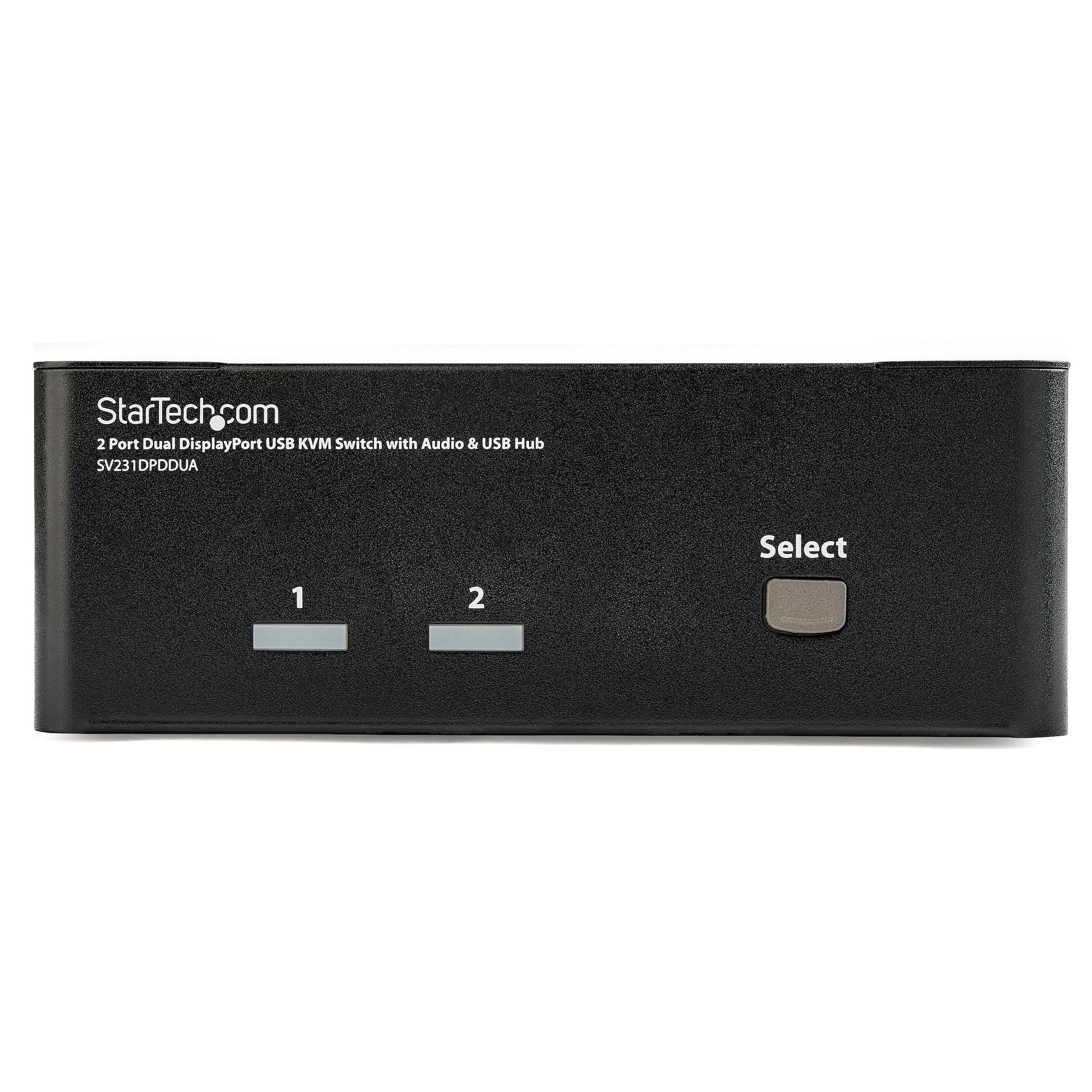

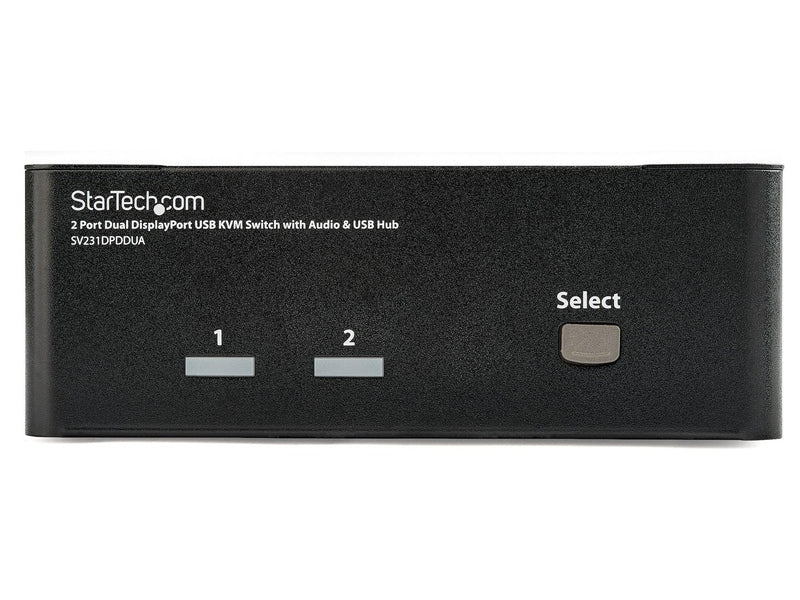

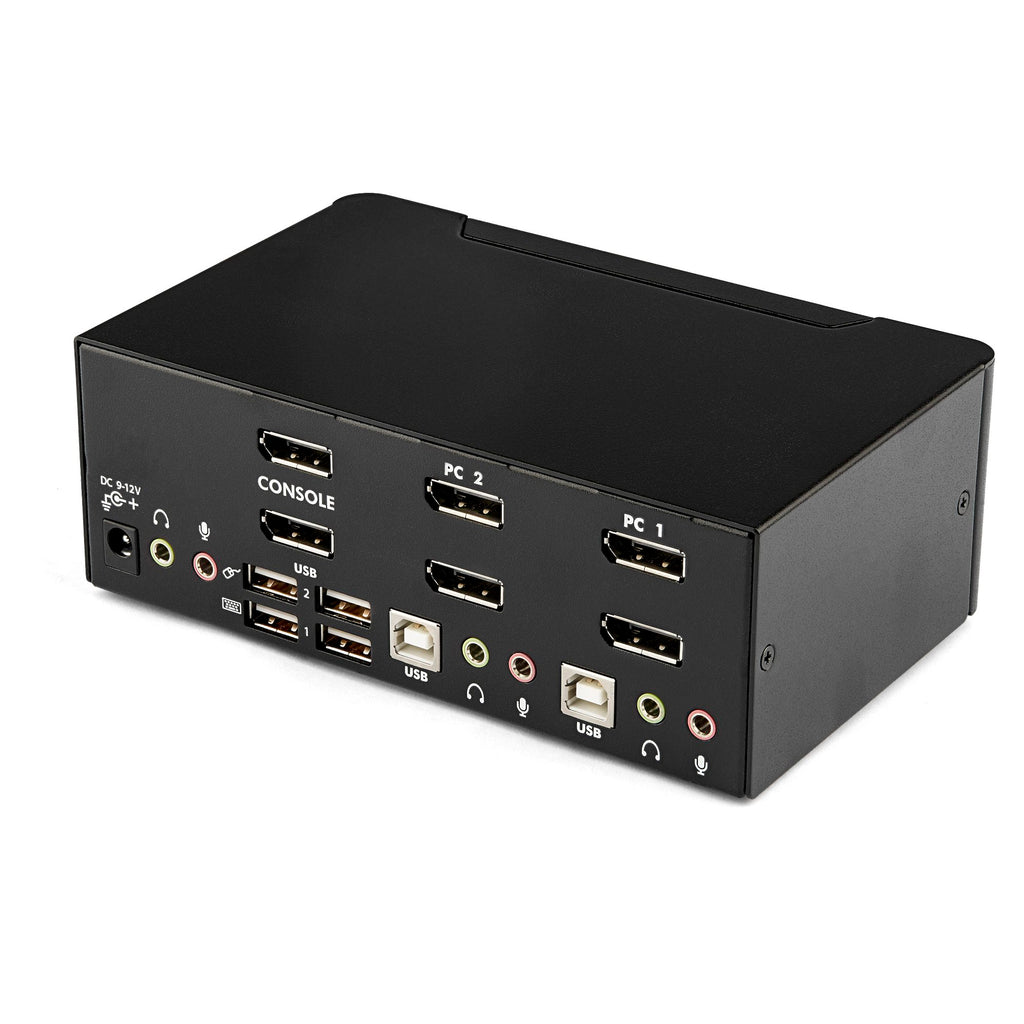

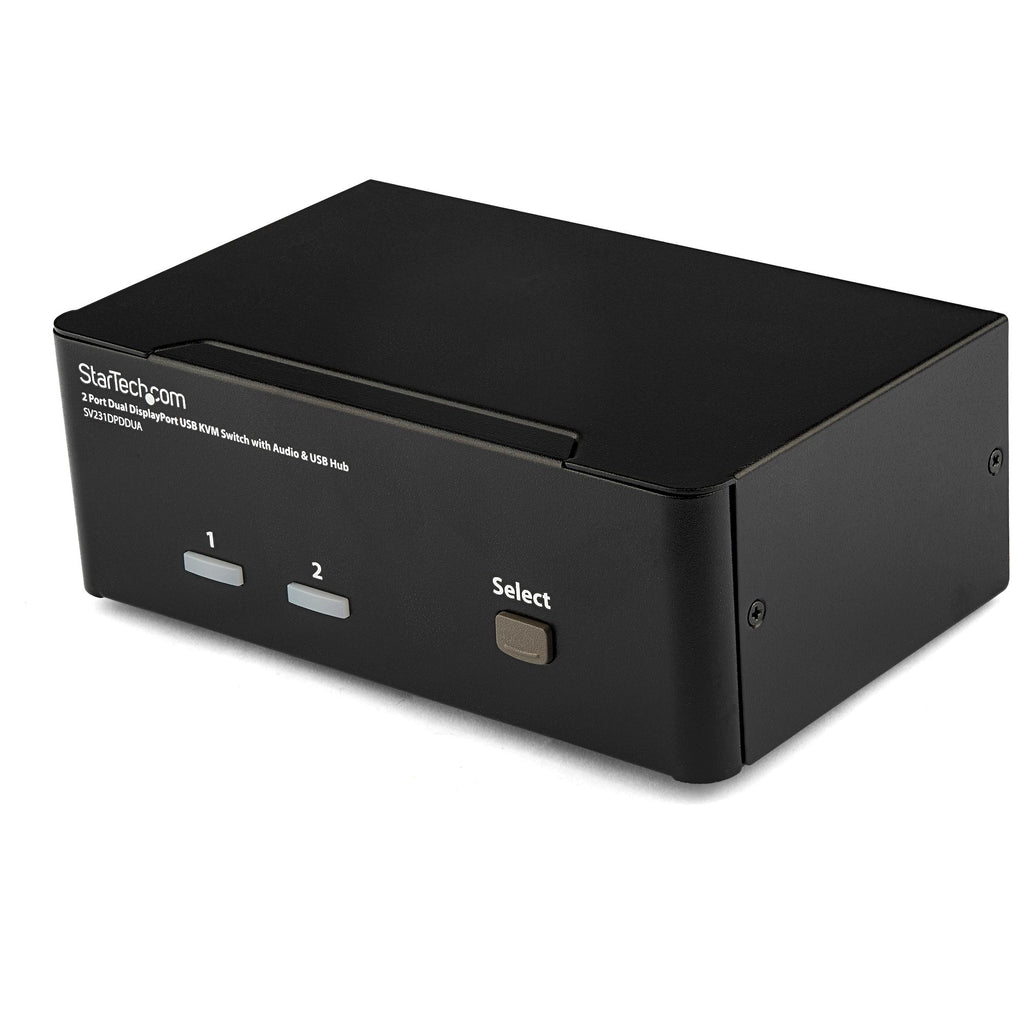

2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.


| 2-Port Dual Display DisplayPort KVM Switch Specifications | |
|---|---|
| Connector(s) | |
| Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) 2 - DisplayPort (20 pin) 4 - USB 2.0 Type-A (4 pin, 480Mbps) |

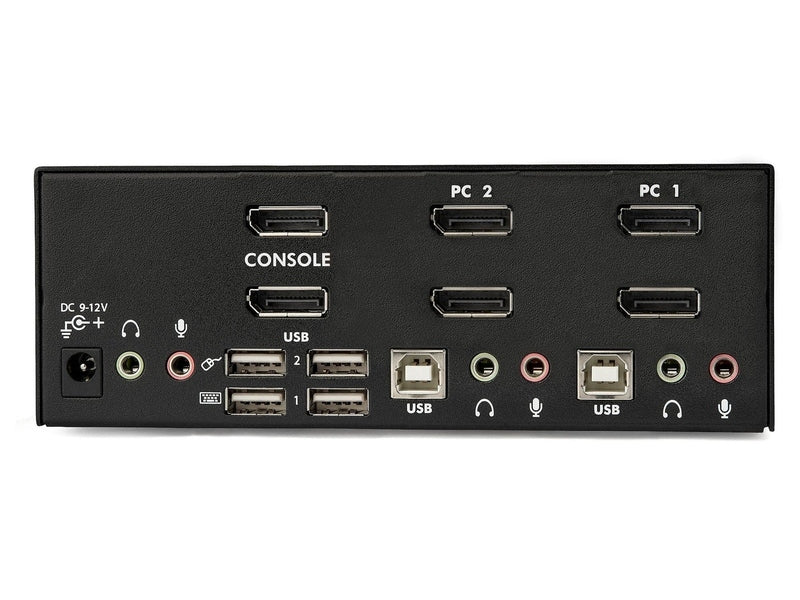

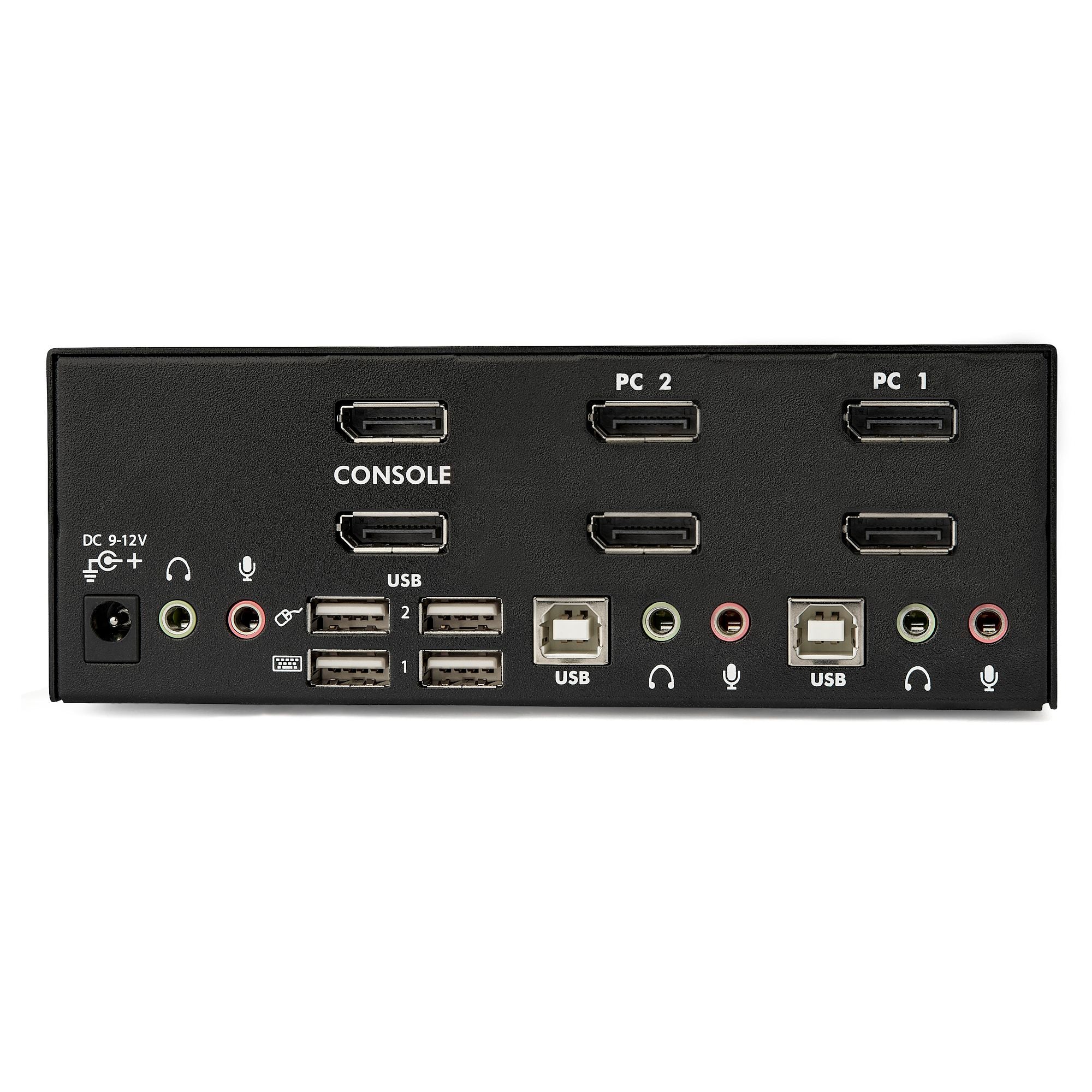

| Host Connectors | 4 - 3.5 mm Mini-Jack (3 Position) 4 - DisplayPort (20 pin) 2 - USB B (4 pin) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 2 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
| LED Indicators | 2 - Green - On-Line 2 - Red - Selected PC |
| Packaging Information | |
| Package Height | 3.9 in [10.0 cm] |
| Package Length | 7.4 in [18.8 cm] |
| Package Width | 9.9 in [25.2 cm] |
| Shipping (Package) Weight | 2.6 lb [1.2 kg] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | WQXGA - 2560 x 1600 |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 138000 hours |
| Physical Characteristics | |
| Weight of Product | 25.9 oz [734 g] |
| Color | Black |
| Material | Steel |
| Product Width | 6.3 in [16.1 cm] |
| Product Height | 2.3 in [5.8 cm] |
| Product Depth | 3.9 in [100 mm] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 18W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 1 - 2-port dual display DisplayPort KVM 1 - universal power adapter (NA/EU/UK/AU) 1 - instruction manual |
