Description
Overview

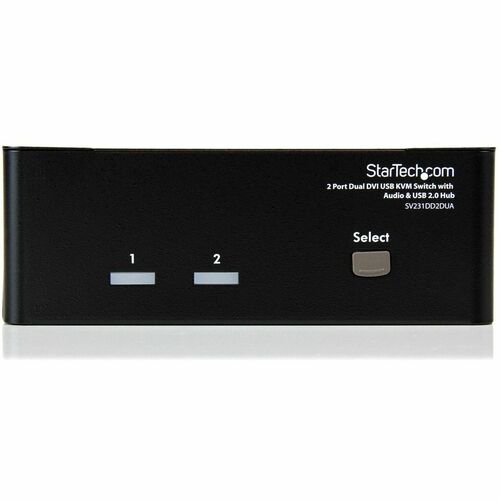

- Front panel push-buttons and Hot-key functions for easy switching
- Supports resolutions up to 1920x1200 (DVI-Digital)
- USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)

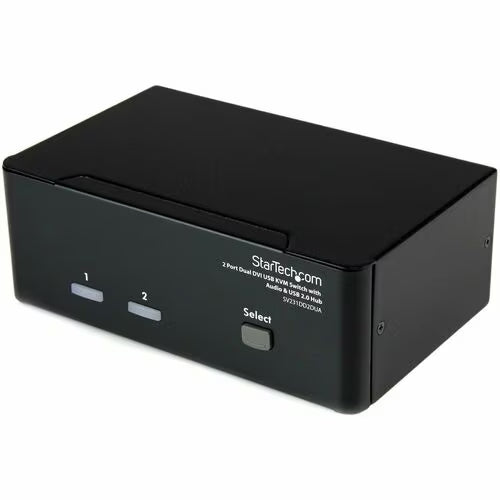

The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Specifications
- Front panel push-buttons and Hot-key functions for easy switching
- Supports resolutions up to 1920x1200 (DVI-Digital)
- USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.)
The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Specifications
HARDWARE | |
---|---|
Audio | Yes |
Cables Included | No |
Daisy-Chain | No |
KVM Ports | 2 |
Number of Monitors Supported | 2 |
PC Interface | USB |
PC Video Type | DVI |
Rack-Mountable | No |
PERFORMANCE | |
DVI Support | Yes - Single Link |
Hot-Key Selection | Yes |
IP Control | No |
Maximum Digital Resolutions | 1920 x 1200 |
Maximum Number of Users | 1 |
MTBF | 144000 hours |
On-Screen Display | No |
Port Selection Support | Push Button and Hotkeys |

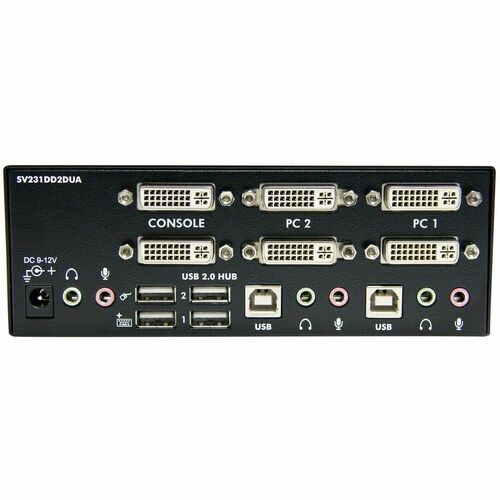

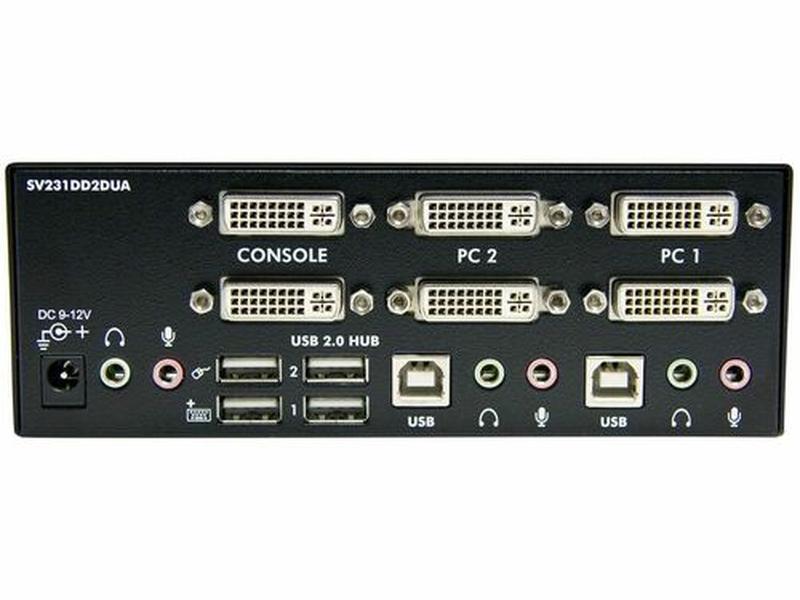

CONNECTOR(S) | |
Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) Female |
2 - DVI-I (29 pin) Female | |
4 - USB Type-A (4 pin) USB 2.0 Female | |
Host Connectors | 2 - USB B (4 pin) Female |
4 - 3.5 mm Mini-Jack (3 Position) Female | |
4 - DVI-I (29 pin) Female | |
SOFTWARE | |
OS Compatibility | OS independent; No software or drivers required |
SPECIAL NOTES / REQUIREMENTS | |
Note | This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables. |
INDICATORS | |
LED Indicators | 1 - Green - Power |
4 - Green - Host Online, Red - Host Selected | |
POWER | |
Center Tip Polarity | Positive |
Input Current | 0.8A |
Input Voltage | 110V-240V AC |
Output Current | 1.5A |
Output Voltage | 12 DC |
Plug Type | M |
Power Consumption (In Watts) | 18 |
Power Source | AC Adapter Included |
ENVIRONMENTAL | |
Humidity | 90% RH |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
PHYSICAL CHARACTERISTICS | |
Color | Black |
Enclosure Type | Steel |
Product Depth | 3.9 in [100 mm] |
Product Height | 2.2 in [5.7 cm] |
Product Length | 6.4 in [16.3 cm] |
Product Width | 6.3 in [16 cm] |
Weight of Product | 27.5 oz [779 g] |
