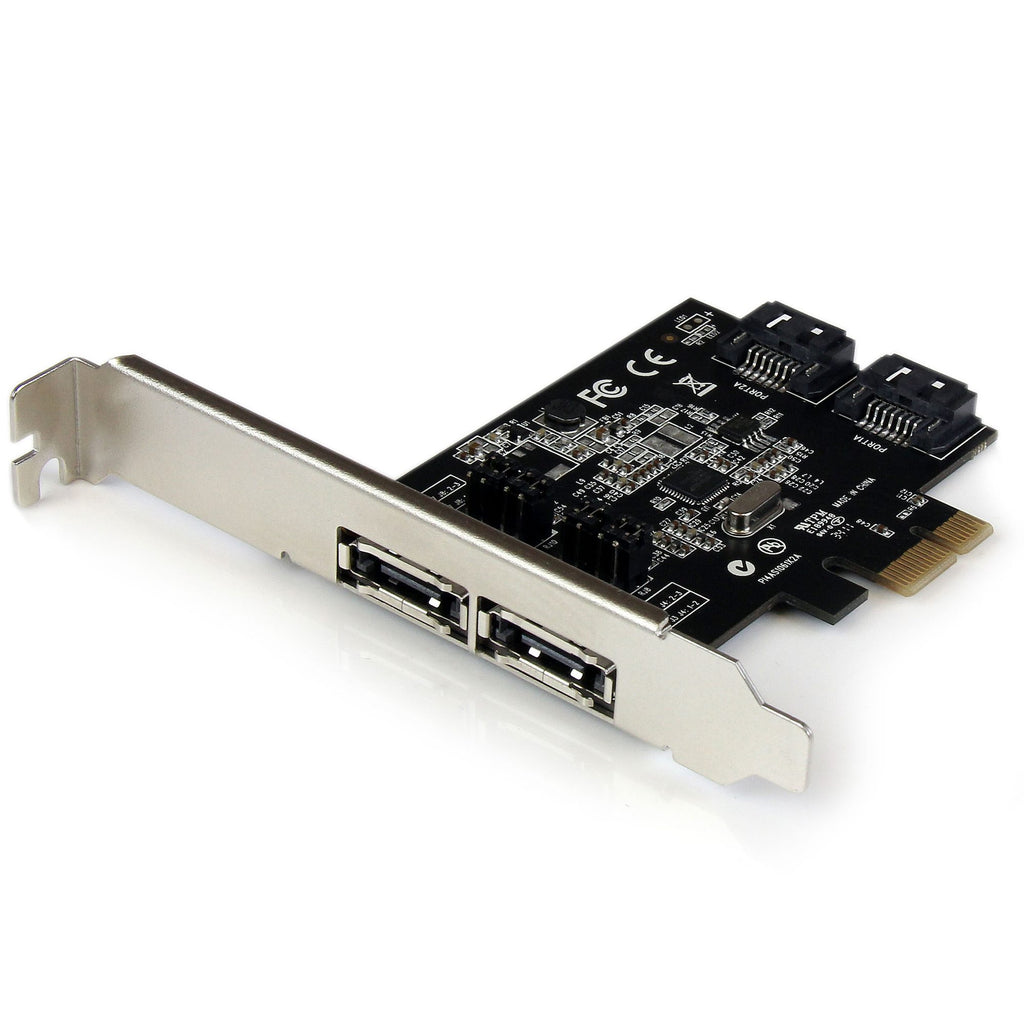

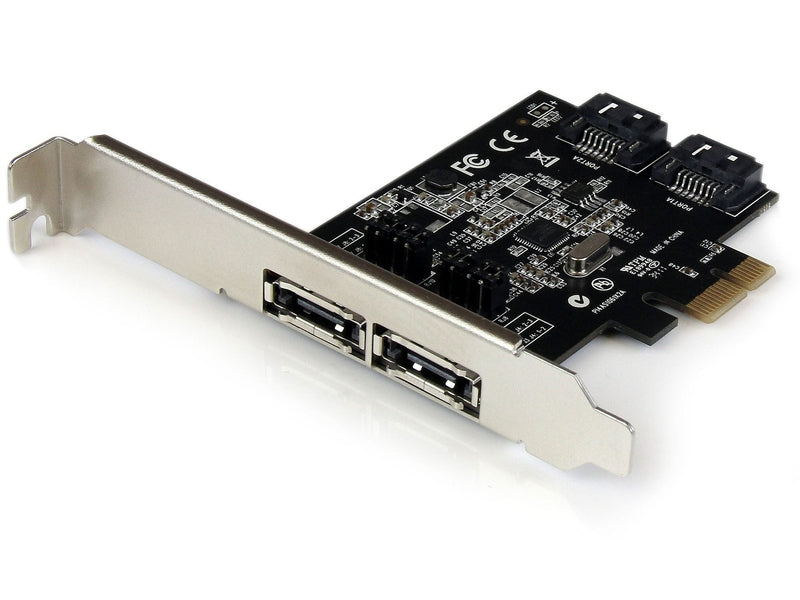

2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot

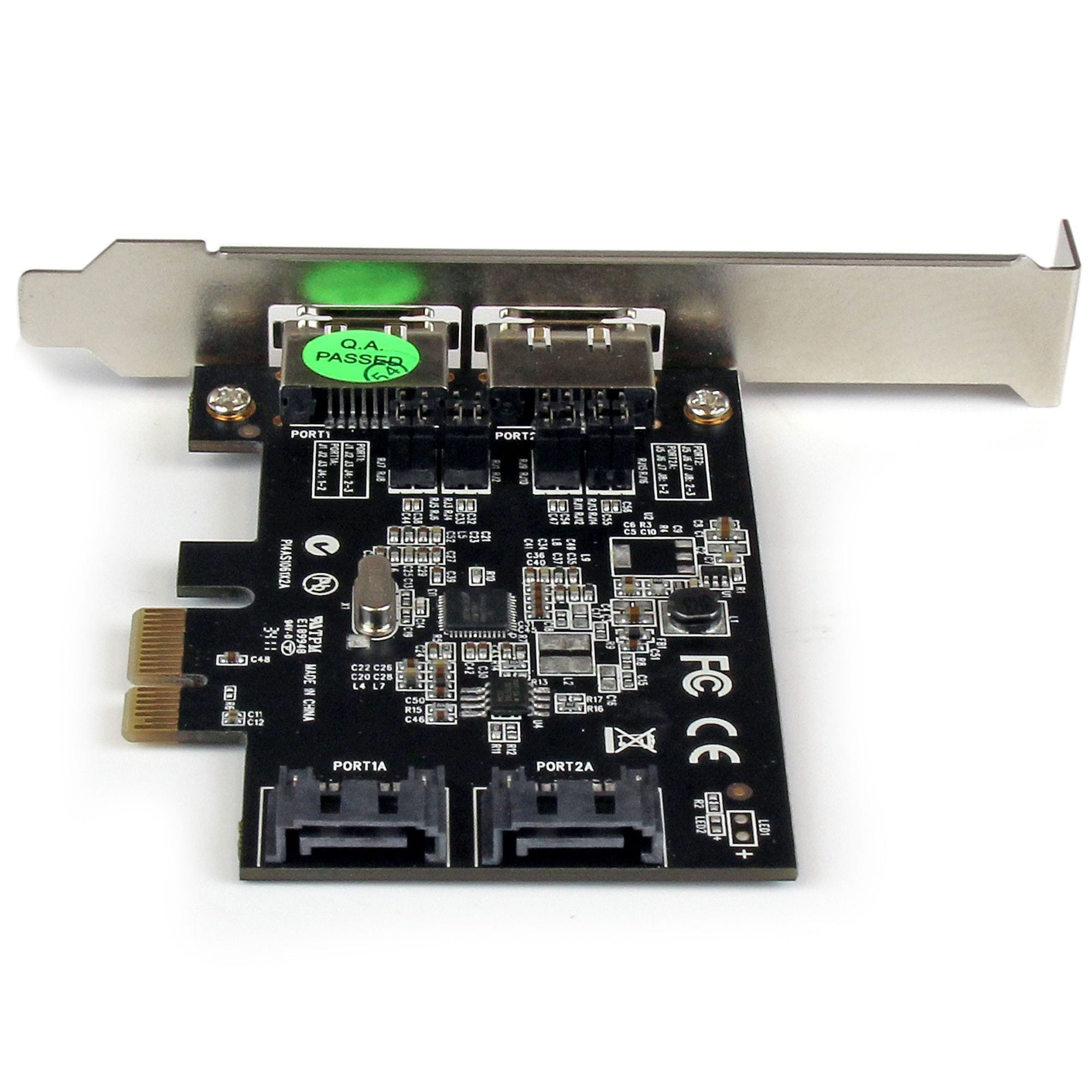

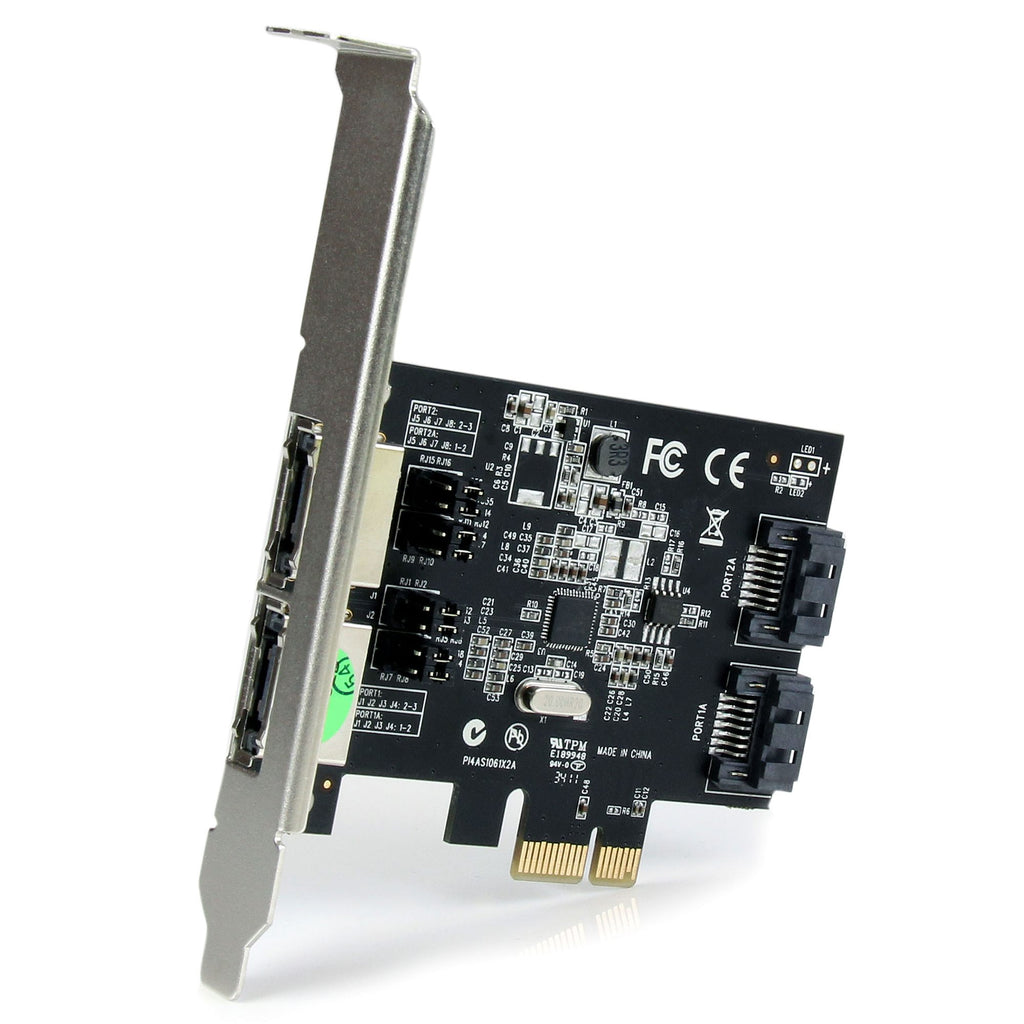

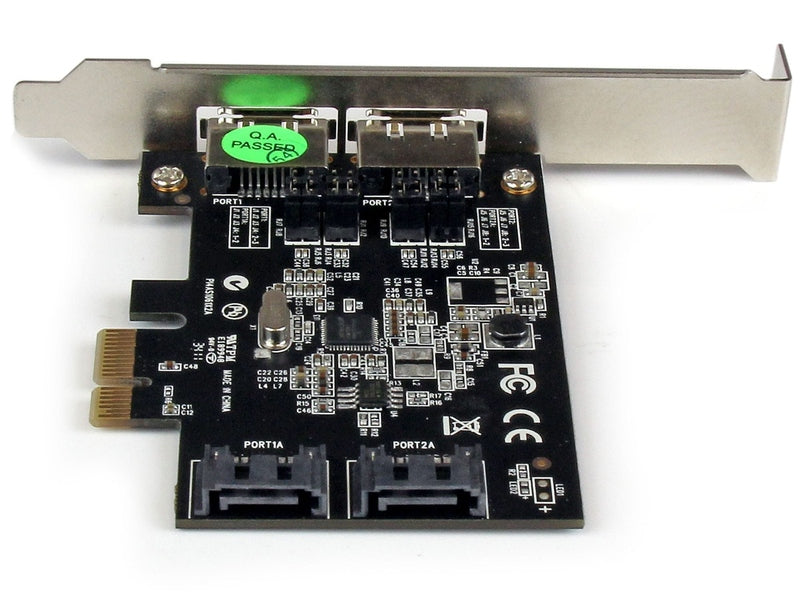

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
| PCIe SATA Controller Card Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × PCI Express x1 |
| Internal Ports | 2 × SATA (7 pin, Data) |

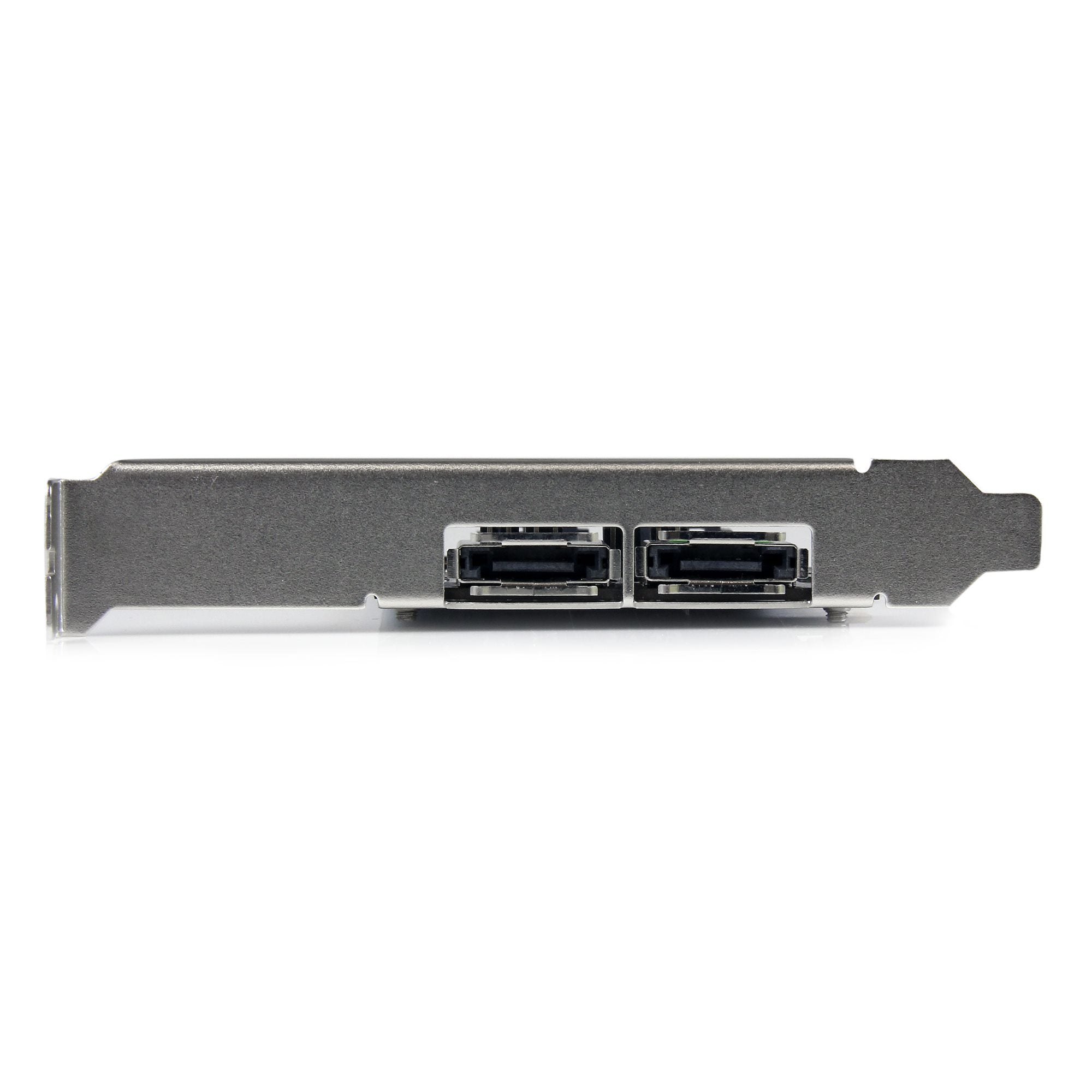

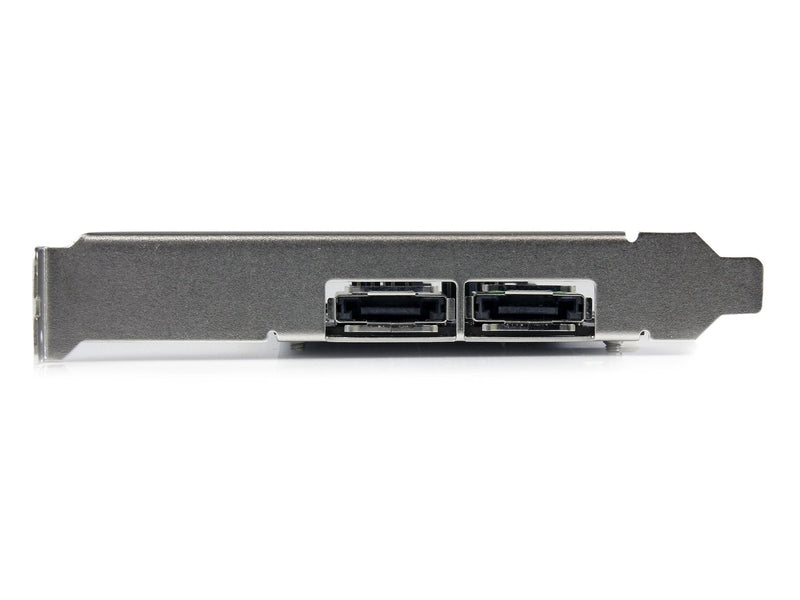

| External Ports | 2 × eSATA (7 pin, Data) |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5%–85% RH |
| Hardware | |
| Ports | 2 |
| Interface | eSATA & SATA |
| Bus Type | PCI Express |
| Card Type | Standard Profile (Low Profile bracket included) |
| Port Style | Integrated on Card |
| Chipset ID | ASMedia ASM1061 |
| Packaging Information | |
| Package Height | 1.2 in [3.0 cm] |
| Package Length | 6.5 in [16.6 cm] |
| Package Width | 5.7 in [14.4 cm] |
| Package Weight | 5.2 oz [148.0 g] |
| Package Quantity | 1 |
| Performance | |
| 4Kn Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| Port Multiplier | Yes |
| Ports Supporting Port Multiplier | 2 (can use 2 PM at a time) |
| Drives Supported via Port Multiplier | 1 to 8 |
| Bootable | Yes |
| LBA Support | 48-bit |
| Hardware RAID Supported | No |
| ATAPI Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Length | 4.8 in [12.1 cm] |
| Product Width | 3.6 in [9.2 cm] |
| Product Height | 0.8 in [2.0 cm] |
| Product Weight | 1.7 oz [48.0 g] |
| Power | |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 |
| What's in the Box | |
| Included Items | 1 × PCIe SATA Controller 1 × SATA Cable 1 × Low Profile Bracket 1 × Driver CD 1 × Instruction Manual |
