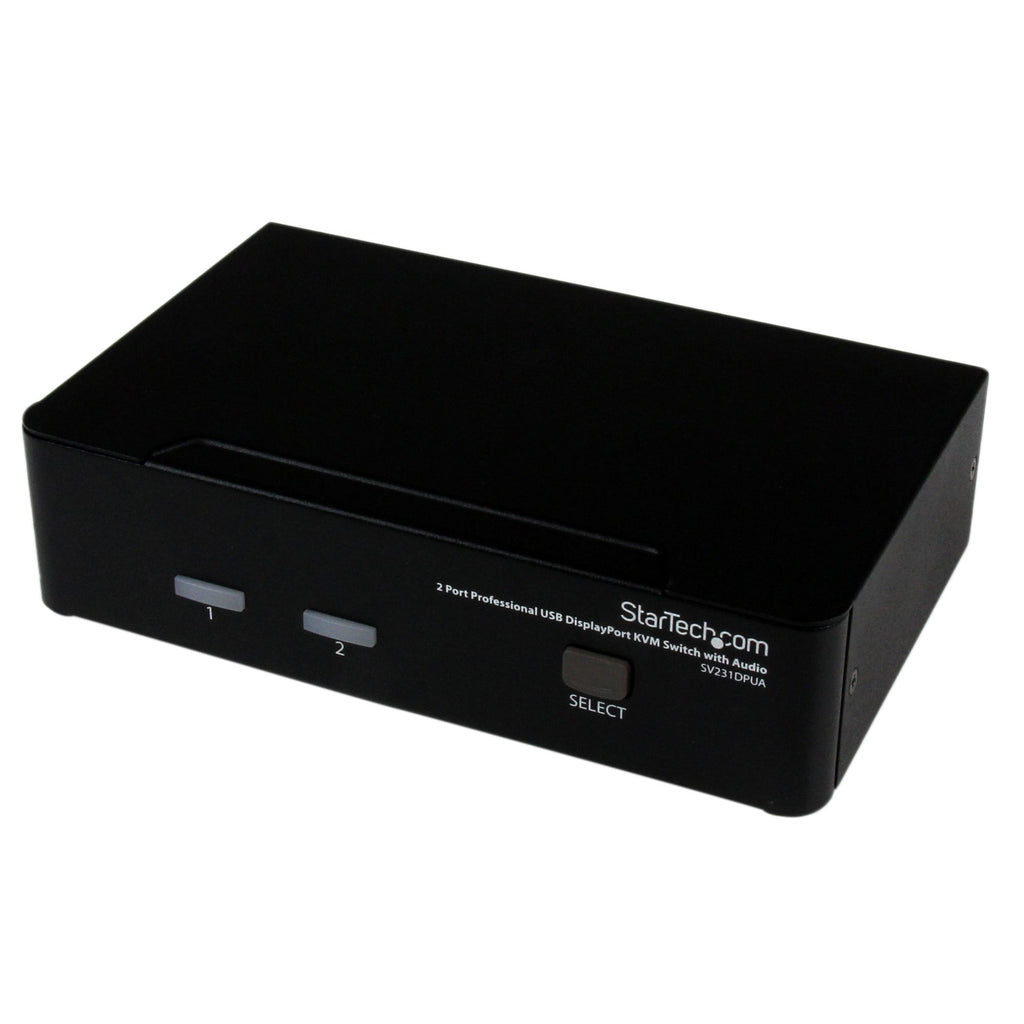

2 Port Professional USB DisplayPort KVM Switch with Audio - TAA
Control two computers from a single console, with high-resolution DisplayPort® video, USB keyboard, mouse, and audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

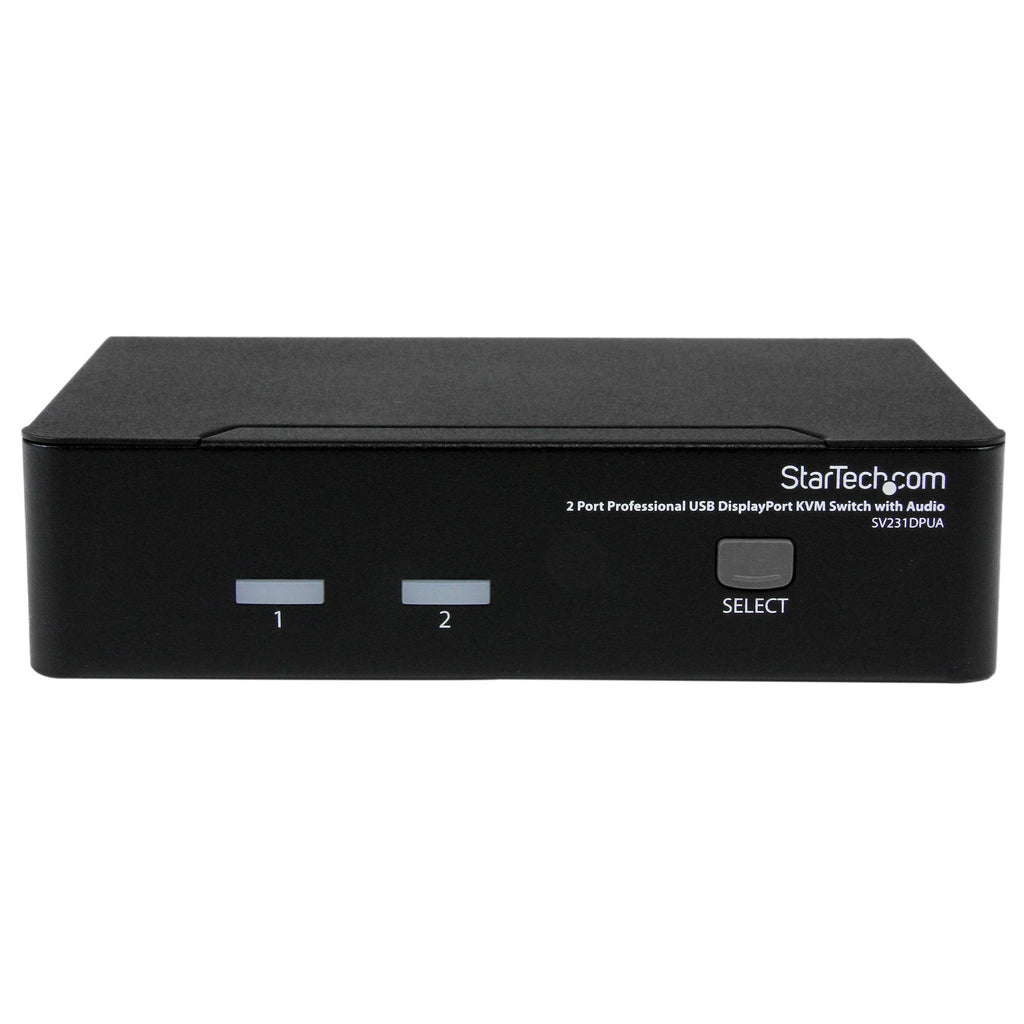

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
2 Port Professional USB DisplayPort KVM Switch with Audio - TAA
Control two computers from a single console, with high-resolution DisplayPort® video, USB keyboard, mouse, and audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
| 2-Port DisplayPort KVM Switch Specifications | |
|---|---|
| Connector(s) | |
| Console Interface(s) | 4 - USB 2.0 Type-A (4 pin, 480Mbps) 2 - 3.5 mm Mini-Jack (3 Position) 1 - DisplayPort (20 pin) |

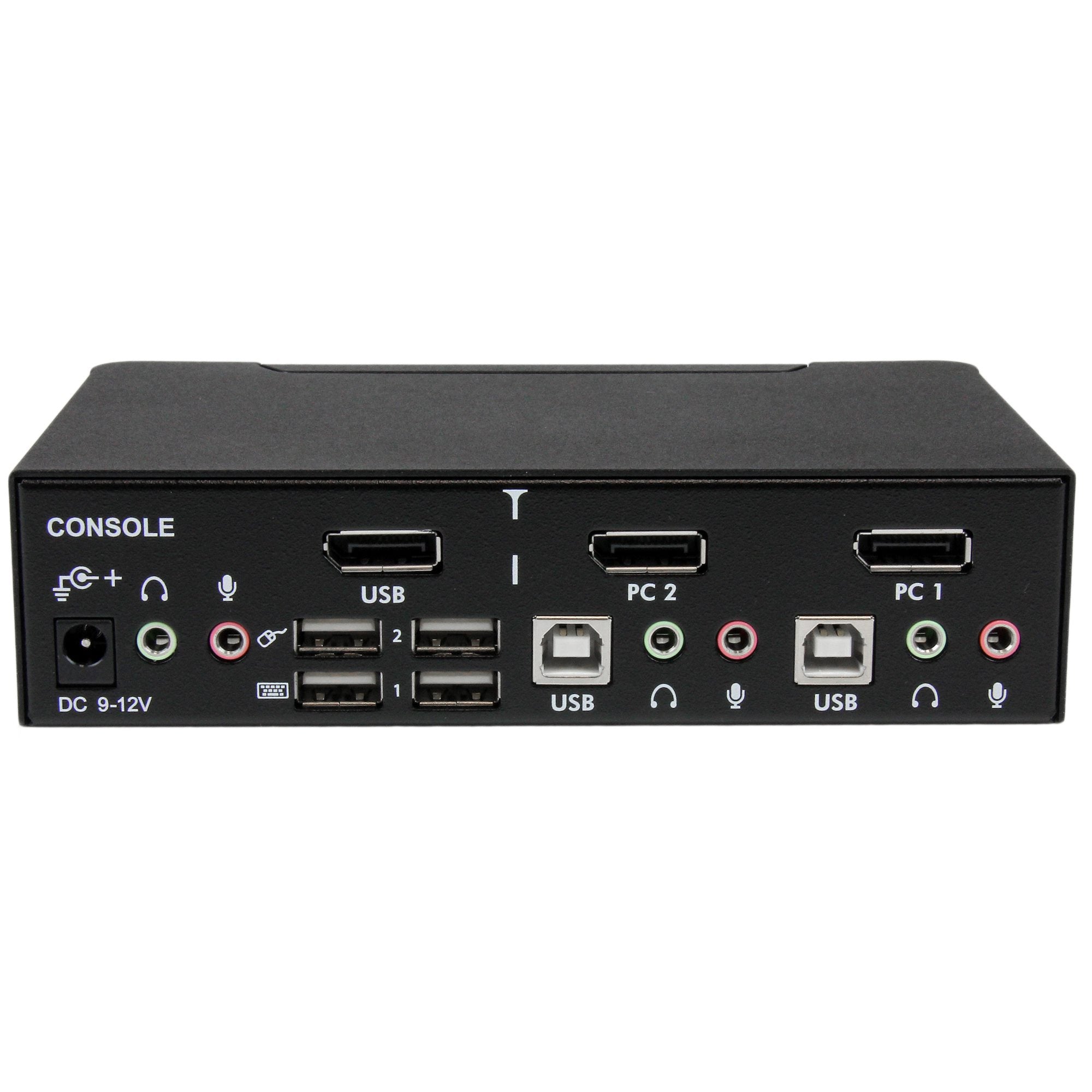

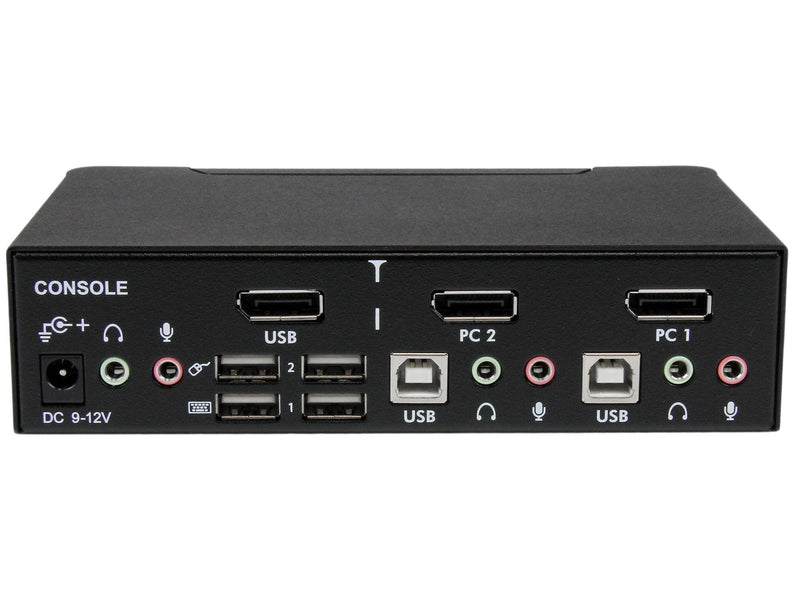

| Host Connectors | 2 - USB B (4 pin) 4 - 3.5 mm Mini-Jack (3 Position) 2 - DisplayPort (20 pin) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
| LED Indicators | 2 - Green - Online indicator (One LED per port) 2 - Red - Select indicator (One LED per port) |
| Packaging Information | |
| Package Quantity | 1 |
| Package Length | 7.4 in [18.7 cm] |
| Package Width | 10.1 in [25.6 cm] |
| Package Height | 3.9 in [9.9 cm] |
| Shipping (Package) Weight | 2.4 lb [1.1 kg] |
| Performance | |
| On-Screen Display | No |
| DVI Support | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | 2560 x 1600 @ 60Hz |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 127000 hours |
| Physical Characteristics | |
| Product Length | 6.3 in [16.0 cm] |
| Product Width | 1.6 in [4.0 cm] |
| Product Height | 3.9 in [9.9 cm] |
| Product Depth | 5.1 in [130 mm] |
| Weight of Product | 1.4 lb [0.6 kg] |
| Color | Black |
| Material | Steel |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 24W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |

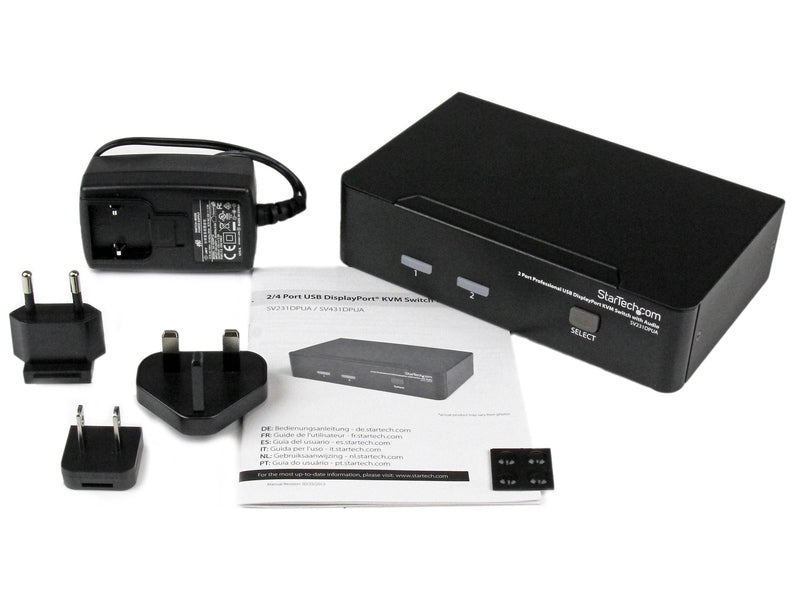

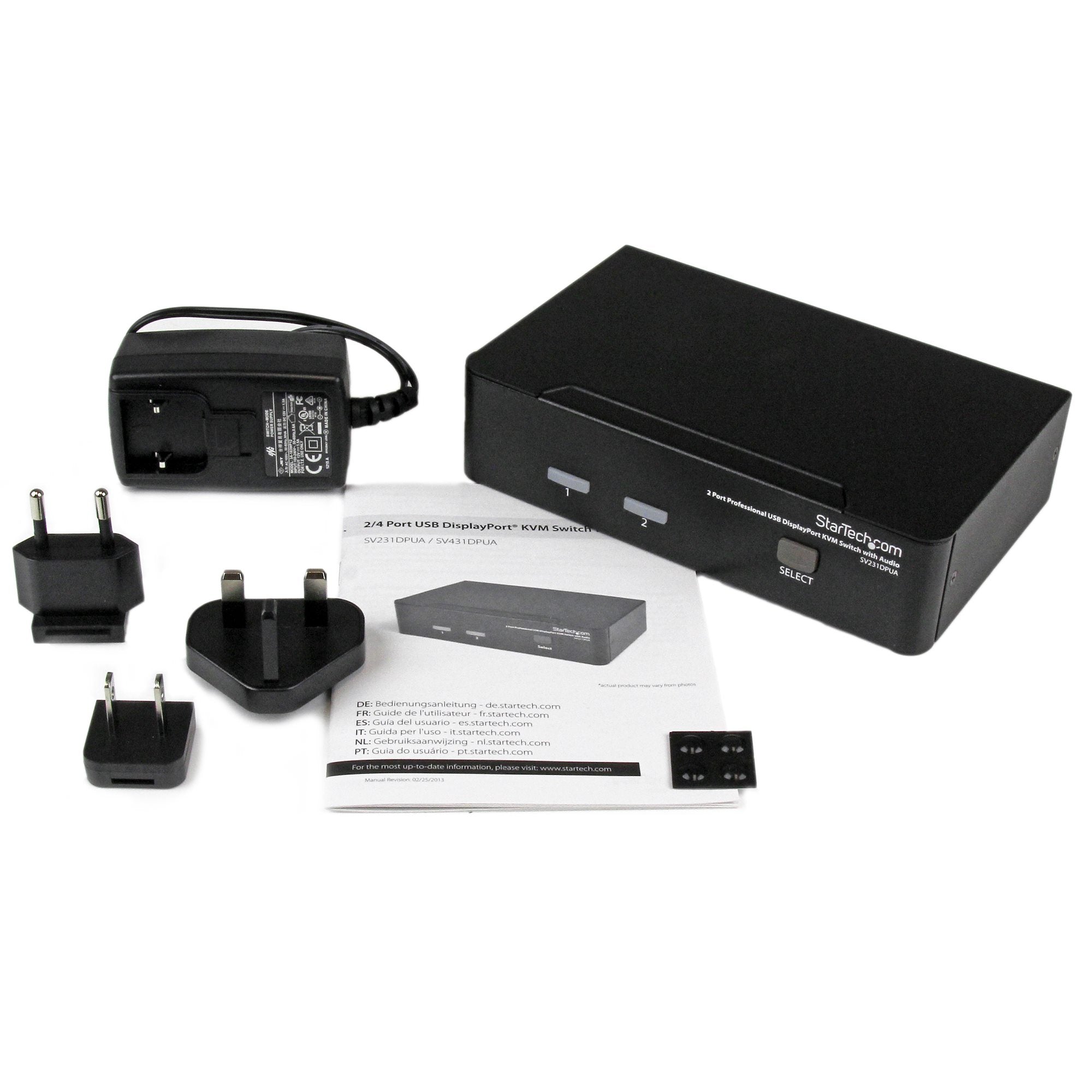

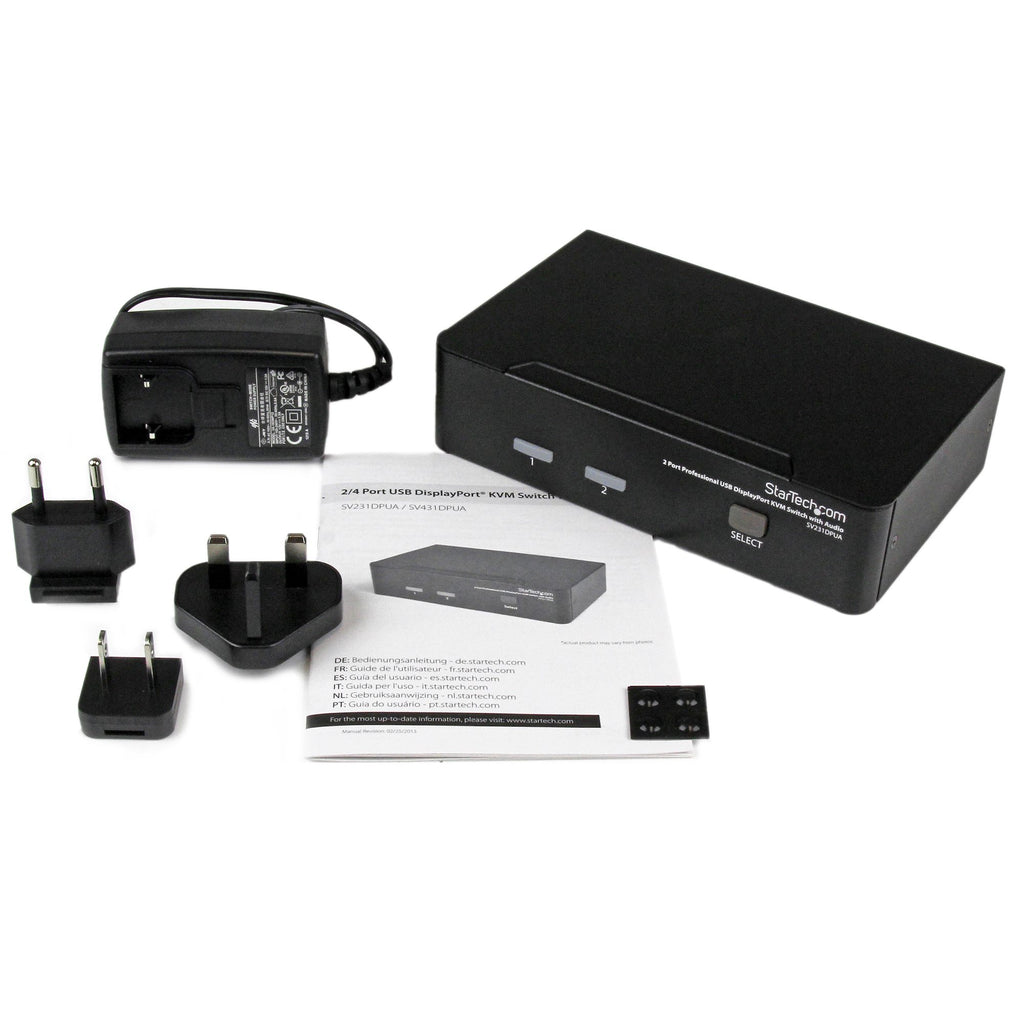

| Included in Package | 1 - 2-port DisplayPort KVM switch 4 - foot pads 1 - universal power adapter (NA/UK/EU/AU) 1 - instruction manual |
