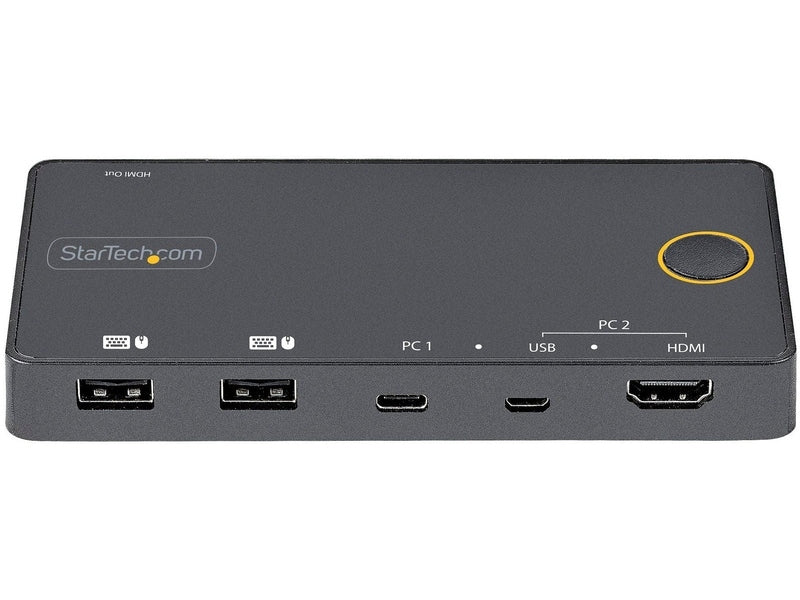

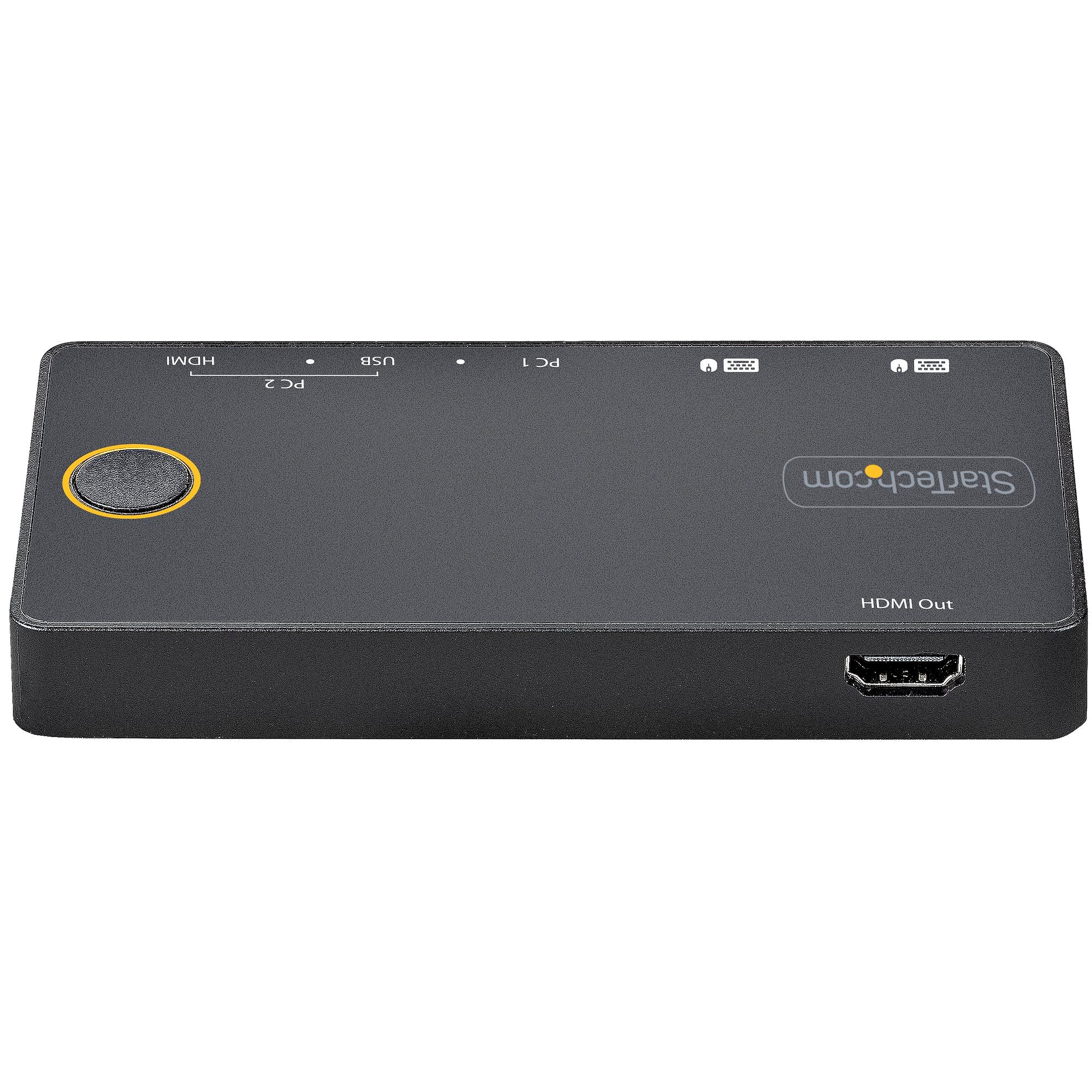

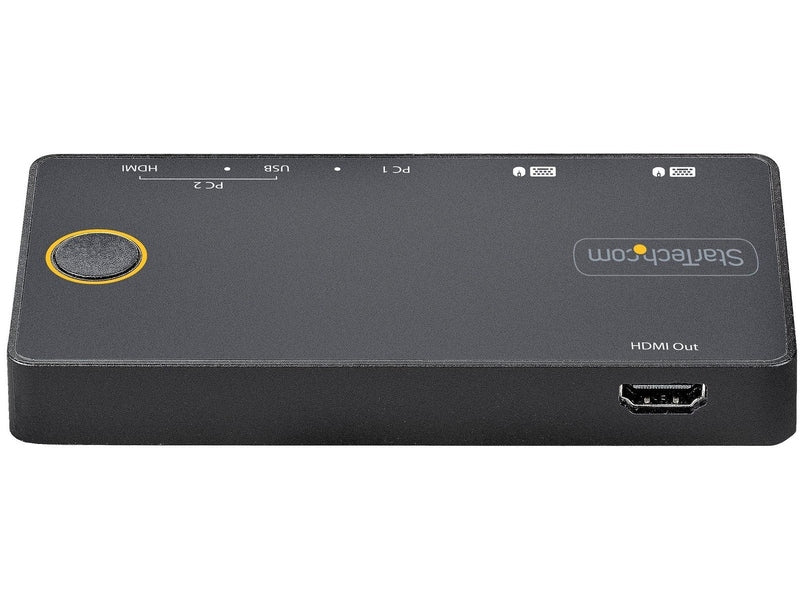

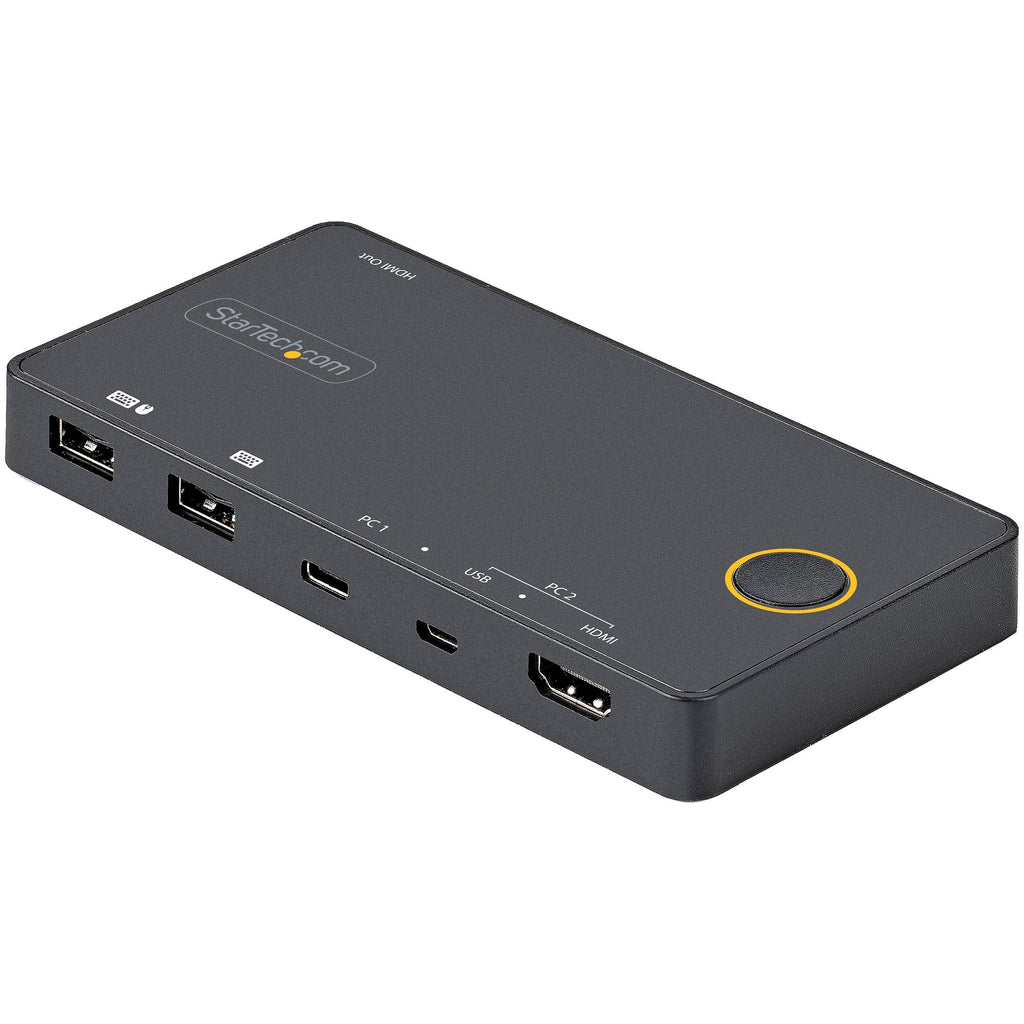

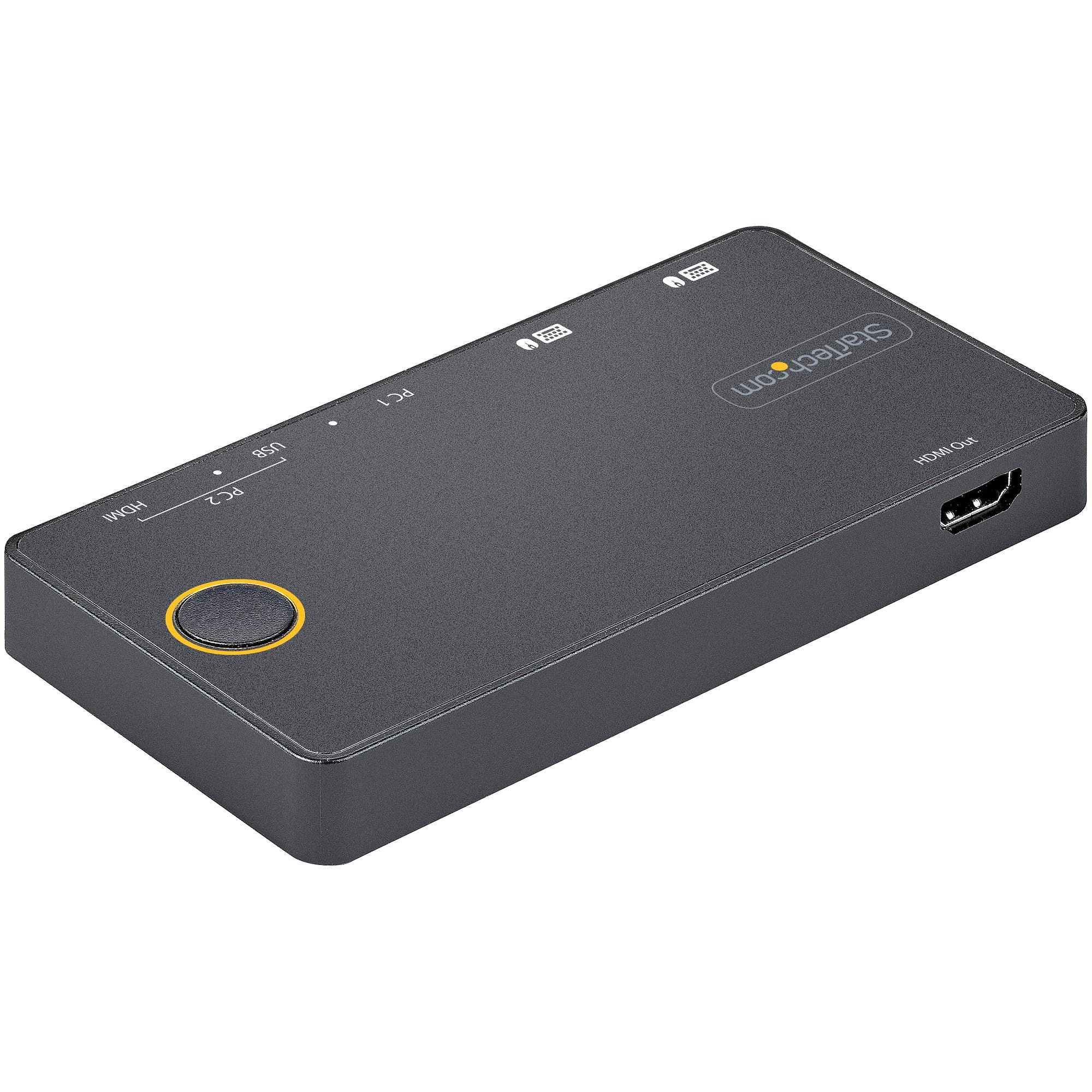

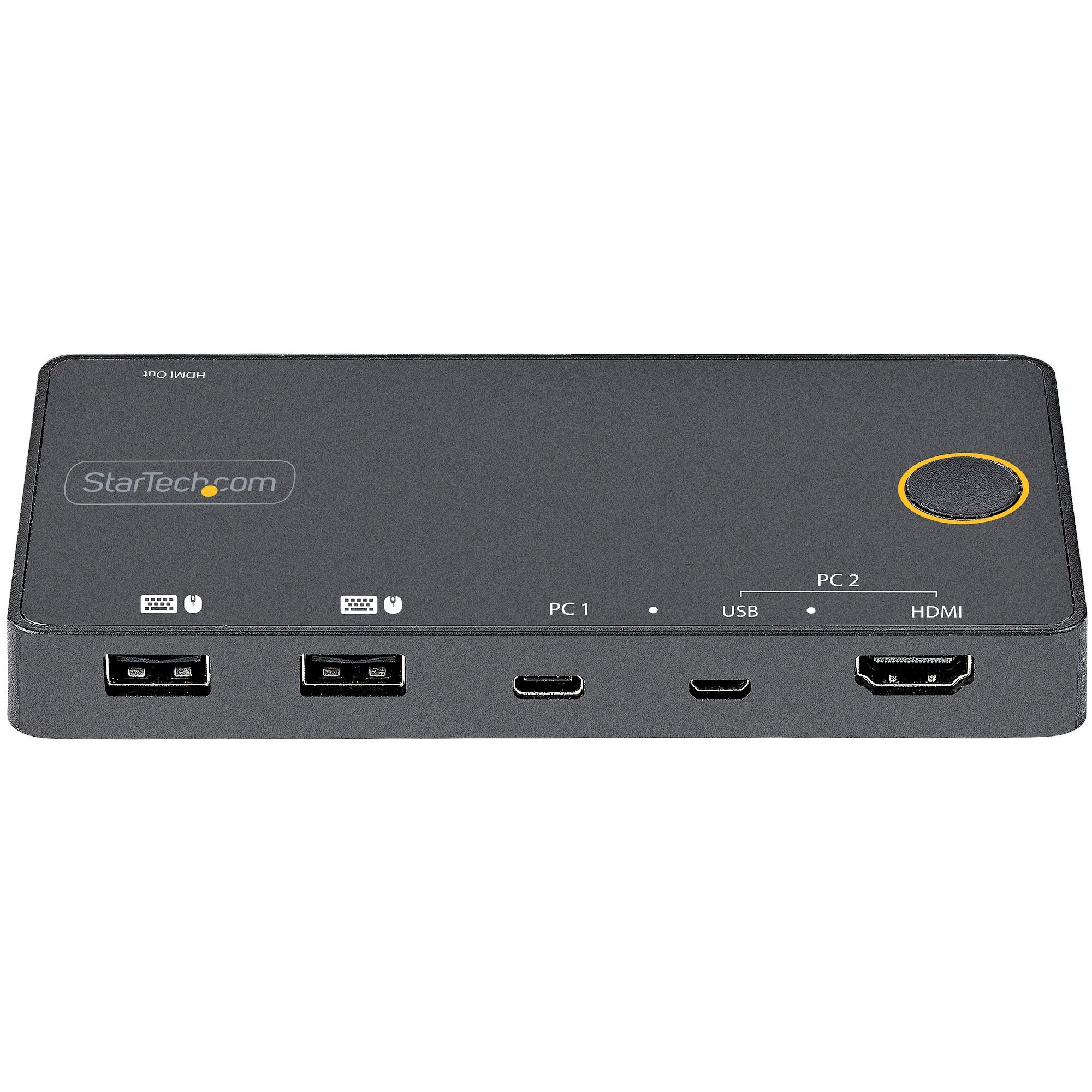

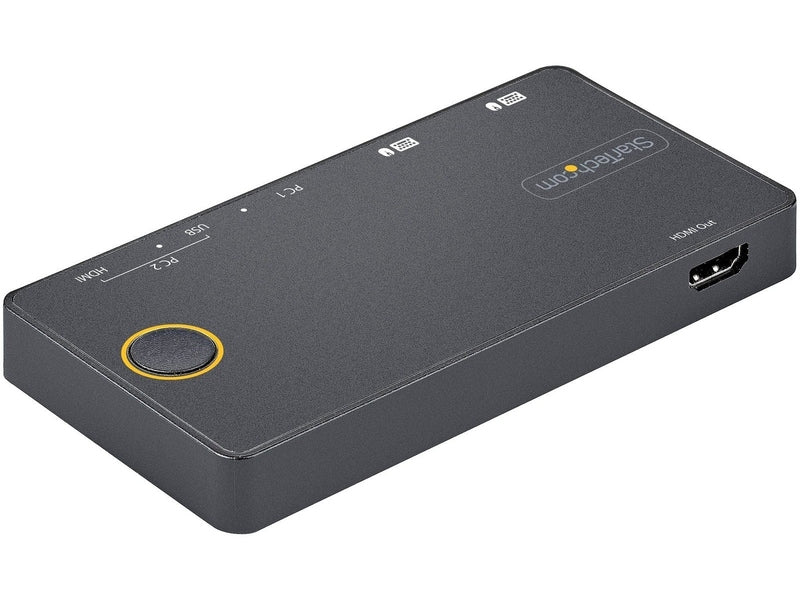

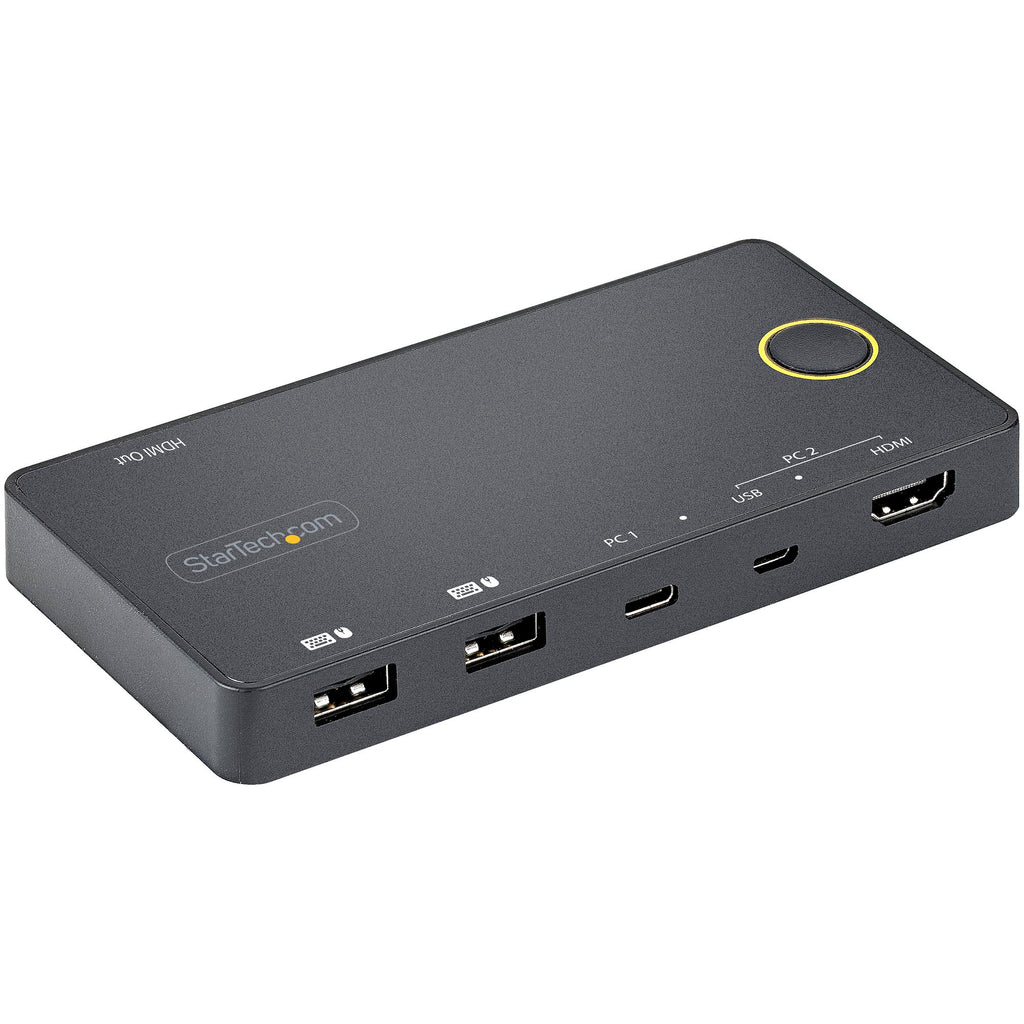

2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K 60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus Powered - Thunderbolt 3 Compatible - TAA
USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0
This 2-port USB-C™ / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt™ 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI® monitor and mouse.
Easy to Setup and Use
Utilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.
For easy operation, the KVM features a single button that toggles between connected computers.
Supports 4K 60Hz Resolutions
The USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.
Compact and Portable
Along with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.
Guaranteed Compatibility
The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.
2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K 60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus Powered - Thunderbolt 3 Compatible - TAA
USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0
This 2-port USB-C™ / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt™ 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI® monitor and mouse.
Easy to Setup and Use
Utilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.
PC 1 | PC 2 |
1x USB Type-C |
1x HDMI 2.0 |
For easy operation, the KVM features a single button that toggles between connected computers.
Supports 4K 60Hz Resolutions
The USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.
Compact and Portable
Along with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.
Guaranteed Compatibility
The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.
USB-C + HDMI KVM Switch Specifications | |
---|---|
Connector(s) | |
Console Interface(s) | 2 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - HDMI |
Host Connectors | 1 - HDMI 1 - Micro USB B Male 1 - USB Type-C (24-pin) USB 2.0 (480Mbps) |
Environmental | |
Operating Temperature | 5°C ~ 55°C |
Storage Temperature | -20°C ~ 50°C |
Humidity | 20%RH ~ 80%RH |
Hardware | |
Audio | Yes |
KVM Ports | 2 |
PC Interface | USB & USB-C |
PC Video Type | USB-C (DP Alt-Mode) + HDMI |
Number of Monitors Supported | 1 |
Rack-Mountable | No |
Cables Included | Yes |
Chipset ID | Parade - PS176 VLI - VL170 Terminus - FE1.1S |
Daisy-Chain | No |
LED Indicators | 2 - Port selection or active host |
Packaging Information | |
Package Height | 3.4 in [8.7 cm] |
Package Length | 5.0 in [12.6 cm] |
Package Width | 7.0 in [17.7 cm] |
Shipping (Package) Weight | 1.1 lb [0.5 kg] |
Package Quantity | 1 |
Performance | |
Video Revision | HDMI 2.0, DisplayPort 1.2 |
On-Screen Display | No |
IP Control | No |
Hot-Key Selection | No |
Maximum Data Transfer Rate | 480 Mbps |
Wide Screen Supported | Yes |
Audio Specifications | HDMI - 7.1 Channel Audio |
Port Selection Support | Push Button |
MTBF | 50,000 hrs |
Physical Characteristics | |
Color | Black |
Product Height | 0.6 in [1.5 cm] |
Product Length | 2.8 in [7.0 cm] |
Product Width | 5.4 in [13.8 cm] |
Weight of Product | 8.0 oz [228.0 g] |
Material | Plastic |
Power | |
Power Source | Bus Powered |
Special Notes / Requirements | |
Note | Your USB-C ports must support DisplayPort over USB-C (DP Alt mode) in order to work with this KVM switch |
What's in the Box | |

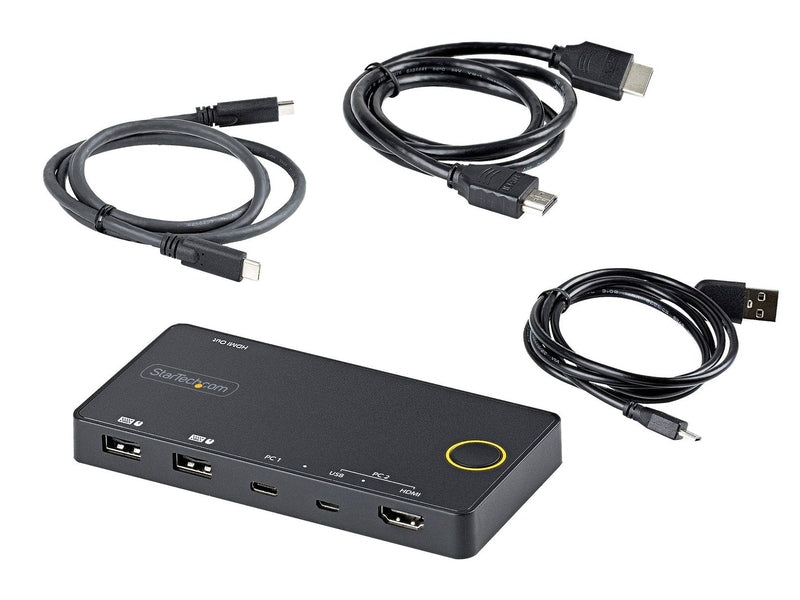

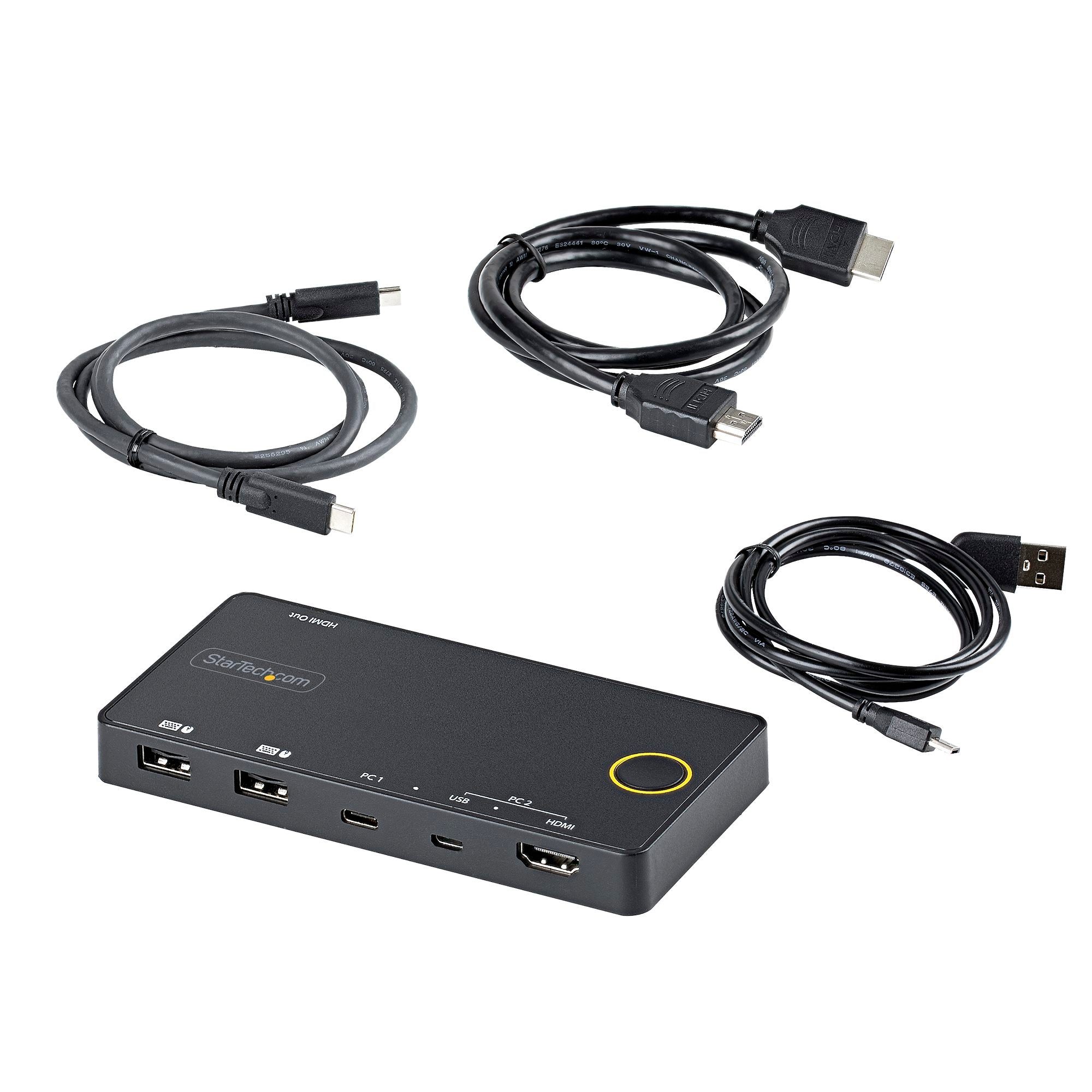

Included in Package | 1 - KVM Switch 1 - USB-C Cable (1 m) 1 - USB-A to Micro USB-B Cable (1 m) 1 - HDMI Cable (1 m) 1 - Quick-Start Guide |
