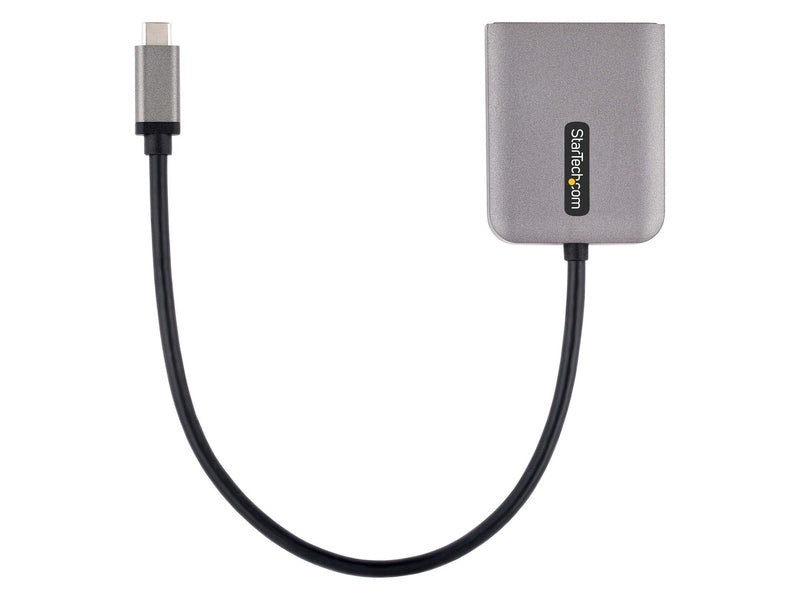

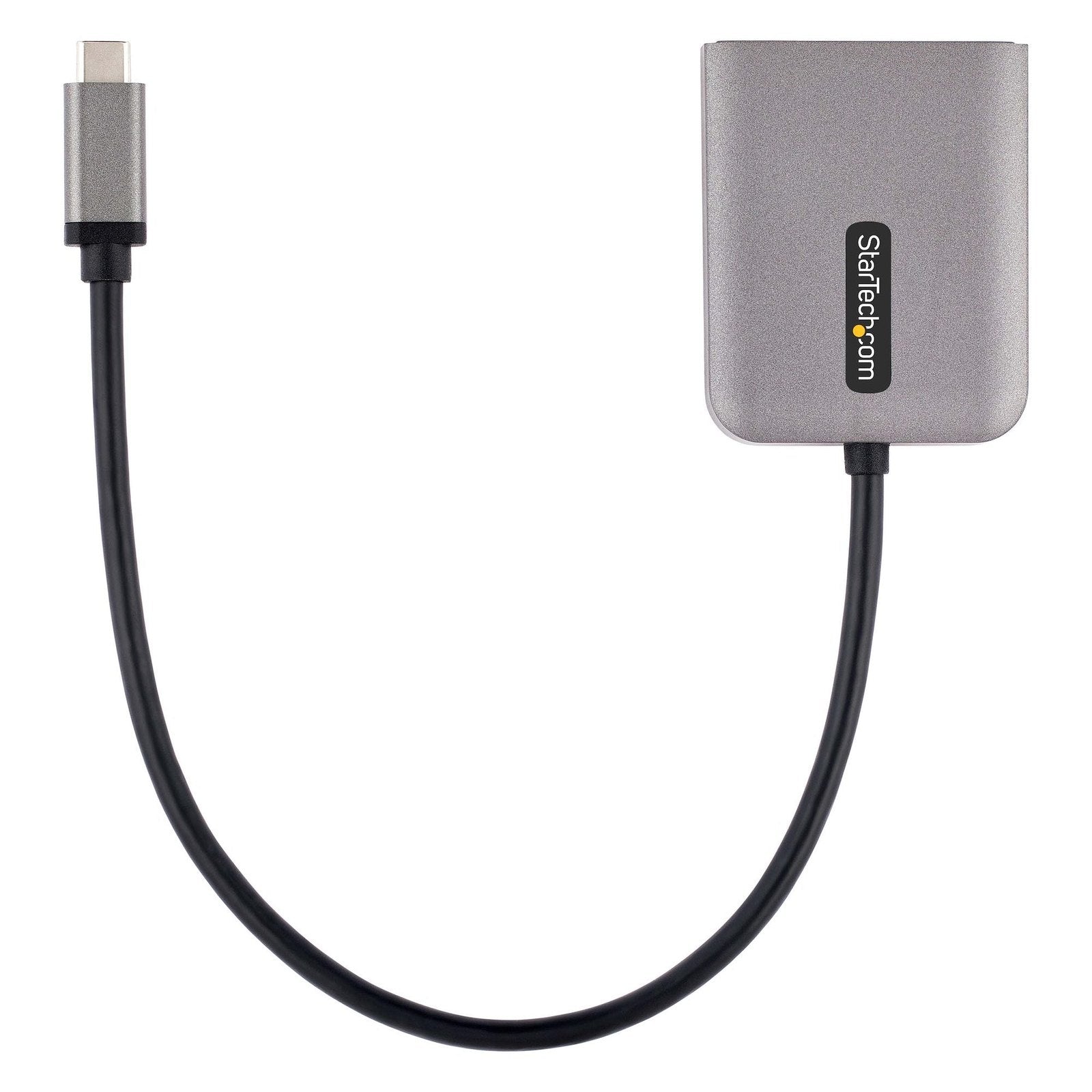

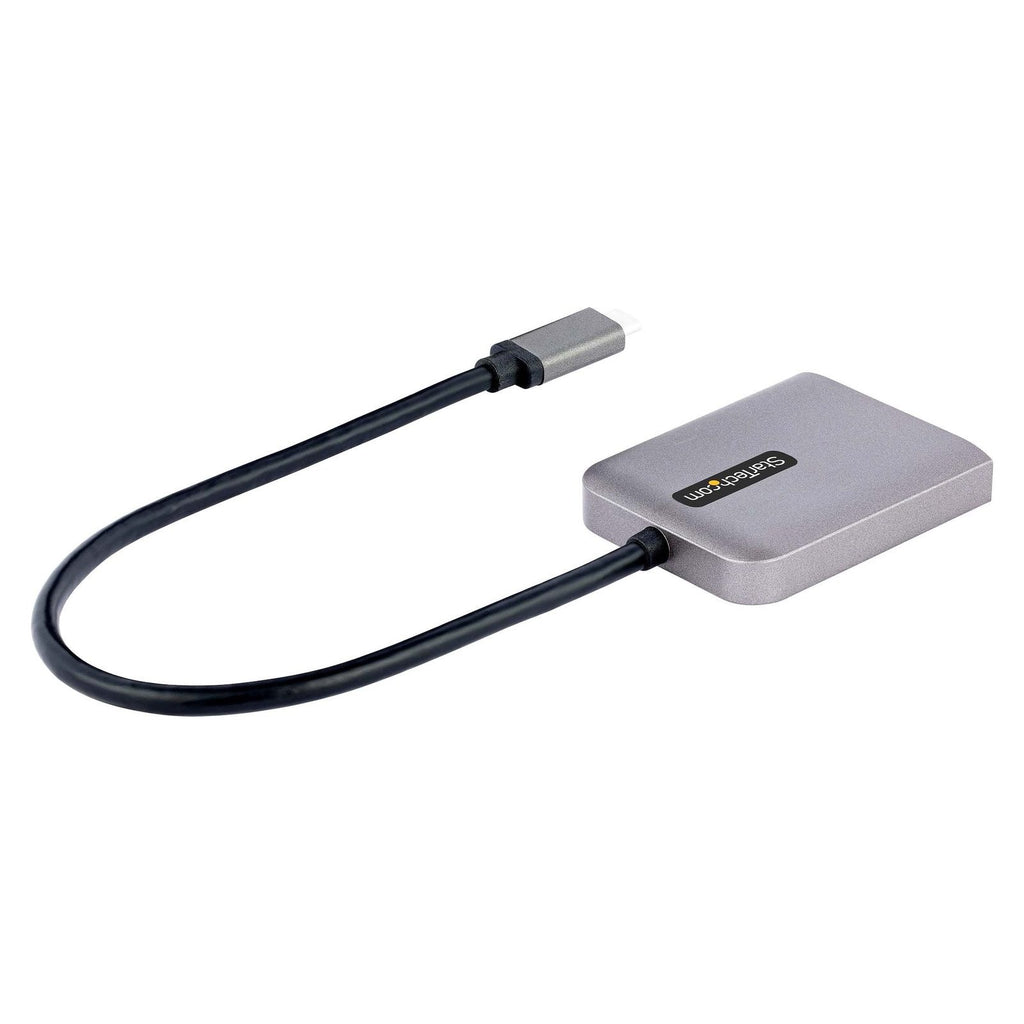

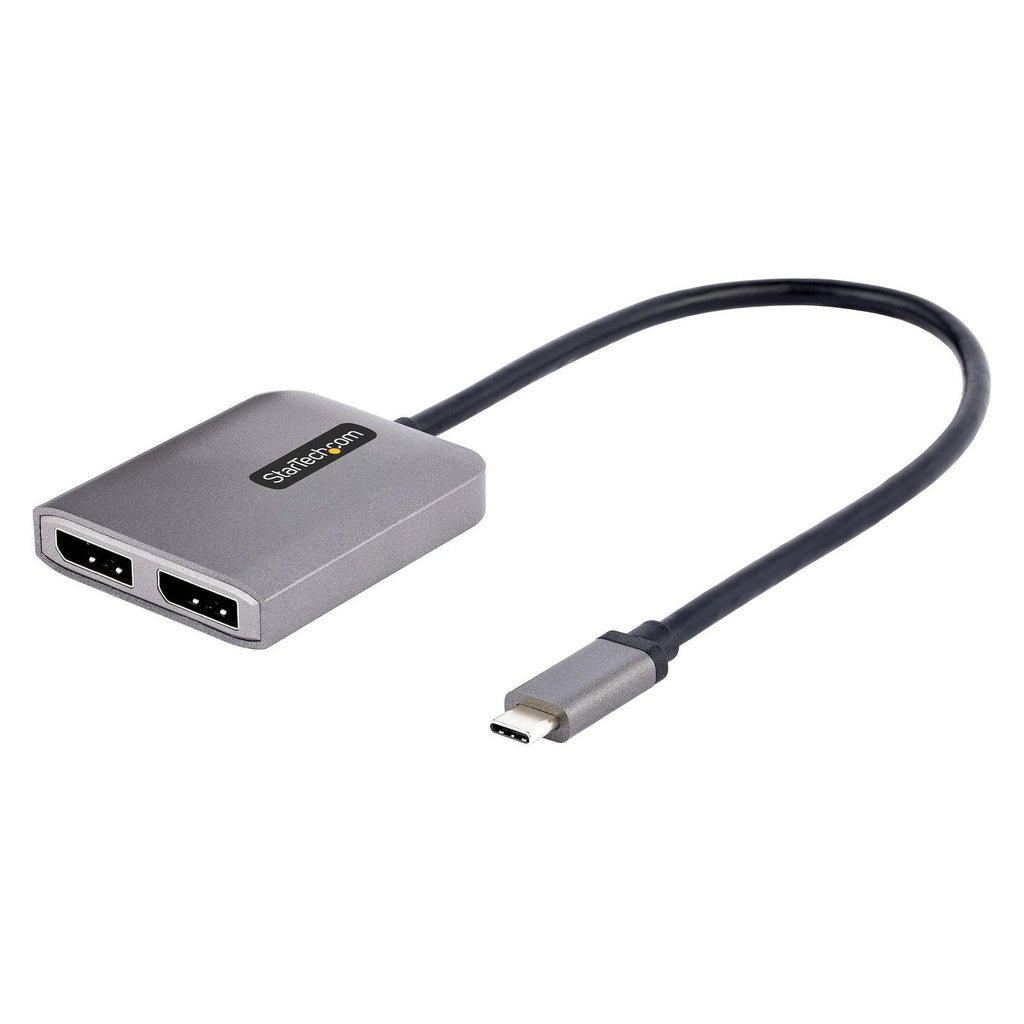

USB-C to Dual DisplayPort 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
USB-C to Dual DisplayPort 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
| Host Connection | Maximum Resolution Output 1 |
Maximum Resolution Output 2 |
Example Host Processor/Graphics |
| DisplayPort 1.4 with DSC | 5K 60Hz | 5K 60Hz | *Intel 11th Gen with DSC Intel 12th Gen Processors & Later Discrete AMD & Nvidia GPU's that support DSC |
| DisplayPort 1.4 | 4K 60Hz | 4K 60Hz | Intel 10th Gen (Ice Lake Only) Intel 11th Gen Processors & Later Discrete AMD and Nvidia GPU's that support DP 1.4 |
| DisplayPort 1.2 | 4K 30Hz | 4K 30Hz |
Intel 8th - 10th Gen Processors & Later |
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
| USB-C to Dual DisplayPort MST Hub Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x USB-C (24 pin) DisplayPort Alt Mode |

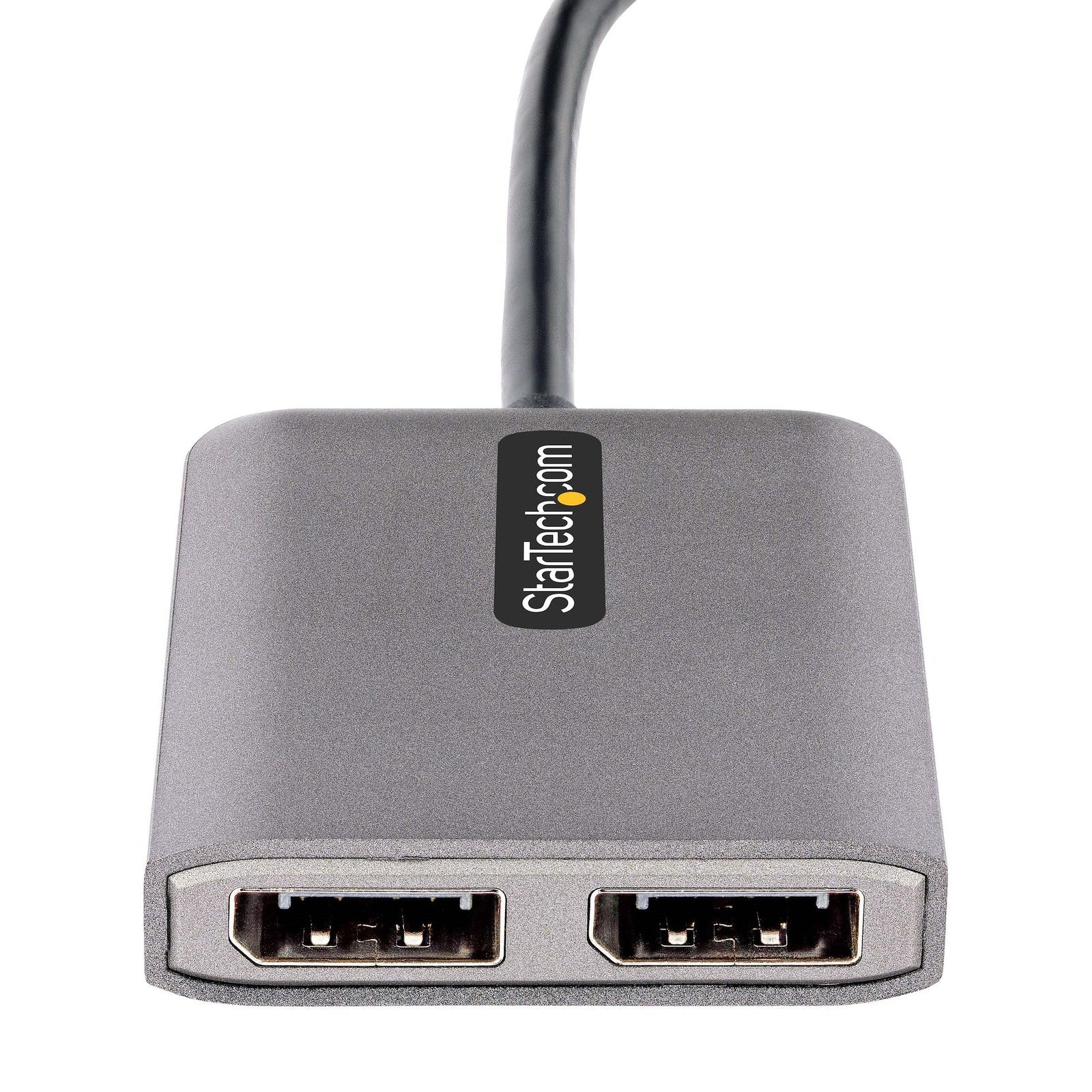

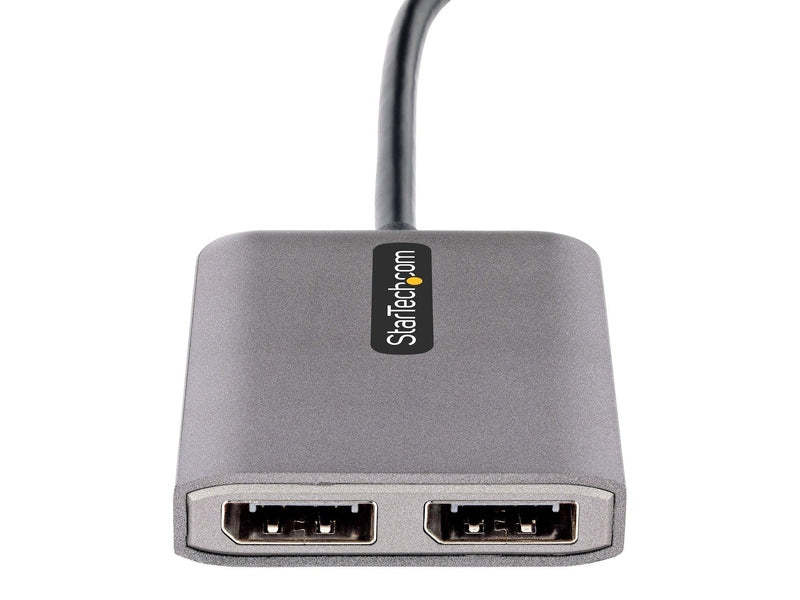

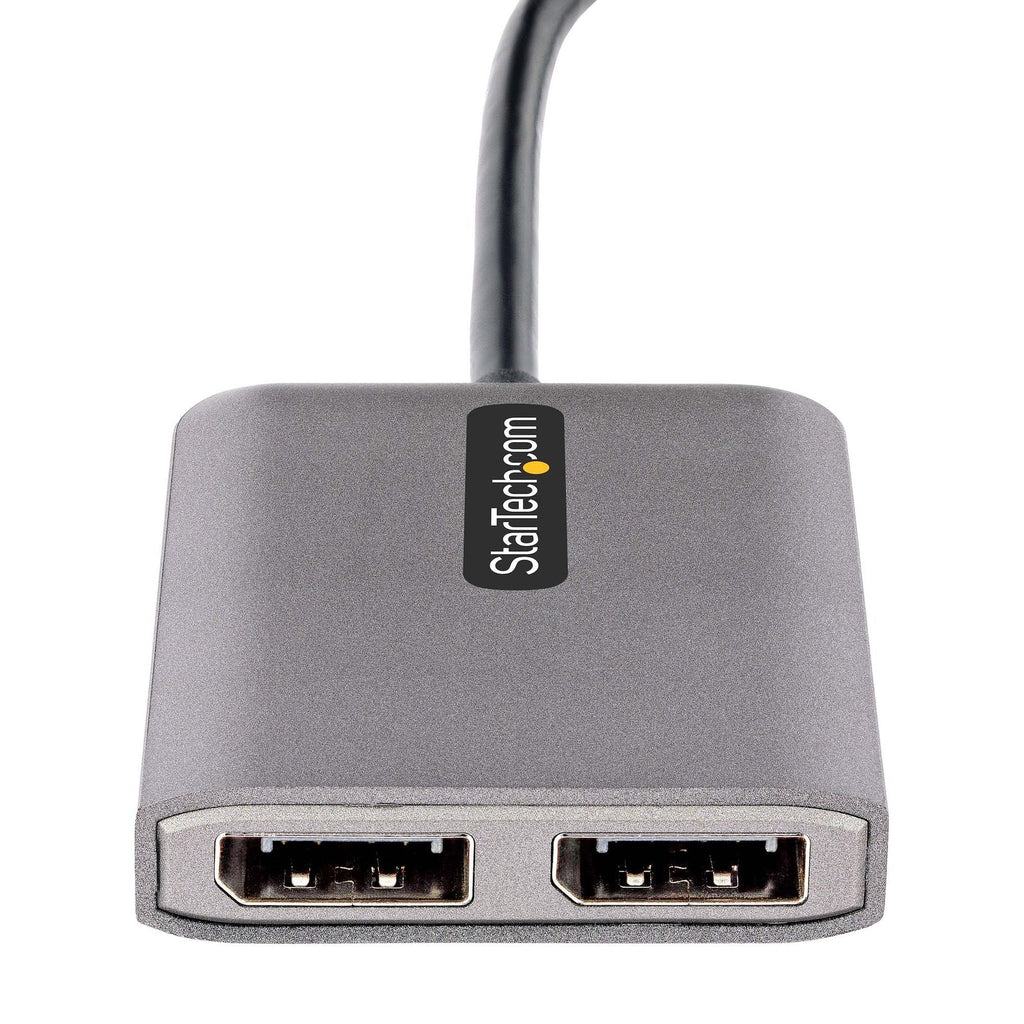

| Connector B | 2 x DisplayPort |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 90% RH (non-condensing) |
| Hardware | |
| Adapter Type | Active |
| AV Input | USB-C |
| AV Output | DisplayPort 1.4 |
| Audio | Yes |
| Chipset ID | Synaptics - VMM5220, VIA/VLI - VL103 |
| Packaging Information | |
| Package Length | 6.8 in (17.3 cm) |
| Package Width | 5.7 in (14.6 cm) |
| Package Height | 1.3 in (3.2 cm) |
| Shipping Weight | 3.8 oz (108.0 g) |
| Package Quantity | 1 |
| Performance | |
| Video Revision | DisplayPort 1.4 |
| Audio Specifications | DisplayPort - 2 Channel Audio |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Space Gray |
| Material | Plastic |
| Cable Length | 11.8 in (30 cm) |
| Product Length | 2.4 in (6.1 cm) |
| Product Width | 1.9 in (4.9 cm) |
| Product Height | 0.4 in (1.1 cm) |
| Weight of Product | 1.9 oz (55.0 g) |
| Power | |
| Power Source | Bus Powered |
| Software | |
| OS Compatibility | Windows 11 Windows 11 ARM Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7 (32/64) |
| What's in the Box | |
| Included in Package | 1 x USB-C to 2x DisplayPort MST Hub |
