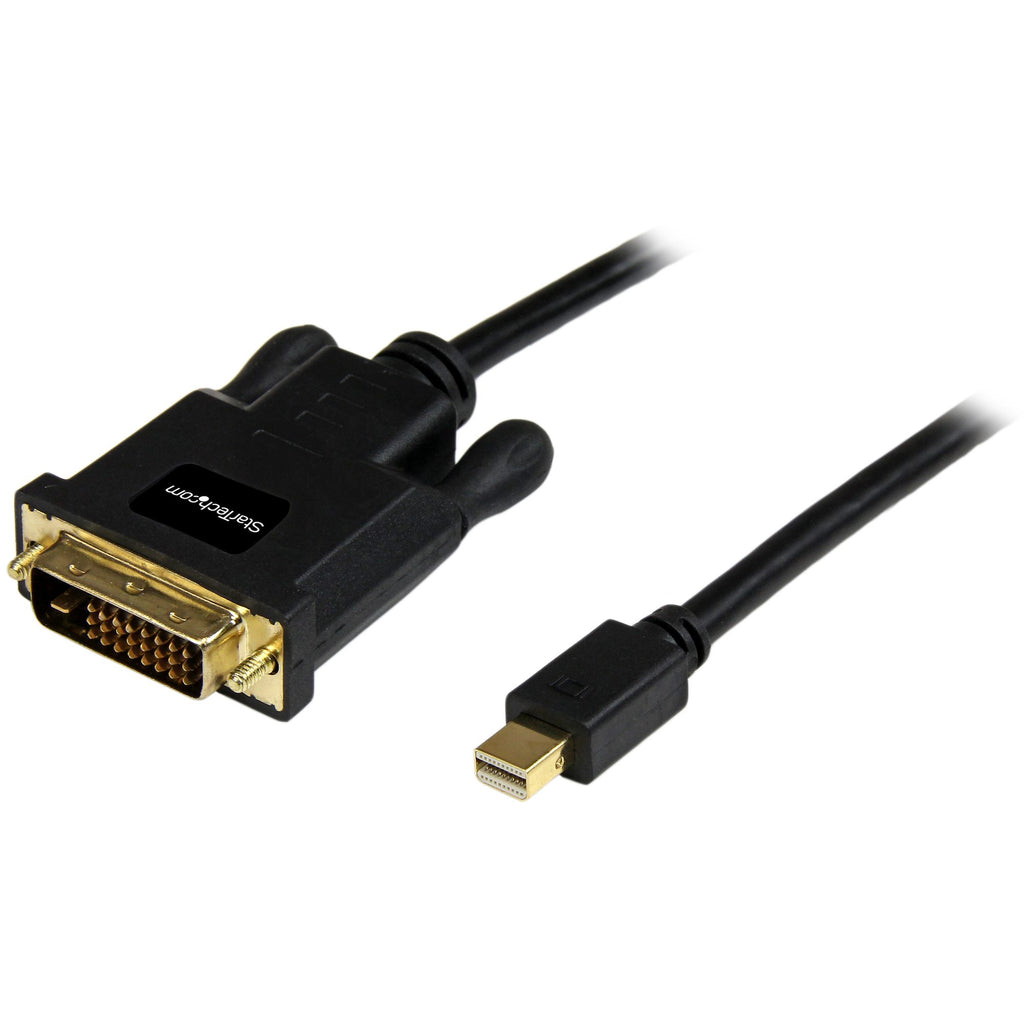

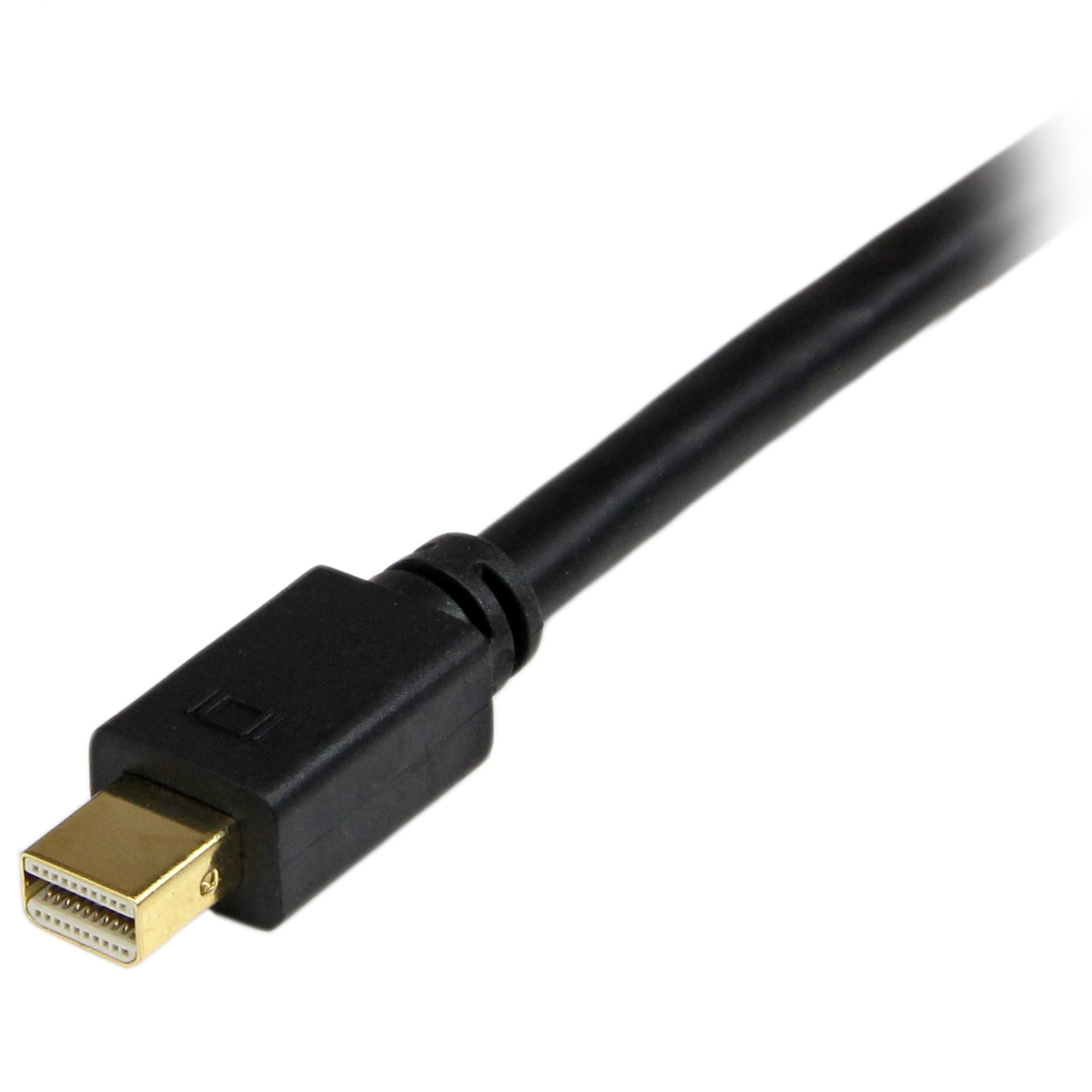

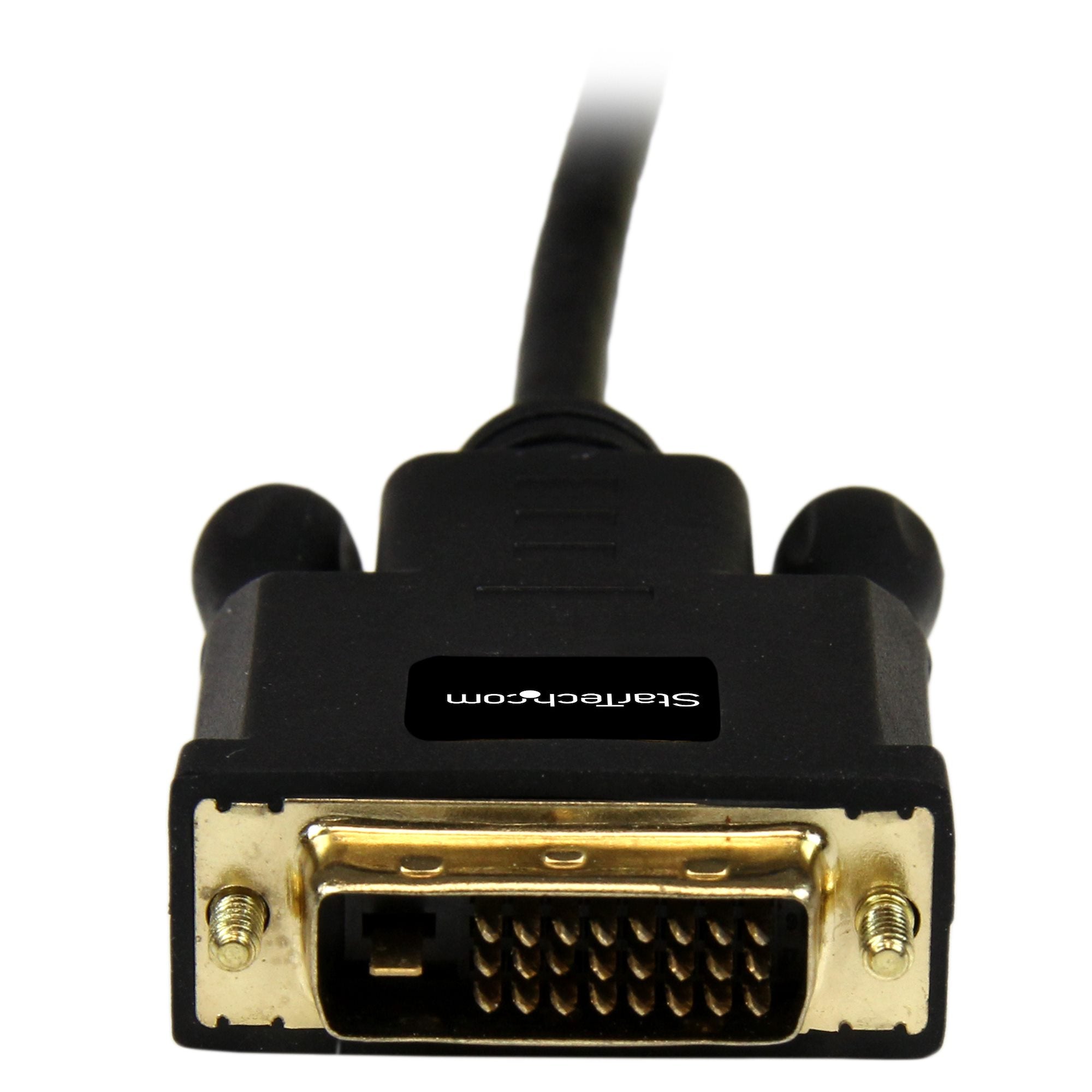

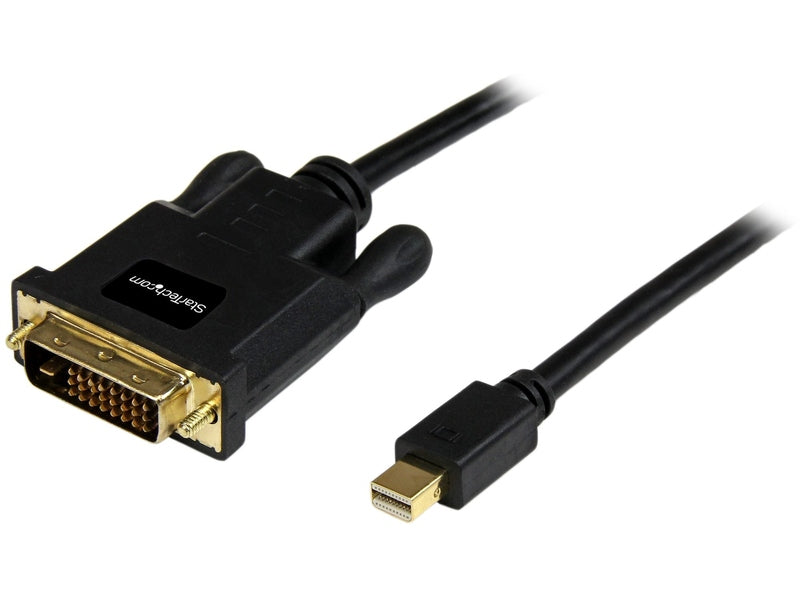

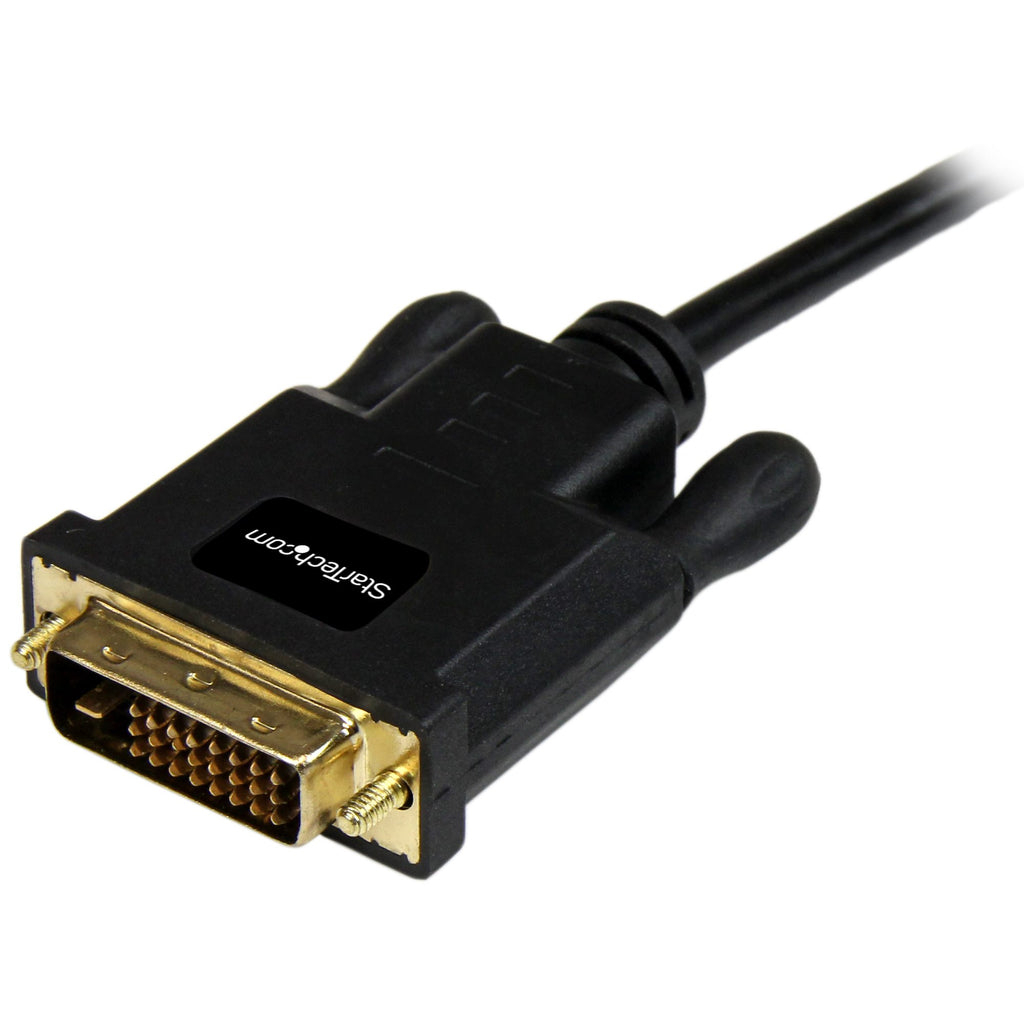

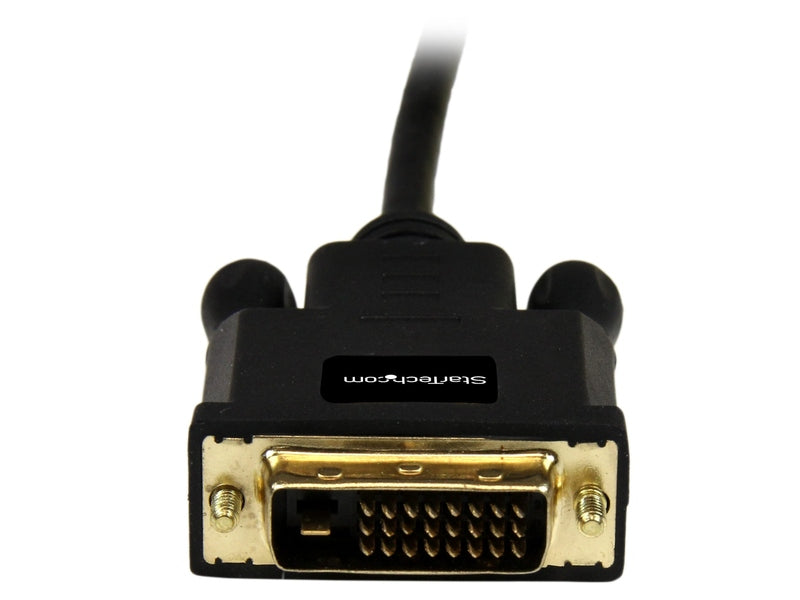

6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot distance – Black
The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot distance – Black
The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
| Mini DisplayPort to DVI Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x Mini-DisplayPort (20 pin) |
| Connector B | 1 x DVI-D (25 pin) |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 40% to 85% RH |
| Hardware | |
| Adapter Type | Passive |
| AV Input | Mini DisplayPort 1.2 |
| AV Output | DVI-D - Single-Link |
| Audio | No |
| Chipset ID | NXP - 3361 |
| Packaging Information | |
| Package Length | 6.3 in (16.1 cm) |
| Package Width | 7.8 in (19.9 cm) |
| Package Height | 0.9 in (2.4 cm) |
| Shipping Weight | 3.9 oz (110.0 g) |
| Package Quantity | 1 |
| Performance | |
| Maximum Cable Length | 6.0 ft (1.8 m) |
| Maximum Digital Resolutions | 1920 x 1200 / 1080p |
| Wide Screen Supported | Yes |
| Audio Specifications | DVI - No Audio Support |
| MTBF | 2,405,577 hours |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 6.0 ft (1.8 m) |
| Product Length | 6.0 ft (1.8 m) |
| Product Width | 1.6 in (4 cm) |
| Product Height | 0.6 in (1.5 cm) |
| Weight of Product | 3.6 oz (101.3 g) |
| Special Notes / Requirements | |
| System Requirements | DP++ (DisplayPort++) port required for DVI and HDMI® signal pass-through |
| What's in the Box | |
| Included in Package | 1 x Mini DisplayPort to DVI Adapter |
