10ft (3m) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

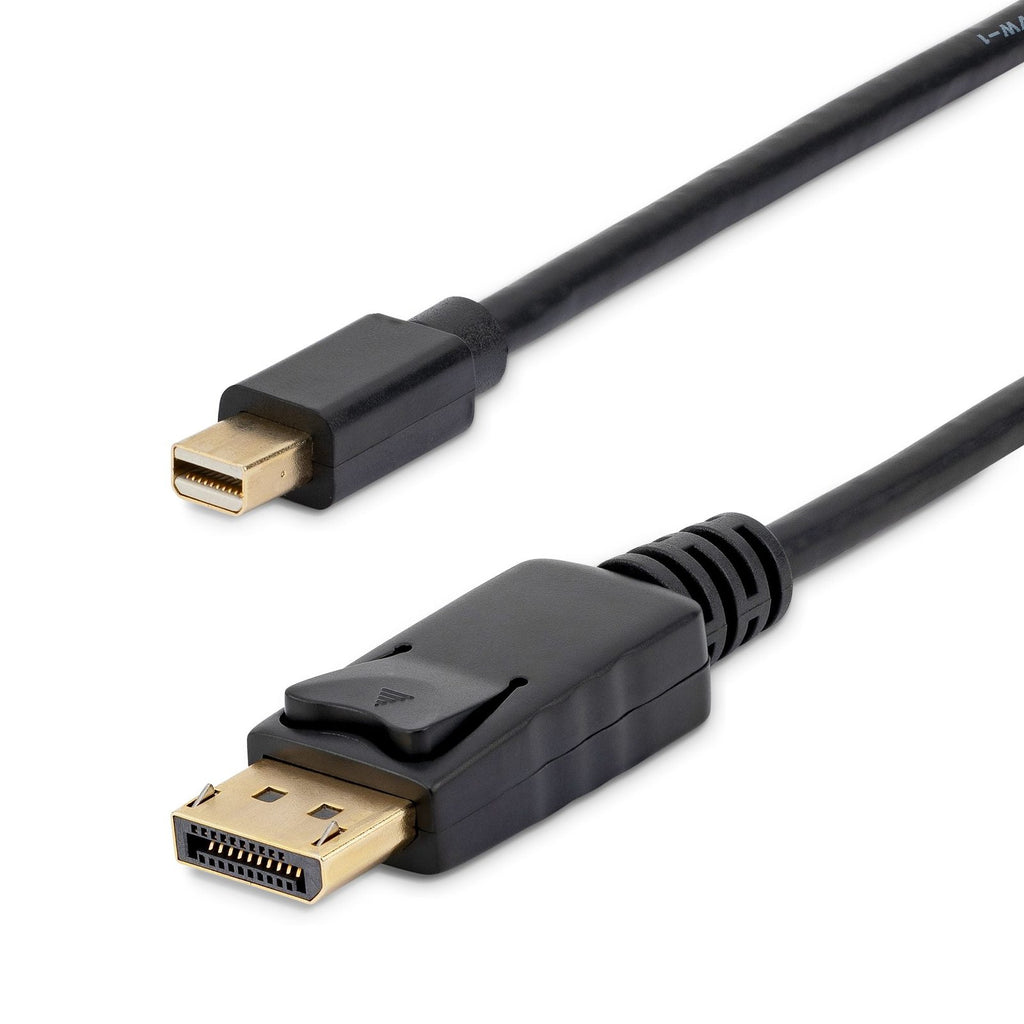

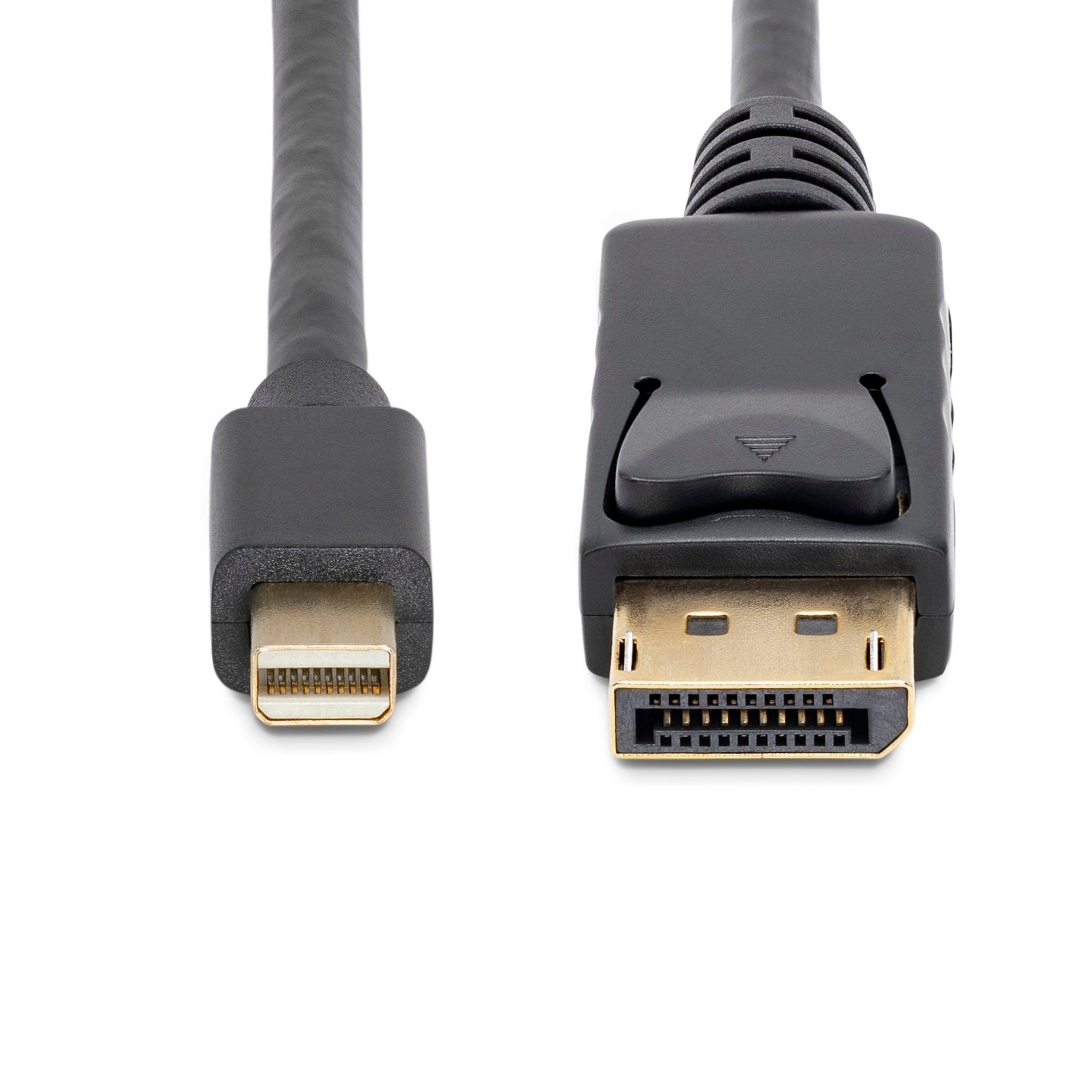

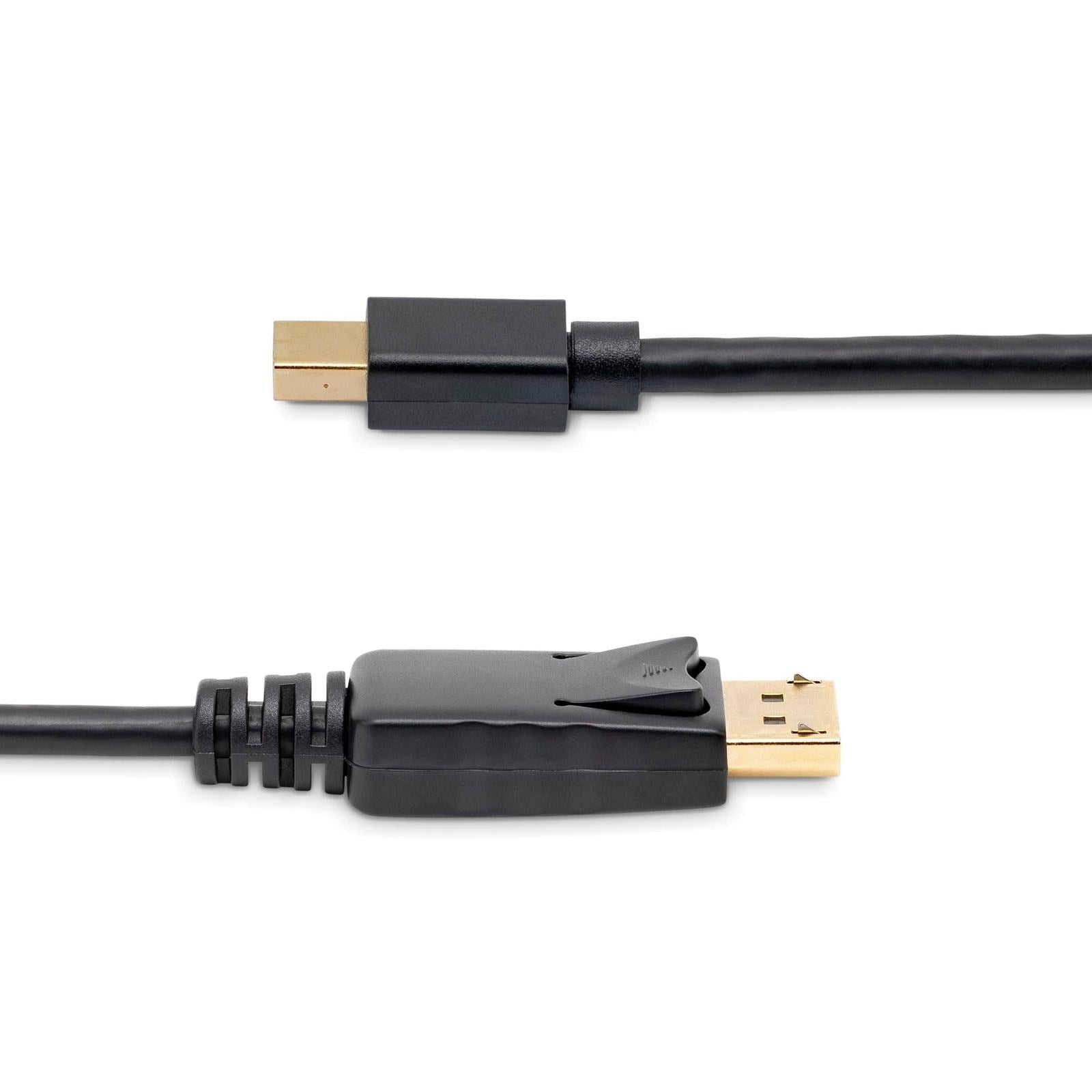

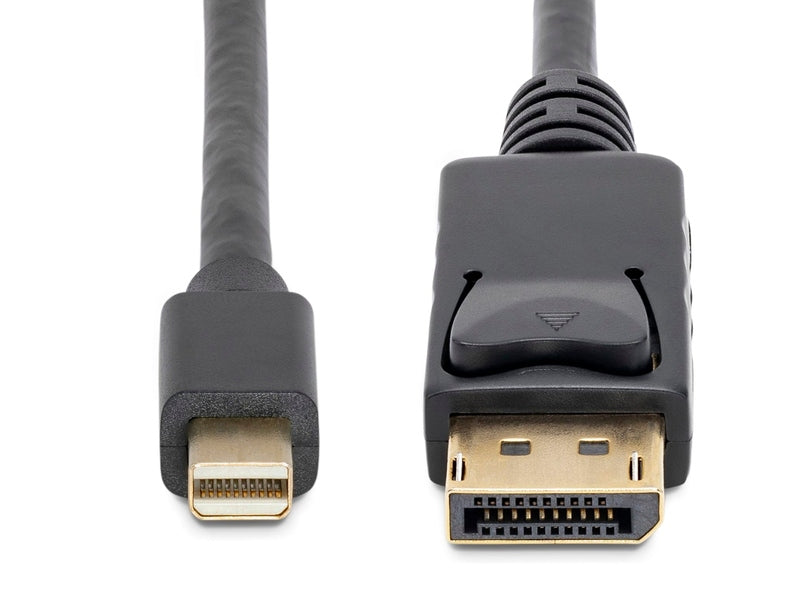

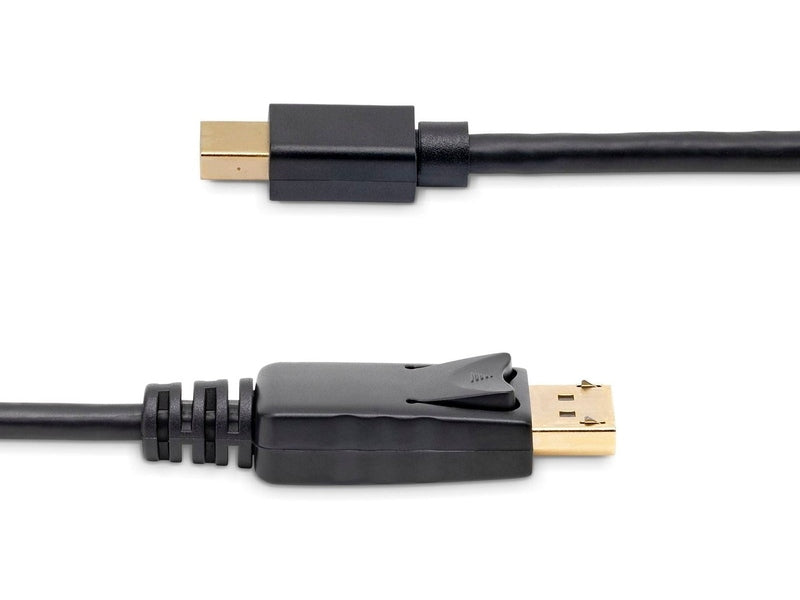

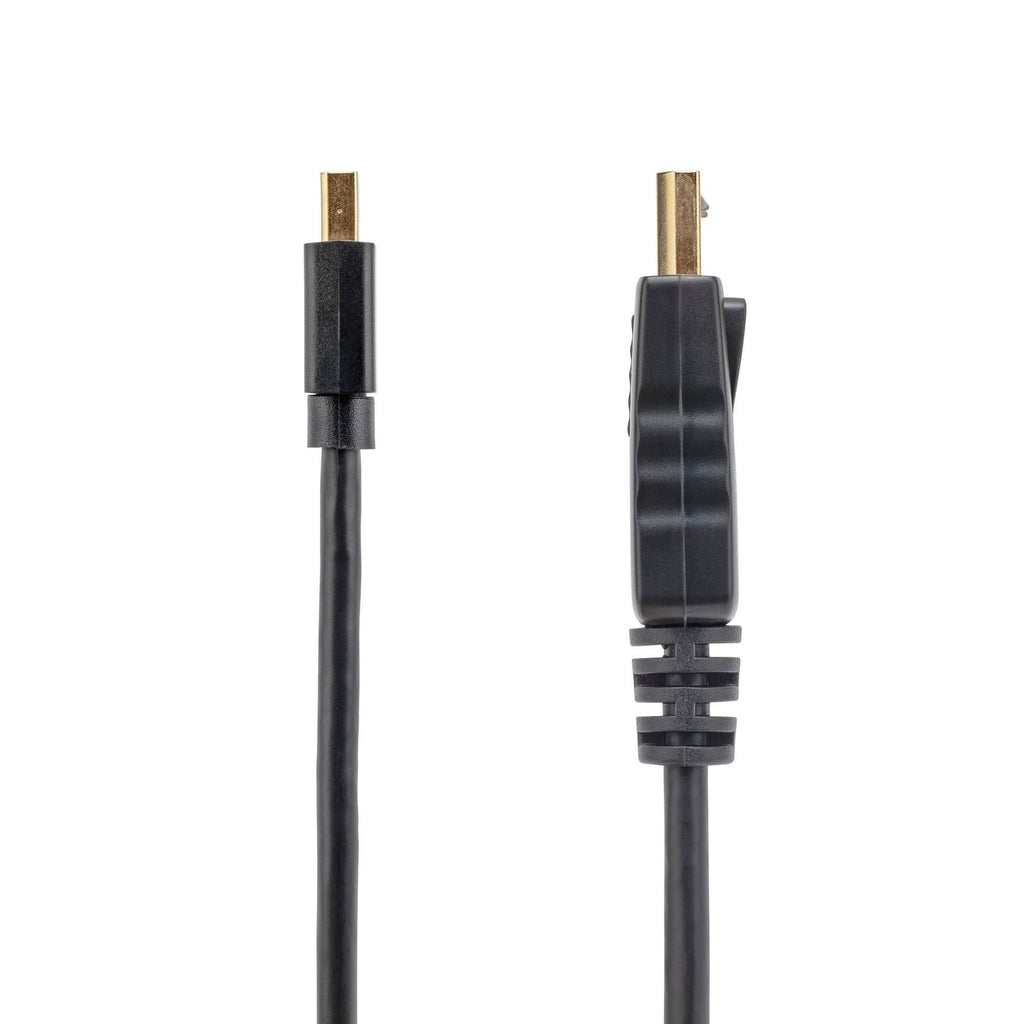

The MDP2DPMM10 10ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM10 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
10ft (3m) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor
The MDP2DPMM10 10ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM10 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
| Mini DisplayPort to DisplayPort 1.2 Adapter Cable Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x Mini-DisplayPort (20 pin) |
| Connector B | 1 x DisplayPort (20 pin) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10% to 85% RH |
| Hardware | |
| Number of Conductors | 19 |
| Connector Plating | Gold |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shield Material | Aluminum-Mylar Foil with Braid |
| Fire Rating | CMG |
| Packaging Information | |
| Package Length | 6.0 in (15.3 cm) |
| Package Width | 7.9 in (20.0 cm) |
| Package Height | 1.2 in (3.0 cm) |
| Shipping Weight | 3.8 oz (108.0 g) |
| Package Quantity | 1 |
| Performance | |
| Maximum Digital Resolutions | 3840 x 2160 (4K x 2K) @ 60Hz |
| Physical Characteristics | |
| Color | Black |
| Connector Style | Latching |
| Wire Gauge | 32 AWG |
| Cable Length | 10.0 ft (3.0 m) |
| Cable OD | 0.2 in (4.8 mm) |
| Product Length | 10.0 ft (3.0 m) |
| Product Width | 0.2 in (0.6 cm) |
| Product Height | 0.2 in (0.5 cm) |
| Weight of Product | 3.7 oz (103.9 g) |
| What's in the Box | |
| Included in Package | 1 x 10 ft Mini DisplayPort to DisplayPort 1.2 Adapter Cable - M/M |
