4-Port Dual DisplayPort KVM Switch - 4K 60Hz - TAA
This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
4-Port Dual DisplayPort KVM Switch - 4K 60Hz - TAA
This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
4-Port Dual Display DisplayPort KVM Switch Specifications | |
---|---|
Connector(s) | |
Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) 2 - DisplayPort (20 pin) 2 - USB 2.0 Type-A (4 pin, 480Mbps) 2 - USB Type-A (4 pin; HID Port) USB 1.1 |

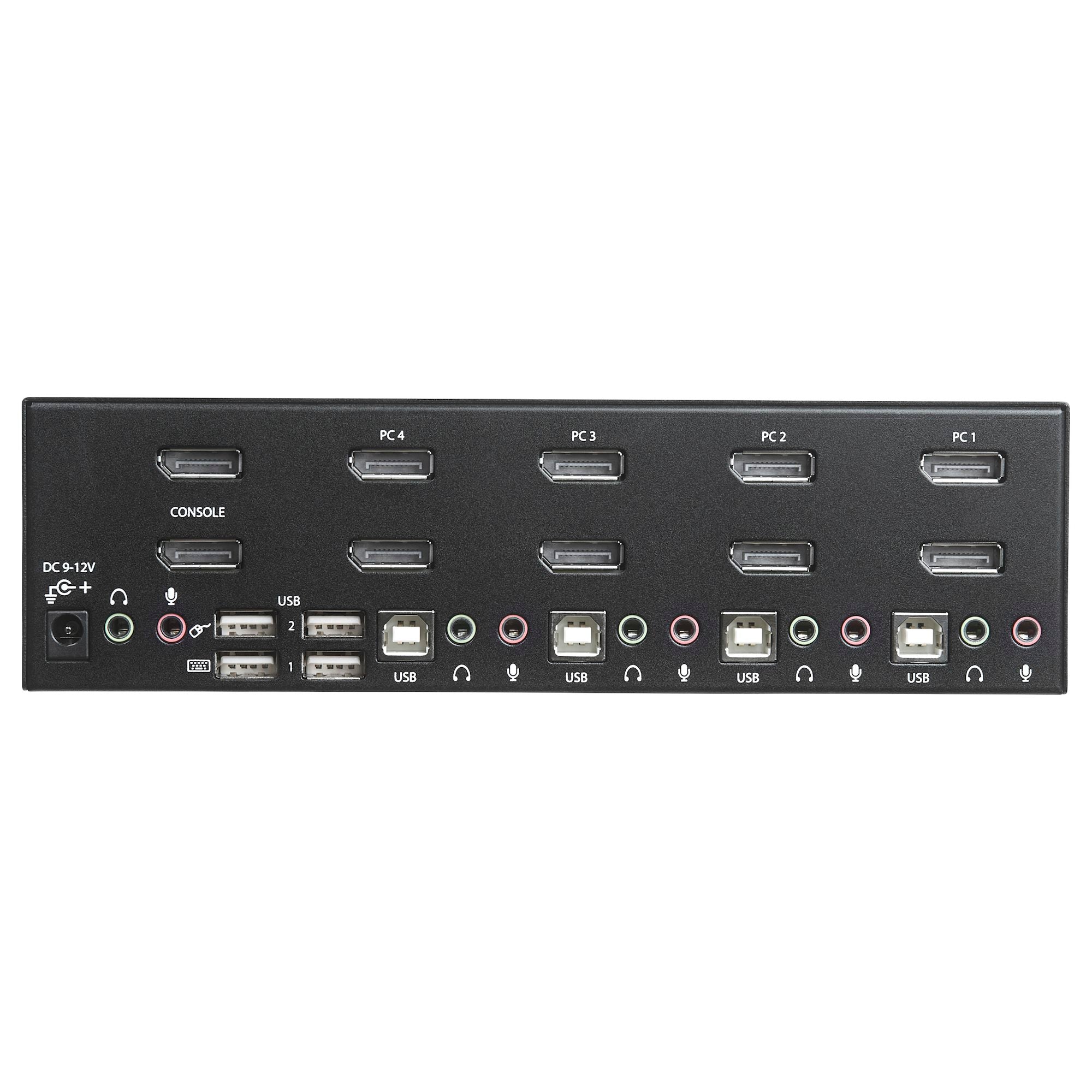

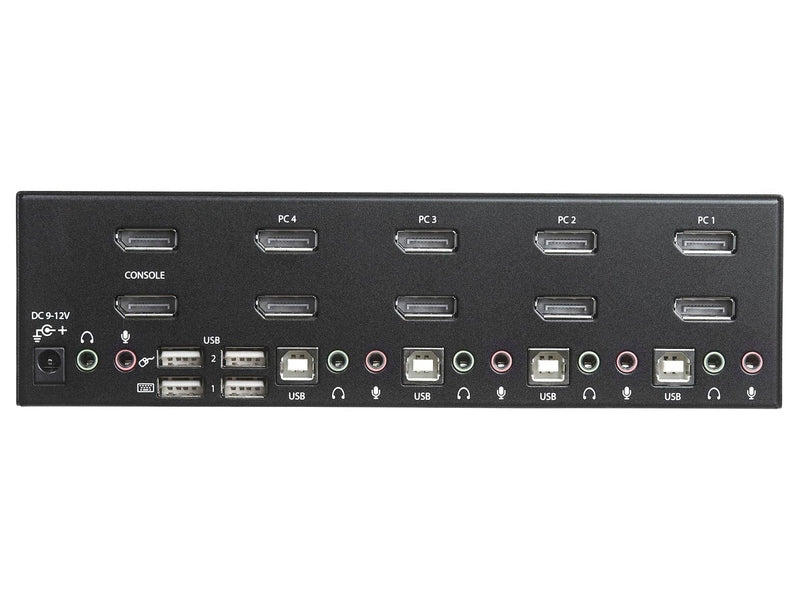

Host Connectors | 2 - USB B (4 pin) 8 - 3.5 mm Mini-Jack (3 Position) 8 - DisplayPort (20 pin) |
Environmental | |
Operating Temperature | 0℃ - 40℃ |
Storage Temperature | -10℃ - 60℃ |
Humidity | 0% - 80% |
Hardware | |
U Height | 2U |
Audio | Yes |
KVM Ports | 4 |
PC Interface | USB |
PC Video Type | DisplayPort |
Number of Monitors Supported | 2 |
Rack-Mountable | Optional |
Cables Included | No |
Daisy-Chain | No |

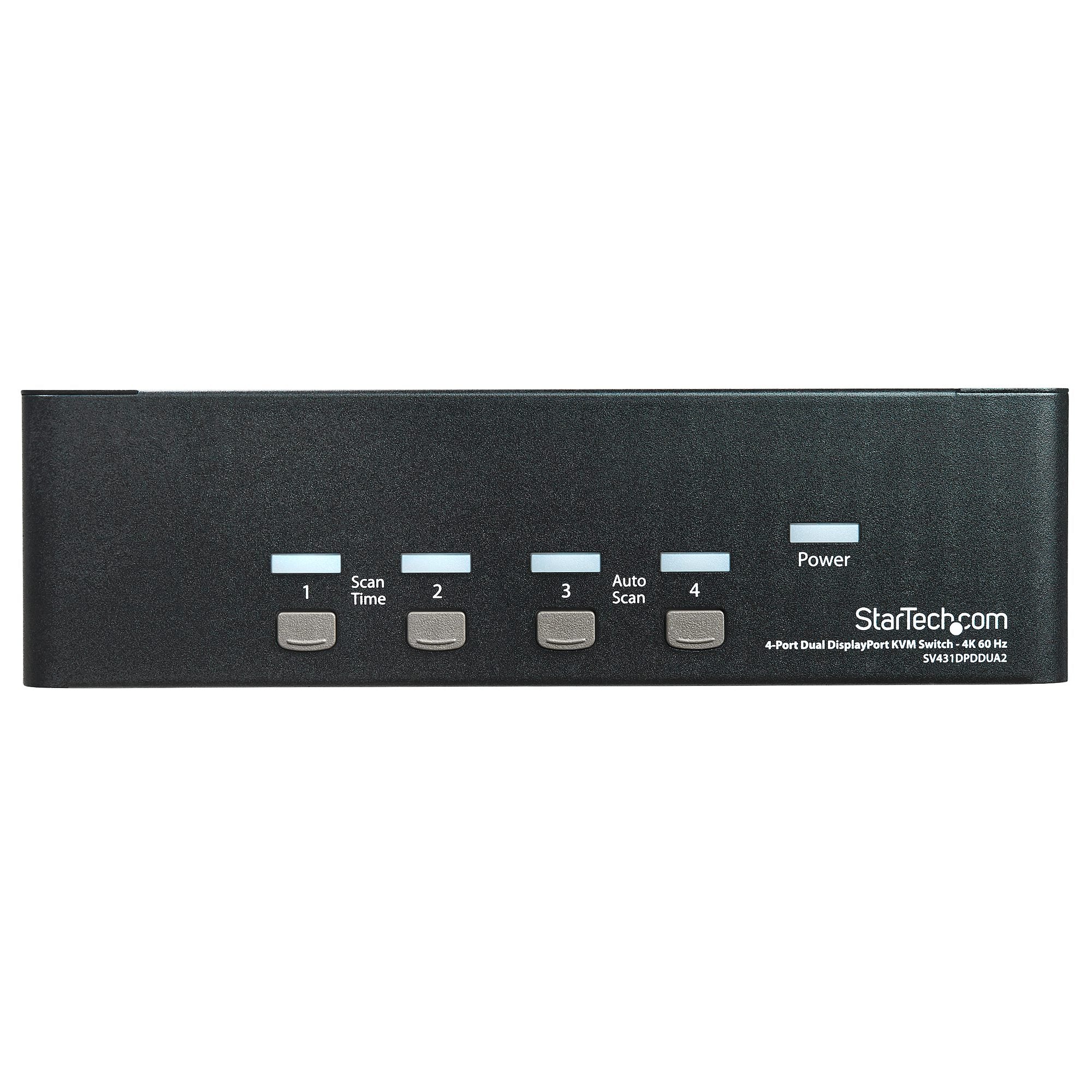

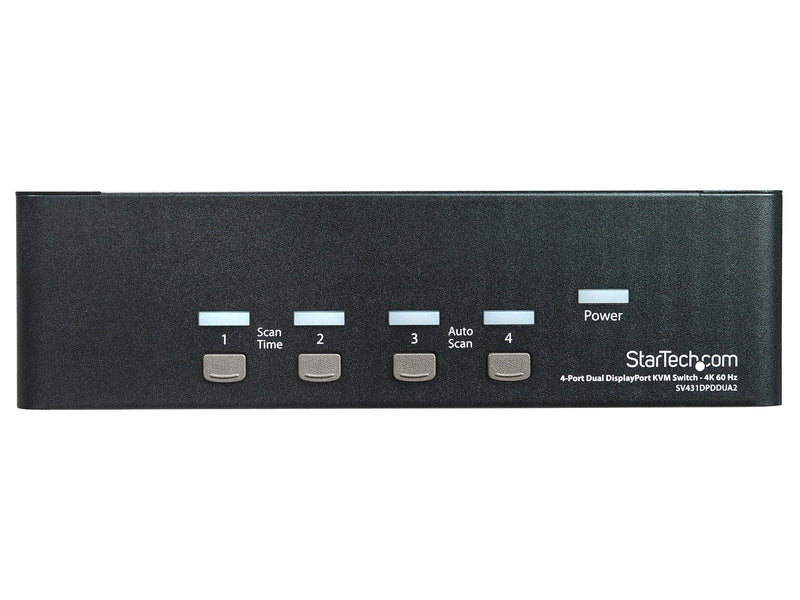

LED Indicators | 4 - Red - Select indicator (One LED per port) 1 - Power 4 - Green - Online indicator (One LED per port) |
Packaging Information | |
Shipping (Package) Weight | 3.8 lb [1.7 kg] |
Package Quantity | 1 |
Package Length | 11.7 in [29.6 cm] |
Package Width | 9.6 in [24.4 cm] |
Package Height | 3.4 in [8.6 cm] |
Performance | |
On-Screen Display | No |
DVI Support | No |
IP Control | No |
Hot-Key Selection | Yes |
Maximum Data Transfer Rate | 500 Mbps (USB 2.0) |
Maximum Digital Resolutions | 3840 x 2160 (Ultra HD 4K) @ 60Hz |
Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1600 3840 x 2160 (4K) @ 60Hz |
Aspect Ratio | 16:9 |
Wide Screen Supported | Yes |
Auto Scan | 3, 8, 15 & 30 seconds |
Maximum Number of Users | 1 |
Port Selection Support | Push Button and Hotkeys |
MTBF | 142000 hours |
Physical Characteristics | |
Color | Black |
Material | Steel |
Product Length | 5.0 in [12.7 cm] |
Product Width | 8.5 in [21.6 cm] |
Product Height | 2.5 in [6.4 cm] |
Weight of Product | 2.6 lb [1.2 kg] |
Power | |
Power Source | AC Adapter Included |
Input Voltage | 100 - 240 AC |
Input Current | 0.6 A |
Output Voltage | 12V DC |
Output Current | 1.5 A |
Center Tip Polarity | Positive |
Plug Type | M |
Power Consumption | 18 W |
What's in the Box | |
Included in Package | 1 - KVM switch 1 - universal power adapter (NA/JP, EU, UK, ANZ) 1 - quick start guide 4 - rubber feet |
