Description
Overview

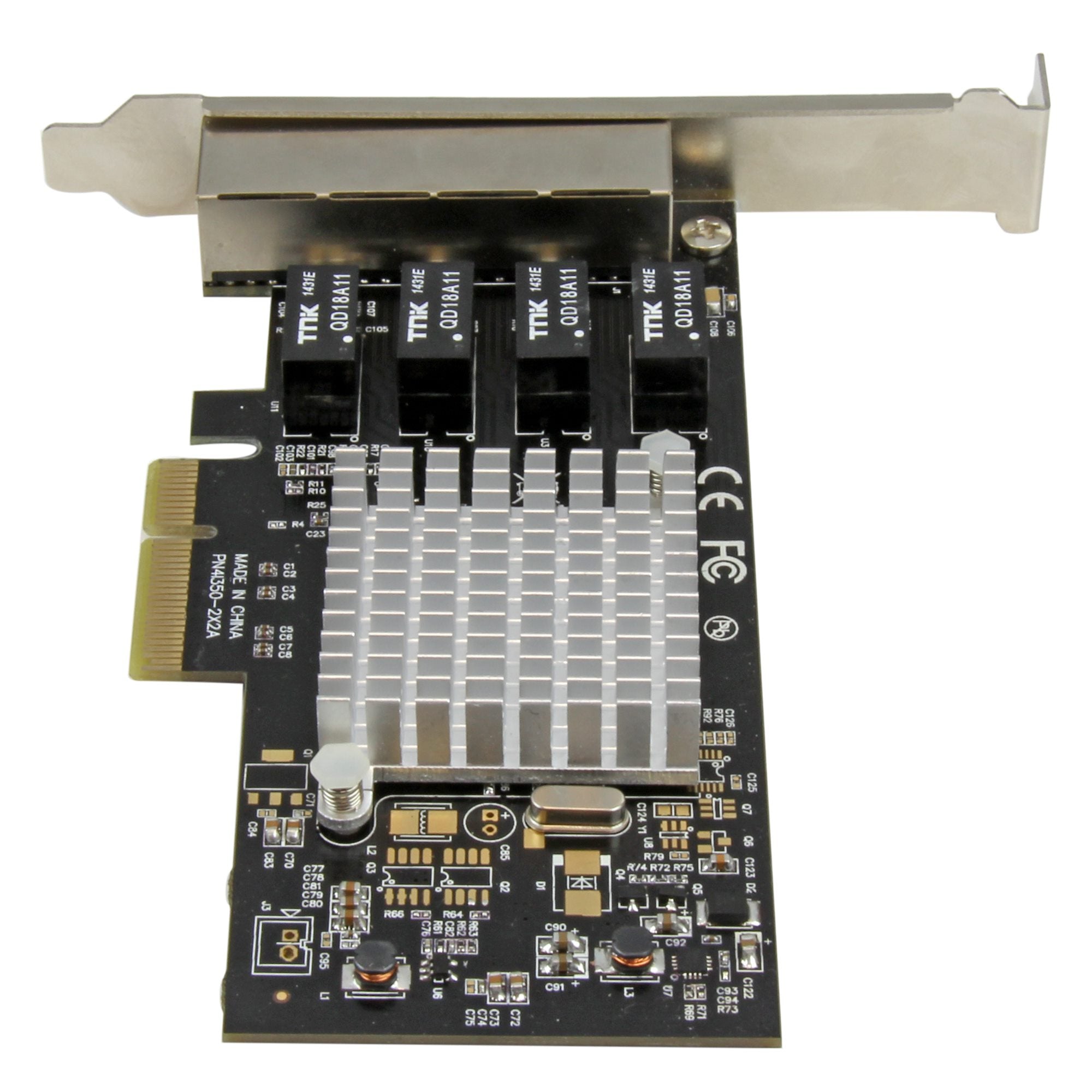

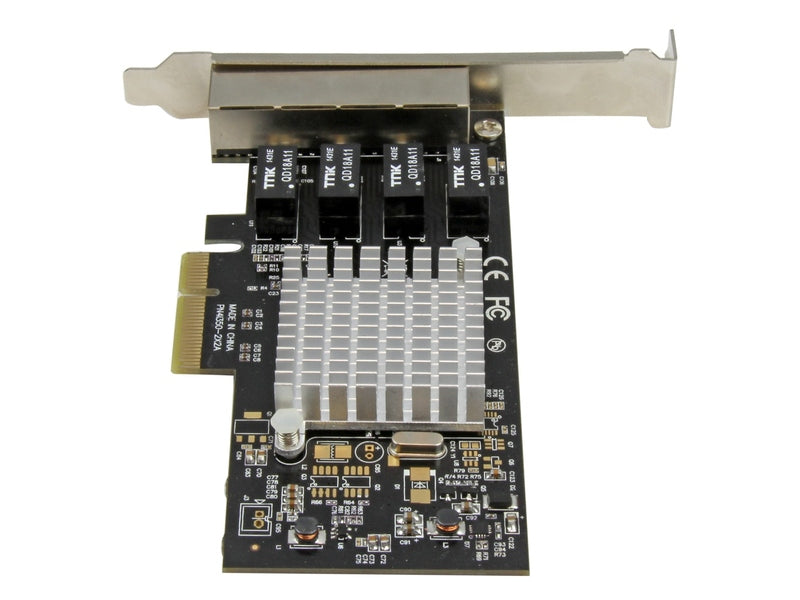

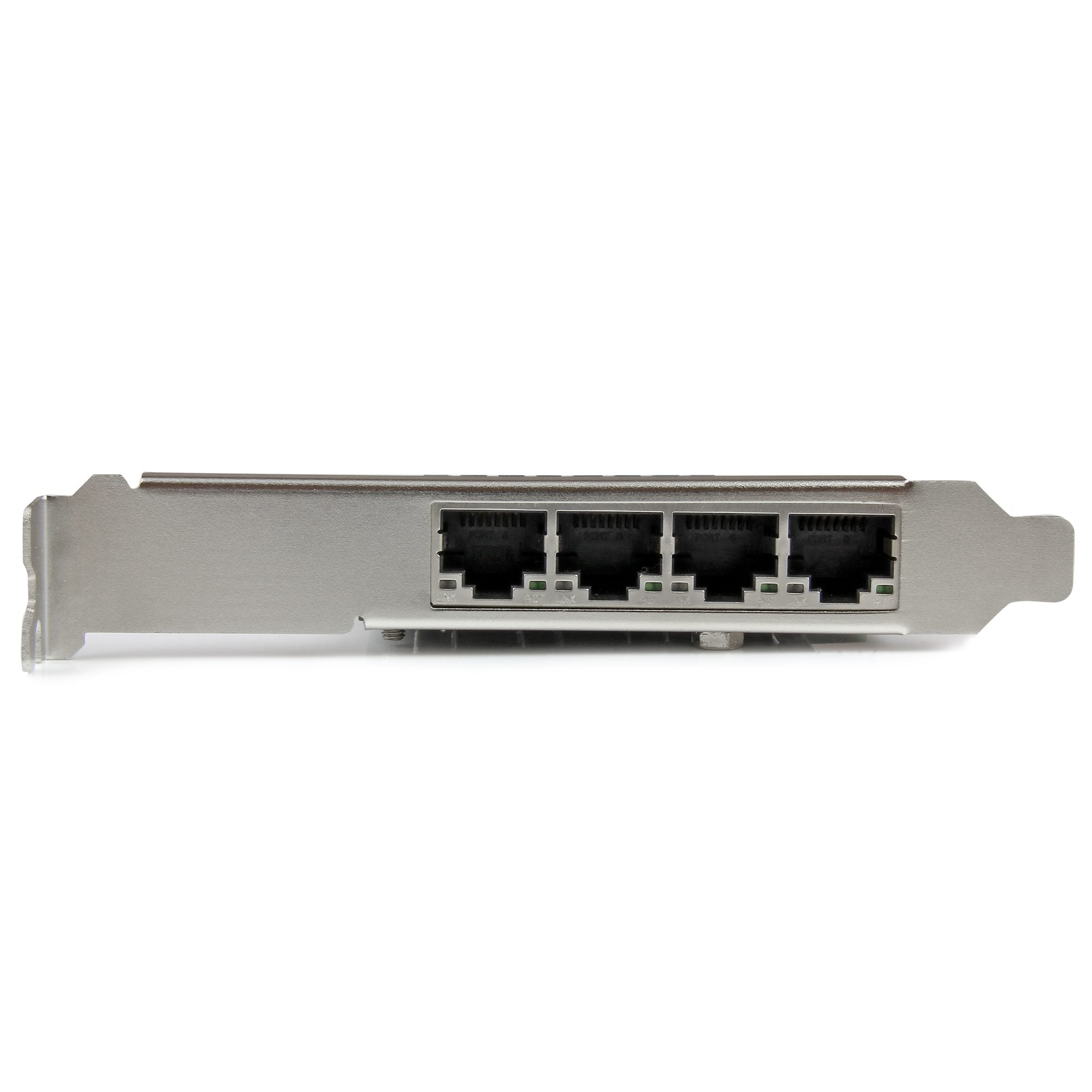

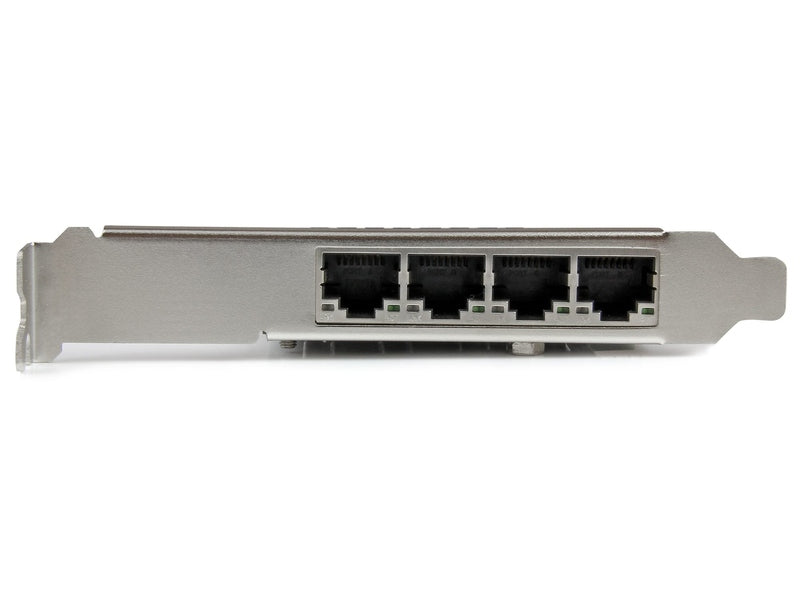

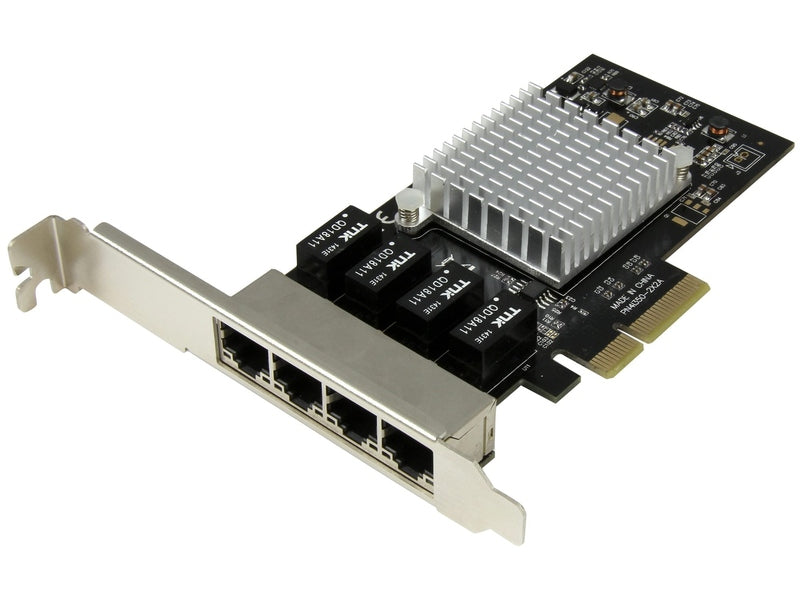

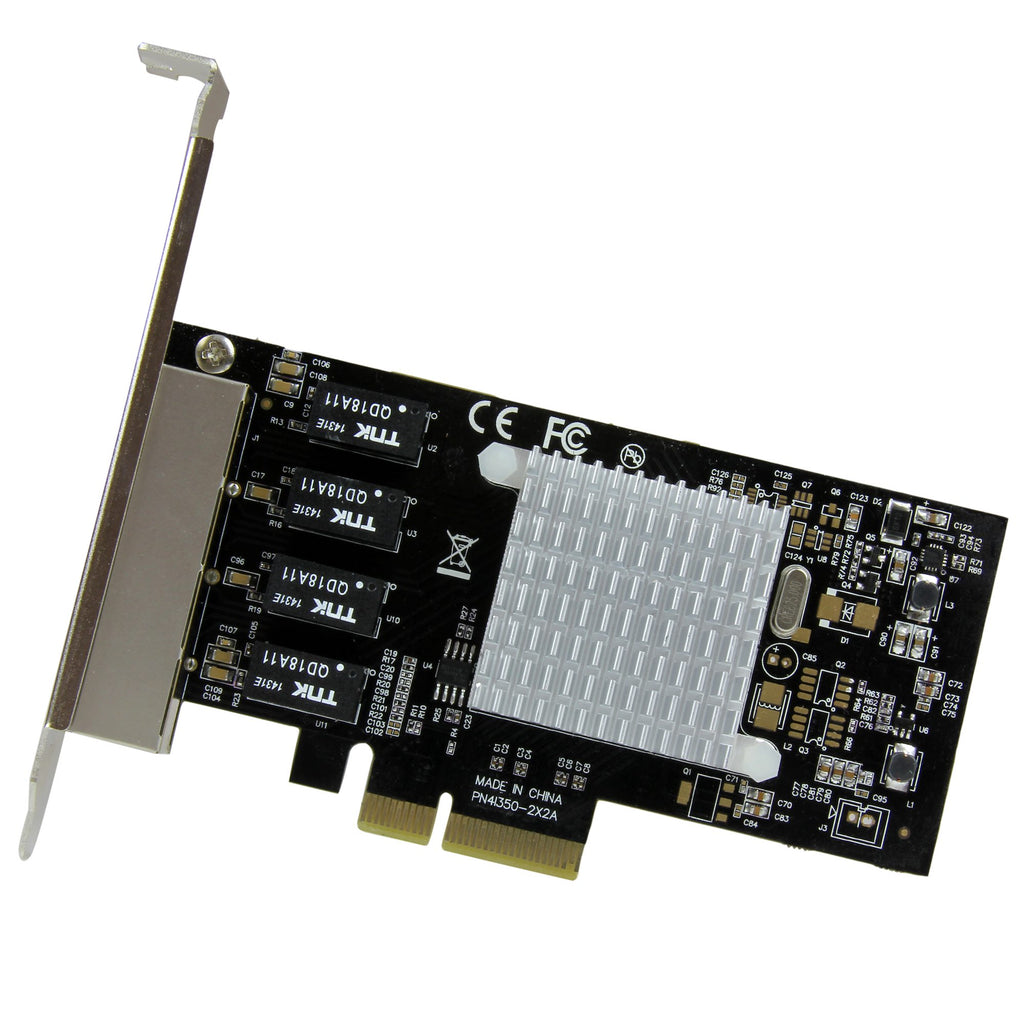

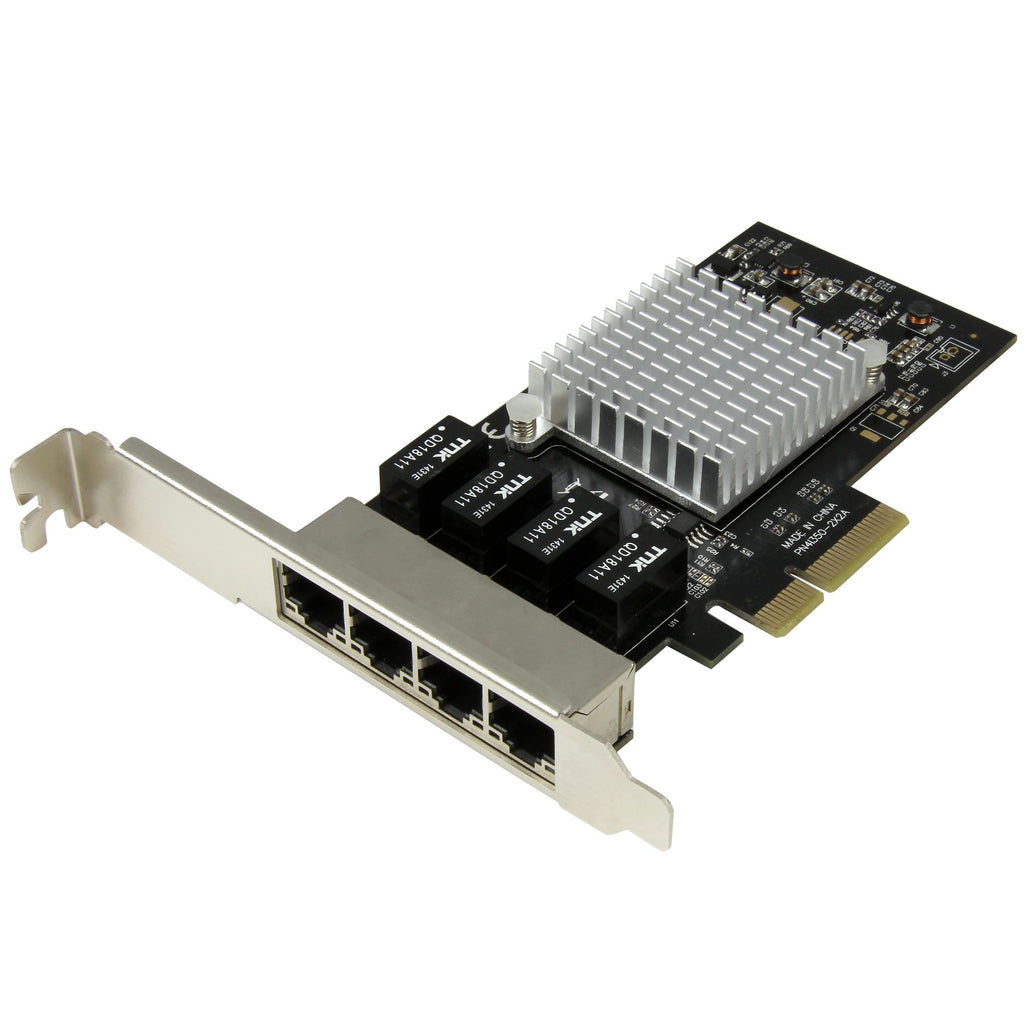

4-Port Gigabit Ethernet Network Card - PCI Express, Intel I350 NIC
Add four Gigabit Ethernet ports to a client, server or workstation through a single PCI Express slot
Here’s a dependable and cost-effective way to add four high-performance Gigabit Ethernet ports to your server or desktop computer, through one PCI Express slot.
Reliable network connectivity with high performance
This Gigabit Ethernet network card features the Intel® I350-AM4 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options including IEEE 802.3ad link aggregation / teaming support, which enables you to add additional bandwidth to your system.
Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
Cost-effective access to multiple networks
The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives you four redundant, independent Gigabit Ethernet ports and it supports advanced features such as Jumbo Frames and VLAN tagging.
Enhanced versatility and efficiency
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications - including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs. The 4-port Gigabit network card is equipped with Intel® Virtualization Technology for Connectivity (Intel® VT-c) which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server’s networking efficiency and create a more agile data center.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Mac Address Pass-Through Utility: To improve network security.
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
4-Port Gigabit Ethernet Network Card - PCI Express, Intel I350 NIC
Add four Gigabit Ethernet ports to a client, server or workstation through a single PCI Express slot
Here’s a dependable and cost-effective way to add four high-performance Gigabit Ethernet ports to your server or desktop computer, through one PCI Express slot.
Reliable network connectivity with high performance
This Gigabit Ethernet network card features the Intel® I350-AM4 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options including IEEE 802.3ad link aggregation / teaming support, which enables you to add additional bandwidth to your system.
Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
Cost-effective access to multiple networks
The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives you four redundant, independent Gigabit Ethernet ports and it supports advanced features such as Jumbo Frames and VLAN tagging.
Enhanced versatility and efficiency
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications - including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs. The 4-port Gigabit network card is equipped with Intel® Virtualization Technology for Connectivity (Intel® VT-c) which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server’s networking efficiency and create a more agile data center.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Mac Address Pass-Through Utility: To improve network security.
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
| 4-Port PCIe Gigabit Network Card Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × PCI Express x4 4 × RJ-45 |
| Environmental | |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20% – 80% RH |
| Hardware | |
| Ports | 4 |
| Bus Type | PCI Express |
| Card Type | Standard Profile (Low Profile bracket included) |
| Industry Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.1Q VLAN Tagging IEEE 802.3x Full Duplex Flow Control |
| Chipset ID | Intel I350-AM4 |
| LED Indicators | 4 × 100/1000 Mbps Indicator 4 × Link/Activity |
| Packaging Information | |
| Package Height | 1.2 in [3.1 cm] |
| Package Length | 7.8 in [19.8 cm] |
| Package Width | 15.4 in [39.2 cm] |
| Package Weight | 5.5 oz [156.0 g] |
| Package Quantity | 1 |
| Performance | |
| Wake On LAN | Yes |
| Max Data Transfer Rate | 2000 Mbps (Full Duplex) |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Supported Protocols | IEEE 802.3ad (Link Aggregation), IEEE 1588 (Time Sync) |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Length | 5.2 in [13.2 cm] |
| Product Width | 0.7 in [1.8 cm] |
| Product Height | 4.7 in [12.0 cm] |
| Product Weight | 3.2 oz [90.0 g] |
| Power | |
| Power Consumption | 4.4W |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 Linux 2.4.x and up (LTS versions only) |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot |
| What's in the Box | |
| Included Items | 1 × 4 Port Network Card 1 × Low Profile Bracket 1 × Instruction Manual |
