StarTech 4 Port HDMI 2.0 Switch - 4K HDMI Switch Box - UHD 4K 60Hz 2Yr

StarTechSKU: VS421HD20

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$101.00

Estimate shipping

Description

Overview

4-Port HDMI Automatic Switch - 4K 60Hz
Switch between four HDMI video sources on a single display with support for Ultra HD resolutions

This 4-port HDMI video switch lets you share an HDMI 2.0 display or projector with four HDMI 2.0 video sources. The switch features four independent video inputs that can each support 4K resolution at 60Hz, making it the perfect solution for connecting four video sources to a display that has a limited number of HDMI 2.0 ports.

Astonishing picture quality with support for Ultra HD 4K at 60Hz
The HDCP 2.2 HDMI switch lets you harness the High Dynamic Range (HDR) capability of your HDMI 2.0 video sources and deliver it to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switch works with HDMI 2.0 displays with output resolutions of up to 3840 x 2160p at 60Hz.

Don't be fooled by a clever spin on old technology. Many HDMI switches support 4K but will only work at a 30Hz refresh rate, or claim support for 60Hz but heavily compress their signal to a lower 4:2:0 chroma subsampling in order to work at inferior bitrates. This 4K 60Hz HDMI switch uses the latest components to offer full support for your HDMI 2.0 equipment, supporting true 4K resolution at 60Hz with 4:4:4 chroma subsampling. Support for HDMI 2.0 devices means this switch can transmit bandwidth up to 18Gbps, making it ideal for high-resolution computer tasks.

The switch is backward compatible with 4K 30Hz and 1080p displays, which ensures that it will work with lower resolution displays such as TVs or projectors around your site or in a digital signage application.

Hassle-free Operation with automatic switching
This switch ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray™ player as soon as it's switched on. In your classroom or office boardroom, the automatic switch makes it easy to share your projector between multiple sources, which encourages on-the-fly collaboration among colleagues.

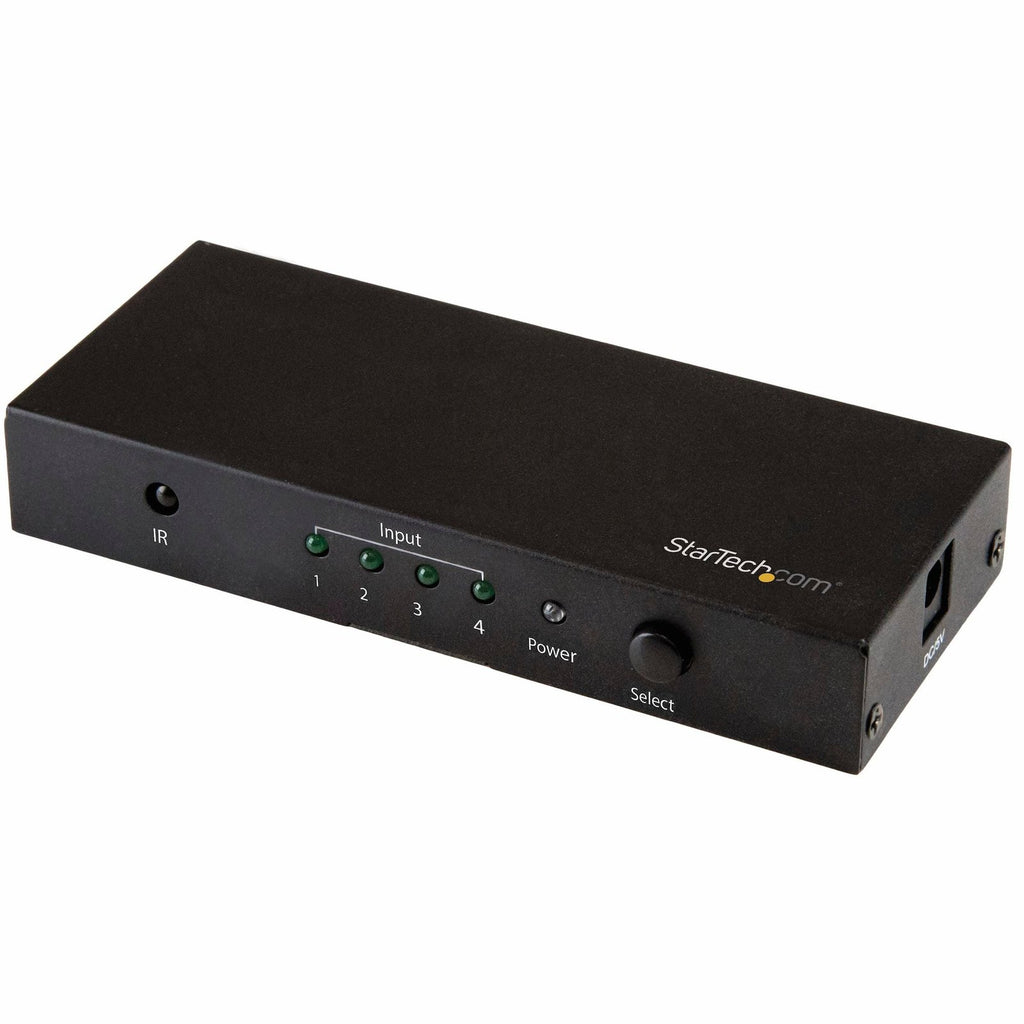

The HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch.

4-Port HDMI Video Switch Specifications

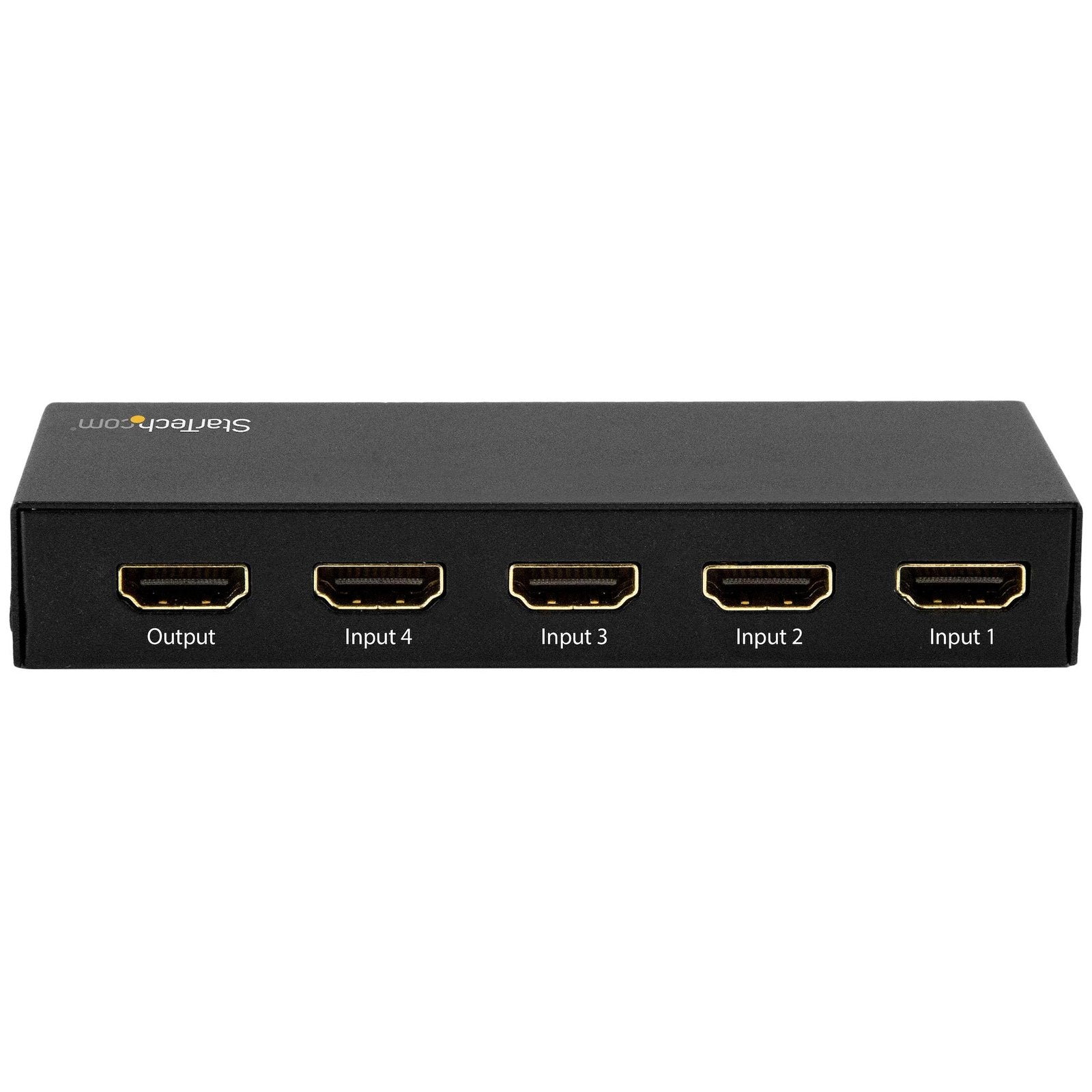

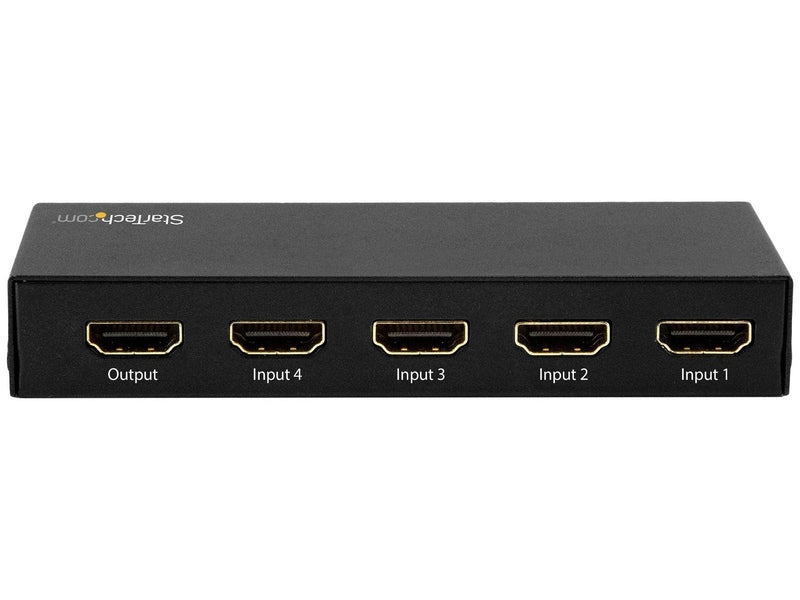

Connector(s)
Connector A 4 × HDMI (19 pin)
Connector B 1 × HDMI (19 pin)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Humidity 10% to 85% RH
Hardware
Ports 4
AV Input HDMI
AV Output HDMI
Audio Yes
Industry Standards HDMI 2.0
LED Indicators 4 × Input LEDs
1 × Power LED
Packaging Information
Package Height 2.2 in [5.5 cm]
Package Length 5.9 in [15.1 cm]
Package Width 8.5 in [21.7 cm]
Package Weight 15.2 oz [432.0 g]
Package Quantity 1
Performance
Maximum Digital Resolutions 4K @ 60Hz
Supported Resolutions 3840×2160 (4K) @ 60Hz
2560×1600 @ 60Hz
1920×1200 @ 60Hz
1920×1080 (1080p) @ 60Hz
1280×720 (720p) @ 60Hz
Lower resolutions also supported
Wide Screen Supported Yes
Audio Specifications HDMI – Audio Supported
Physical Characteristics
Color Black
Material Steel
Product Length 4.8 in [12.3 cm]
Product Width 2.0 in [5.1 cm]
Product Height 0.8 in [2.0 cm]
Product Weight 5.4 oz [152.0 g]

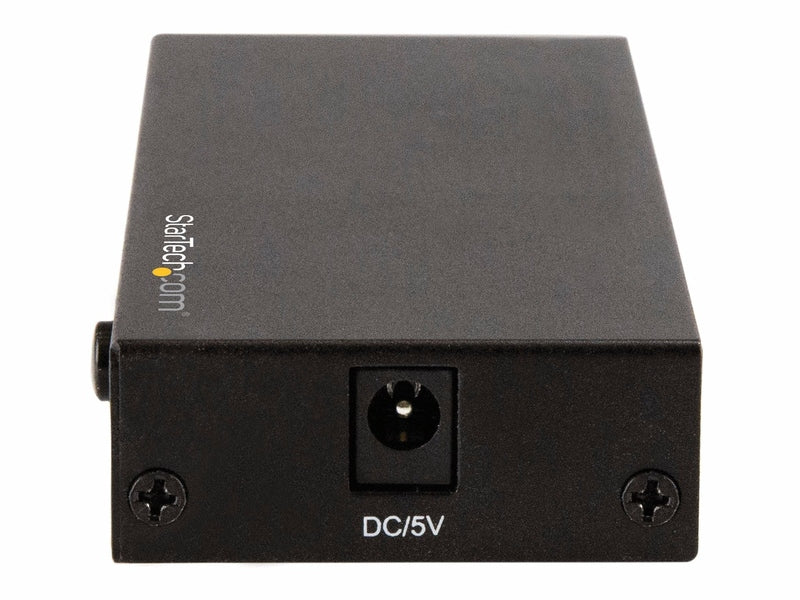

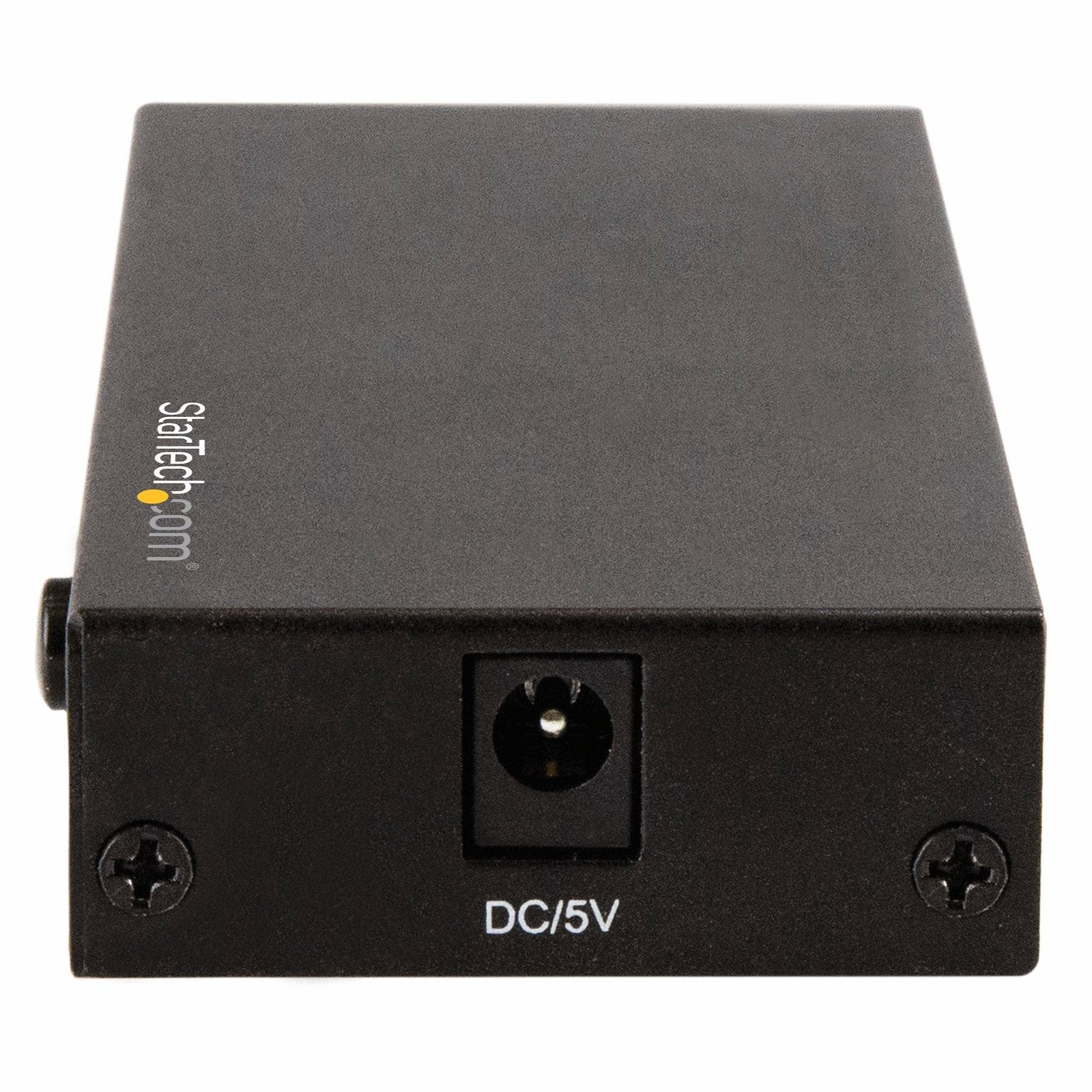

Power
Power Source AC Adapter Included
Input Voltage 100–240V AC
Input Current 0.4 A
Output Voltage 5V DC
Output Current 2000 mA
Plug Type Type M
Power Consumption 10 Watts

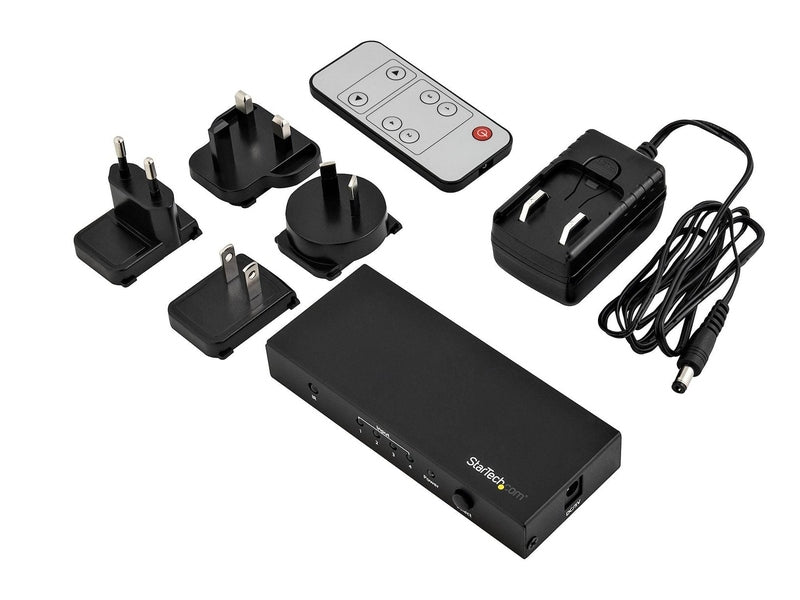

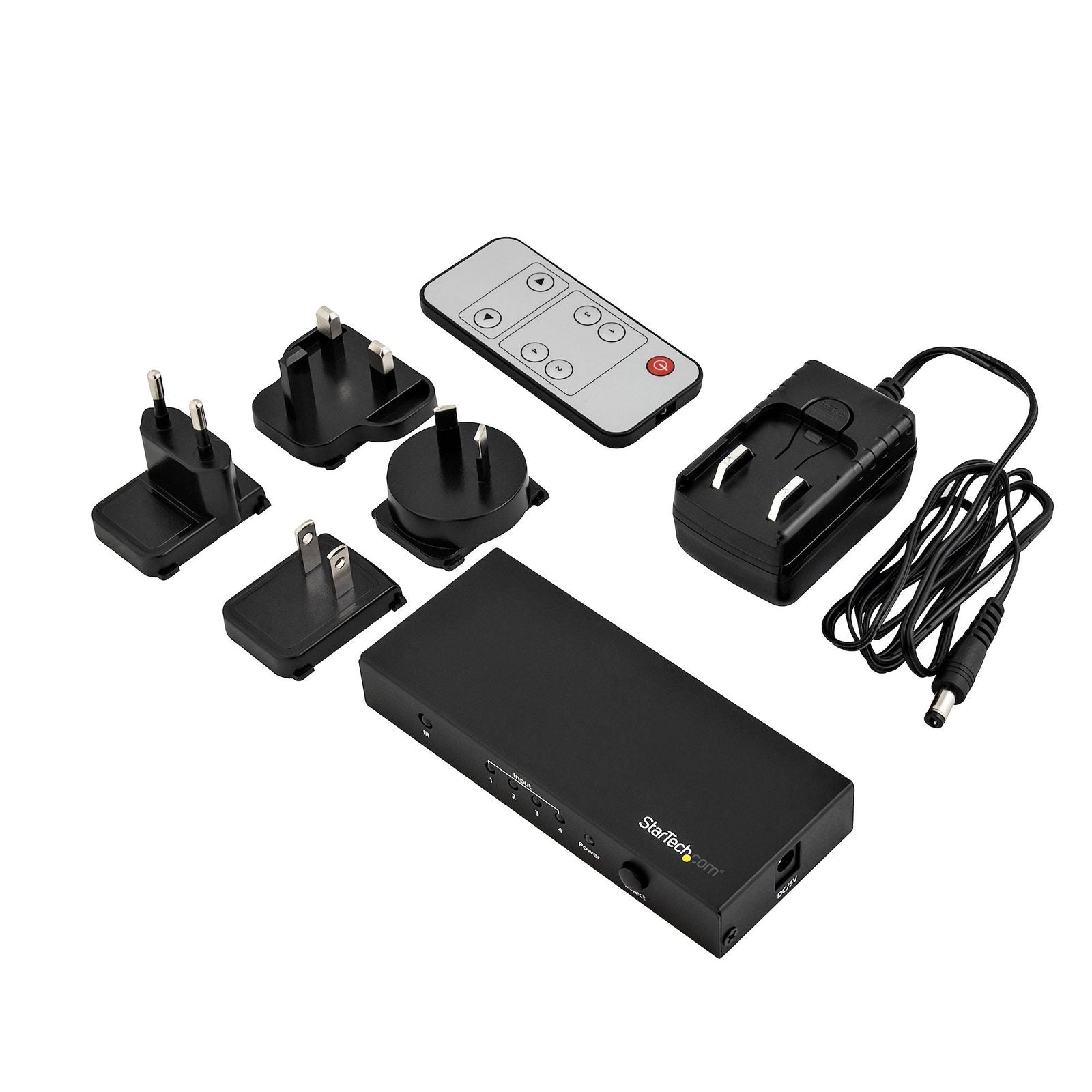

What's in the Box
Included Items 1 × HDMI Video Switch
1 × IR Remote Control (with CR2025 battery)
1 × Universal Power Adapter (NA, EU, UK, ANZ)
