4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
| 4-Port DVI+VGA KVM Switch Specifications | |
|---|---|
| Connector(s) | |
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) 4 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - DVI-I (29 pin) 2 - 3.5 mm Mini-Jack (3 Position) |

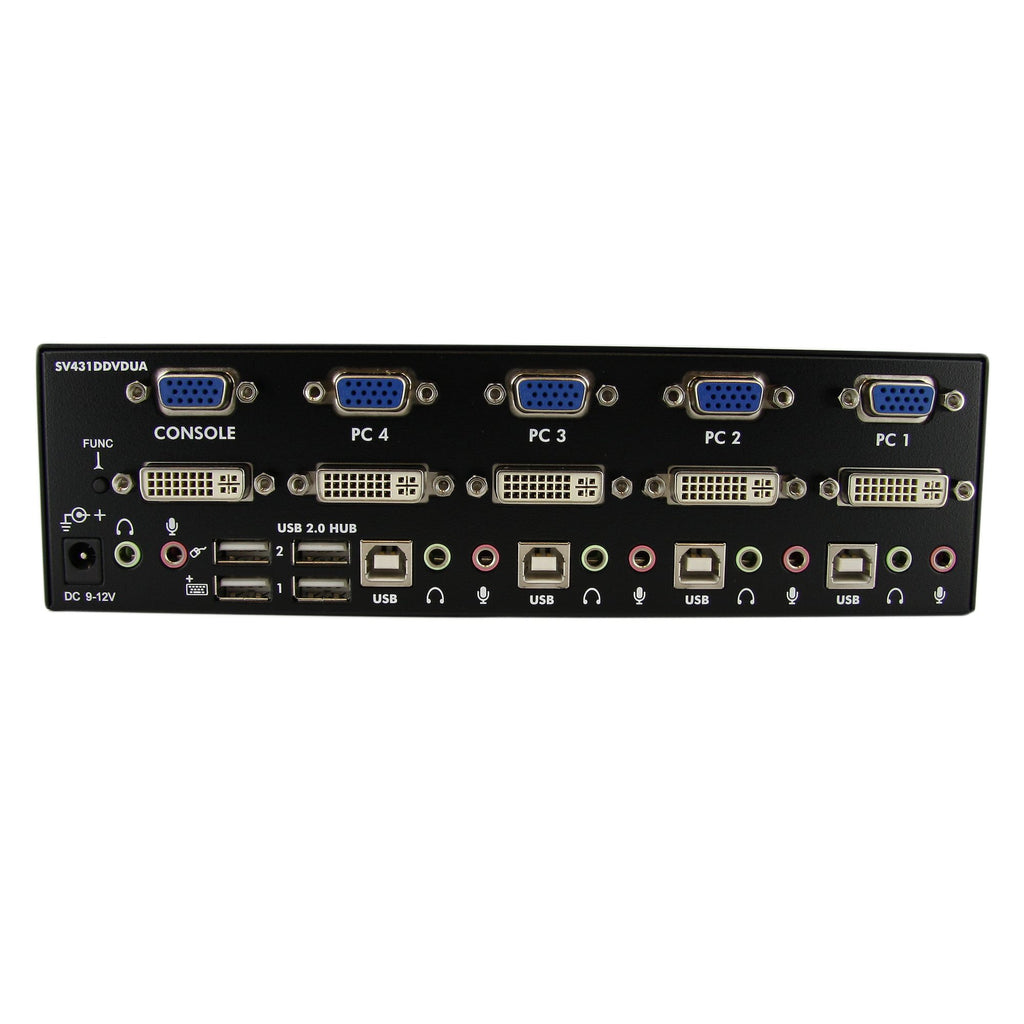

| Host Connectors | 4 - 3.5 mm Mini-Jack (3 Position) 4 - DVI-I (29 pin) 4 - USB B (4 pin) 4 - VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 4 |
| PC Interface | USB |
| PC Video Type | DVI+VGA |
| Number of Monitors Supported | 2 |
| Rack-Mountable | Optional |
| Cables Included | No |
| Daisy-Chain | No |
| LED Indicators | 2 - Green - PC Detected 1 - Green - Power 2 - Red - PC Indicator |
| Packaging Information | |
| Package Height | 3.4 in [8.7 cm] |
| Package Length | 11.8 in [30.0 cm] |
| Package Width | 10.0 in [25.5 cm] |
| Shipping (Package) Weight | 3.9 lb [1.8 kg] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| DVI Support | Yes - Single Link |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Analog Resolutions | 1920 x 1400 |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 140000 hours |
| Physical Characteristics | |
| Weight of Product | 2.8 lb [1.3 kg] |
| Color | Black |
| Material | Steel |
| Product Length | 6.4 in [16.3 cm] |
| Product Width | 8.7 in [22 cm] |
| Product Height | 2.4 in [6 cm] |
| Product Depth | 5.1 in [130 mm] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 18W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source. |
| What's in the Box | |

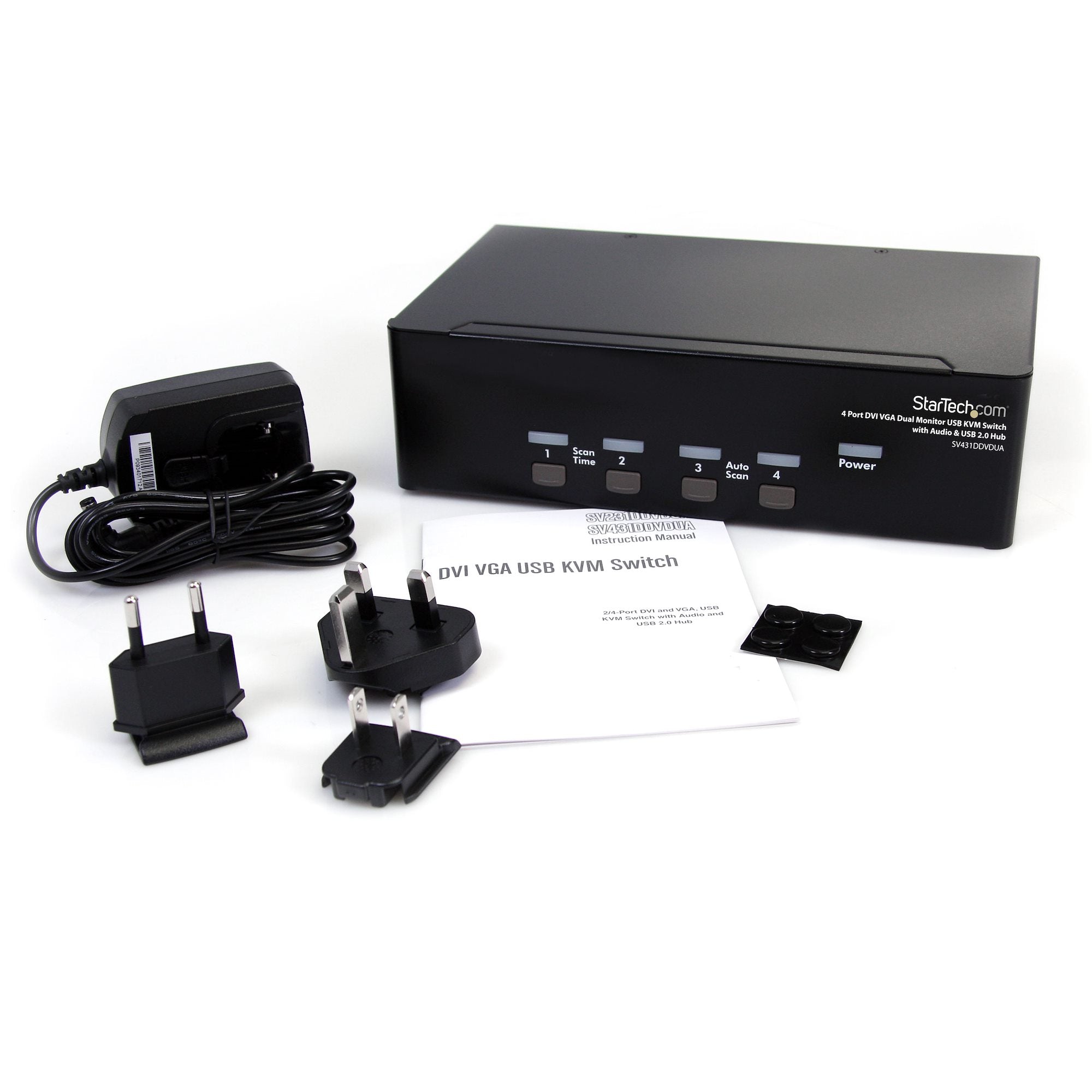

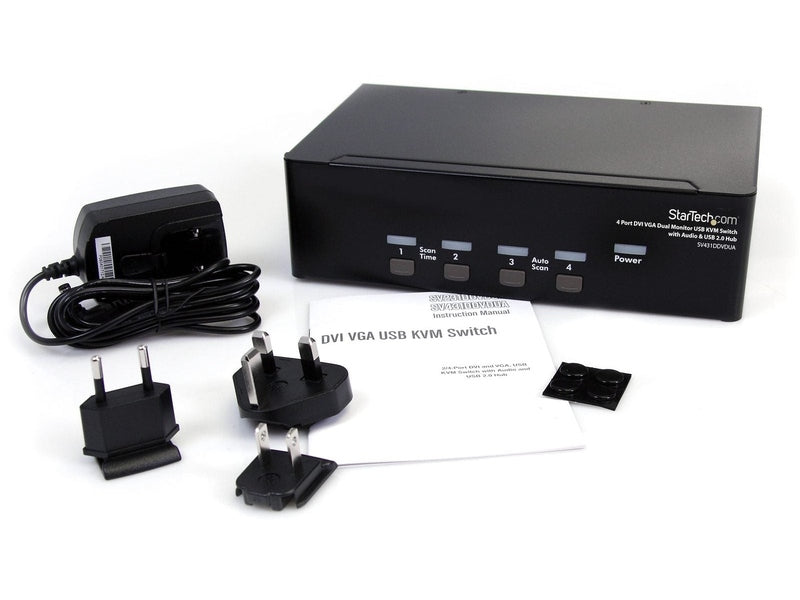

| Included in Package | 1 - 4-port KVM switch 4 - foot pads 1 - universal power adapter (NA/EU/UK/AU) 1 - instruction manual |
