Overview

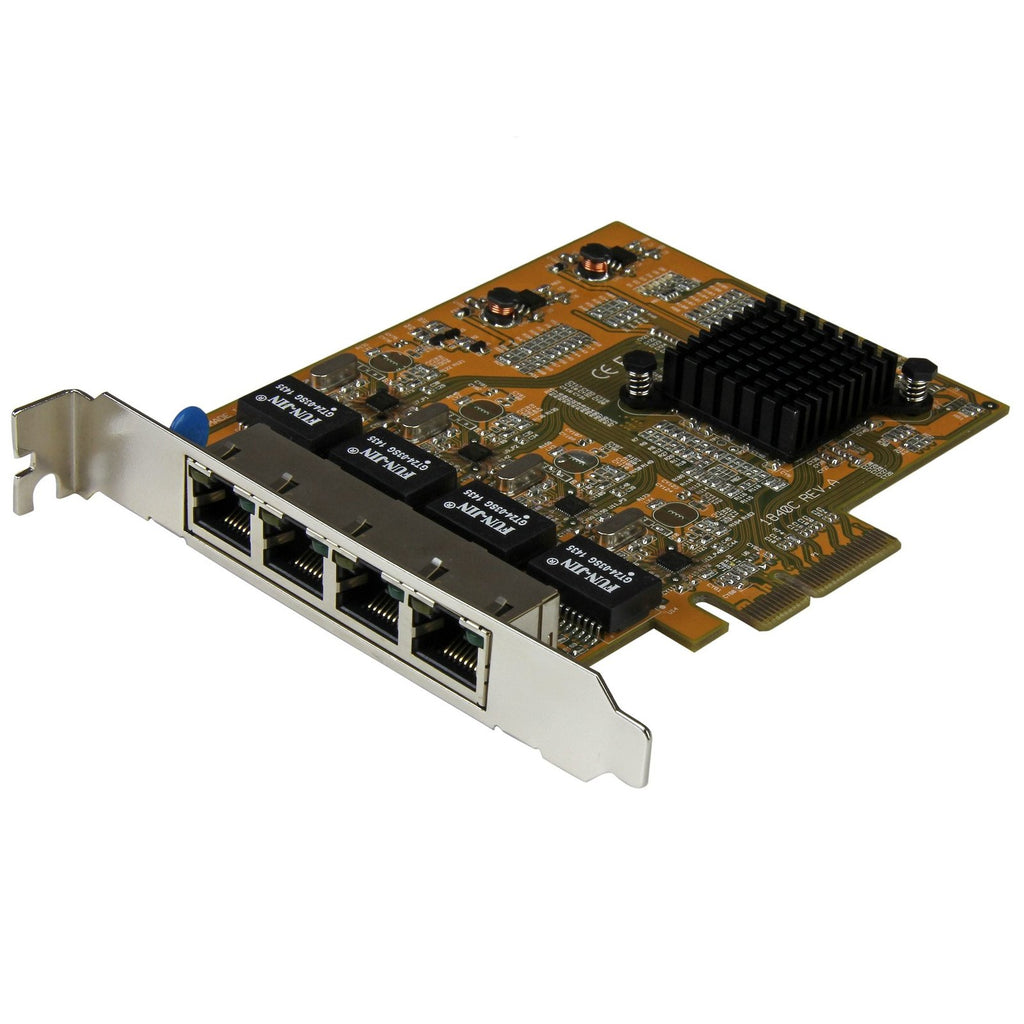

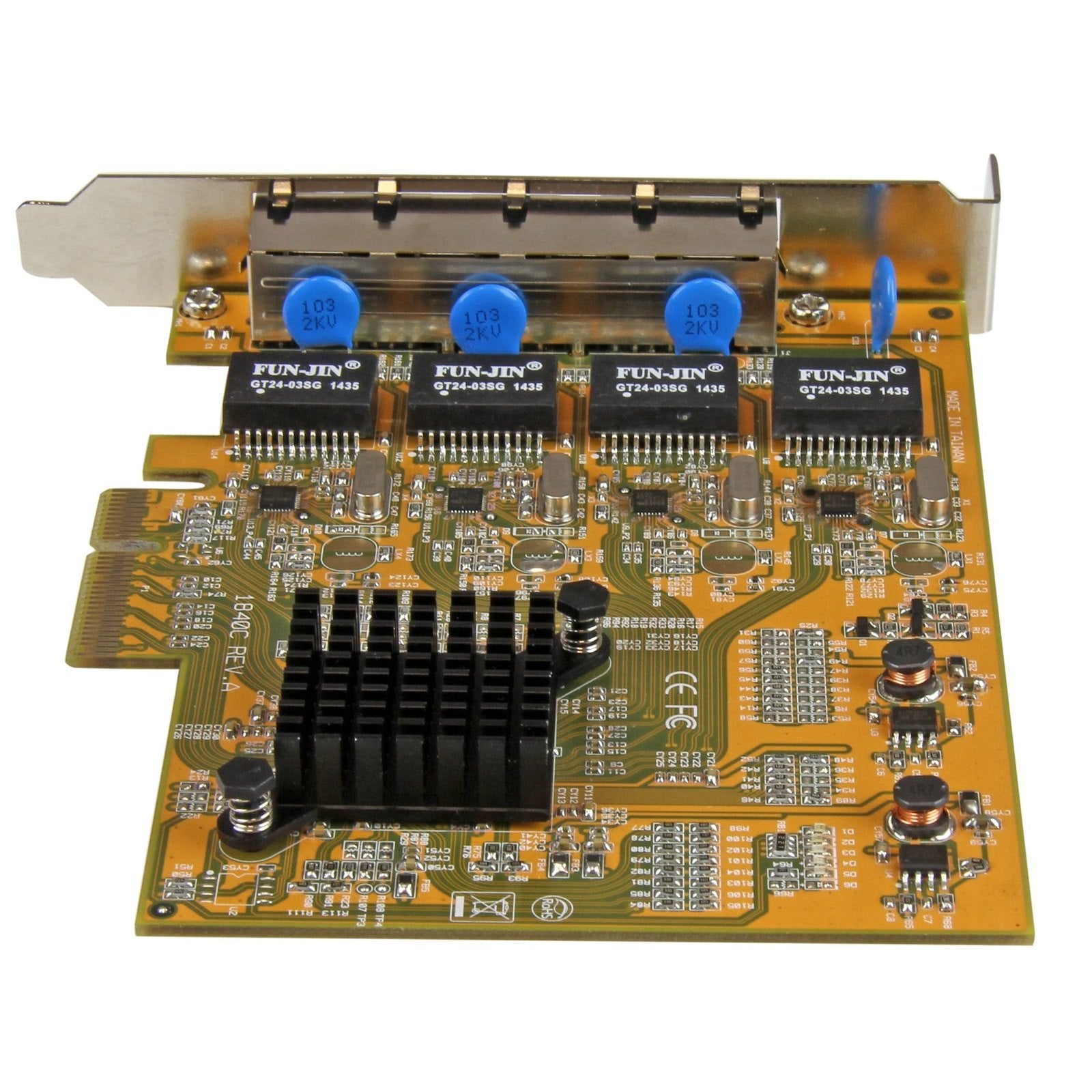

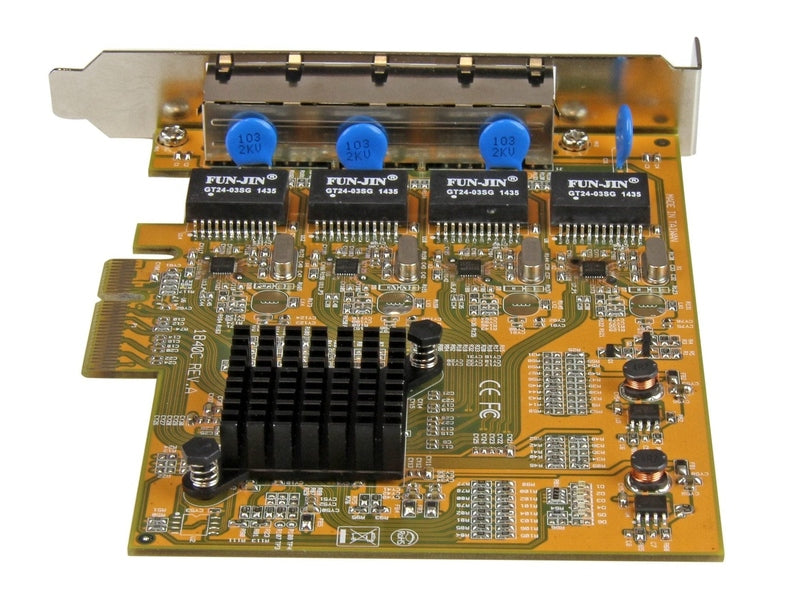

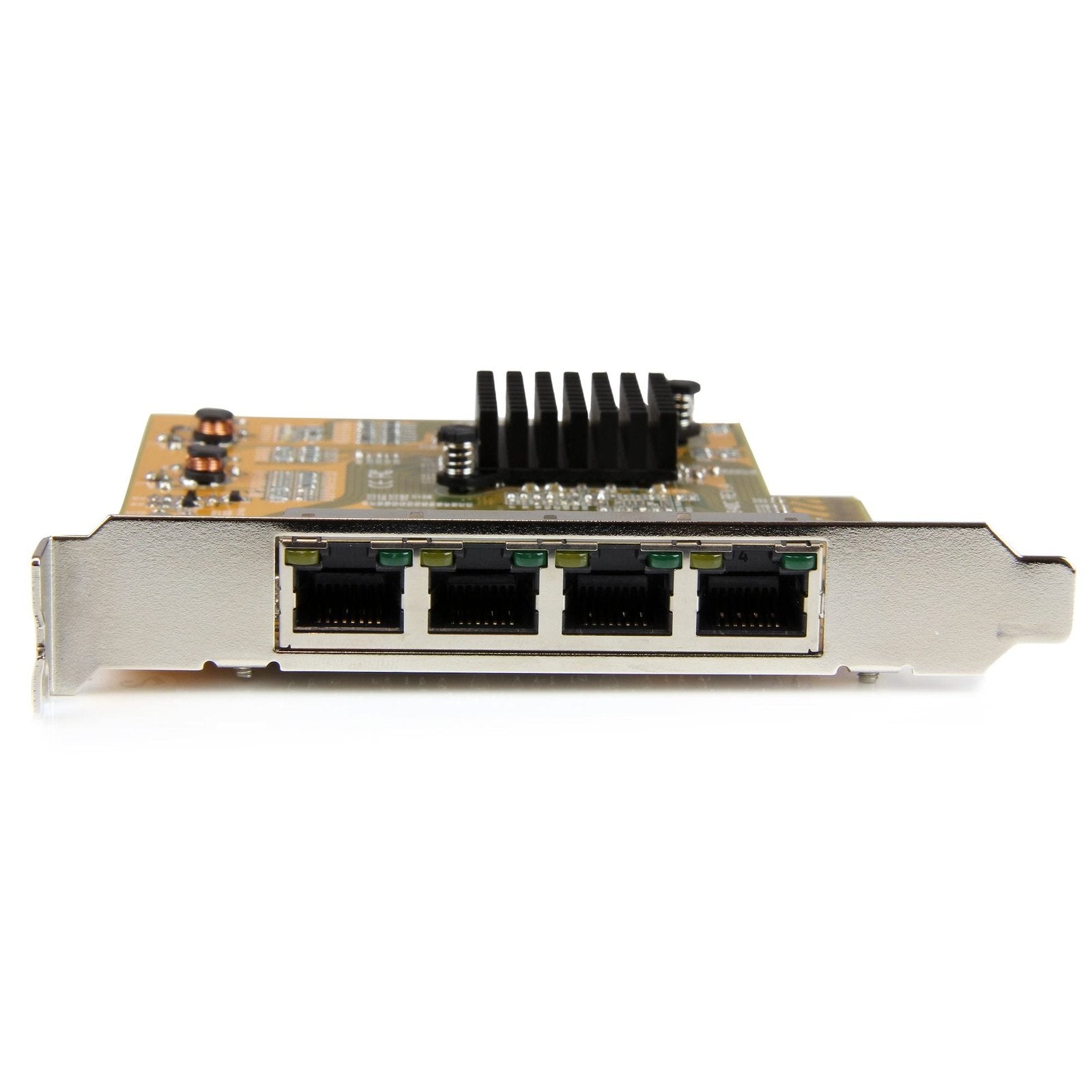

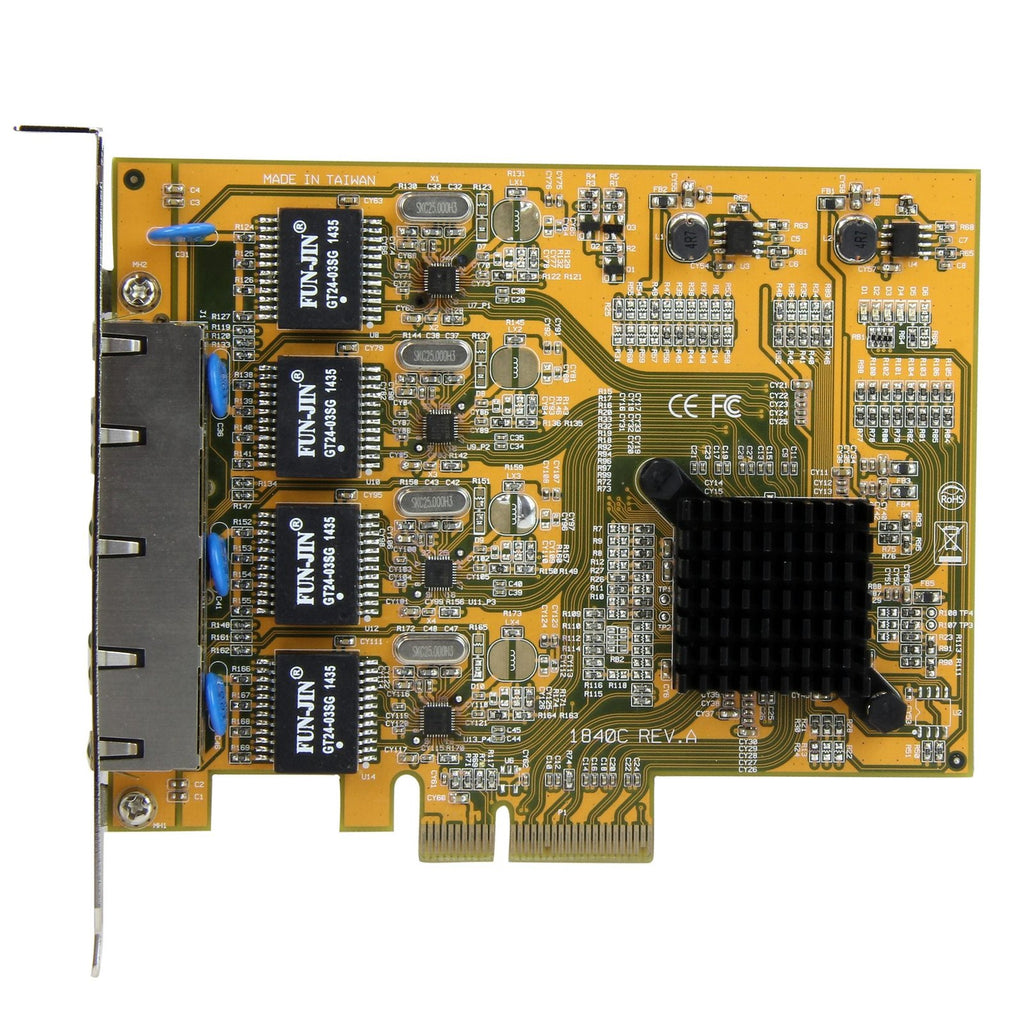

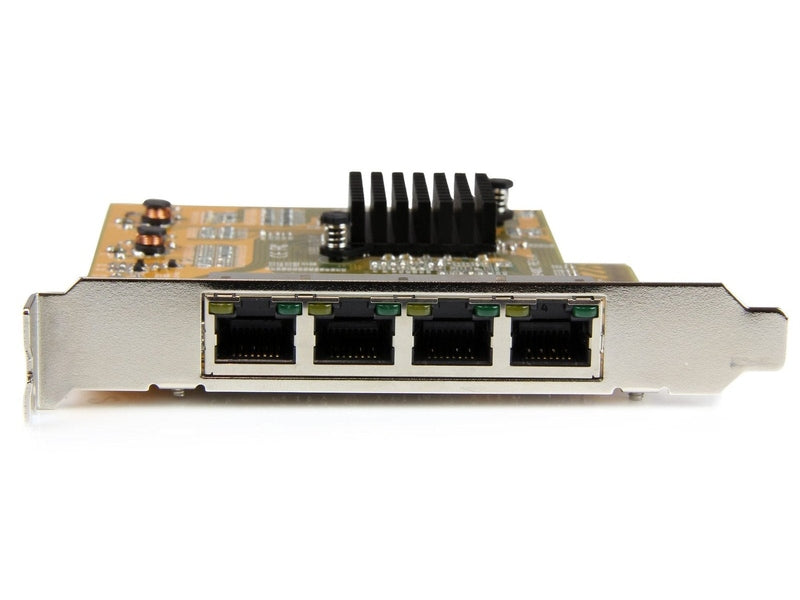

4-Port PCIe Gigabit Network Adapter Card - TAA
Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111H chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
4-Port PCIe Gigabit Network Adapter Card - TAA
Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111H chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
| 4-Port PCIe Gigabit Network Card Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × PCI Express x4 |
| External Ports | 4 × RJ-45 |
| Environmental | |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 75°C (-40°F to 167°F) |
| Humidity | 5% – 95% RH |
| Hardware | |
| Ports | 4 |
| Interface | RJ-45 (Gigabit Ethernet) |
| Bus Type | PCI Express |
| Card Type | Standard Profile |
| Industry Standards | IEEE 802.3, 802.3u, 802.3ab |
| Chipset ID | Realtek RTL8111H |
| LED Indicators | 4 × Link 4 × Activity |
| Packaging Information | |
| Package Height | 1.6 in [4.1 cm] |
| Package Length | 8.3 in [21.0 cm] |
| Package Width | 5.7 in [14.5 cm] |
| Package Weight | 6.6 oz [188.0 g] |
| Package Quantity | 1 |
| Performance | |
| Max Data Transfer Rate | 2000 Mbps (Full Duplex) |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Promiscuous Mode | Yes |
| Physical Characteristics | |
| Color | Yellow |
| Material | Steel |
| Product Length | 5.4 in [13.8 cm] |
| Product Width | 4.7 in [12.0 cm] |
| Product Height | 0.7 in [1.8 cm] |
| Product Weight | 3.4 oz [95.0 g] |
| Software | |
| OS Compatibility | Windows® XP, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2012, 2016, 2019 Linux Kernel 2.4.x and up (LTS versions only) |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot |
| What's in the Box | |
| Included Items | 1 × PCIe Gigabit Network Card – 4 Port |
