4-Port HDMI KVM Switch - USB 3.0 - 1080p - TAA
Control four HDMI computers using a single console, with a built-in USB 3.0 hub for sharing additional peripheral devices
This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
HD picture quality
Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
4-Port HDMI KVM Switch - USB 3.0 - 1080p - TAA
Control four HDMI computers using a single console, with a built-in USB 3.0 hub for sharing additional peripheral devices
This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
HD picture quality
Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
4-Port HDMI KVM Switch Specifications | |
---|---|
Connector(s) | |
Console Interface(s) | 1 - HDMI (19 pin) 3 - USB Type-A (9 pin, 5 Gbps) 4 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - 3.5 mm Mini-Jack (3 Position) |

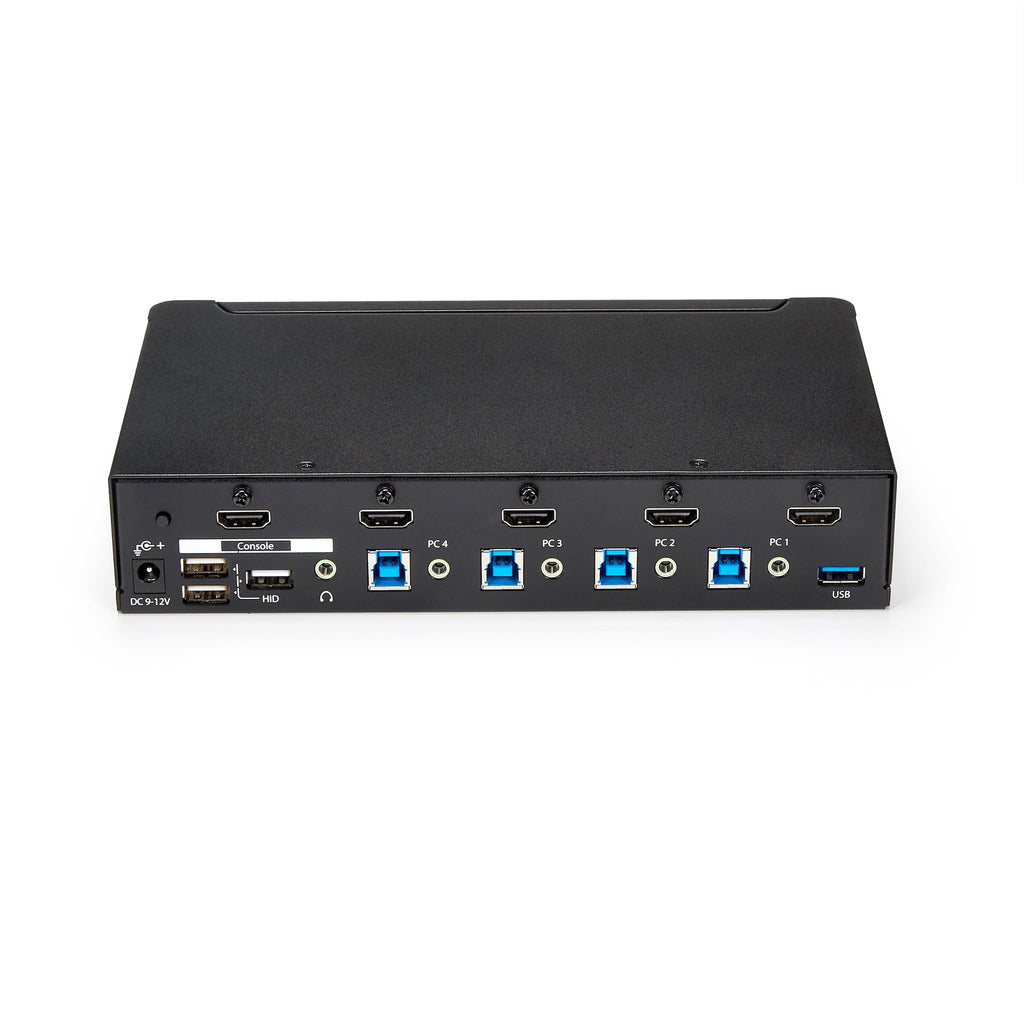

Host Connectors | 4 - HDMI (19 pin) 4 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) 4 - 3.5 mm Mini-Jack (3 Position) |
Environmental | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -10°C to 60°C (14°F to 140°F) |
Humidity | 0~80% RH Non-Condensing |
Hardware | |
Audio | Yes |
KVM Ports | 4 |
PC Interface | USB 3.2 Gen 1 (5Gbps) |
PC Video Type | HDMI |
Number of Monitors Supported | 1 |
Rack-Mountable | Optional |
Cables Included | No |
Daisy-Chain | No |
LED Indicators | 4 - port selection/link LEDs 1 - power LED |
Packaging Information | |
Package Height | 3.5 in [8.9 cm] |
Package Length | 9.8 in [24.8 cm] |
Package Width | 11.8 in [29.9 cm] |
Shipping (Package) Weight | 3.5 lb [1.6 kg] |
Package Quantity | 1 |
Performance | |
On-Screen Display | No |
IP Control | No |
Hot-Key Selection | Yes |
Maximum Cable Length | 50 ft. (15.24 m) |
Maximum Digital Resolutions | 1920 x 1080 @ 60 Hz |
Audio Specifications | Yes |
Port Selection Support | Push Button and Hotkeys |
MTBF | 142000 hours |
Physical Characteristics | |
Weight of Product | 2.3 lb [1.1 kg] |
Color | Black |
Product Length | 8.7 in [22.0 cm] |
Product Width | 5.1 in [13.0 cm] |
Product Height | 1.7 in [4.3 cm] |
Power | |
Input Voltage | 100 - 240 AC |
Input Current | 0.6 A |
Output Voltage | 12V DC |
Output Current | 1.5 A |
Plug Type | M |
Power Consumption | 18W |
What's in the Box | |

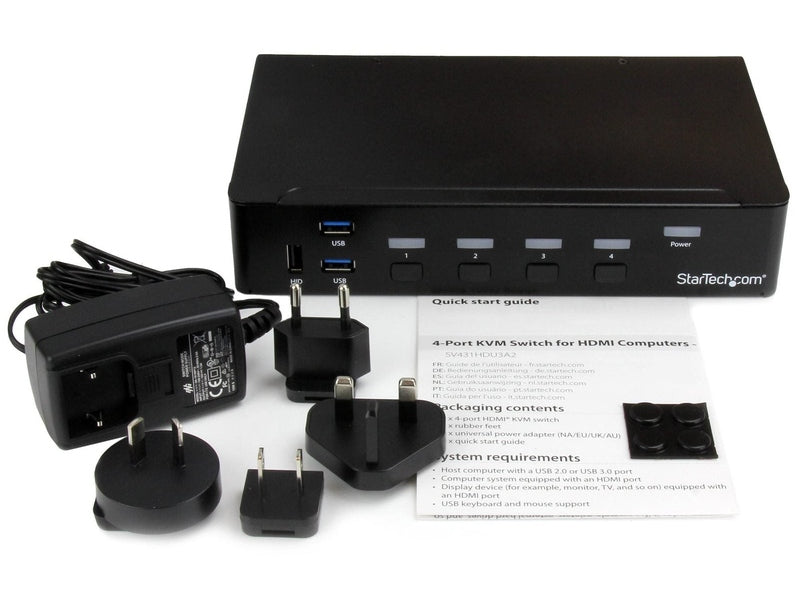

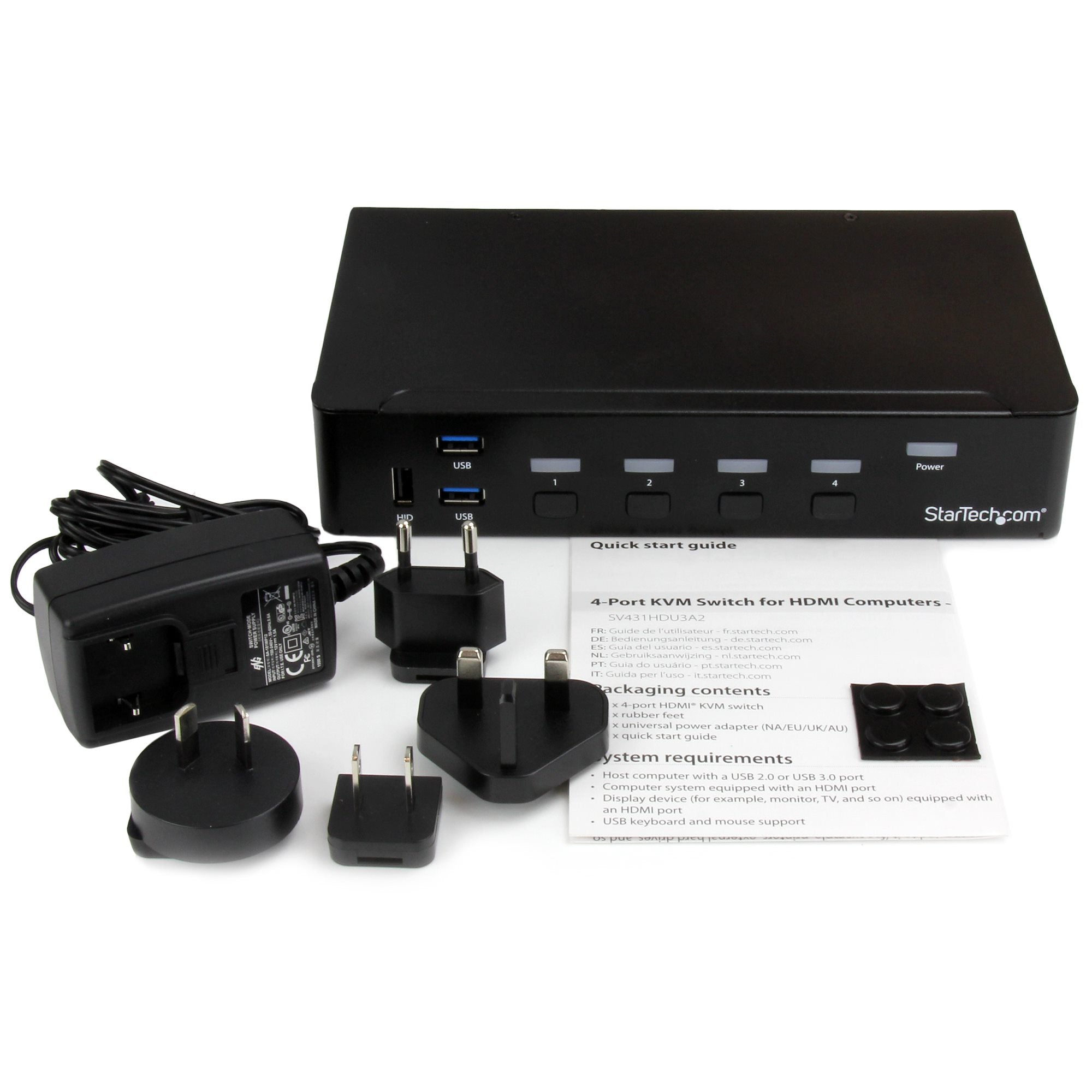

Included in Package | 1 - 4-port HDMI KVM switch 4 - rubber feet 1 - universal power adapter (NA/EU/UK/AU) 1 - quick start guide |
