Overview
4 Port Professional VGA USB KVM Switch with Hub - TAA
Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

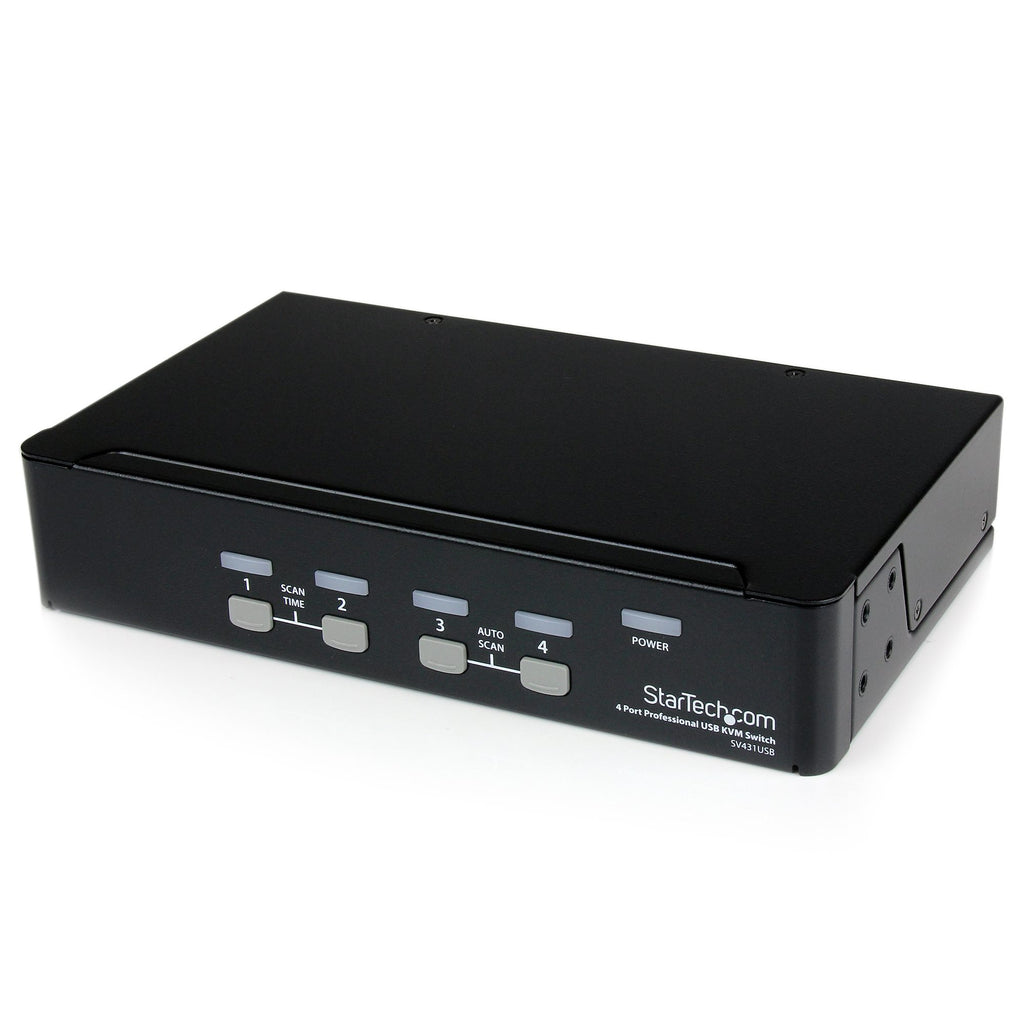

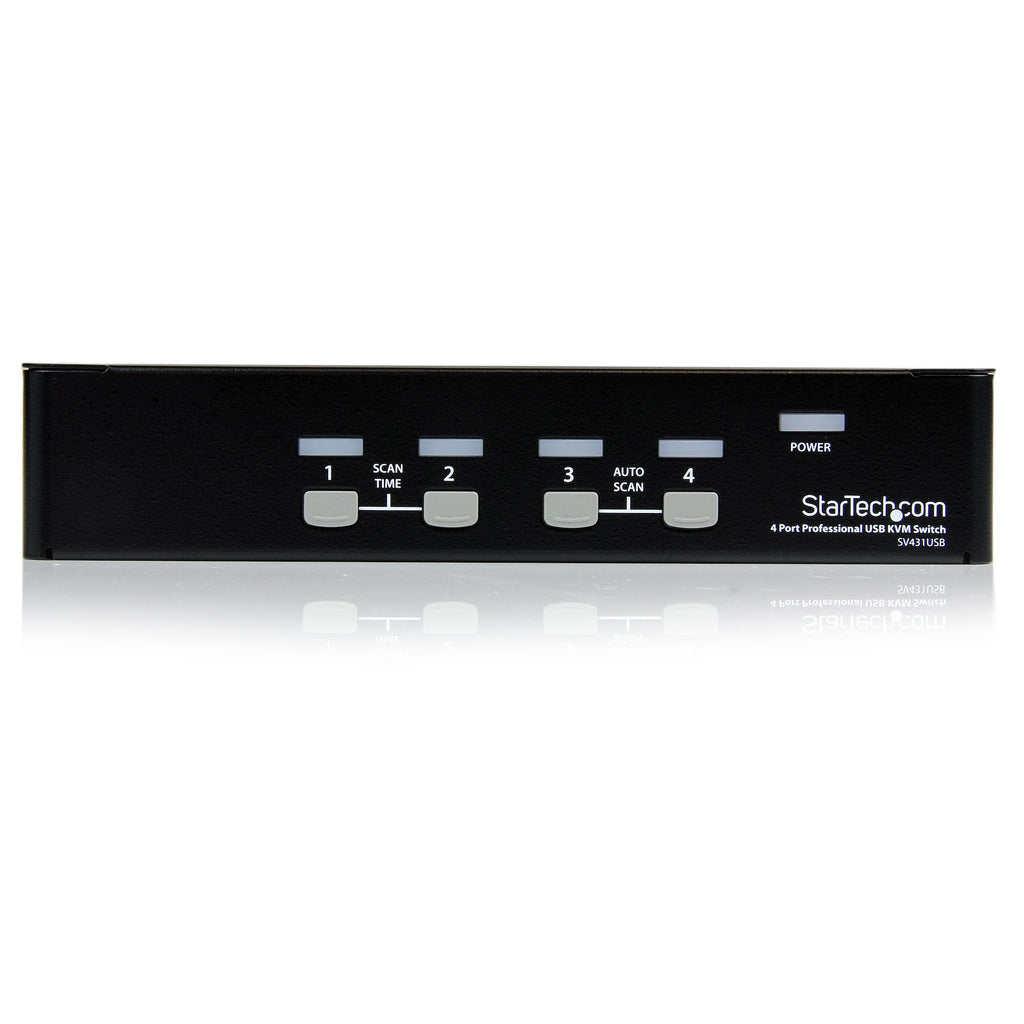

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

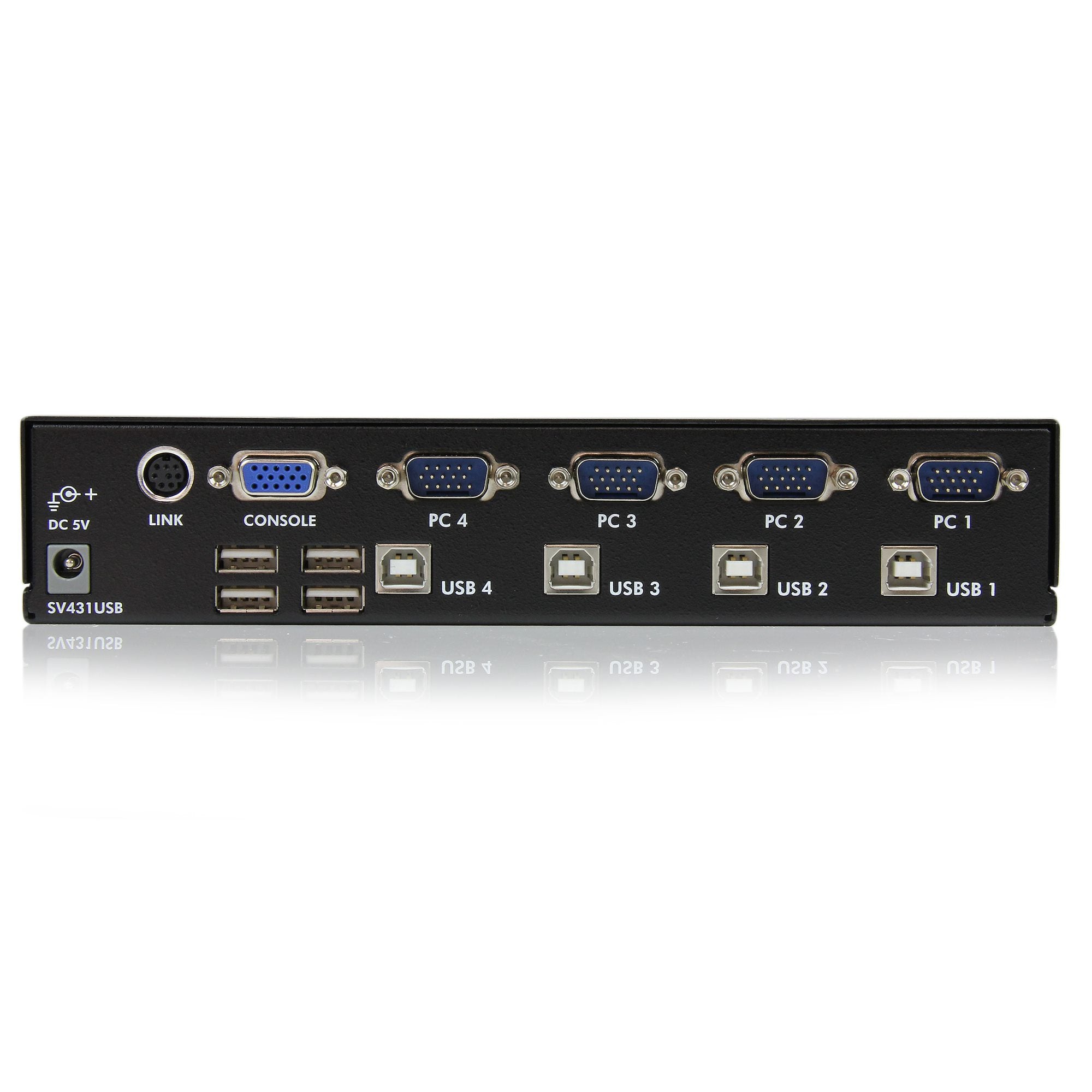

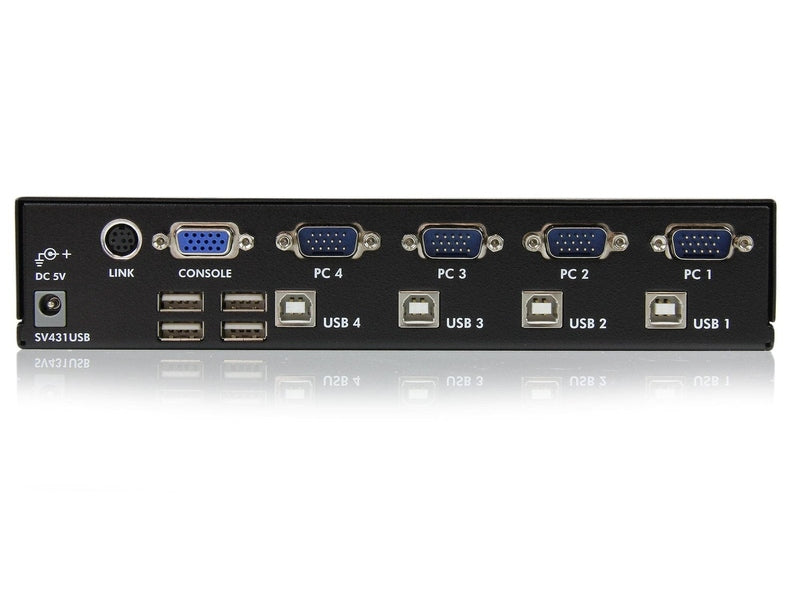

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
4 Port Professional VGA USB KVM Switch with Hub - TAA
Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.
Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
4-Port VGA USB KVM Switch Specifications | |
---|---|
Connector(s) | |
Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) 4 - USB 2.0 Type-A (4 pin, 480Mbps) |
Host Connectors | 4 - USB B (4 pin) 4 - VGA (15 pin, High Density D-Sub) |
Environmental | |
Humidity | 0 - 80 % |
Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Storage Temperature | –10°C ~ 60°C (14°F ~ 140°F) |
Hardware | |
Audio | No |
KVM Ports | 4 |
PC Interface | USB |
PC Video Type | VGA |
Number of Monitors Supported | 1 |
Rack-Mountable | Optional |
Cables Included | No |
U Height | 1U |
Daisy-Chain | No |
Packaging Information | |
Package Height | 2.9 in [7.4 cm] |
Package Length | 11.7 in [29.6 cm] |
Package Width | 7.7 in [19.5 cm] |
Shipping (Package) Weight | 2.7 lb [1.2 kg] |
Package Quantity | 1 |
Performance | |
On-Screen Display | No |
DVI Support | No |
IP Control | No |
Hot-Key Selection | No |
Maximum Cable Length | 16.4 ft [5 m] |
Maximum Analog Resolutions | 1920 x 1440 |
Auto Scan | 3, 8, 15 & 30 seconds |
Maximum Number of Users | 1 |
Port Selection Support | Push Button |
MTBF | 82506 hours |
Physical Characteristics | |
Weight of Product | 34.9 oz [988 g] |
Color | Black |
Material | Steel |
Product Length | 8.7 in [22 cm] |
Product Width | 5.1 in [13 cm] |
Product Height | 1.7 in [4.4 cm] |
Power | |
Power Source | Not Included (not required for standard applications) |
Input Voltage | 100 - 240 AC |
Input Current | 0.4A |
Output Voltage | 5 DC |
Output Current | 2A |
Center Tip Polarity | Positive |
Plug Type | N |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Special Notes / Requirements | |
Note | In order to use the SV431USB with a USB keyboard that has additional USB ports, such as an Apple Macintosh keyboard, or to use the SV431USB with a USB hub, an additional power supply may be required |
What's in the Box | |

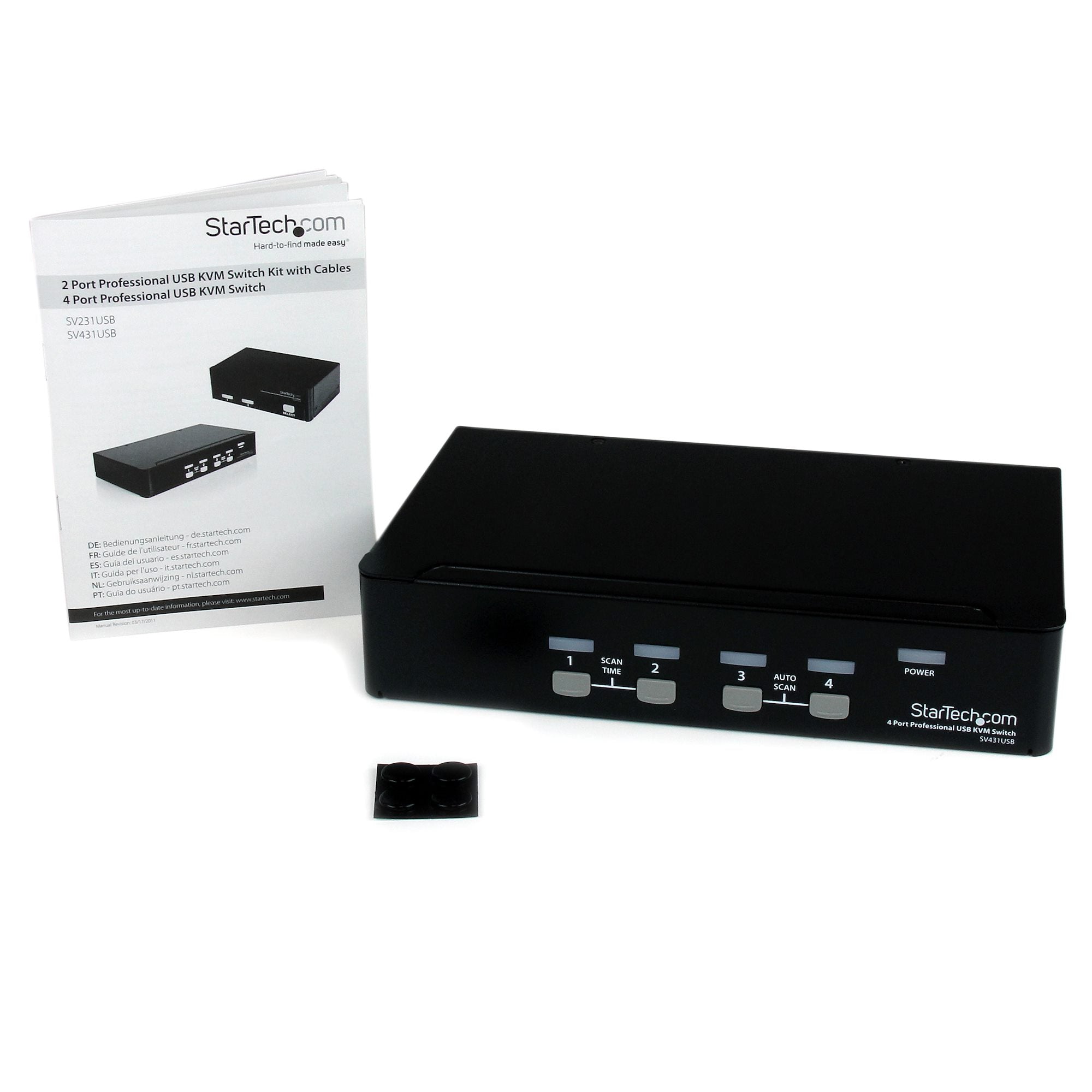

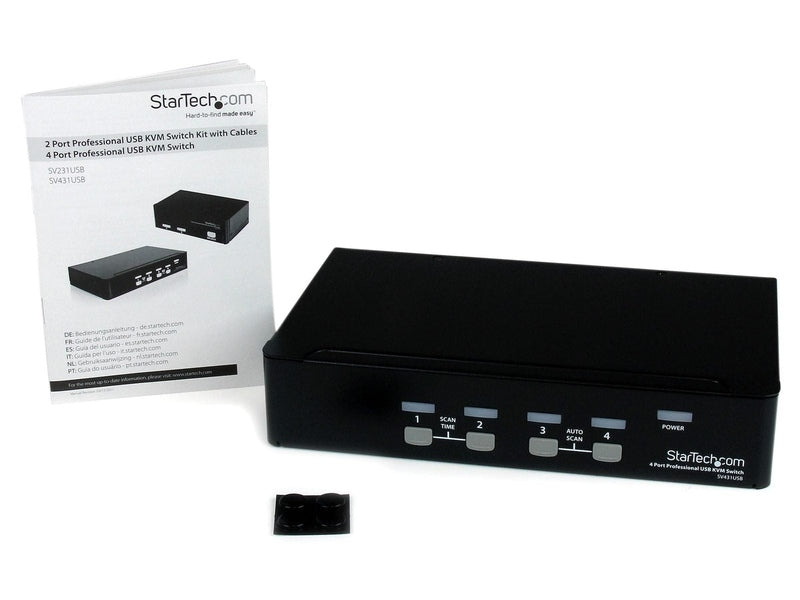

Included in Package | 1 - 4 Port VGA USB KVM Switch 4 - Rubber Feet 1 - Instruction Manual |
