Description
Overview
4 Port PCI Express Low Profile High Speed USB Card - TAA
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot

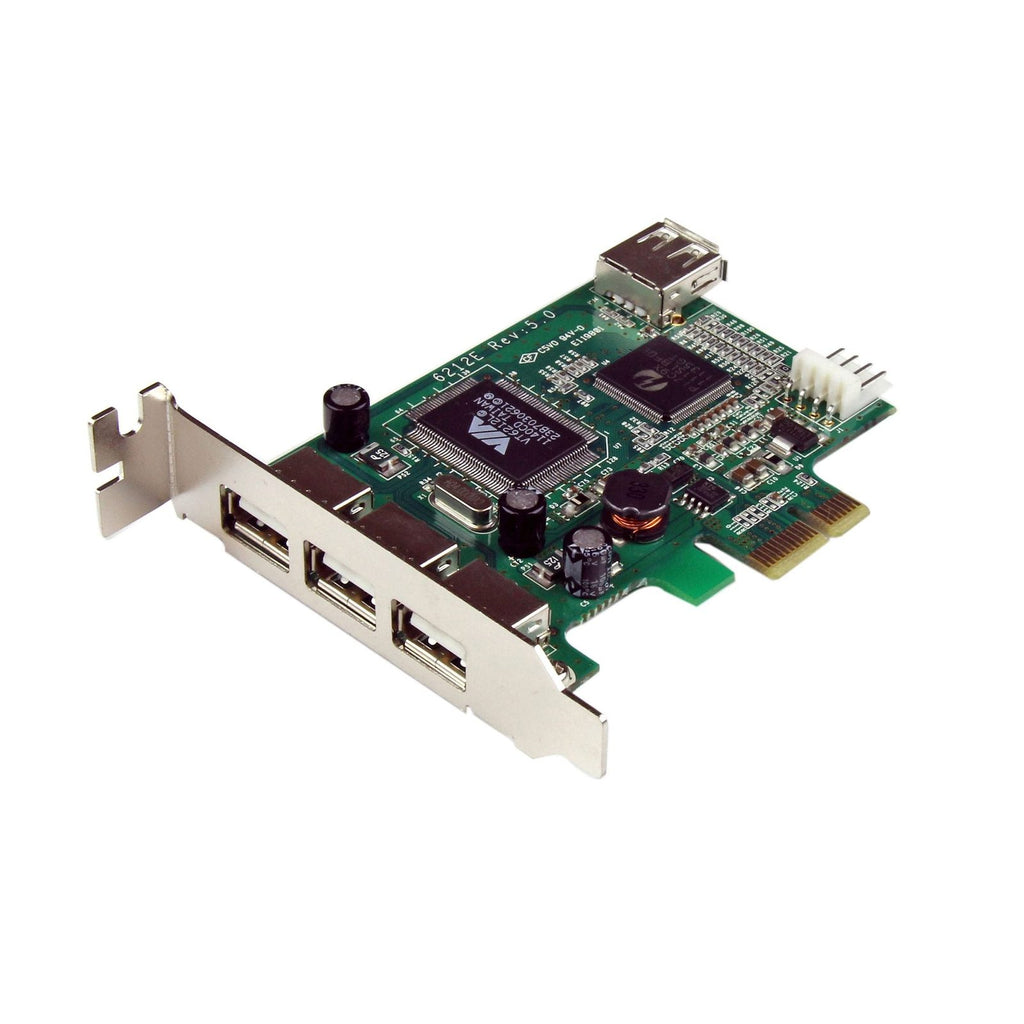

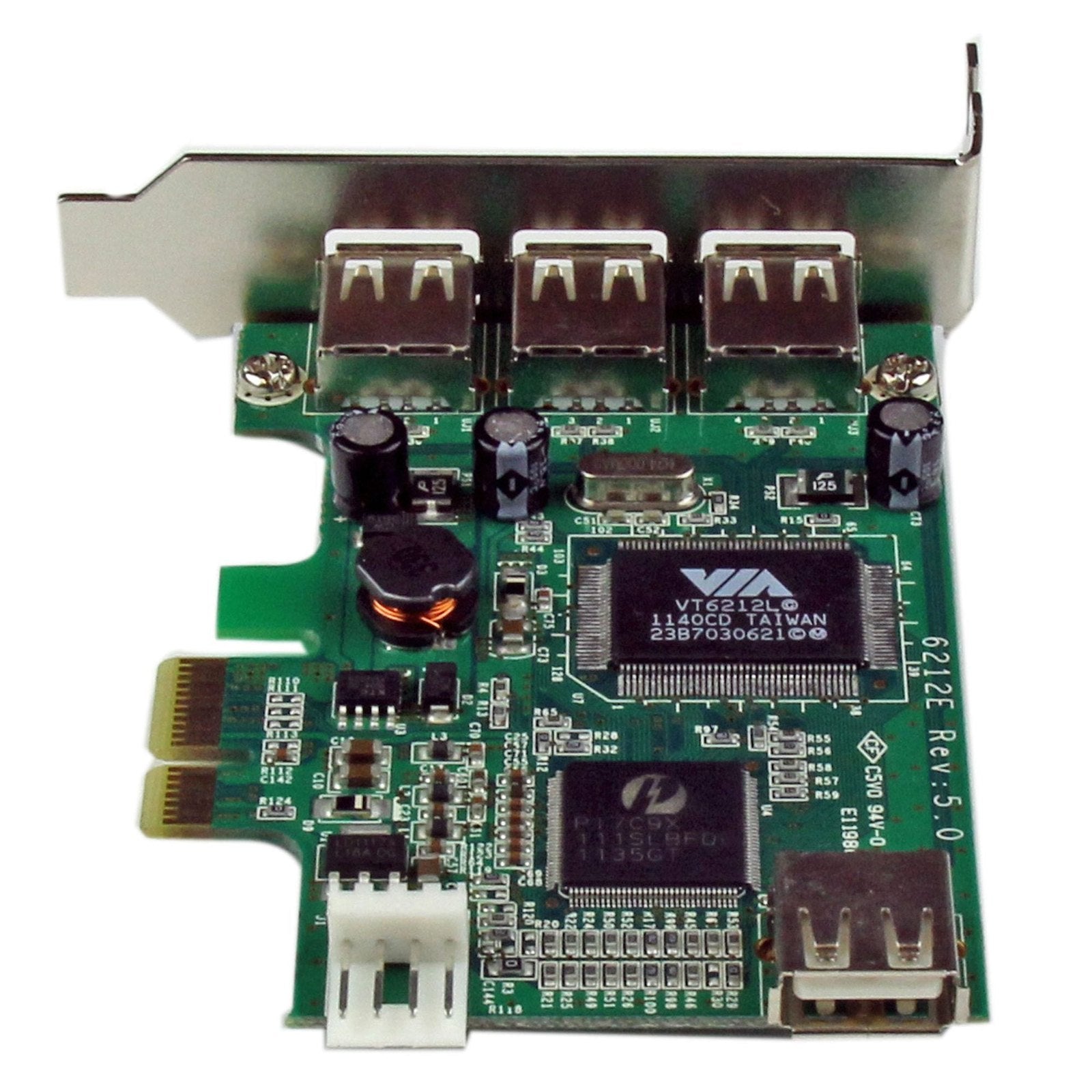

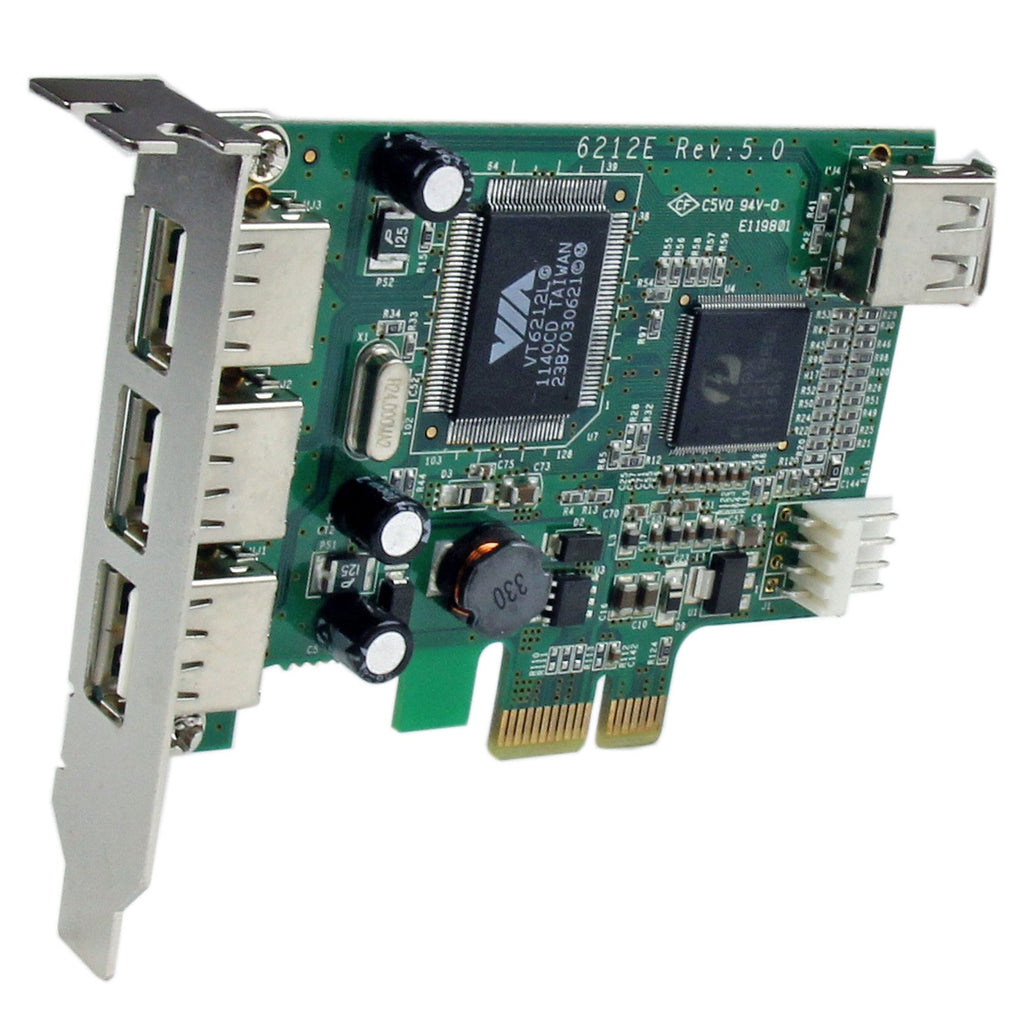

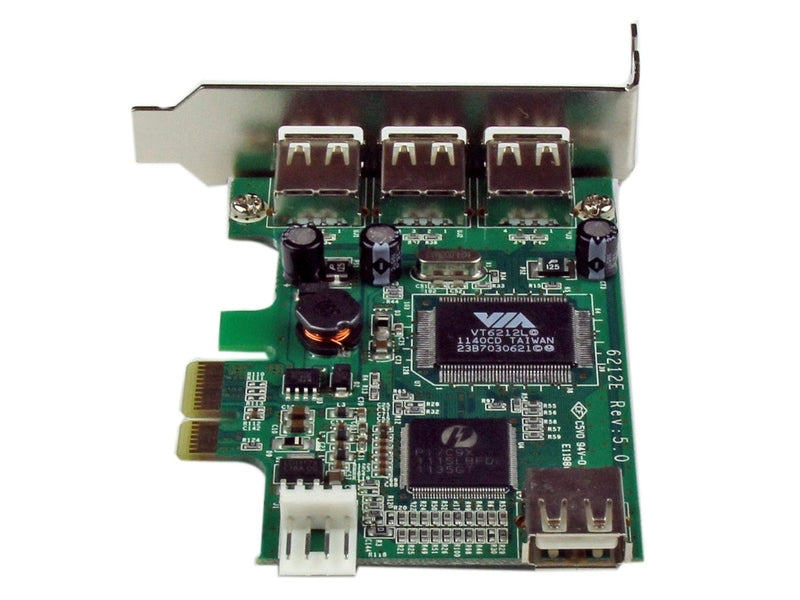

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.

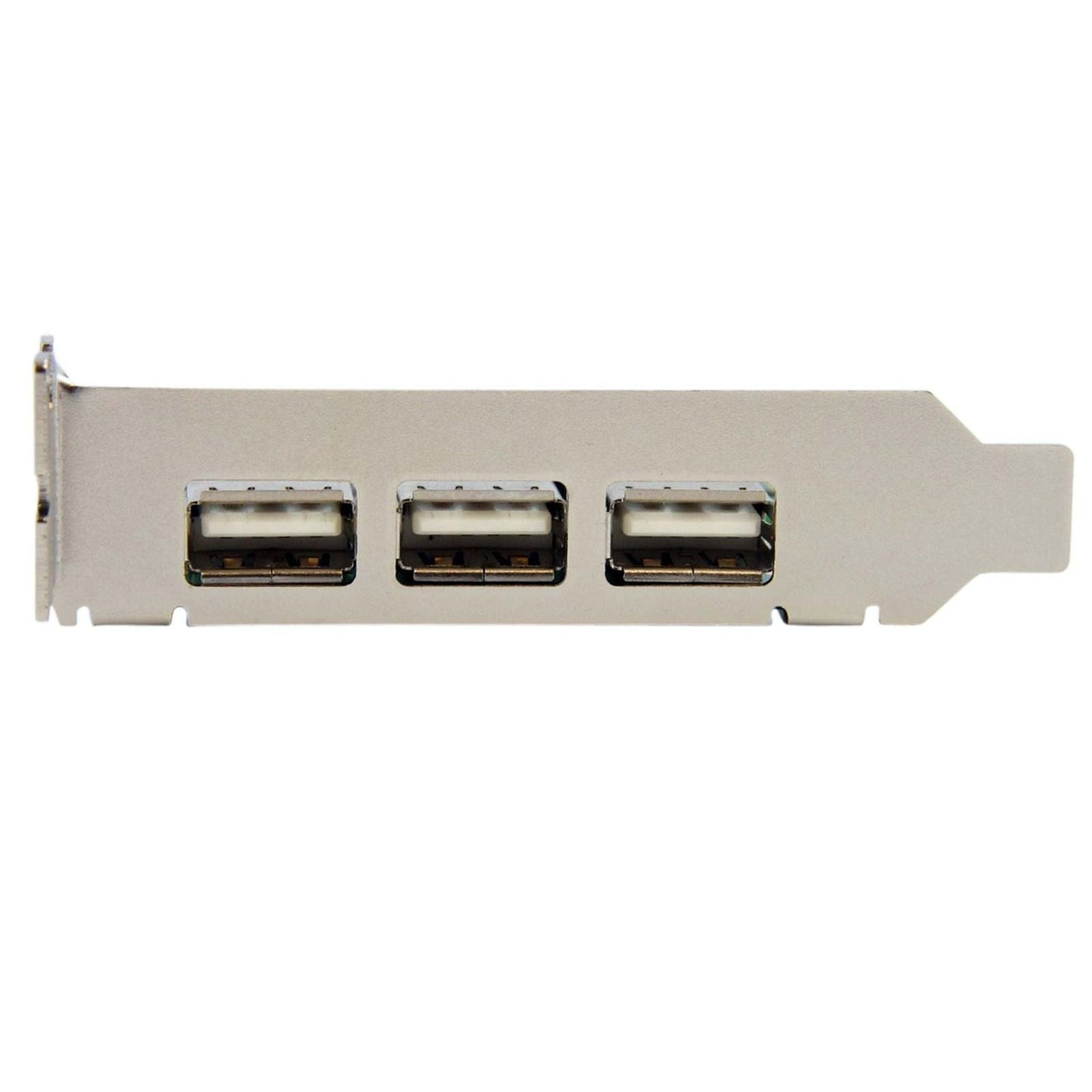

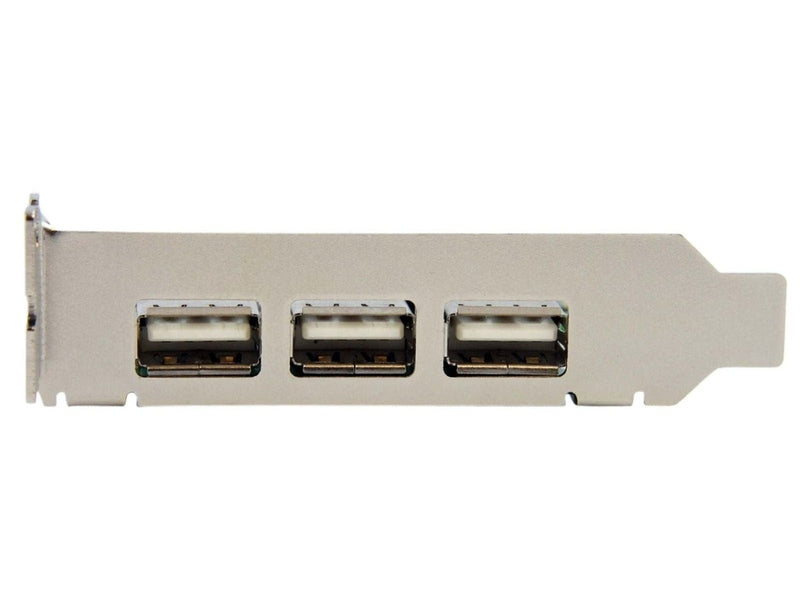

Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.
Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
4 Port PCI Express Low Profile High Speed USB Card - TAA
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot
The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance.
Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation.
Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
| PCI Express USB 2.0 Card Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × PCI Express x1 |
| Internal Ports | 1 × USB 2.0 Type-A (4 pin, 480Mbps) 1 × SP4 (4 pin, Small Drive Power) |
| External Ports | 3 × USB 2.0 Type-A (4 pin, 480Mbps) |
| Environmental | |
| Operating Temperature | -0°C to 75°C (32°F to 167°F) |
| Storage Temperature | -40°C to 125°C (-40°F to 257°F) |
| Humidity | 80% RH |
| Hardware | |
| Ports | 4 |
| Interface | USB 2.0 |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket included) |
| Industry Standards | PCI Express One Lane 2.5Gb/s |
| Chipset ID | VIA/VLI VT6212, ASMedia ASM1083 |
| Packaging Information | |
| Package Height | 1.3 in [3.2 cm] |
| Package Length | 6.7 in [17.0 cm] |
| Package Width | 5.7 in [14.4 cm] |
| Package Weight | 4.2 oz [120.0 g] |
| Package Quantity | 1 |
| Performance | |
| Type and Rate | USB 2.0 – 480 Mbit/s |
| Physical Characteristics | |
| Color | Green |
| Material | Steel |
| Product Length | 3.5 in [9.0 cm] |
| Product Width | 3.1 in [8.0 cm] |
| Product Height | 0.8 in [2.0 cm] |
| Product Weight | 1.6 oz [46.0 g] |
| Software | |
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 Mac OS X® 10.6 to 10.10 Linux 3.5.x and up (LTS versions only) |
| Special Notes / Requirements | |
| System and Cable Requirements | PCI Express enabled computer with available PCIe x1 slot or higher |
| What's in the Box | |
| Included Items | 1 × PCI Express USB 2.0 Card 1 × Full Profile Bracket 1 × Driver CD 1 × Instruction Manual |
