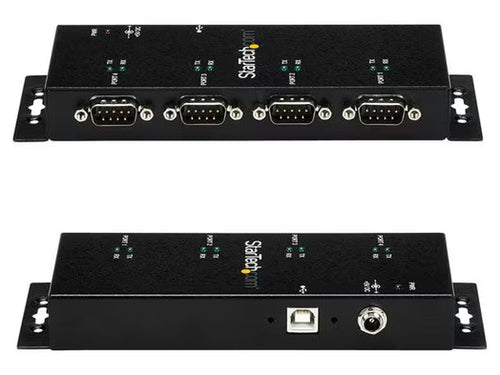

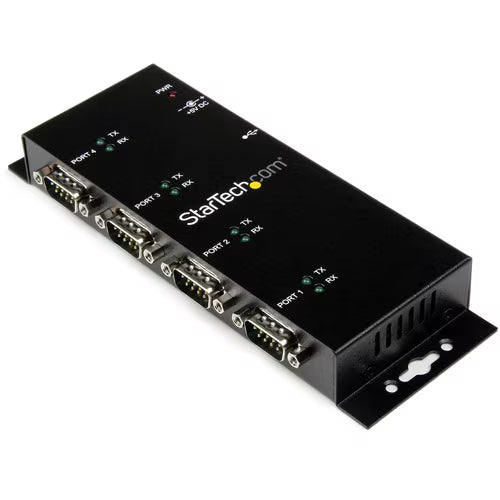

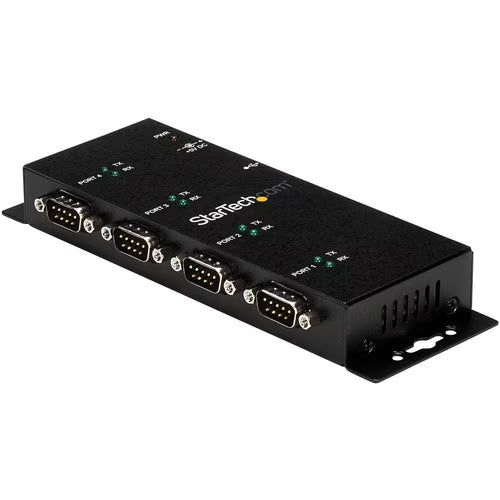

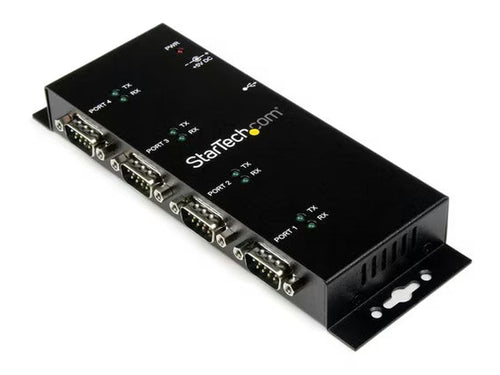

StarTech 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable
The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

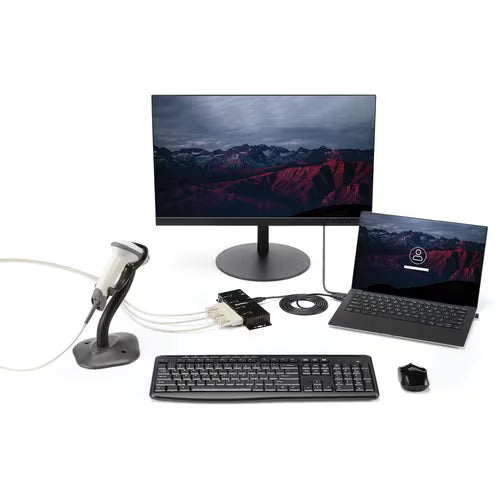

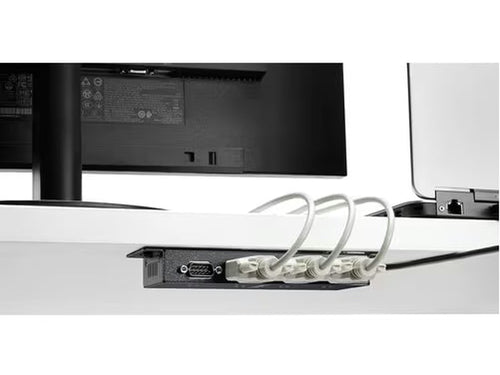

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specification
| Interfaces/Ports |
| Number of USB Ports |
1 |
| Number of Serial Ports (External) |
4 |
| Physical Characteristics |
| Weight (Approximate) |
300 g |
| Form Factor |
Wall Mountable |
| Length |
150 mm |
| Height |
22.9 mm |
| Width |
58.4 mm |
| Technical Information |
| Host Interface |
USB |
| Data Transfer Rate |
921.6kB/s Serial Port |
| Platform Supported |
Mac |
|
PC |
|
Linux |
|
| General Information |
| Product Type |
Serial Hub |
| Manufacturer Part Number |
ICUSB2324I |
| Manufacturer Website Address |
http://www.startech.com/au |
| Packaged Quantity |
1 |
| Manufacturer |
StarTech.com |
| Product Name |
4-port Serial Hub |
| Brand Name |
StarTech.com |
| Miscellaneous |
| Additional Information |
OS Compatibility:
- Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
- Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
- macOS 10.6 to 10.15, 11.0, 12.0, 13.0
- Linux Kernel 3.0.x and up - LTS Versions only
|

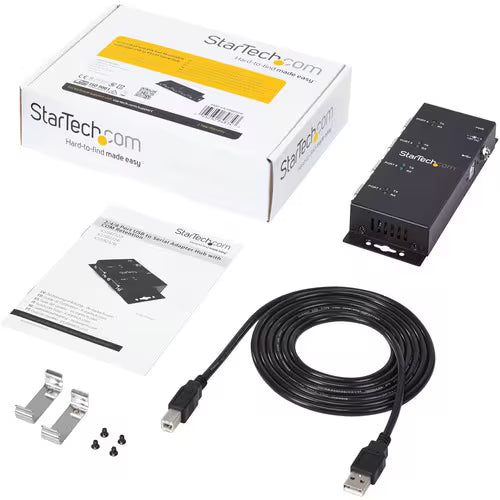

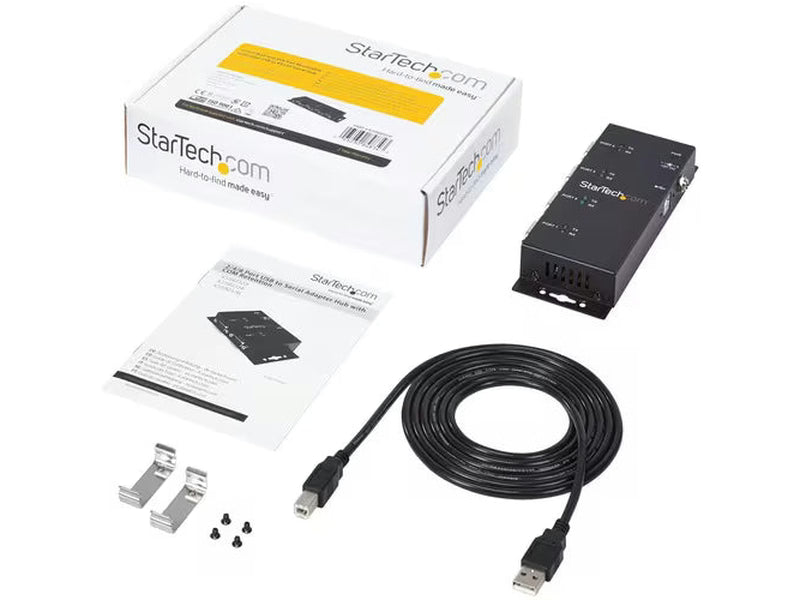

| Package Contents |
- 4-port Serial Hub
- 1 x DIN Rail Kit
- 1 x 6 ft USB A to B Cable
- 1 x Driver CD
- 1 x Instruction Manual
|
| Environmentally Friendly |
Yes |
| TAA Compliant |
Yes |
| REACH Declaration URL |
https://media.startech.com/cms/pdfs/icusb2324i_rohs.pdf |
| EU RoHS Declaration URL |
https://media.startech.com/cms/pdfs/icusb2324i_rohs.pdf |
| End of Life Manual Availability |
Yes |
| REACH free of SVHC |
Yes |
| WEEE Statement |
https://media.startech.com/cms/pdfs/icusb2324i_weee.pdf |
|
