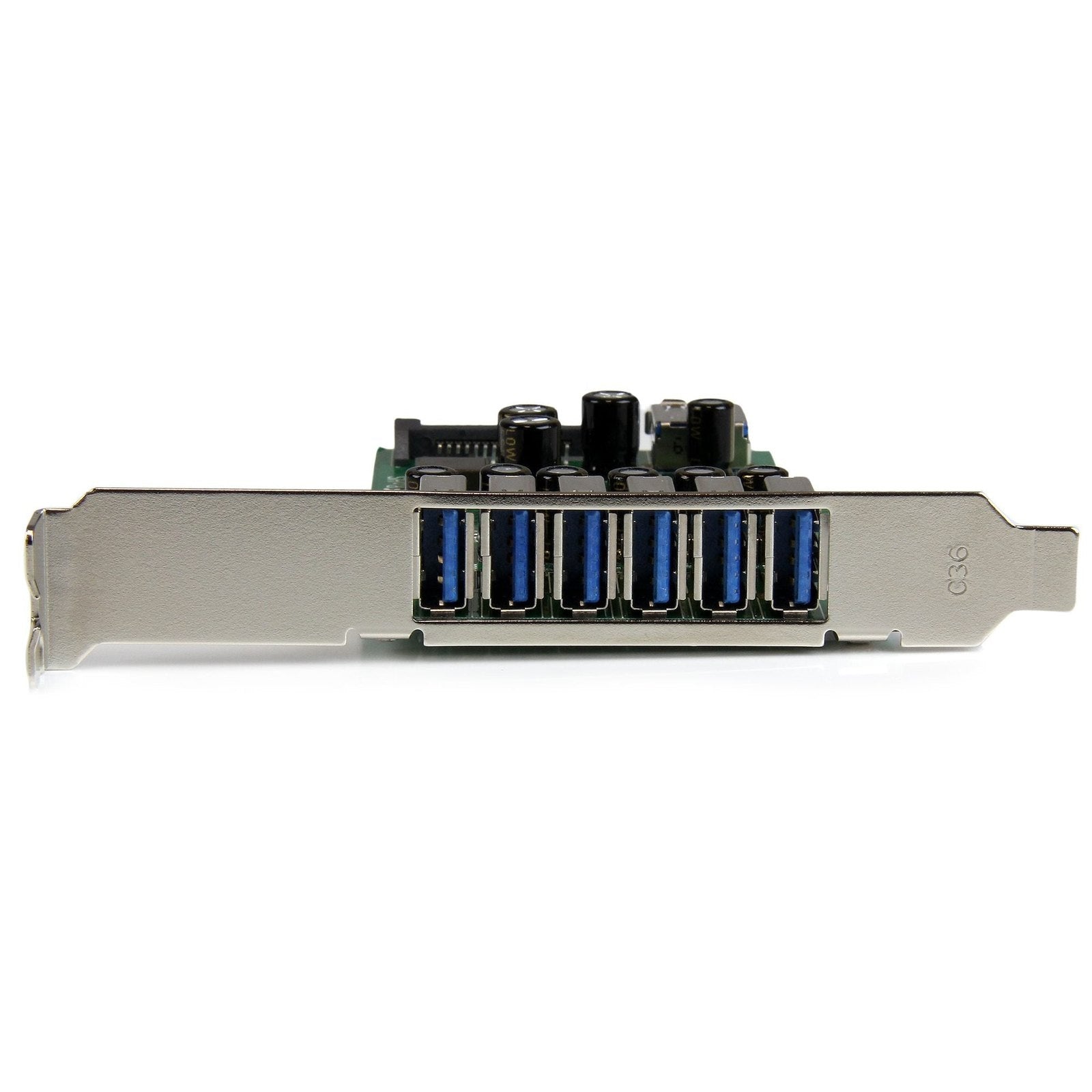

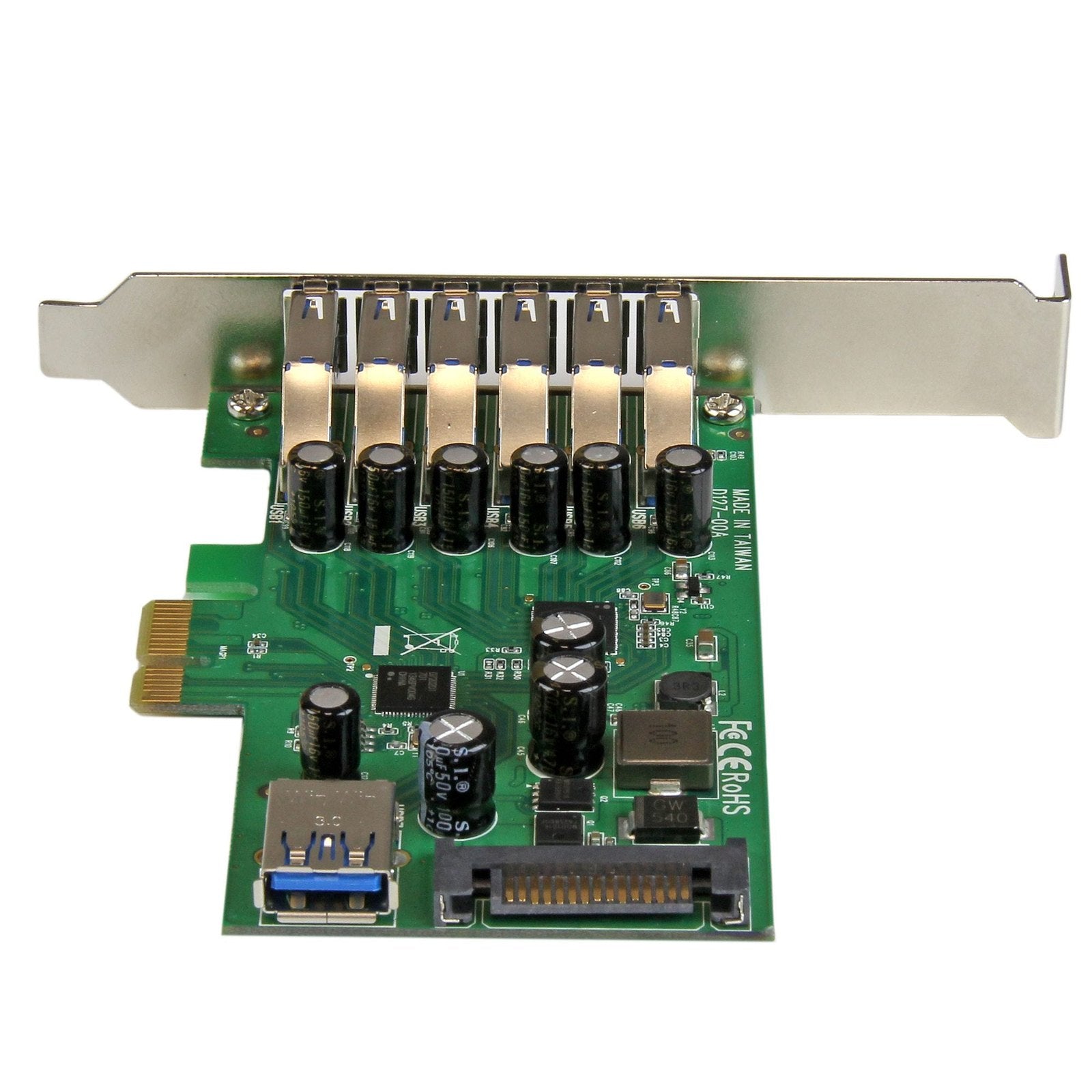

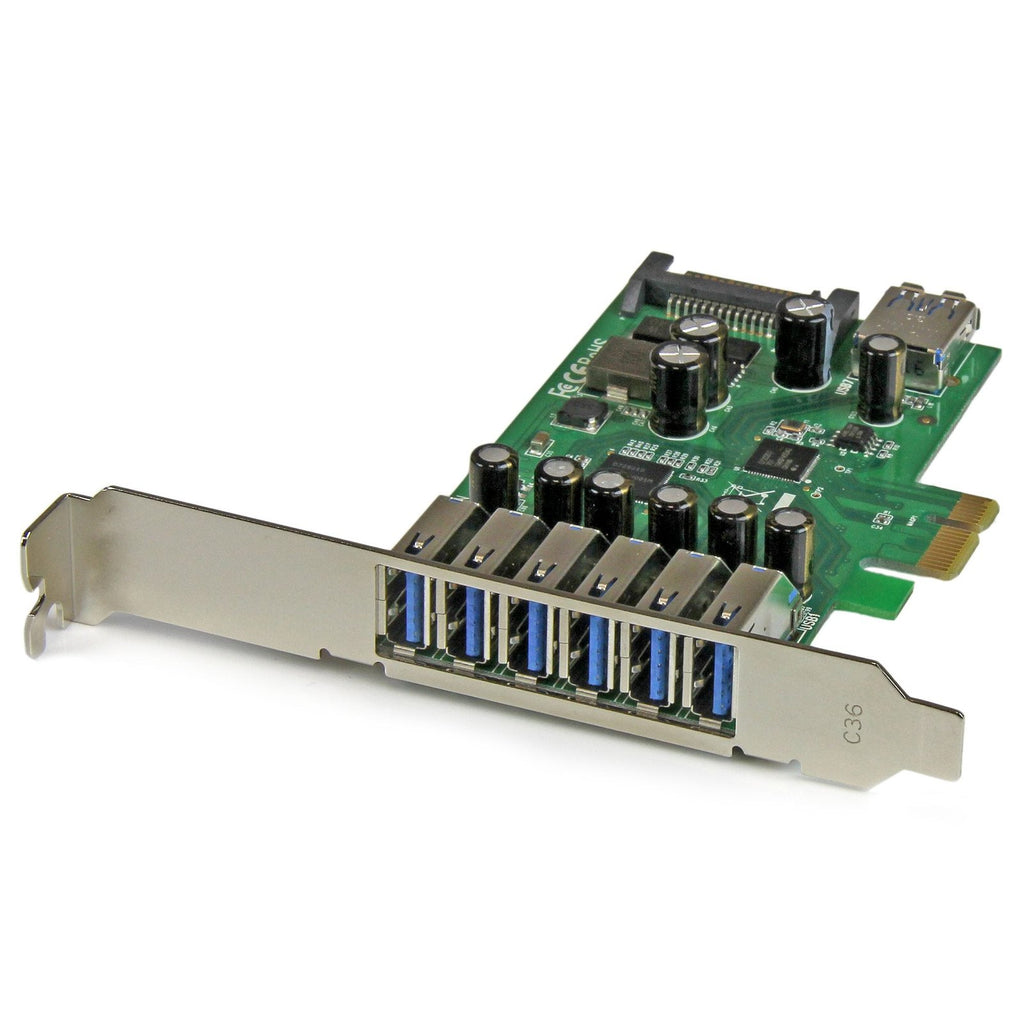

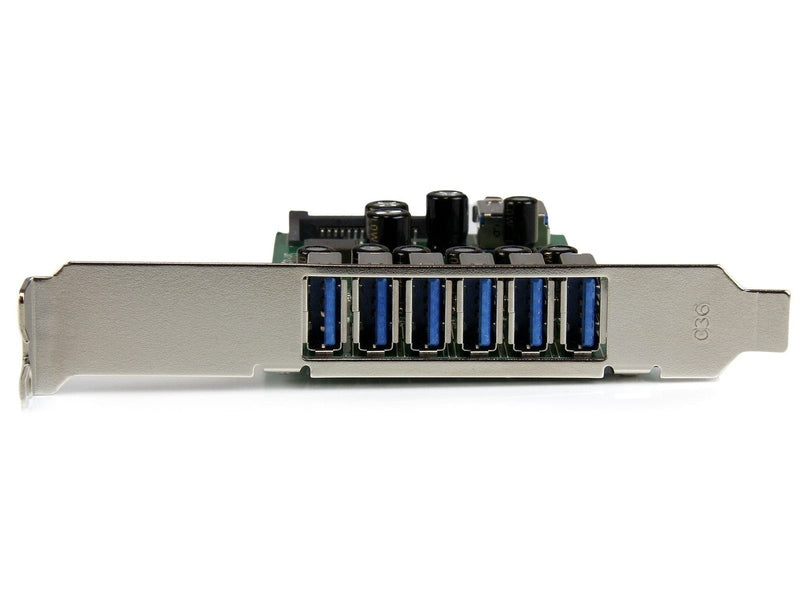

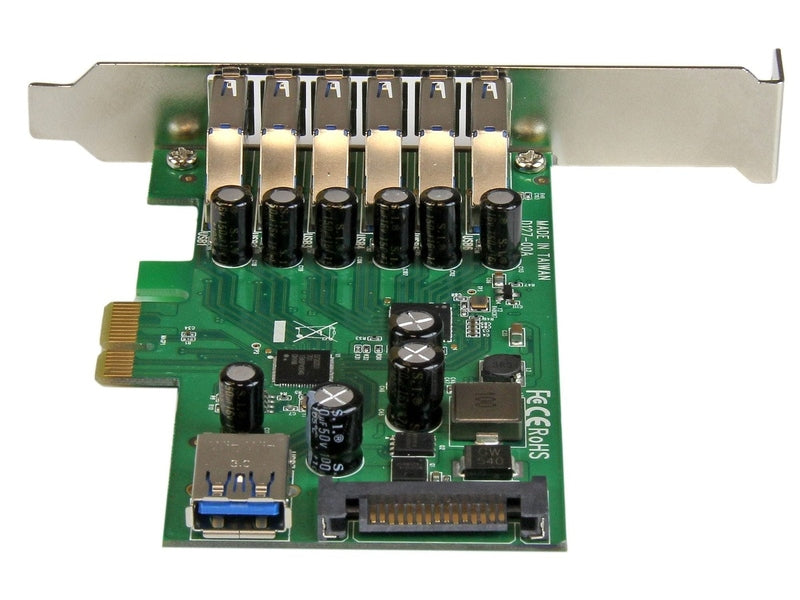

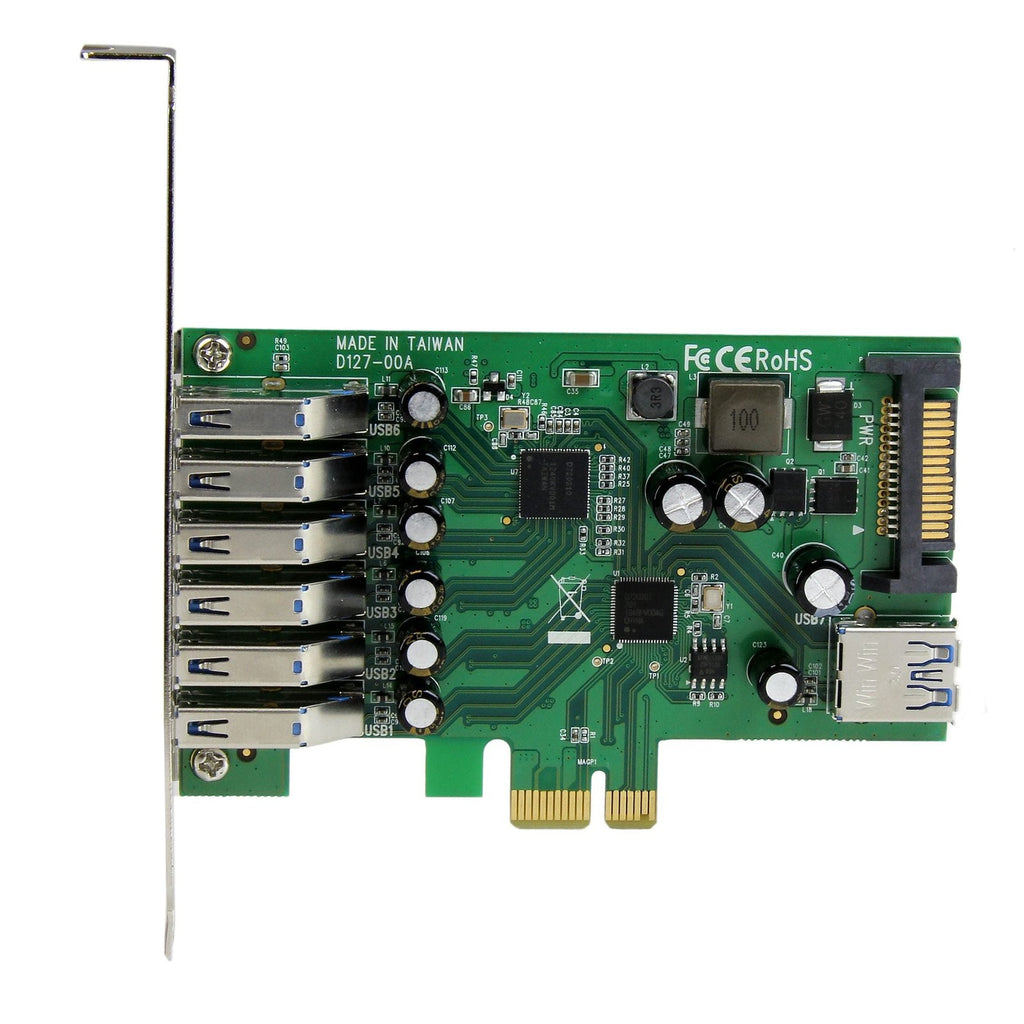

StarTech 7 Port PCIE USB 3.0 Card, Sata Power Required, UASP, 2Yr

StarTechSKU: PEXUSB3S7

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$134.00

Estimate shipping

Description

Overview

7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design - TAA
Get the scalability you need by adding 7 USB 3.0 (USB 3.2 Gen 1) ports with SATA power to your computer

Handle your workload more efficiently. This USB 3.2 Gen 1 card expands your computer’s capabilities by giving you seven extra USB 3.2 Gen 1 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.

Greater port count. Greater scalability.
More ports means you can add USB devices as you need them. This robust USB 3.2 Gen 1 card gives you seven USB 3.2 Gen 1 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.

The internal USB 3.2 Gen 1 port lets you connect a USB device inside your computer for added convenience and security.

Unique dual-profile design
This versatile USB 3.2 Gen 1 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

Easy driver installation
You'll be up and running in no time. The card automatically installs in Windows® 8.1 or later, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.

Effective USB 3.2 Gen 1 performance enhanced by UASP
This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a UASP-enabled enclosure.
UASP speed benefit diagram
The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

7-Port PCI Express USB 3.0 Card Specifications
Connector(s)
Connector Type(s) 1 × PCI Express x1
Internal Ports 1 × SATA Power (15 pin)
1 × USB Type-A (9 pin, 5 Gbps)
External Ports 6 × USB Type-A (9 pin, 5 Gbps)
Environmental
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Humidity 20%–80% RH
Hardware
Ports 7
Interface USB 3.2 Gen 1 (5Gbps)
Bus Type PCI Express
Card Type Standard Profile (Low Profile bracket included)
Port Style Integrated on Card
Industry Standards USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset ID Renesas/NEC µPD720201, µPD720210
Packaging Information
Package Height 1.3 in [32 mm]
Package Length 6.9 in [17.4 cm]
Package Width 5.7 in [14.4 cm]
Package Weight 5.7 oz [162.0 g]
Package Quantity 1
Performance
Max Data Transfer Rate 5 Gbps
Max Cable Length 9.8 ft [3 m]
Type and Rate USB 3.0 – 5 Gbit/s
UASP Support Yes
MTBF 1,920,042 hours
Physical Characteristics
Color Green
Material Steel
Product Length 4.1 in [10.5 cm]
Product Width 0.6 in [1.5 cm]
Product Height 4.7 in [12 cm]
Product Weight 2.5 oz [72 g]
Power
Input Voltage 12V DC
Output Voltage 12V DC
Software
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Linux 2.6.31 and up (LTS versions only)
Special Notes / Requirements
System and Cable Requirements PCI Express enabled computer or server with available PCIe x1 slot or higher (x4, x8, x16)
SATA power connector (recommended, but optional)
Note Max throughput is limited by bus interface:
PCIe Gen 1.0 – 2.5 Gbps
PCIe Gen 2.0 – 5 Gbps
What's in the Box
Included Items 1 × 7 Port PCI Express USB 3.0 Card
1 × Low-Profile Bracket
1 × Driver CD
1 × Instruction Manual
