7-Port USB 3.0 Hub (5Gbps) - Desktop
Add 7 external, USB 3.2 Gen 1 ports to a computer from a single USB connection

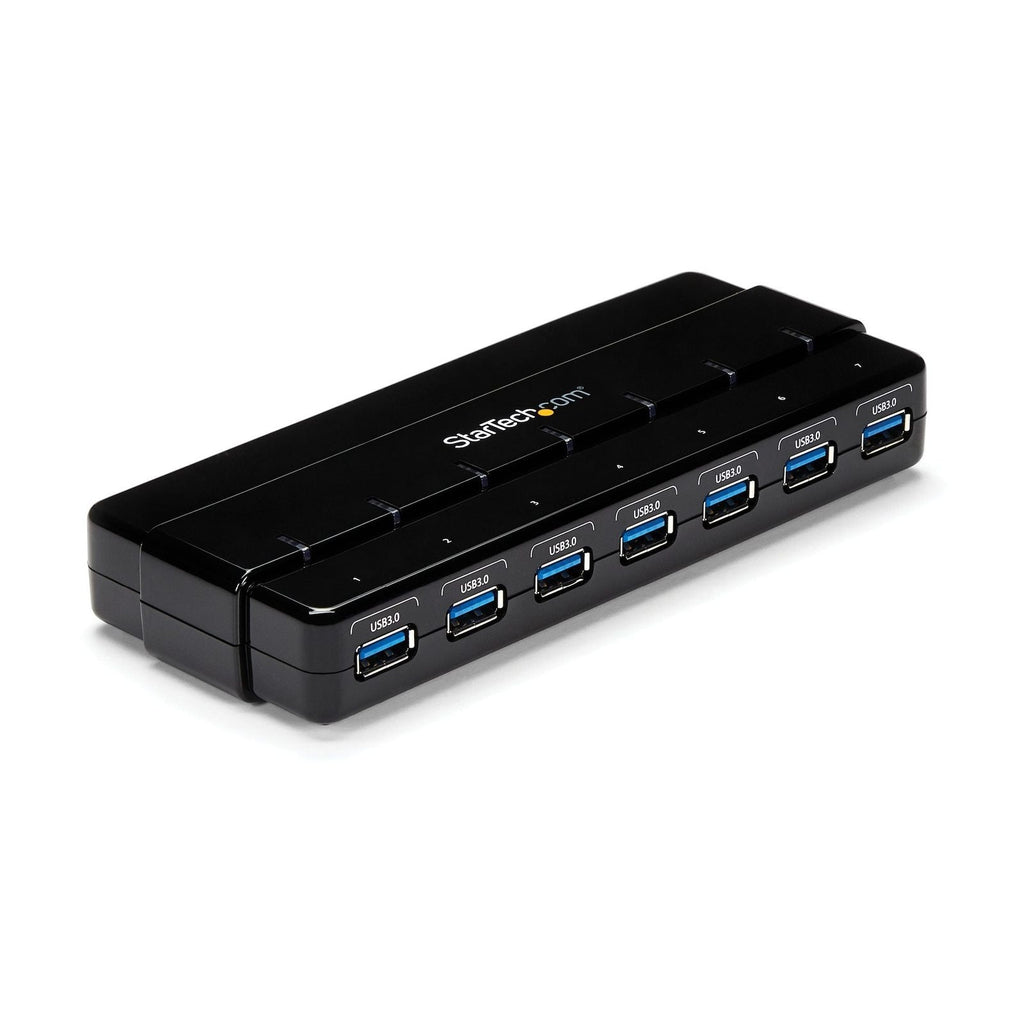

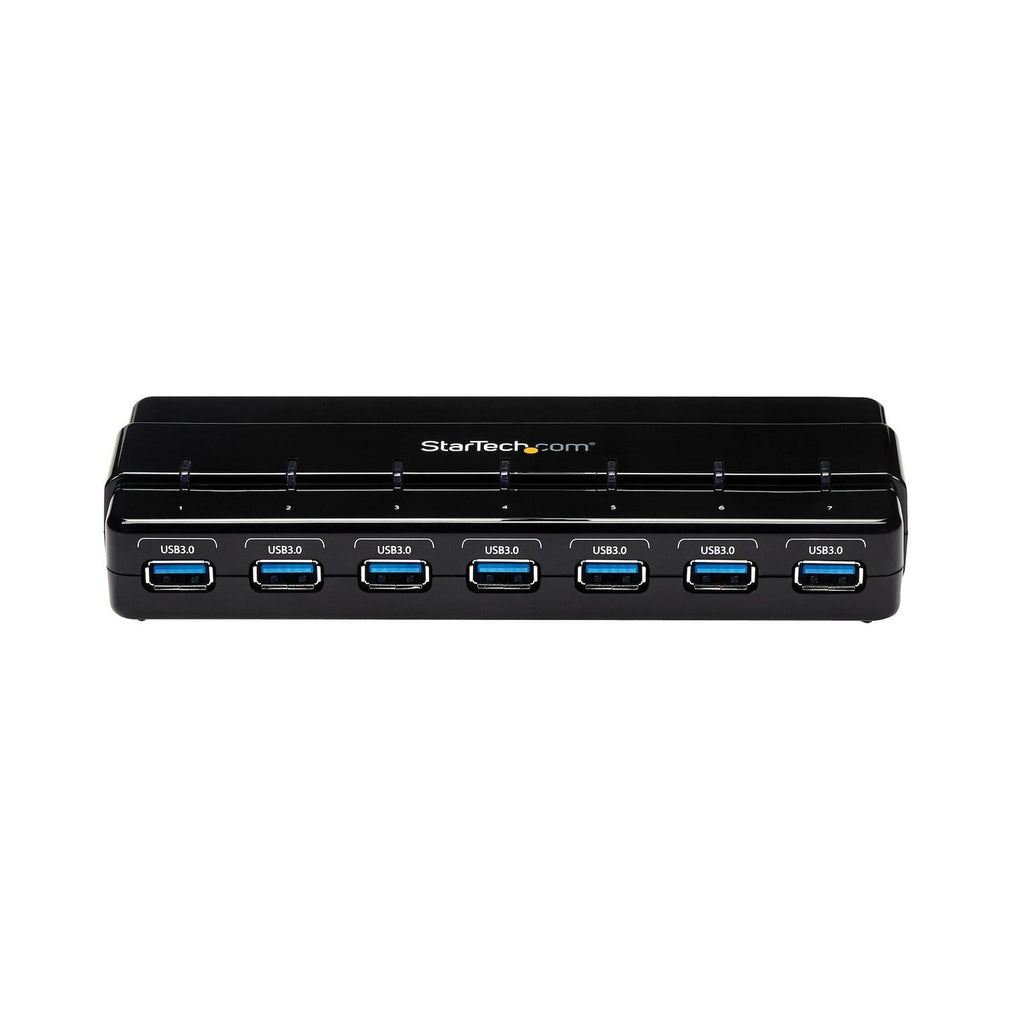

The ST7300USB3B USB 3.2 Gen 1 Hub lets you add seven external USB 3.2 Gen 1 ports to a computer from a single USB 3.2 Gen 1 host connection.
Offering data transfer rates up to 5 Gbps, the USB hub meets SuperSpeed USB 3.2 Gen 1 specifications and is backward compatible with USB 2.0 and 1.x devices.
Designed for easy port access when connecting or disconnecting devices, the hub features one-sided port orientation, with current overload detection and protection across all seven ports.The hub supports Plug-and-Play and Hot-Swap technologies, letting you switch and operate your connected devices without having to power down the host computer.
The USB hub is bus powered for use in environments where a power outlet may be unavailable, but is perfect for high-power USB devices when used with the included optional power adapter.
7-Port USB 3.0 Hub (5Gbps) - Desktop
Add 7 external, USB 3.2 Gen 1 ports to a computer from a single USB connection
The ST7300USB3B USB 3.2 Gen 1 Hub lets you add seven external USB 3.2 Gen 1 ports to a computer from a single USB 3.2 Gen 1 host connection.
Offering data transfer rates up to 5 Gbps, the USB hub meets SuperSpeed USB 3.2 Gen 1 specifications and is backward compatible with USB 2.0 and 1.x devices.
Designed for easy port access when connecting or disconnecting devices, the hub features one-sided port orientation, with current overload detection and protection across all seven ports.The hub supports Plug-and-Play and Hot-Swap technologies, letting you switch and operate your connected devices without having to power down the host computer.
The USB hub is bus powered for use in environments where a power outlet may be unavailable, but is perfect for high-power USB devices when used with the included optional power adapter.
| 7-Port USB 3.0 Hub Specifications | |
|---|---|
| Connector(s) | |

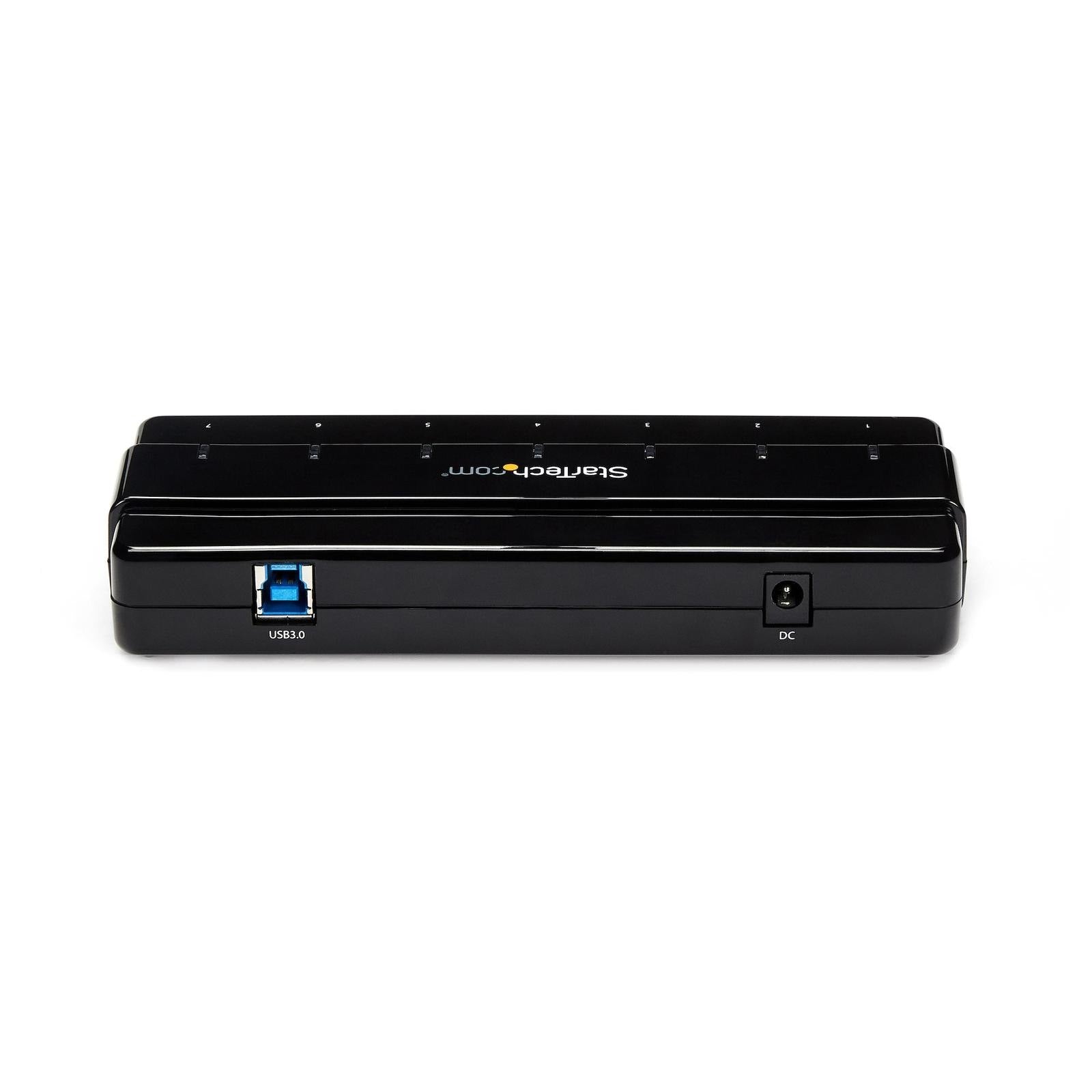

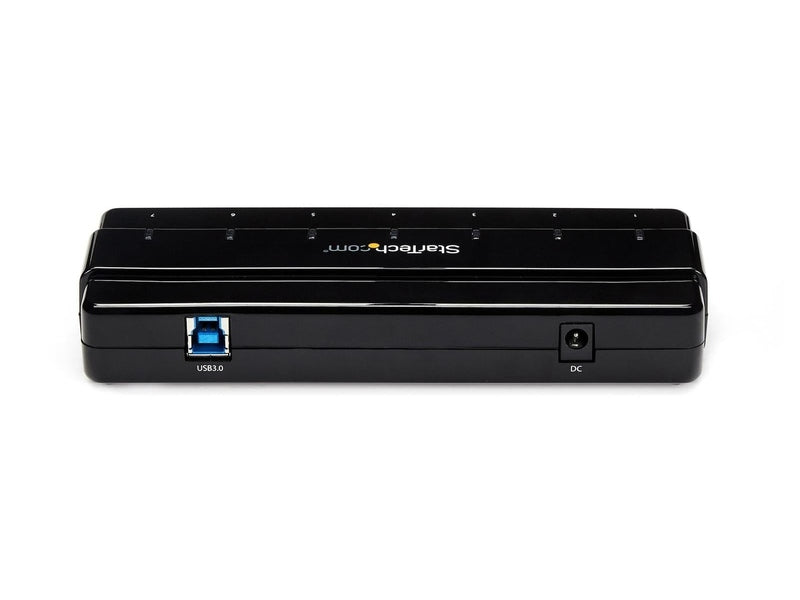

| Connector Type(s) | 7 × USB Type-A (9 pin, 5 Gbps) 1 × USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
| Environmental | |
| Operating Temperature | -2°C to 52°C (29°F to 125°F) |
| Storage Temperature | -20°C to 56°C (-4°F to 132°F) |
| Humidity | 5% – 95% RH |
| Hardware | |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| Fast-Charge Port(s) | No |
| Ports | 7 |
| Bus Type | USB 3.2 Gen 1 (5Gbps) |
| Chipset ID | VIA/VLI VL817 |
| LED Indicators | 7 × Hub Port Connection LEDs |
| Packaging Information | |
| Package Height | 2.5 in [6.3 cm] |
| Package Length | 5.9 in [15.0 cm] |
| Package Width | 8.3 in [21.1 cm] |
| Package Weight | 1.2 lb [0.5 kg] |
| Package Quantity | 1 |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.2 Gen 1) |
| Type and Rate | USB 3.2 Gen 1 – 5 Gbit/s |
| MTBF | 43,977.72 hours |
| Physical Characteristics | |
| Form Factor | Desktop |
| Color | Black |
| Material | Plastic |
| Product Length | 6.8 in [17.2 cm] |
| Product Width | 2.8 in [7 cm] |
| Product Height | 0.9 in [2.3 cm] |
| Product Weight | 5.2 oz [148 g] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100–240V AC |
| Input Current | 1.5 A |
| Output Voltage | 12V DC |
| Output Current | 3 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 36 Watts |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB 3.0 port |
| Note | If connected to a USB 2.0 host port, performance may be limited |
| What's in the Box | |
| Included Items | 1 × USB 3.0 Hub 1 × 3.3 ft [1 m] USB 3.0 Cable 1 × Universal Power Adapter (NA/JP, EU, UK, ANZ) 1 × Instruction Manual |
