8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

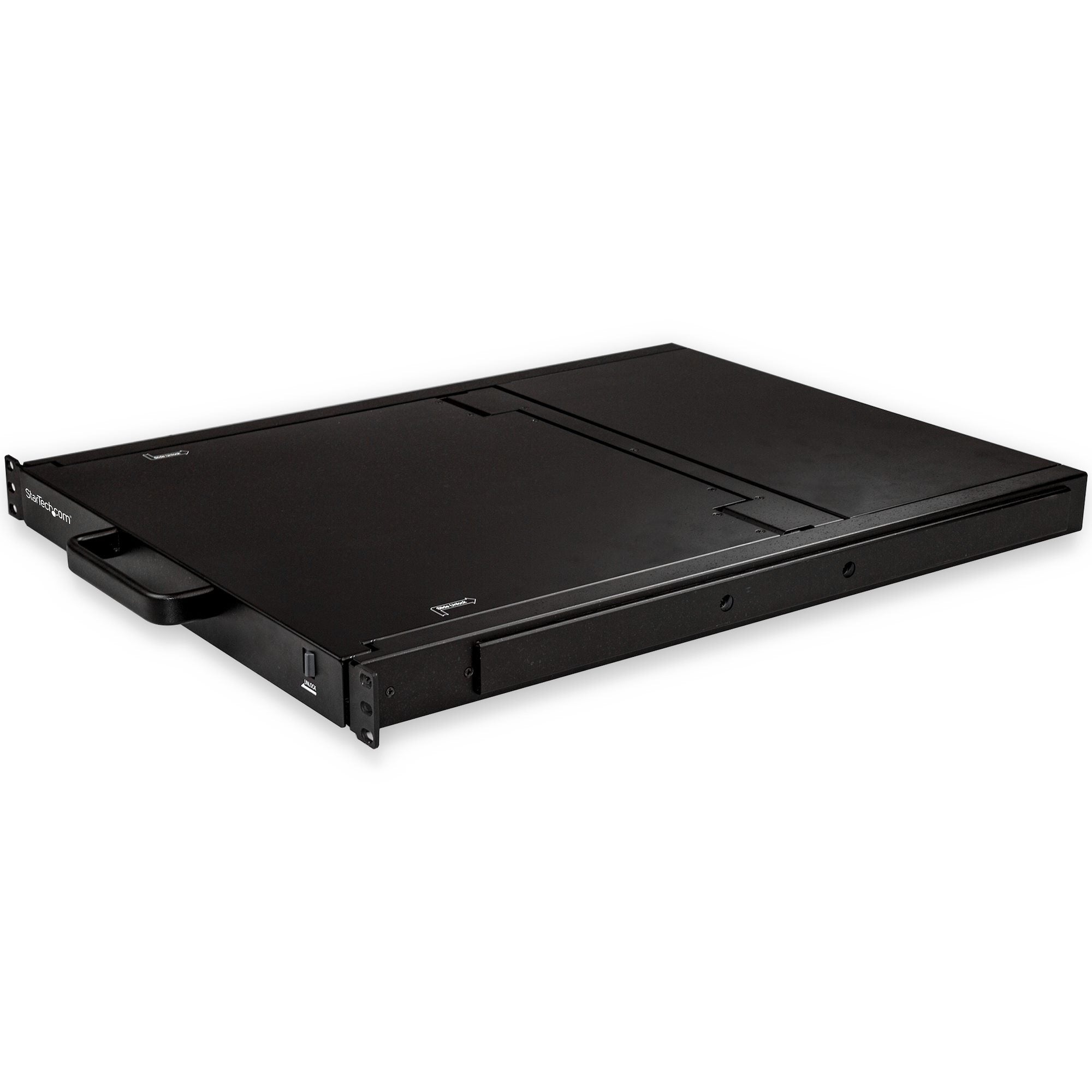

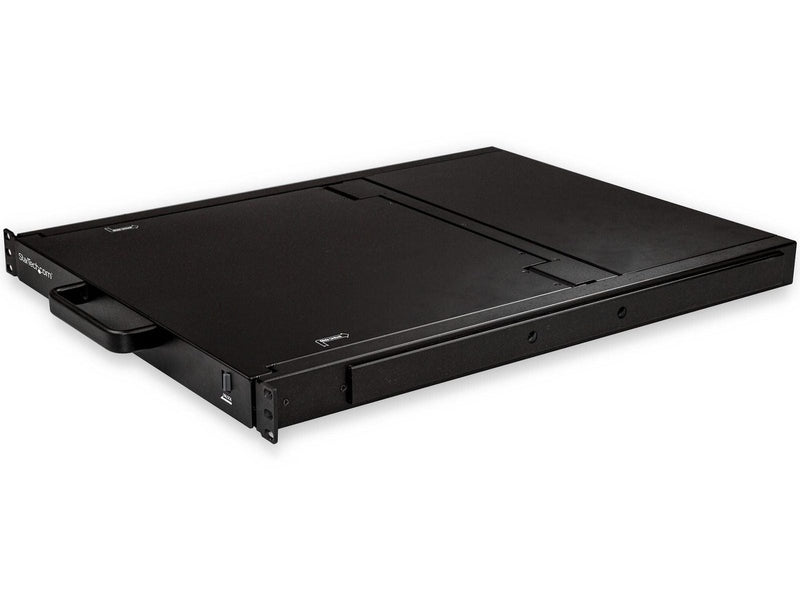

Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

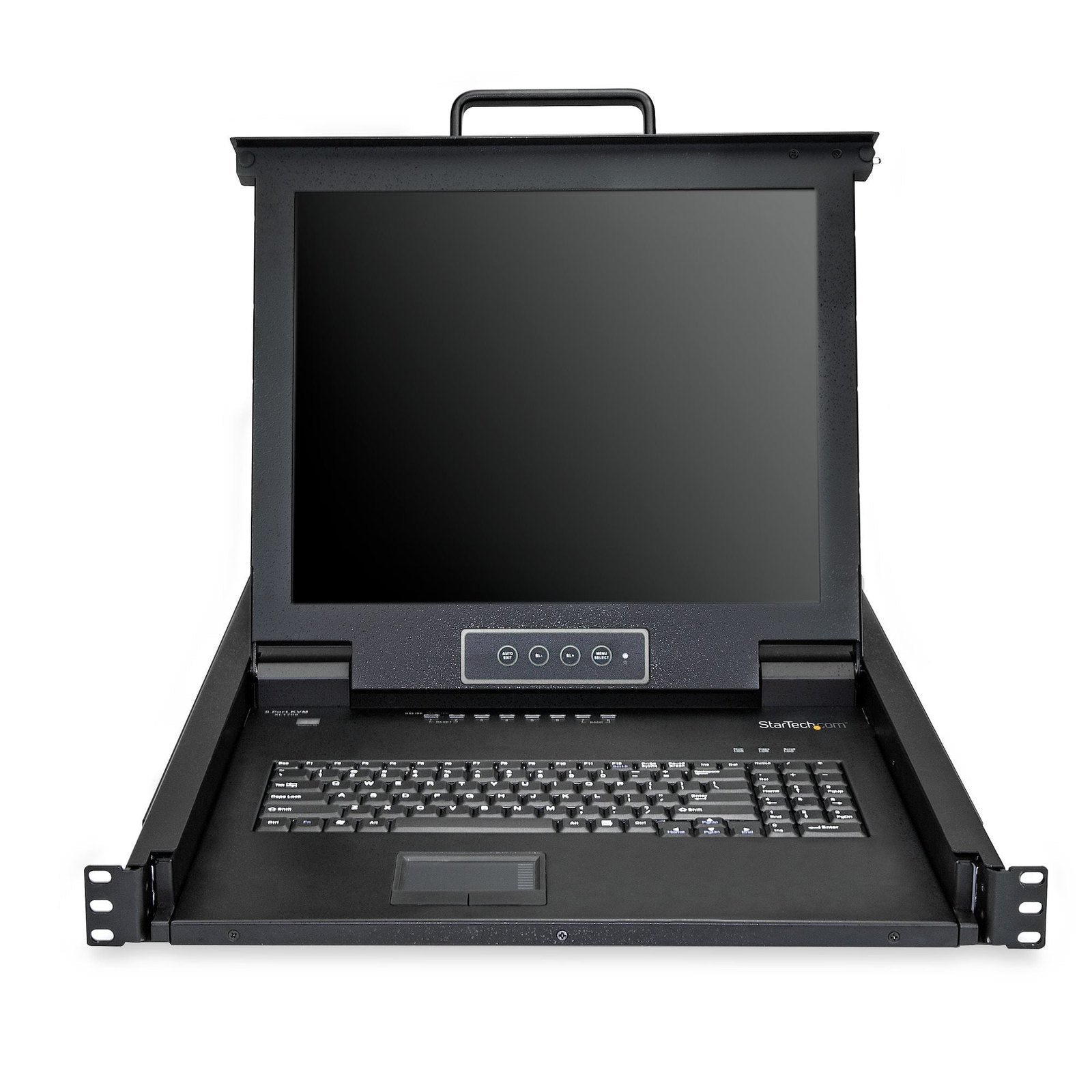

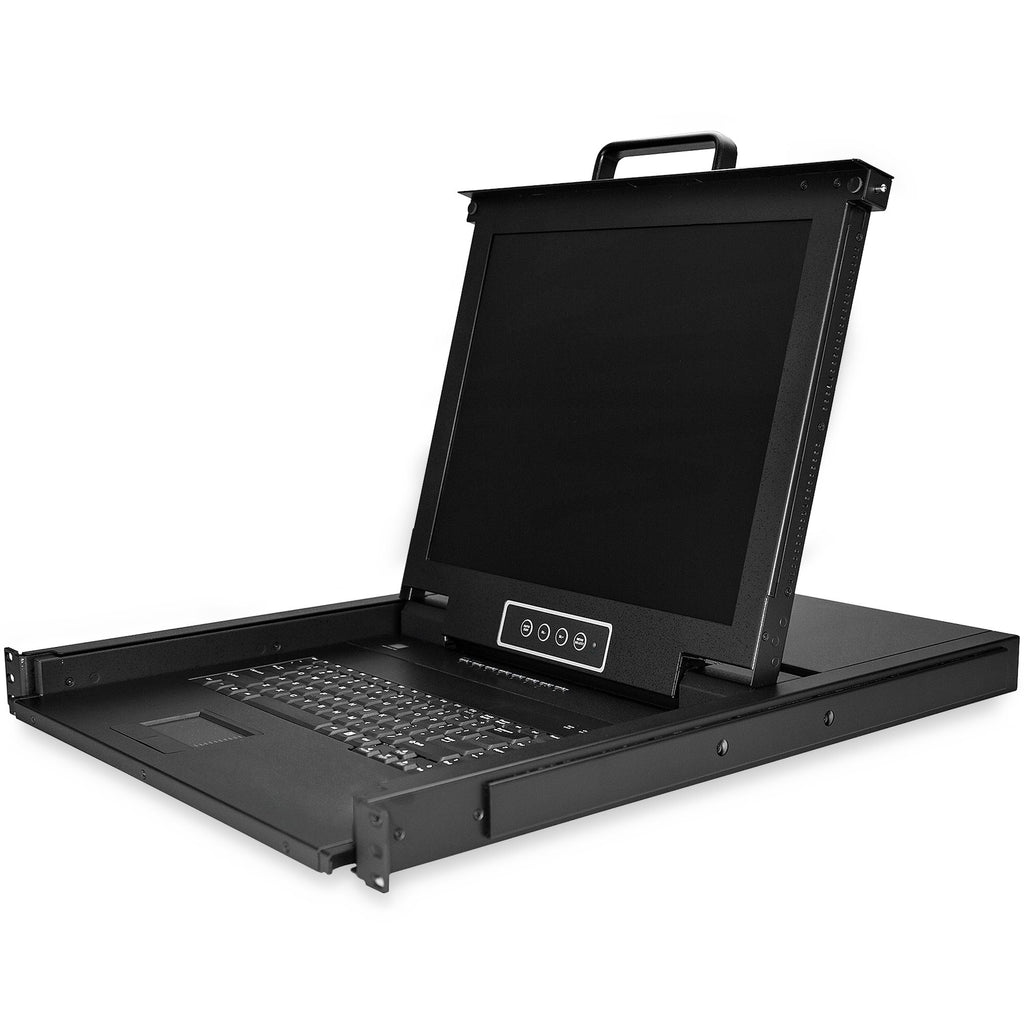

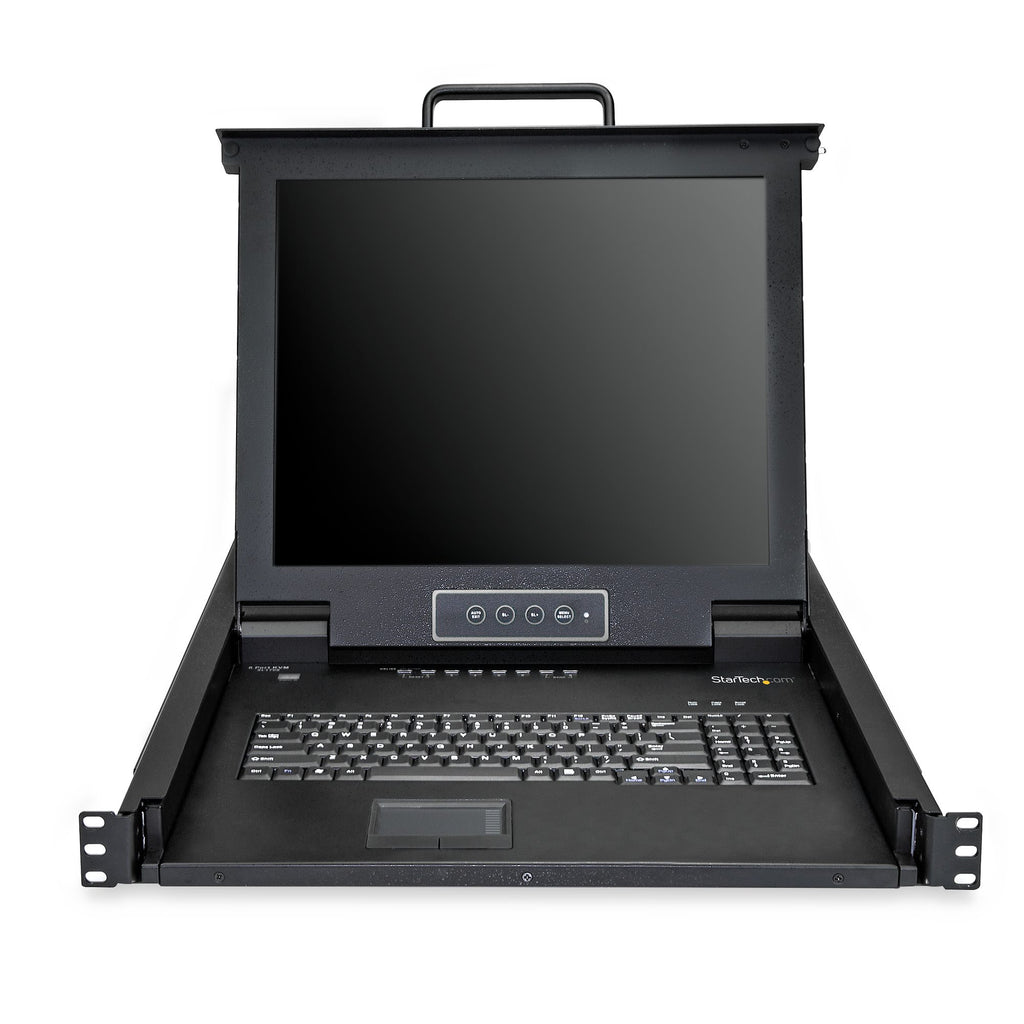

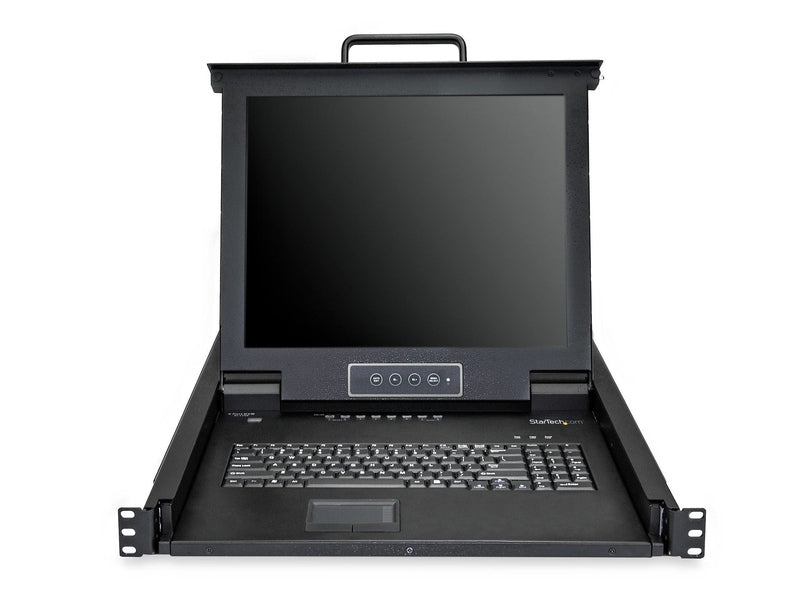

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

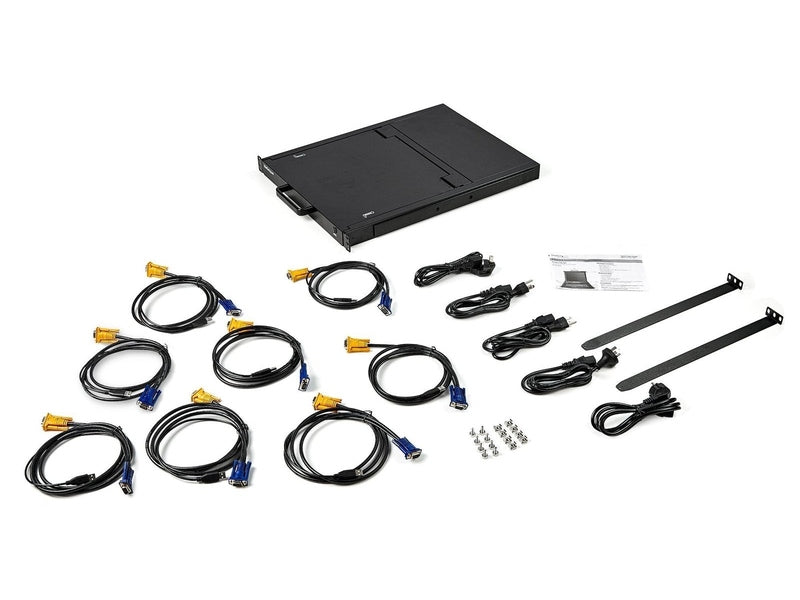

This 8-port KVM console comes with everything you need to set up right out of the box:
- 8 VGA KVM Cables
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This 8-port KVM console comes with everything you need to set up right out of the box:
- 8 VGA KVM Cables
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
Rackmount KVM Console Specifications | |
---|---|
Connector(s) | |

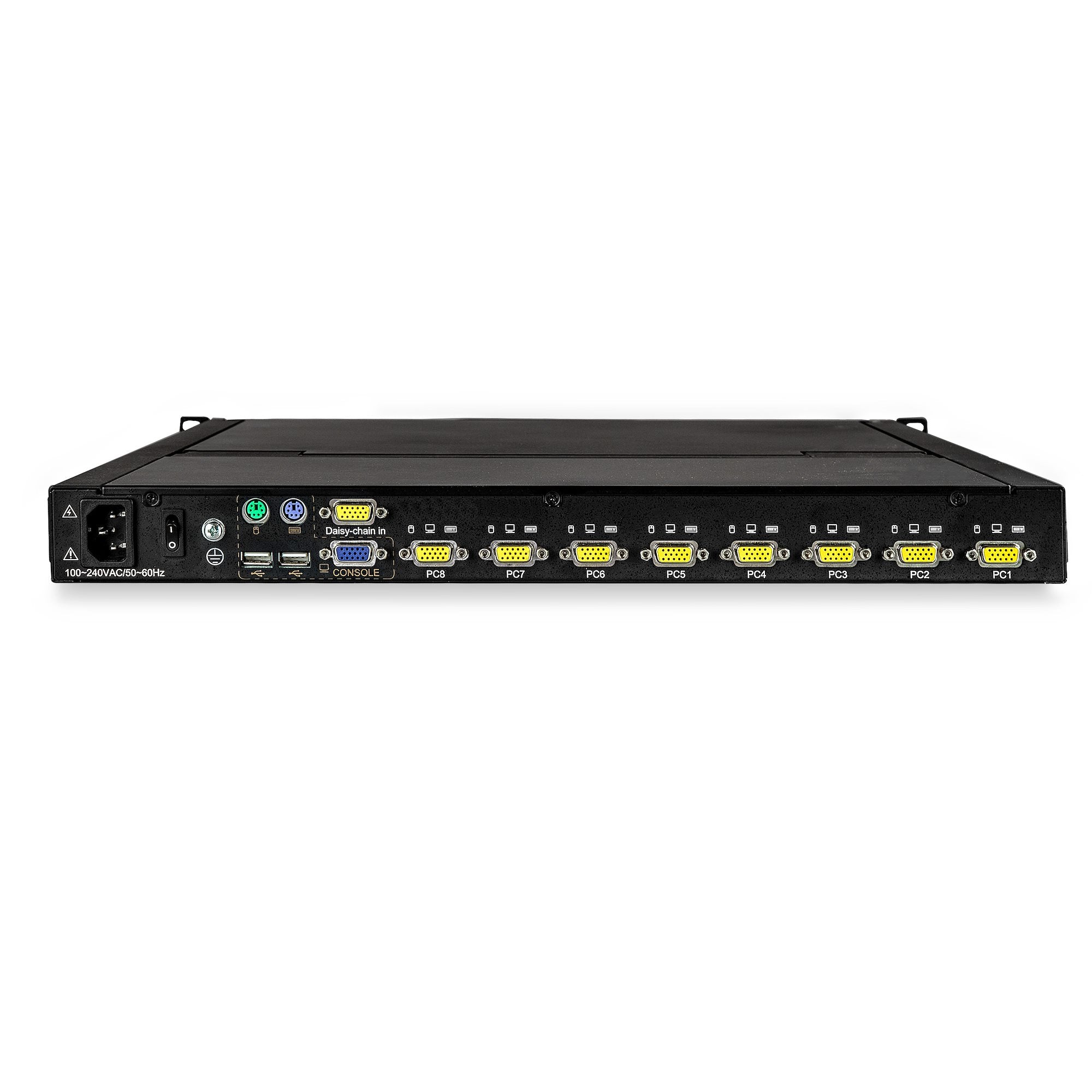

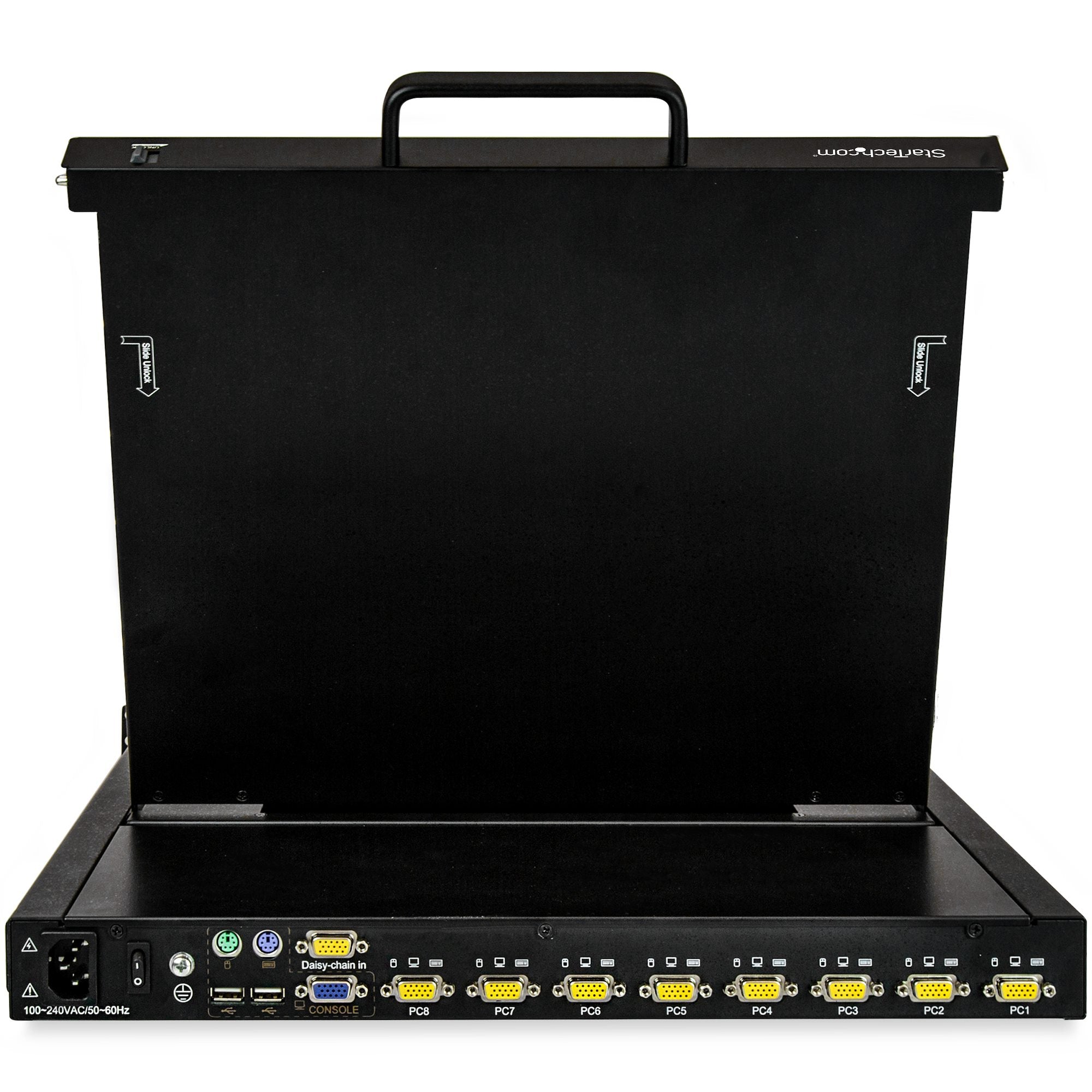

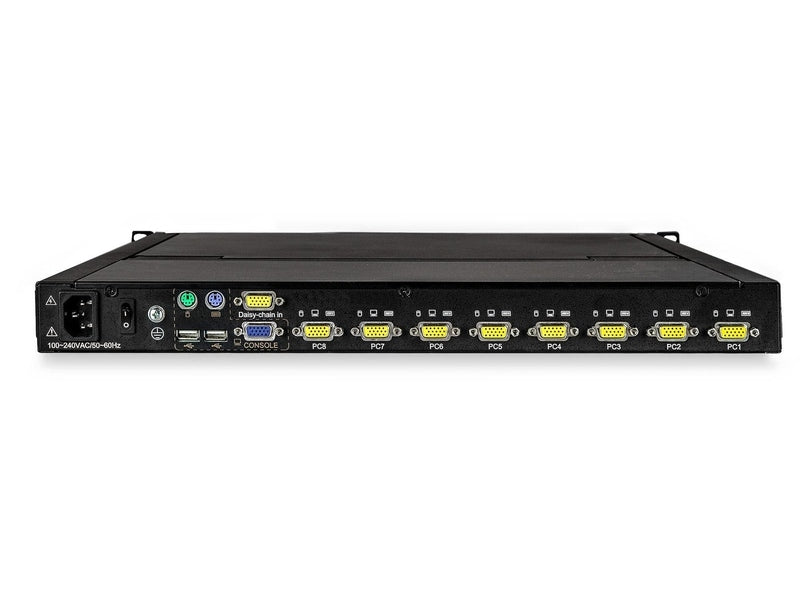

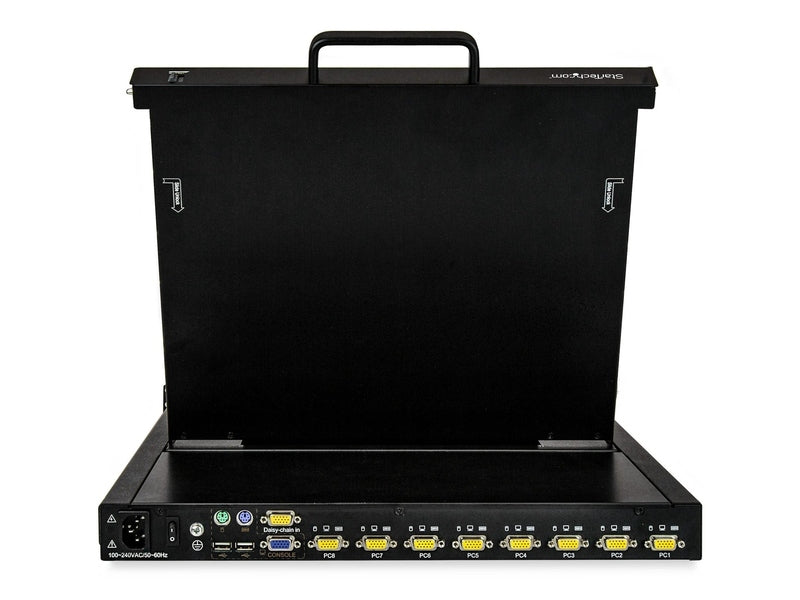

Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) 2 - USB 2.0 Type-A (4 pin, 480Mbps) |
Host Connectors | 8 - VGA (15 pin, High Density D-Sub) |
Other Interface(s) | 1 - 15 Pin High Density D-Sub |
Environmental | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Humidity | 10 ~ 80% RH |
Hardware | |
U Height | 1U |
Front Door Key Lock | No |
Audio | No |
Display Size | 17" |
Panel Type | Active Matrix TFT LCD |
KVM Ports | 8 |
PC Interface | USB |
PC Video Type | VGA |
Number of Monitors Supported | 1 |
Rack-Mountable | Yes |
Cables Included | Yes |
Daisy-Chain | No |
LED Indicators | 8 - Green/Red - Online/Selected LED |
Packaging Information | |
Package Height | 7.3 in [18.5 cm] |
Package Length | 24.2 in [61.5 cm] |
Package Width | 30.9 in [78.5 cm] |
Package Quantity | 1 |
Shipping (Package) Weight | 43.4 lb [19.7 kg] |
Performance | |
On-Screen Display | Yes |
IP Control | No |
Maximum Analog Resolutions | 1280 x 1024 |
Supported Resolutions | Up to 1280 x 1024 @ 60Hz |
Aspect Ratio | 5:4 |
Response Time | 5ms |
Contrast Ratio | 1000:1 |
Brightness | 250 cd/m² |
Color Depth | 8-bit, 16.7M colors |
Pixel Pitch Support | 0.264 x 0.264 mm |
Viewing Angle | 170° (H), 160° (V) |
Maximum Number of Users | 1 |
Port Selection Support | Push Button, Hotkeys, and OSD (On Screen Display) |
MTBF | 50,000 Hrs |
Physical Characteristics | |
Color | Black |
Material | Steel |
Cable Length | 6 ft |
Product Length | 24.5 in [62.3 cm] |
Product Width | 18.9 in [48.0 cm] |
Product Height | 16.5 in [42.0 cm] |
Weight of Product | 37.5 lb [17.0 kg] |

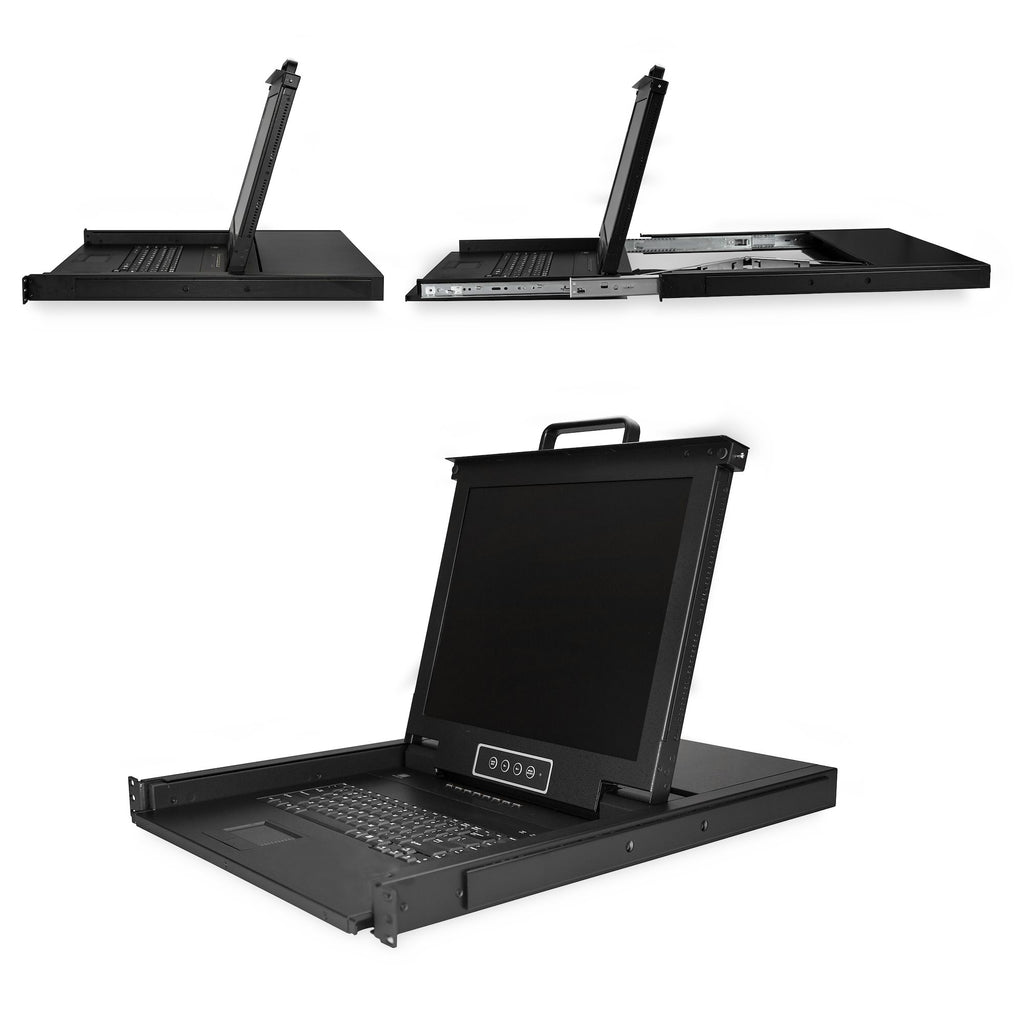

Maximum Mounting Depth | 35.4 in [90 cm] |
Minimum Mounting Depth | 22.0 in [56 cm] |
Power | |
Power Source | International Power Cords |
Input Voltage | 100 - 240 AC |
Input Current | 1.5A |
Power Consumption | 17W |
Special Notes / Requirements | |
Note | The minimum mounting depth of this rackmount console is less than the length of the console itself. Please consider the length of the rackmount console when evaluating if it will fit into your rack. |
What's in the Box | |

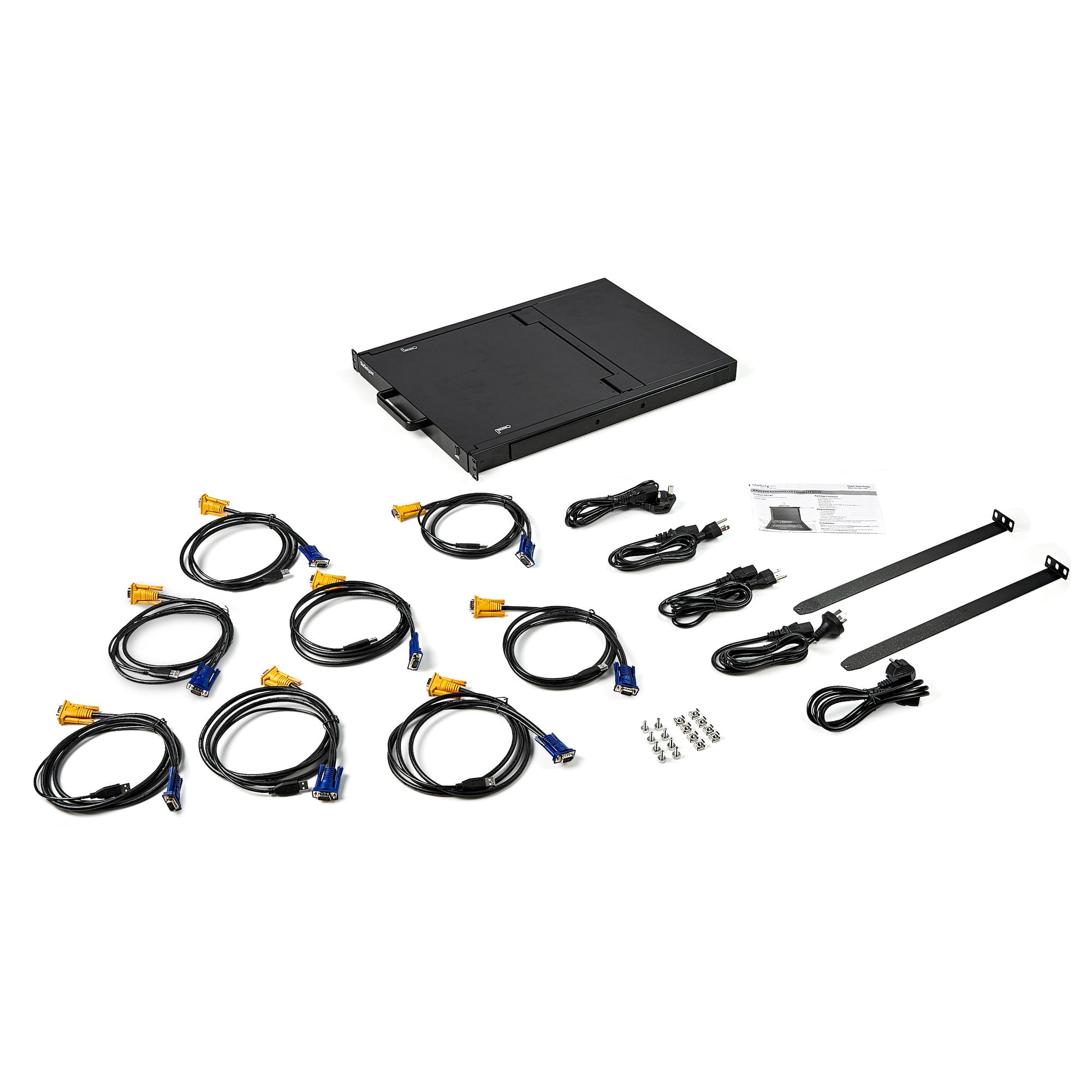

Included in Package | 1 - KVM console 8 - KVM cables 8 - M5 cage nuts 8 - M5 screws 5 - Power Cords (NA, JP, UK, EU, ANZ) 2 - Mounting Rails 1 - Quick-Start Guide |
