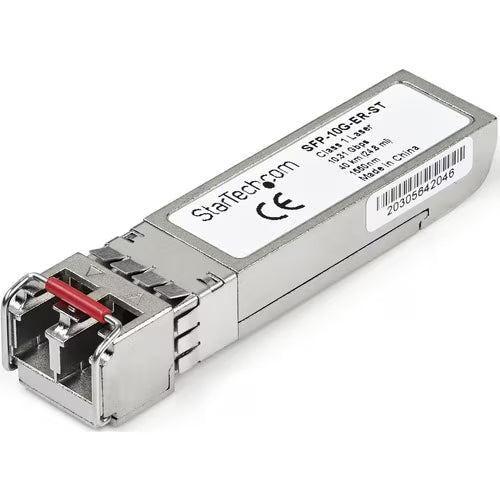

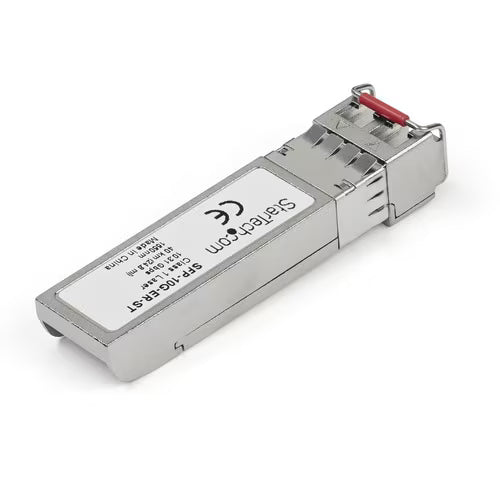

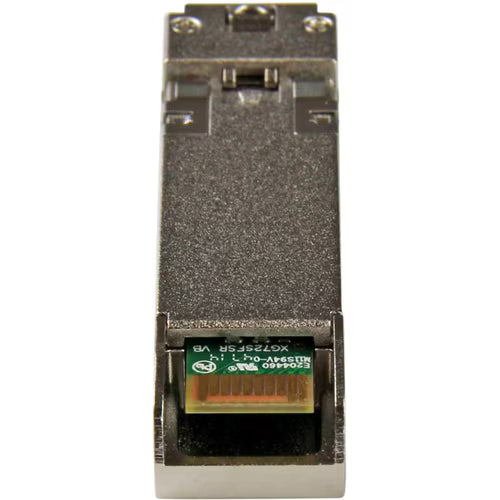

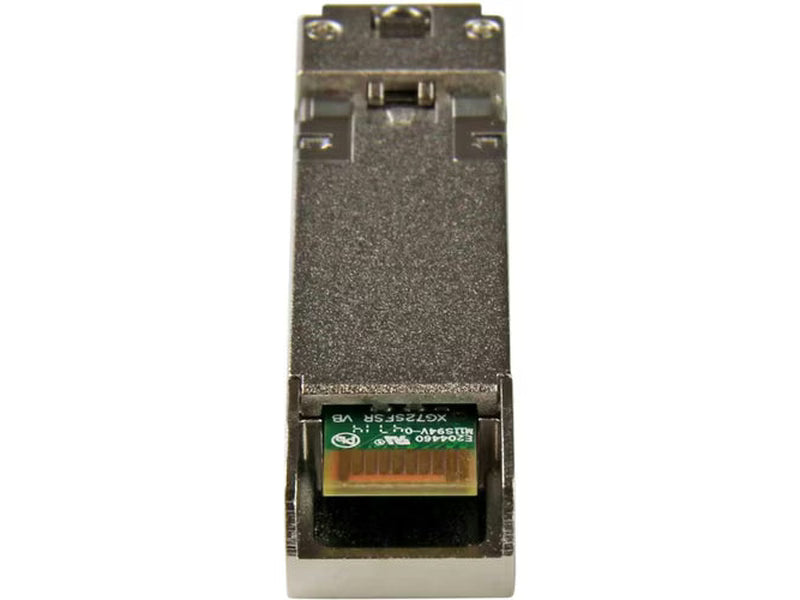

StarTech Cisco SFP-10G-ER Compatible SFP+ TransceiverModule - 10GBase-ER
The SFP-10G-ER-ST is a Cisco SFP-10G-ER compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-ER compliant networks, with a maximum distance of up to 40 km (24.8 mi). Technical Specifications: Wavelength: 1550nm Maximum Data Transfer Rate: 10 Gbps Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 40 km (24.8 mi) MTBF: 426,514,897 hours Power Consumption: < 1.6W Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

- With 10GBase-ER technology, enjoy up to 10Gbps data transfer rate over optical fibre cable
- Enjoy flexibility and scalability with data transfer rate of up to 10 Gbps with 10 Gigabit Ethernet technology
- Supports optical fibre cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With a single wavelength of light, the single mode fibre optic can carry data and transmit audio/video applications over miles of distance
Specification
| Miscellaneous |
| Compatibility |
MSA Compliant |
| Technical Information |
| Application/Usage |
Data Networking |
|
Optical Network |
| Interfaces/Ports |
| Interfaces/Ports Details |
1 x LC Duplex 10GBase-ER Network |
| Connector Type |
LC |
| Total Number of Ports |
1 |
| Media & Performance |
| Network Technology |
10GBase-ER |
| Ethernet Technology |
10 Gigabit Ethernet |
|
| Media Type Supported |
Optical Fiber |
| Fiber Mode Supported |
Single-mode |
| Physical Characteristics |
| Weight (Approximate) |
22.7 g |
| Form Factor |
Hot-pluggable |
| Height |
12.7 mm |
| Width |
12.7 mm |
| Depth |
58.4 mm |
| General Information |
| Product Type |
SFP+ |
| Manufacturer Part Number |
SFP-10G-ER-ST |
| Manufacturer Website Address |
http://www.startech.com/au |
| Packaged Quantity |
1 |
| Manufacturer |
StarTech.com |
| Product Name |
Cisco SFP+ Module |
| Brand Name |
StarTech.com |
|
