StarTech DB9 to RJ45 Modular Serial Adapter - Black

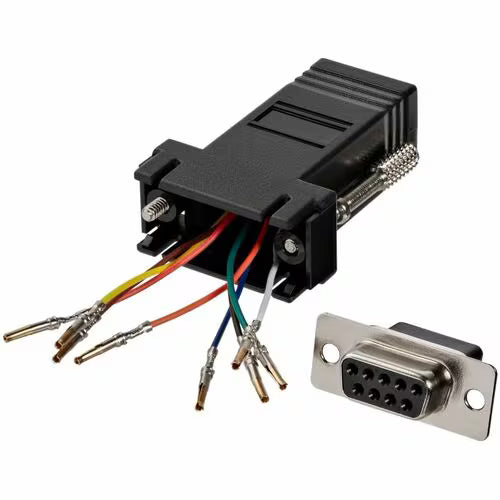

The GC98FF Modular Adapter features a DB9 female connector and an RJ45 female connector. Used for modular RS232, RS422 and RS485 connections, the adapter converts your DB9 male connection into an RJ45 female connection. The adapter allows for custom serial pin out configurations.
The DB9F/RJ45F adapter is backed by lifetime warranty, guaranteeing long-lasting durability.
- Enables efficient data exchange between devices, helping maintain productivity without replacing existing hardware
- RJ-45/Serial adapter offers quick replacement for hassle-free connectivity
- Gold connector plating delivers superior conductivity and corrosion resistance, ensuring optimal signal integrity across setups
- Gold-plated contacts reduce oxidation and signal loss, supporting consistent functionality and long-term reliability
Specification
| Miscellaneous |
| REACH Declaration URL |
https://media.startech.com/cms/pdfs/gc98ff_rohs.pdf |
| EU RoHS Declaration URL |
https://media.startech.com/cms/pdfs/gc98ff_rohs.pdf |
| End of Life Manual Availability |
Yes |
| REACH free of SVHC |
Yes |
| WEEE Statement |
https://media.startech.com/cms/pdfs/gc98ff_weee.pdf |
| Physical Characteristics |
| Weight (Approximate) |
17 g |
| Length |
83.8 mm |
| Height |
15.2 mm |
| Width |
33 mm |
| Product Color |
Black |
| Color Family |
Black |
| General Information |
| Product Type |
Data Transfer Adapter |
|
| Manufacturer Part Number |
GC98FF |
| Manufacturer Website Address |
http://www.startech.com/au |
| Packaged Quantity |
1 Each |
| Manufacturer |
StarTech.com |
| Product Name |
DB9 to RJ45 Modular Serial Adapter - Black |
| Brand Name |
StarTech.com |
| Technical Information |
| Connector Type on First End |
DB-9 Serial - Female |
| Connector Type on Second End |
RJ-45 Network - Female |
| Adapter Type |
RJ-45/Serial |
| Connector Plating |
Gold |
| Contact Plating |
Gold |
| Connector on First End Details |
1 x 9-pin DB-9 Serial Female |
| Connector on Second End Details |
1 x RJ-45 Network Female |
|
