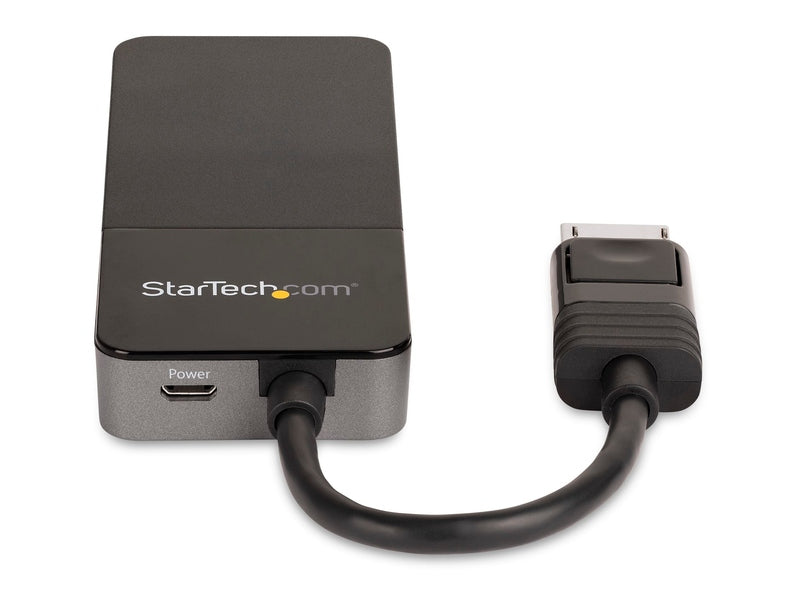

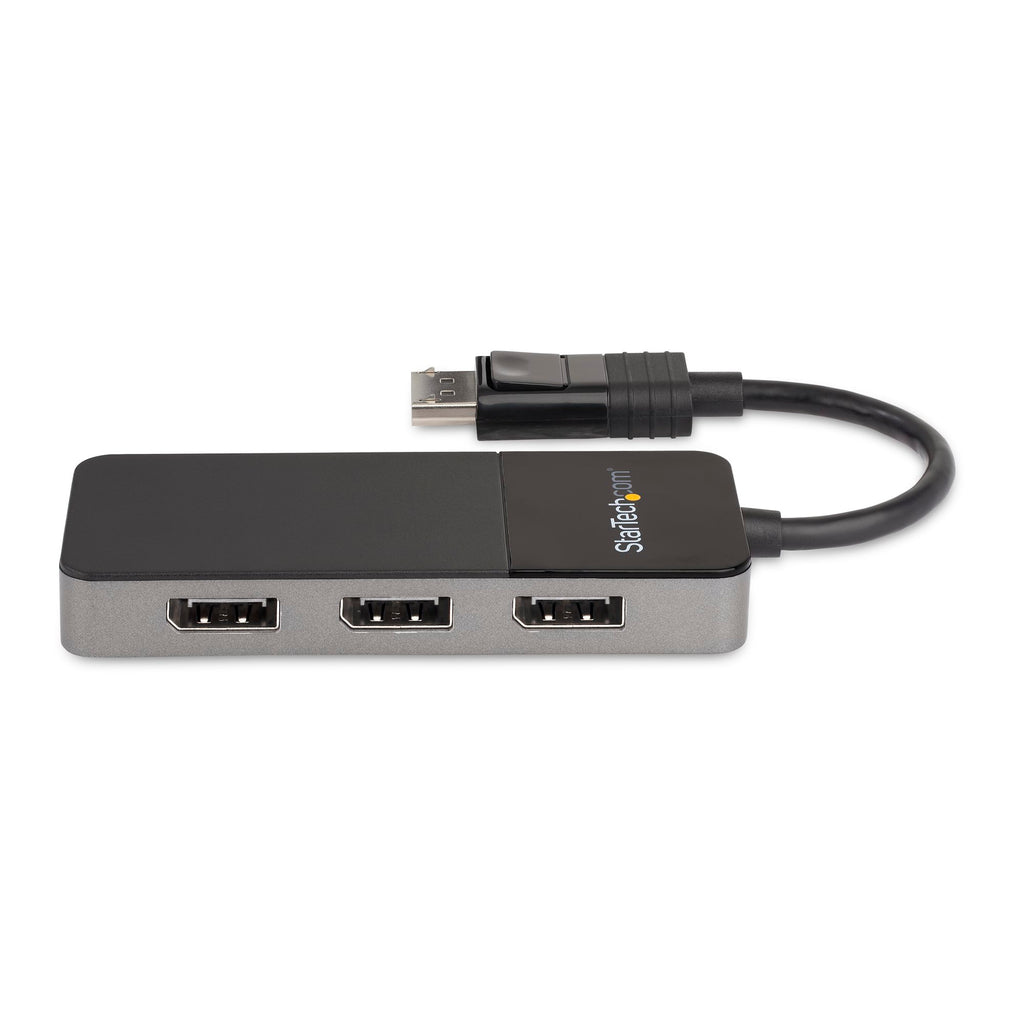

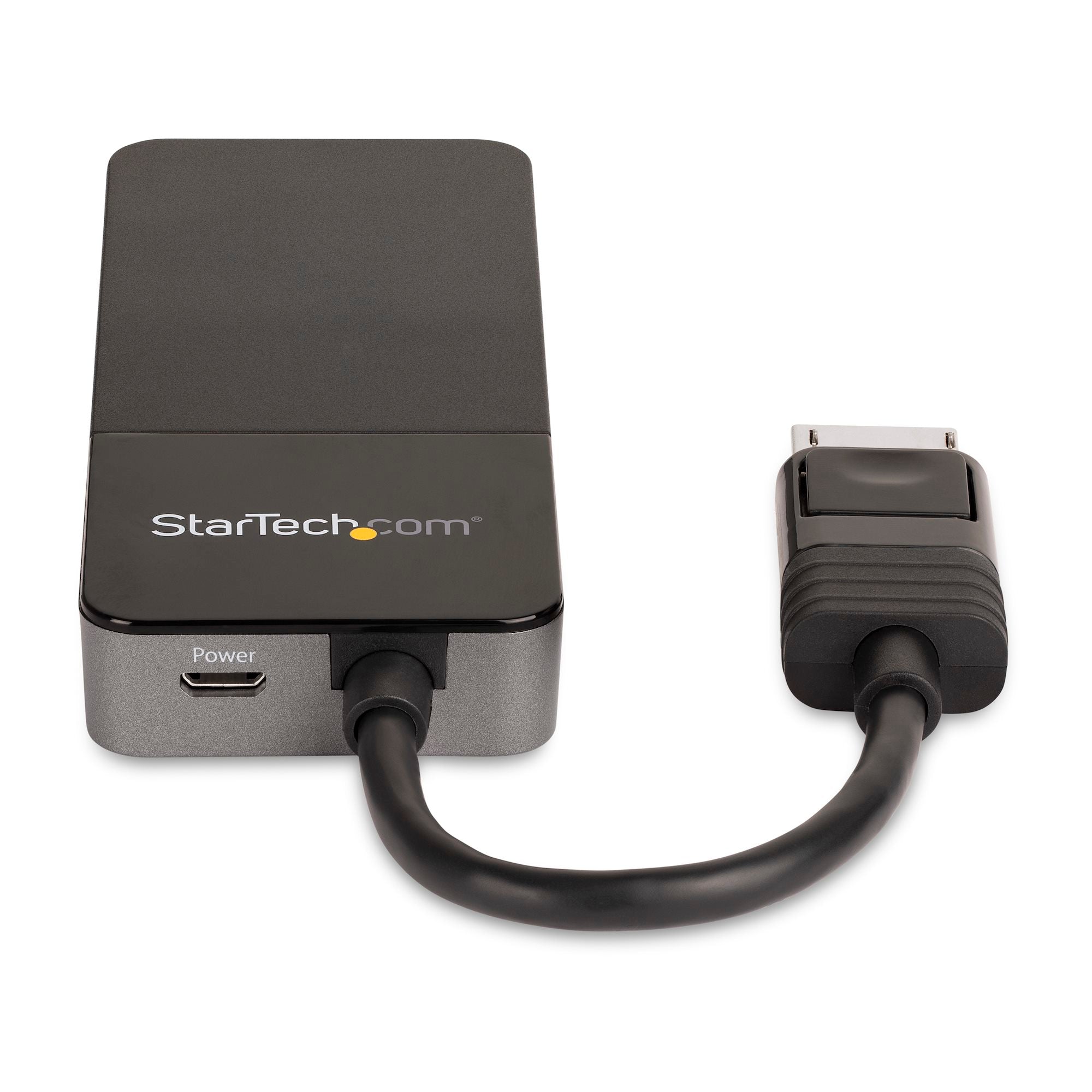

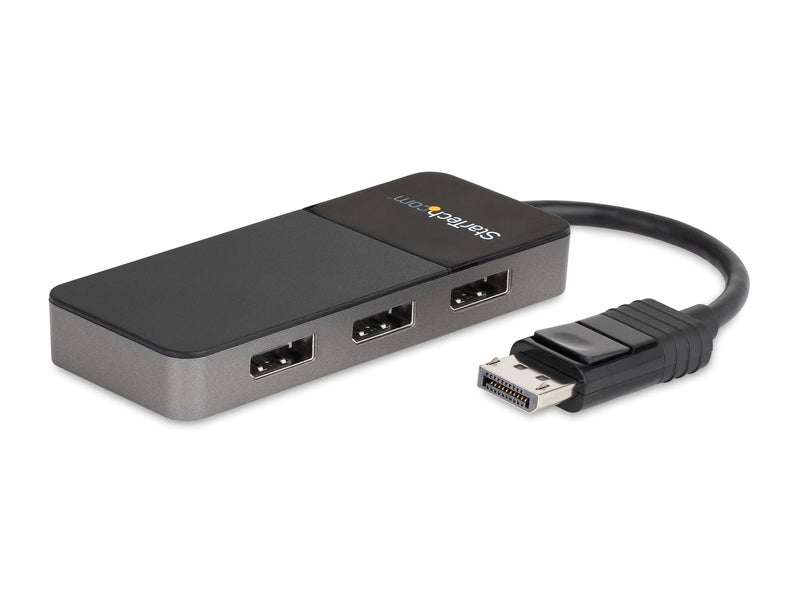

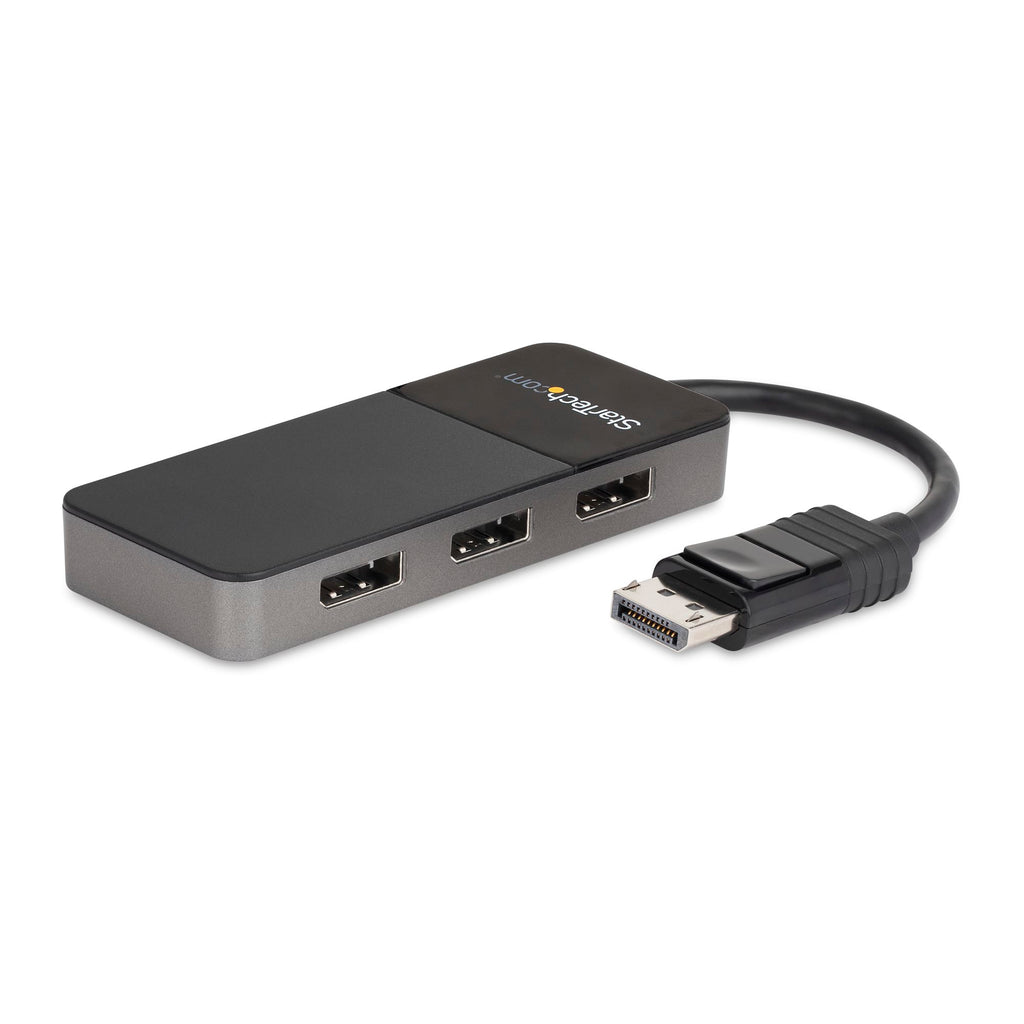

3-Port DisplayPort 1.4 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Triple 4K Computer MST Hub, USB Bus-Powered - Windows Only
3 x 4K | Multi-Monitor Video Splitter | Windows® | HDR
This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Incredible Picture Quality
Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you're in the office, at home or traveling.
Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).
Lower resolutions and refresh rates may also be supported.
Multi-Tasking Made Easy
This DisplayPort to 3x DisplayPort MST hub enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.

Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.
3-Port DisplayPort 1.4 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Triple 4K Computer MST Hub, USB Bus-Powered - Windows Only
3 x 4K | Multi-Monitor Video Splitter | Windows® | HDR
This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Incredible Picture Quality
Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you're in the office, at home or traveling.
Display 1 |
Display 2 |
Display 3 |
|
8K (7680x4320) @ 30Hz |
X |
X |
|
5K (5120x2880) @ 60Hz |
1080p (1920x1080) @ 30Hz |
X |
|
4K (3840x2160) @ 60Hz |
4K (3840x2160) @ 30Hz |
4K (3840x2160) @ 30Hz |
| 2K (2560x1600) @ 60Hz | 2K (2560x1600) @ 60Hz | 2K (2560x1600) @ 60Hz |
| 1080p (1920x1080) @ 60Hz | 1080p (1920x1080) @ 60Hz | 1080p (1920x1080) @ 60Hz |
Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).
Lower resolutions and refresh rates may also be supported.
Multi-Tasking Made Easy
This DisplayPort to 3x DisplayPort MST hub enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.

Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.
| DisplayPort MST Hub Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 × DisplayPort (20 pin) |
| Connector B | 3 × DisplayPort (20 pin) Female |
| Environmental | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Humidity | 5% to 90% RH (no condensation) |
| Hardware | |
| Adapter Type | Active |
| AV Input | DisplayPort 1.4 |
| Ports | 3 |
| AV Output | DisplayPort 1.4 |
| Audio | Yes |
| Chipset ID | Synaptics VMM5330 |
| Packaging Information | |
| Package Height | 1.0 in [2.6 cm] |
| Package Length | 5.6 in [14.1 cm] |
| Package Width | 5.0 in [12.7 cm] |
| Package Weight | 3.0 oz [84.0 g] |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | DisplayPort - 7.1 Channel Audio |
| Video Revision | DisplayPort 1.4 |
| Max Cable Distance to Display | 6.6 ft [2 m] |
| Supported Resolutions | 7680×4320 (8K) @ 30Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 0.6 in [1.4 cm] |
| Product Length | 9.8 in [25.0 cm] |
| Product Width | 1.7 in [4.3 cm] |
| Product Weight | 1.9 oz [55.0 g] |
| Color | Black |
| Material | Plastic |
| Power | |
| Power Source | USB-Powered |
| Input Voltage | 5V DC |
| Output Voltage | 5V DC |
| Software | |
| OS Compatibility | Windows 11 Windows 10 (32/64-bit) Windows 8/8.1 (32/64-bit) Windows 7 (32/64-bit) |
| What's in the Box | |
| Included Items | 1 × DisplayPort MST Hub 1 × Micro-USB Power Cable |
