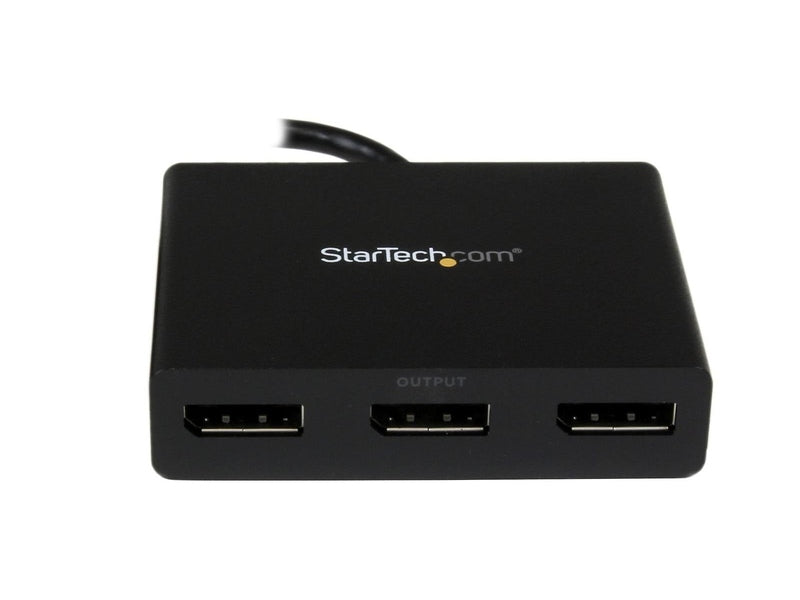

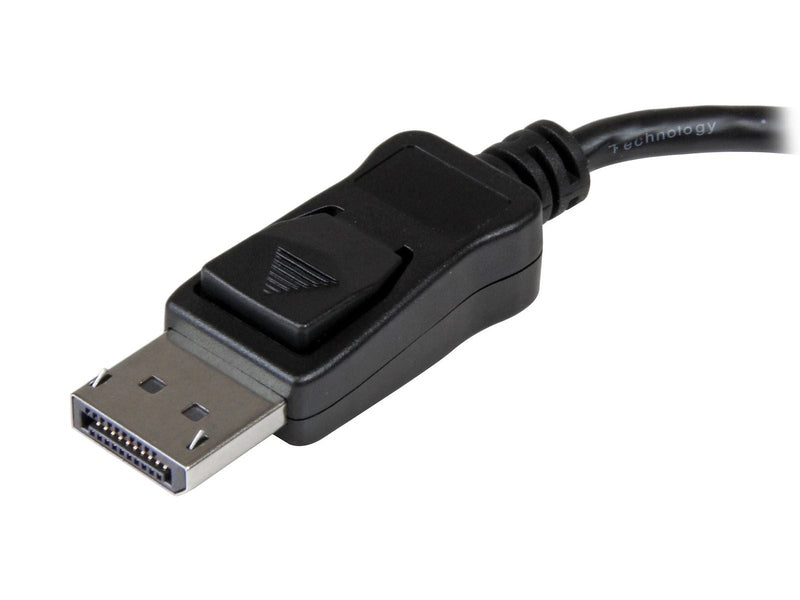

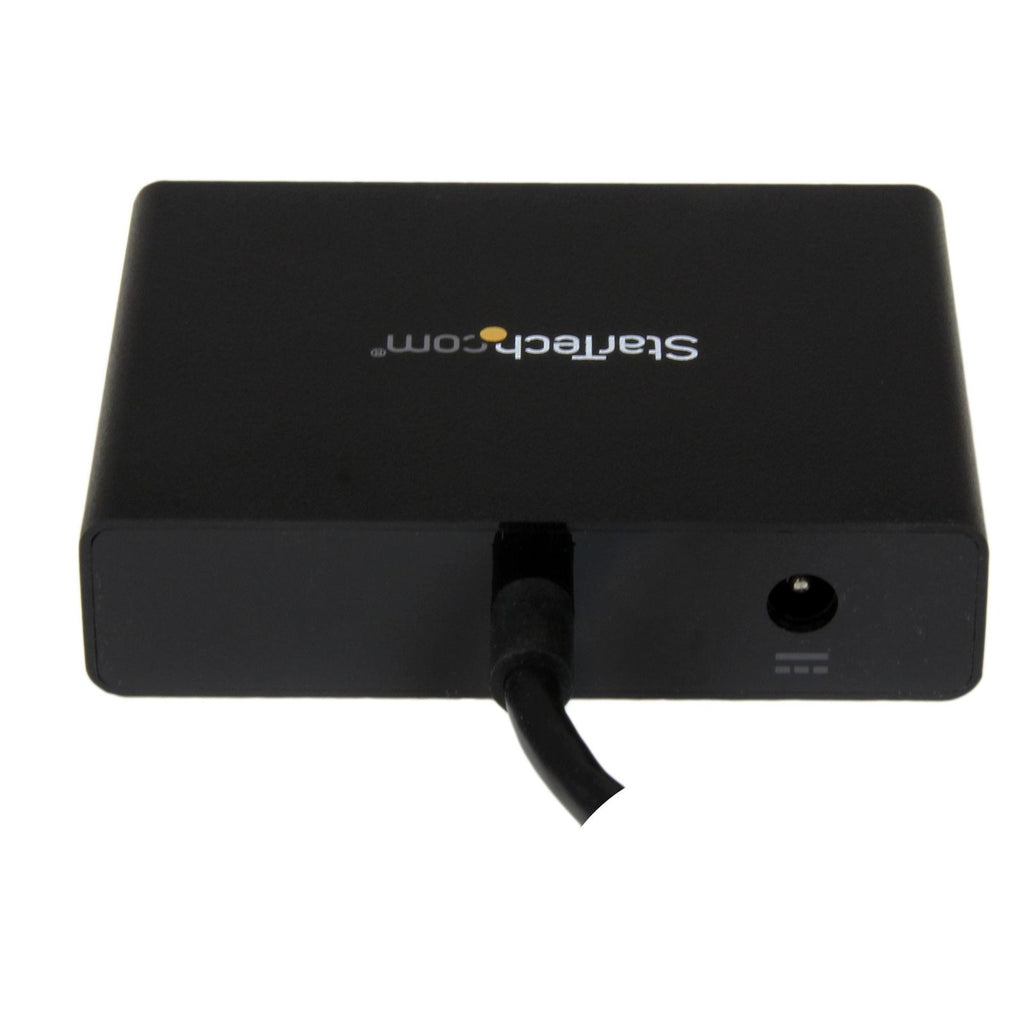

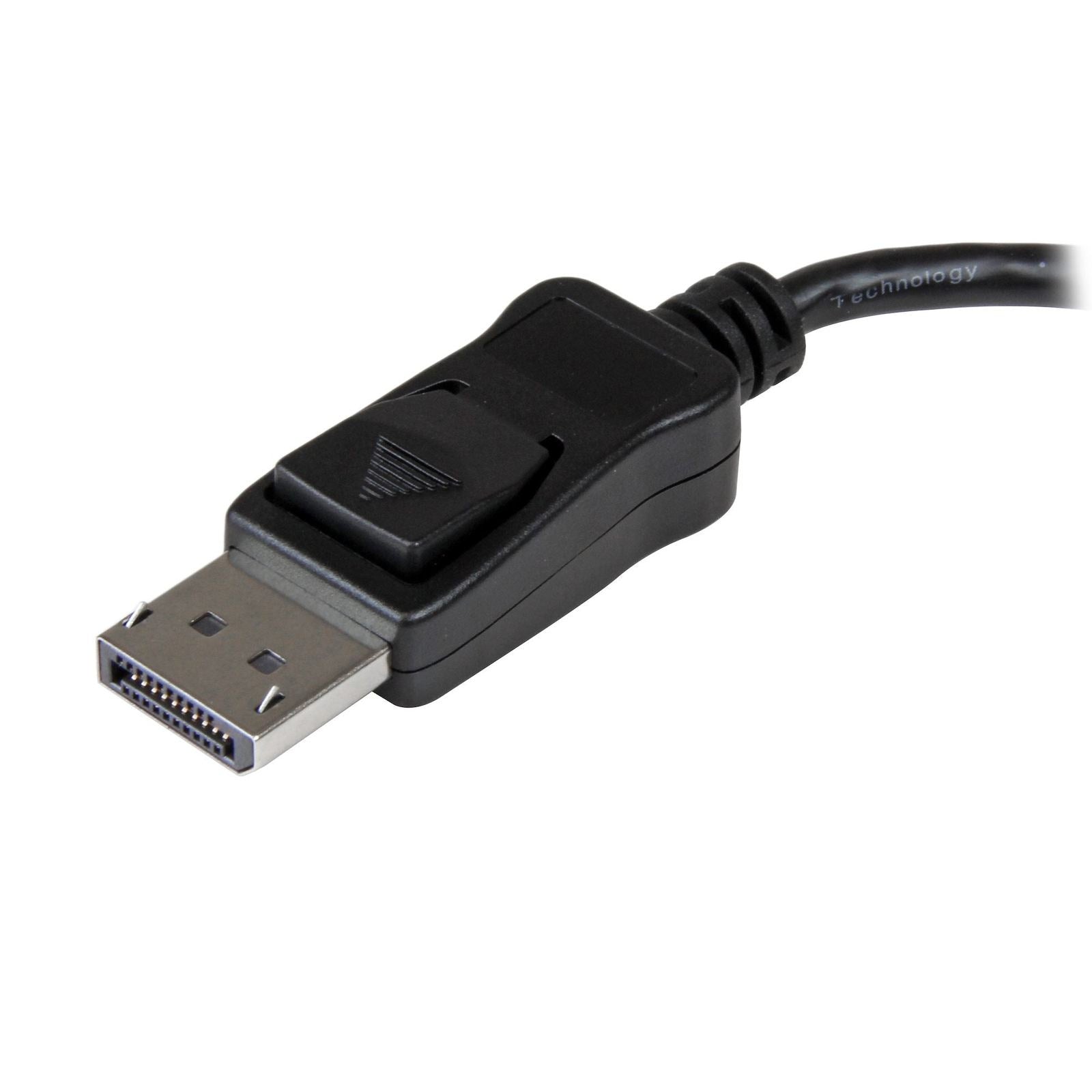

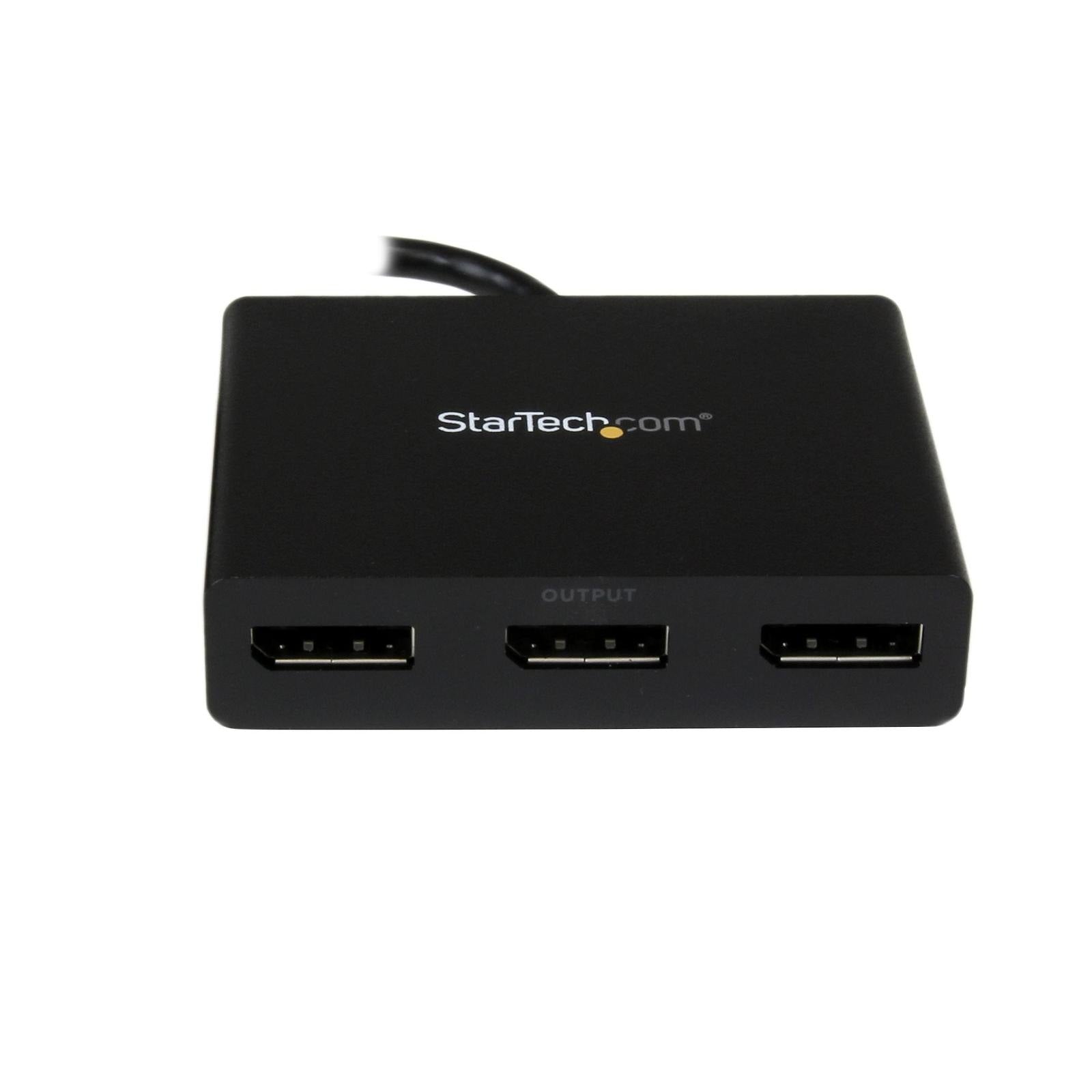

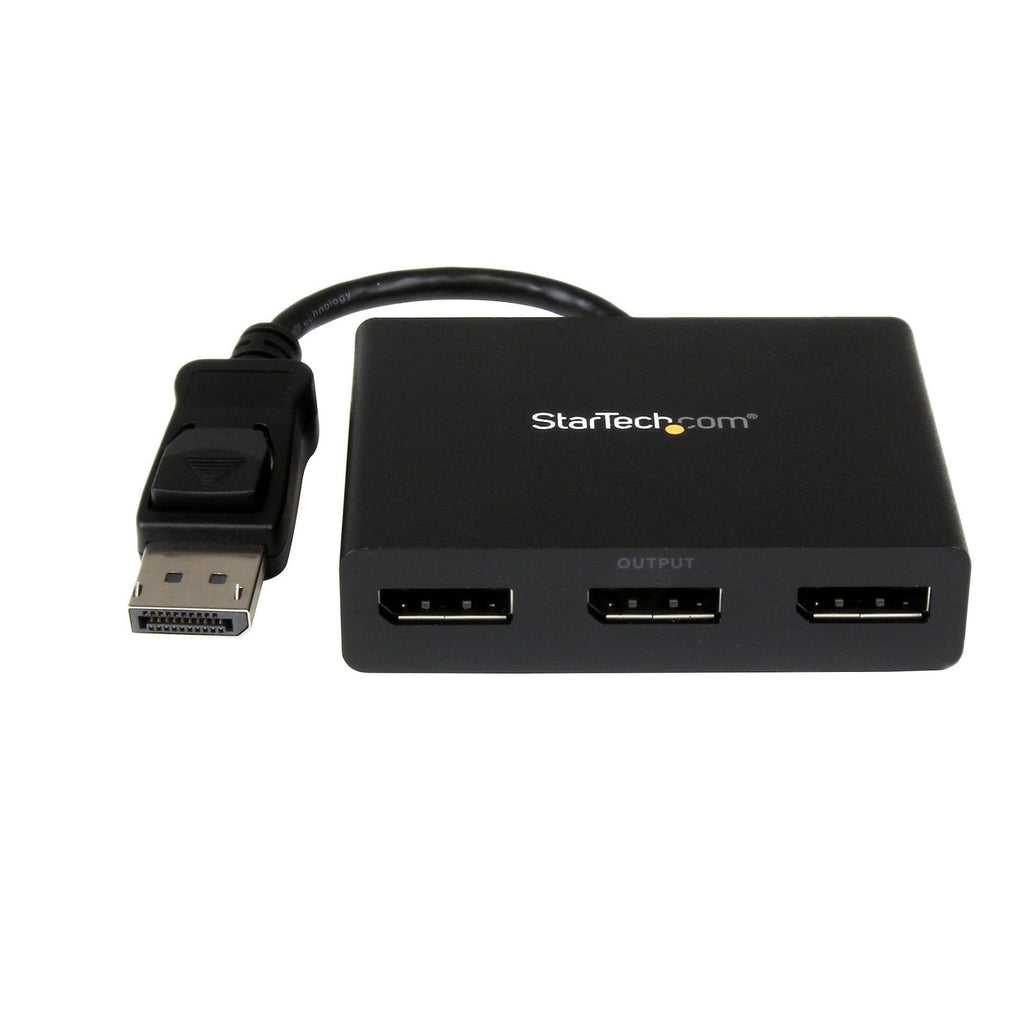

StarTech DP to DP Multi Monitor Splitter - 3 Port Mst Hub 3Yr

StarTechSKU: MSTDP123DP

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$131.00

Estimate shipping

Description

Overview

3-Port DisplayPort 1.2 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Dual 4K 30Hz and 1080p 60Hz Computer MST Hub - Windows Only
Use this adapter to connect three independent displays to a single DP 1.2 port

This MST hub lets you connect three monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.

Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Increase Productivity with multiple screens
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Extend Your Compatibility
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
productivity software displayed on three monitors
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MSTDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.

Average Resolution Bandwidth Allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Examples of Supported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 90%
2560x1440 @60hz (35%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 100%
2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1080 @60hz (22%) 98%
3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1080 @60hz (22%) 98%
3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 1920x1080 @60hz (22%) 98%

Examples of Unsupported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 106%
3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 106%
3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 2560x1440 @60hz (35%) 111%
3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 114%


3-Port DisplayPort MST Hub Specifications
Connector(s)
Connector A 1 × DisplayPort (20 pin)
Connector B 3 × DisplayPort (20 pin)
Environmental
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Hardware
Adapter Type Active
AV Input DisplayPort 1.2
Ports 3
AV Output DisplayPort 1.2
Audio Yes
Chipset ID MegaChips STDP4320
Packaging Information
Package Height 2.6 in [6.5 cm]
Package Length 6.0 in [15.3 cm]
Package Width 9.6 in [24.4 cm]
Package Weight 15.0 oz [426.0 g]
Package Quantity 1
Performance
Audio Specifications DisplayPort - 5.1 Channel Audio
Max Cable Distance to Display 6.6 ft [2 m]
Max Digital Resolution Up to 4K
Wide Screen Supported Yes
Physical Characteristics
Color Black
Material Plastic
Cable Length 7.5 in [19 cm]
Product Length 7.9 in [20.0 cm]
Product Width 3.1 in [7.8 cm]
Product Height 0.8 in [2.0 cm]
Product Weight 3.3 oz [94.0 g]
Power
Power Source AC Adapter Included
Input Voltage 100–240V AC
Input Current 0.5 A
Output Voltage 5V DC
Output Current 3 A
Center Tip Polarity Positive
Plug Type N
Power Consumption 15 Watts
Software
OS Compatibility Windows 11
Windows 10 (32/64-bit)
Windows 8/8.1 (32/64-bit)
Windows 7 (32/64-bit)
Special Notes / Requirements
Note DisplayPort 1.2 with MST + HBR2 support required for independent display output.
What's in the Box
Included Items 1 × 3-Port Multi Monitor DisplayPort MST Hub
1 × Universal Power Adapter (NA/EU/UK/AUS)
1 × Instruction Manual
