Description
Overview
DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector
Connect your DVI monitor to a DisplayPort equipped computer

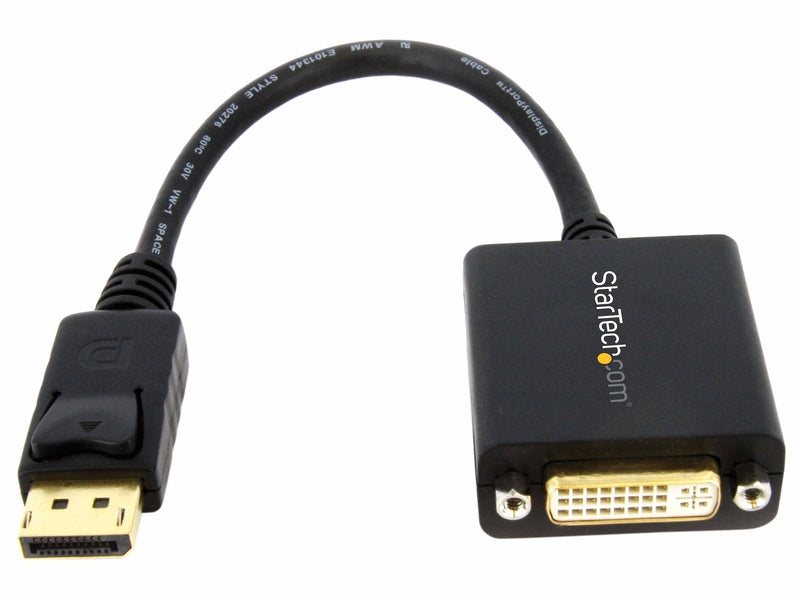

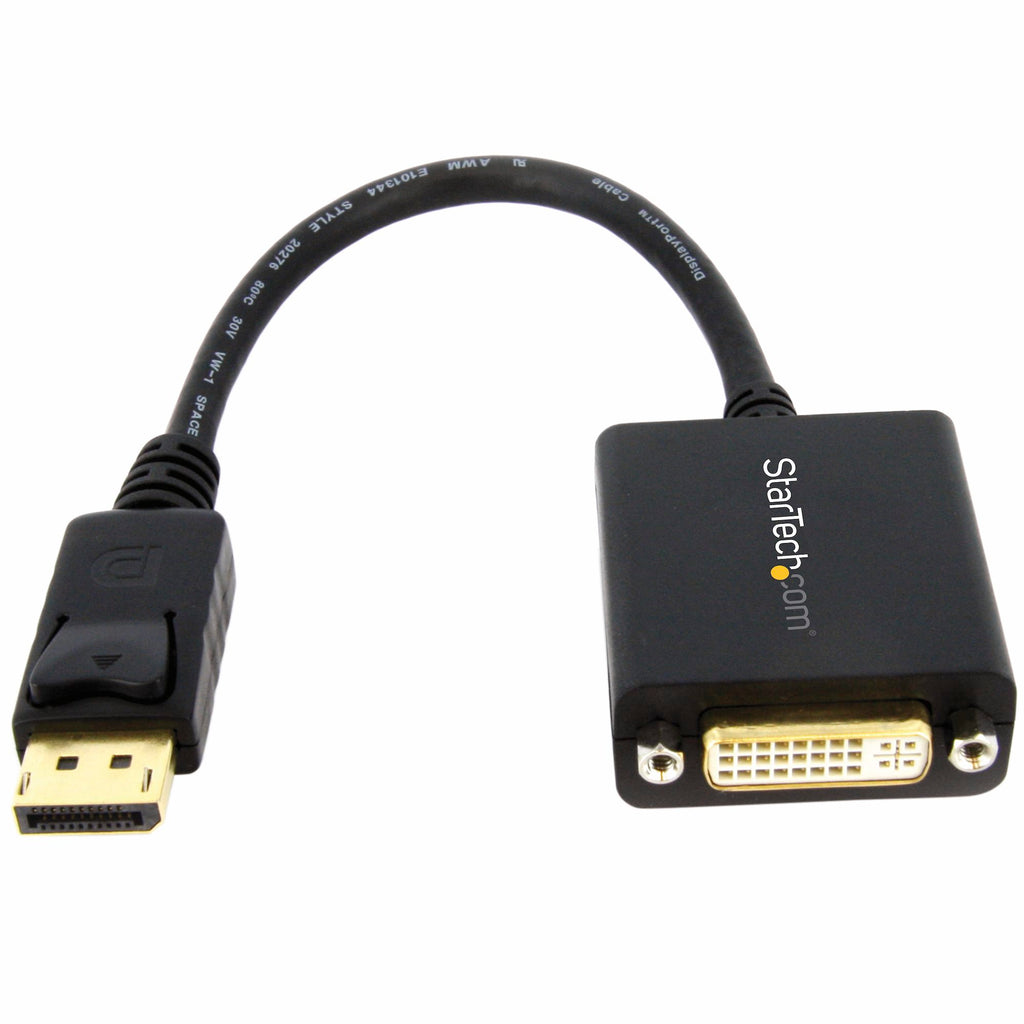

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector
Connect your DVI monitor to a DisplayPort equipped computer
The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
| DisplayPort to DVI Converter Specifications | |
|---|---|
| Connector(s) | |

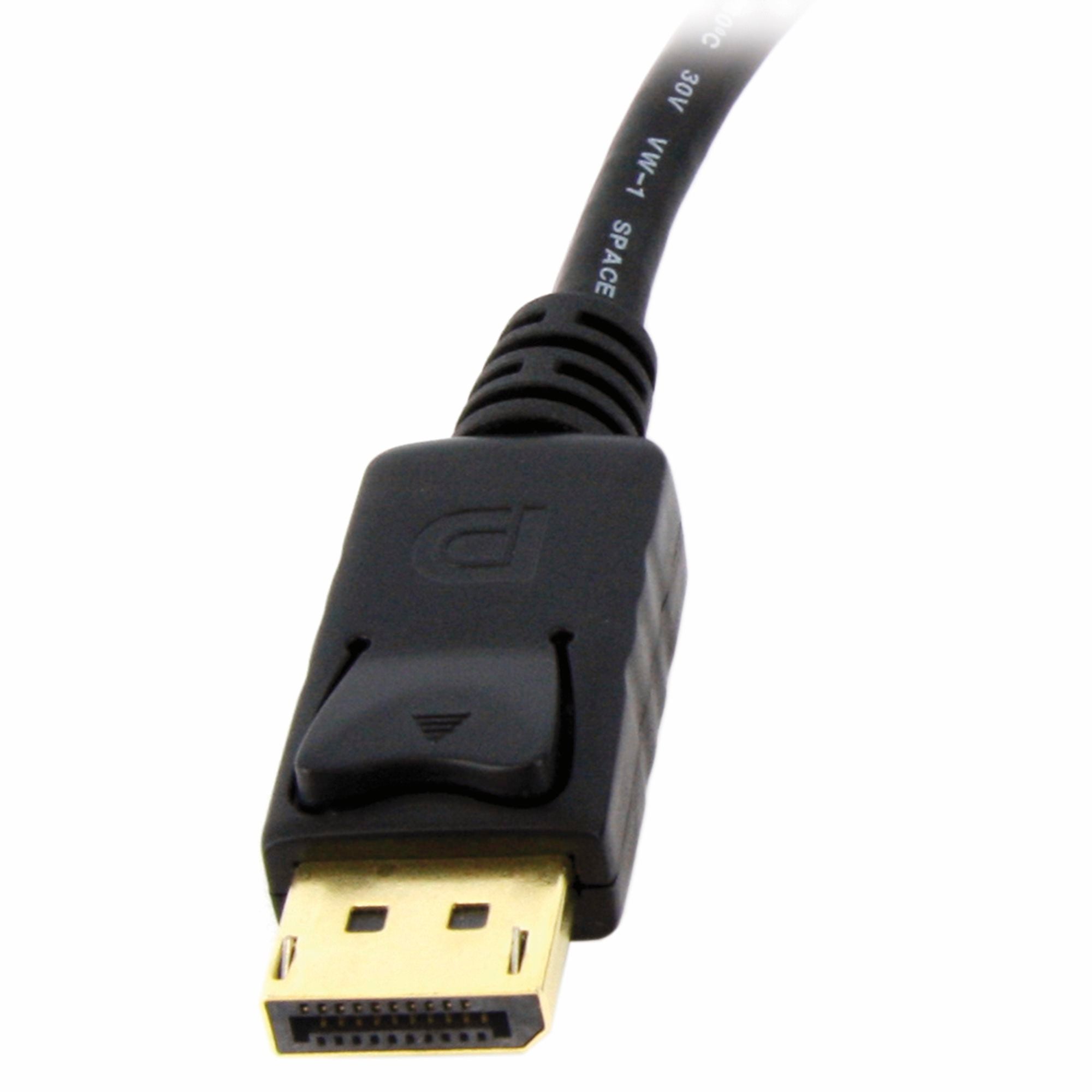

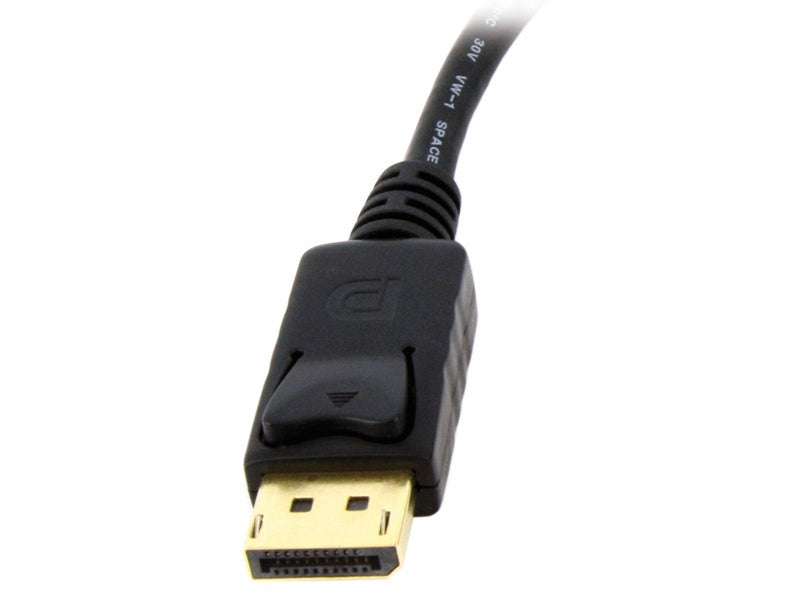

| Connector A | 1 x DisplayPort (20 pin) |
| Connector B | 1 x DVI-I (29 pin) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Humidity | 10% to 85% RH |
| Hardware | |
| Adapter Type | Passive |
| AV Input | DisplayPort 1.2 |
| AV Output | DVI-I (Digital Only) - Single-Link |
| Audio | No |
| Packaging Information | |
| Package Length | 7.8 in (19.7 cm) |
| Package Width | 7.7 in (19.6 cm) |
| Package Height | 1.0 in (2.5 cm) |
| Shipping Weight | 1.8 oz (50.0 g) |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | DVI - No Audio Support |
| Maximum Digital Resolutions | 1920 x 1200 / 1080p |
| Supported Resolutions | 1920x1080 (1080p) 1680x1050 (WSXGA+) 1600x1200 1600x900 1440x900 1400x1050 (SXGA+) 1366x768 1360x768 1280x1024 1280x960 1280x800 1280x768 (WXGA) 1280x720p (720p) 1280x600 1152x864 1024x768 800x600 (SVGA) 640x480 (480p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 6.0 in (152.4 mm) |
| Product Length | 10.0 in (25.4 cm) |
| Product Width | 1.7 in (4.2 cm) |
| Product Height | 0.7 in (1.7 cm) |
| Weight of Product | 1.5 oz (43.0 g) |
| Special Notes / Requirements | |
| System Requirements | DP++ port required on video card or source (must support DVI/HDMI pass-through) |
| What's in the Box | |
| Included in Package | 1 x DisplayPort to DVI Converter |
