DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector
Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications

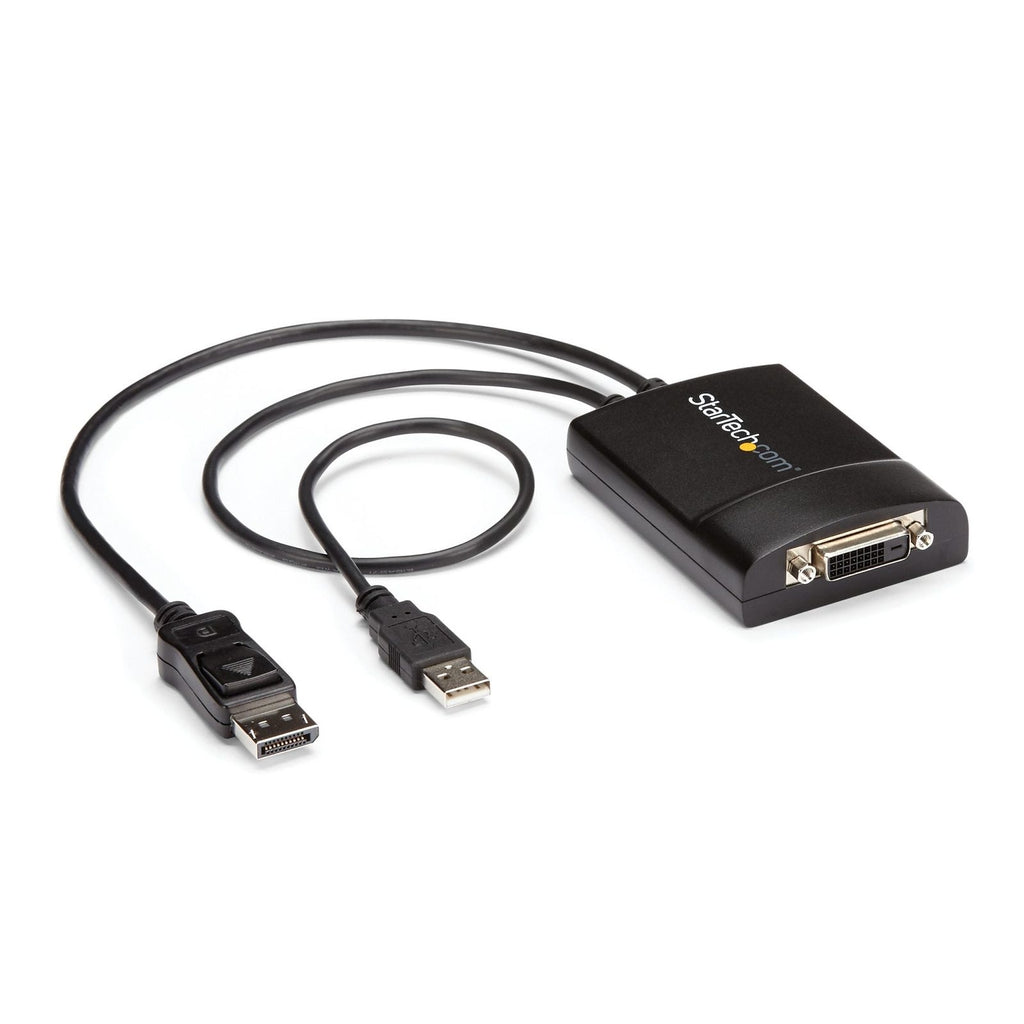

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector
Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
| DisplayPort to DVI Adapter Specifications | |
|---|---|
| Connector(s) | |

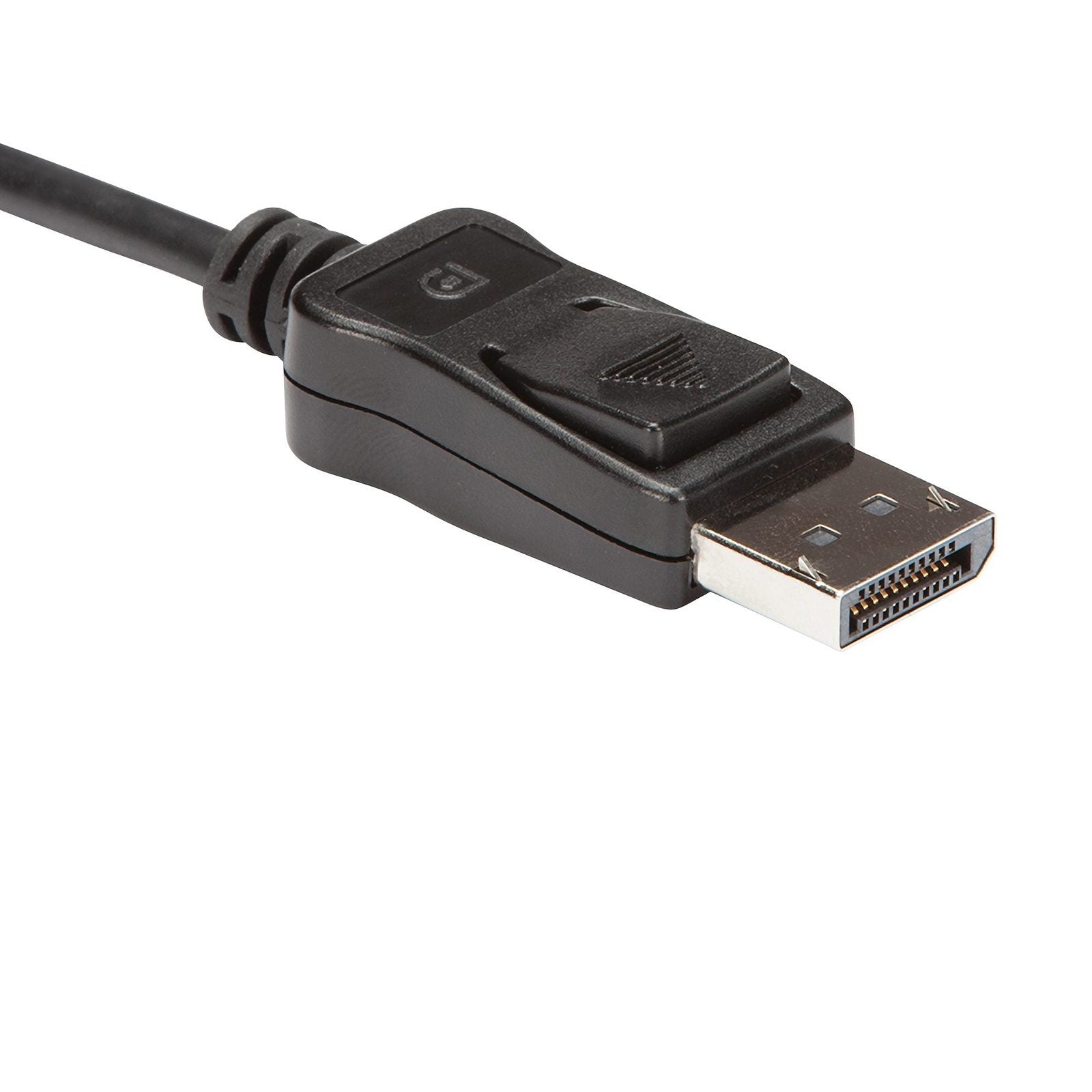

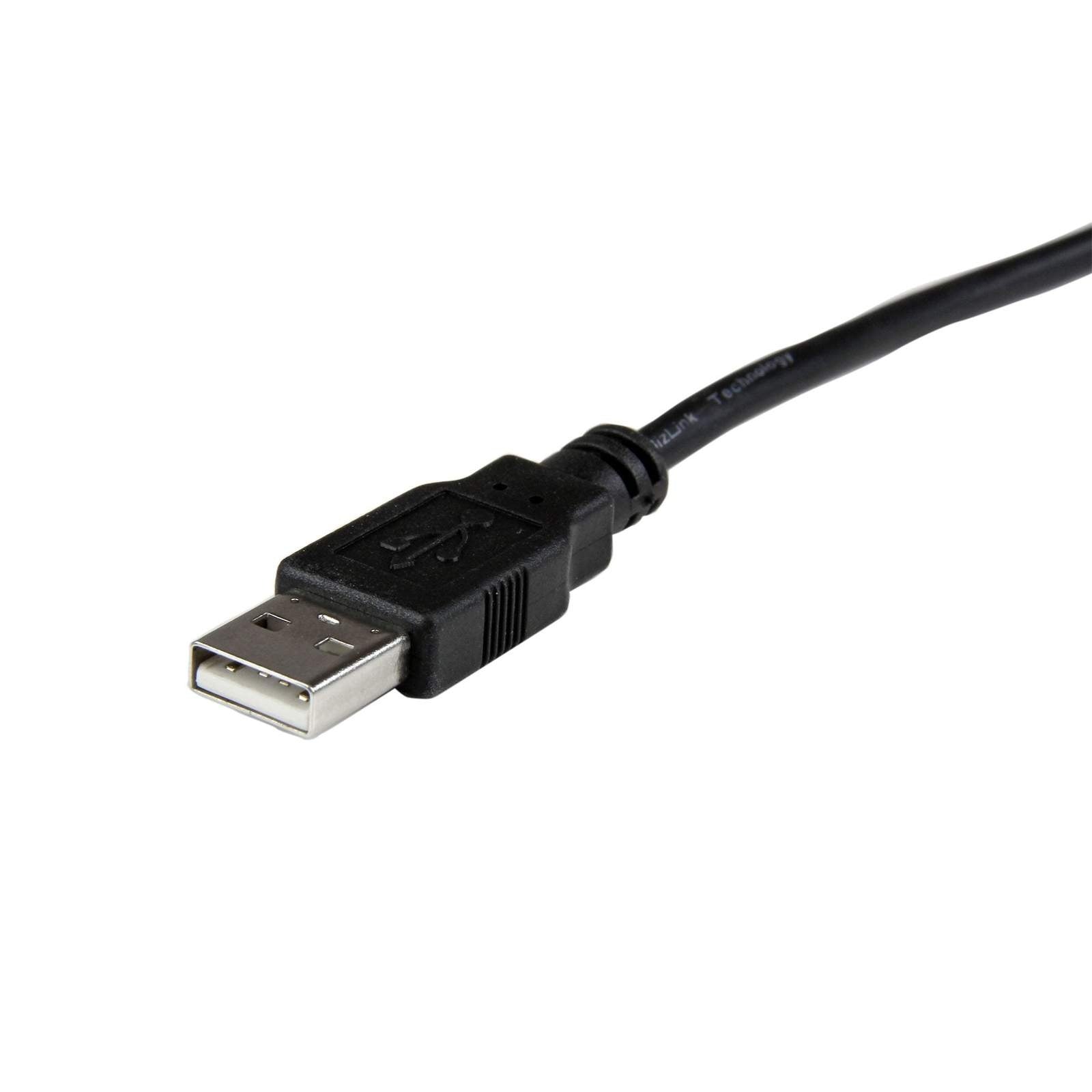

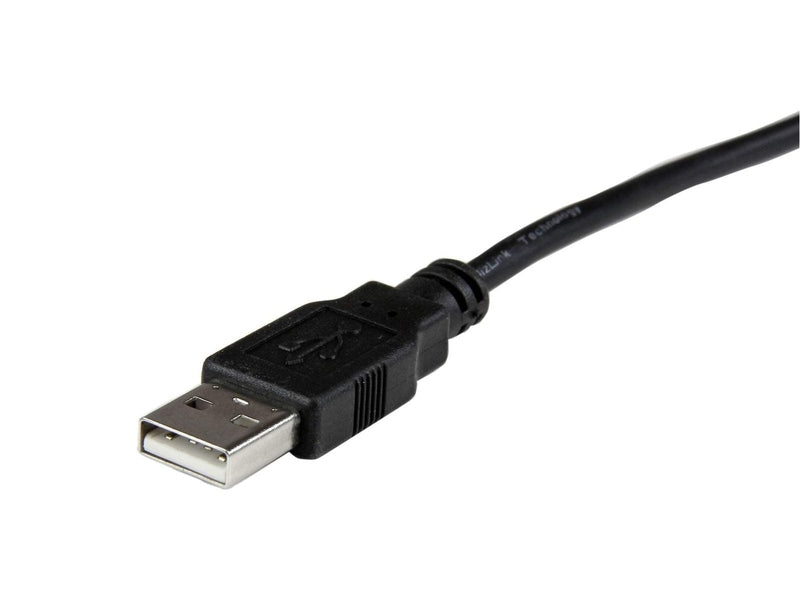

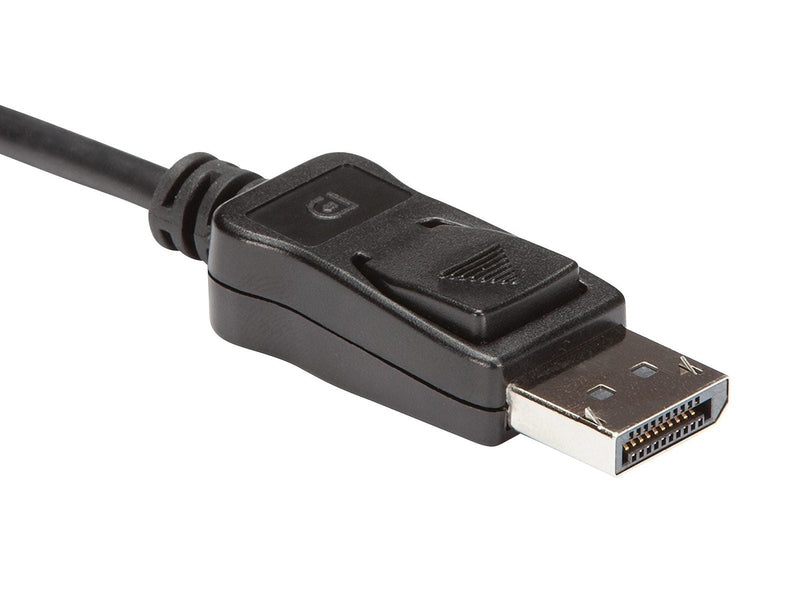

| Connector A | 1 x DisplayPort (20 pin) 1 x USB 2.0 Type-A (4 pin, 480Mbps) |
| Connector B | 1 x DVI-D (25 pin) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Hardware | |
| Adapter Type | Active |
| AV Input | DisplayPort 1.2 |
| AV Output | DVI-D Dual-Link (Digital Only) |
| Audio | No |
| Chipset ID | Synaptics VMM2326BJ6 |
| Packaging Information | |
| Package Height | 1.4 in (3.5 cm) |
| Package Length | 5.7 in (14.5 cm) |
| Package Width | 6.9 in (17.5 cm) |
| Shipping Weight | 8.0 oz (228.0 g) |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | DVI - No Audio Support |
| Maximum Digital Resolutions | 2560 x 1600 |
| Supported Resolutions | 2560 x 1600 @ 60 Hz 1920 x 1080 @ 120 Hz 1920 x 1200 @ 120 Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Cable Length | 14.6 in (37 cm) |
| Product Length | 21.6 in (54.9 cm) |
| Product Width | 2.5 in (6.4 cm) |
| Product Height | 0.9 in (2.2 cm) |
| Weight of Product | 5.6 oz (160.0 g) |
| Power | |
| Power Source | USB-Powered |
| Special Notes / Requirements | |
| System Requirements | Requires 1 x DVI-D Cable (Destination) |
| What's in the Box | |
| Included in Package | 1 x DisplayPort to DVI Adapter |
