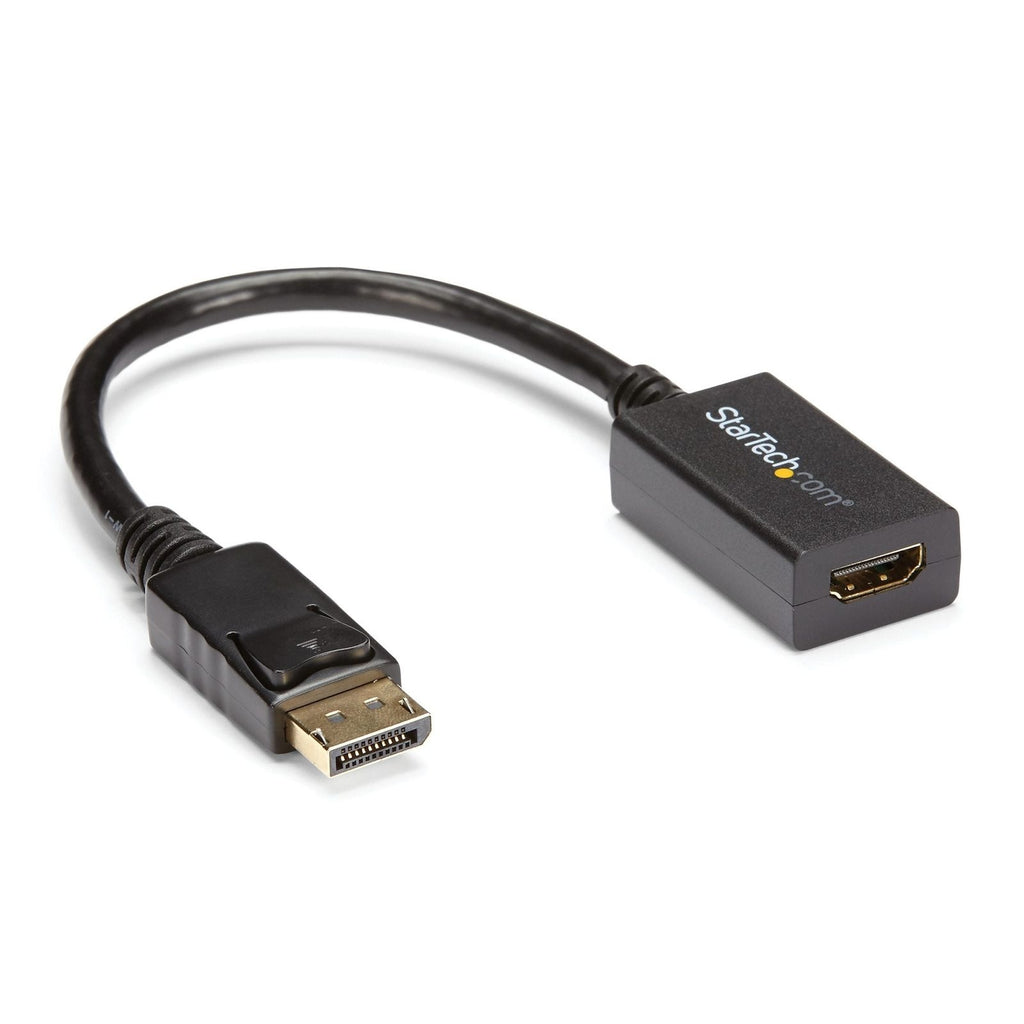

DisplayPort to HDMI Adapter - DP 1.2 to HDMI Video Converter 1080p - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Passive DP to HDMI Adapter - Latching DP Connector
Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer
The StarTech.com DP2HDMI2 DisplayPort® to HDMI® Adapter lets you connect an HDMI-enabled display or projector to a DisplayPort out port from a computer (desktop or laptop), eliminating the expense of having to upgrade your display for DisplayPort compatibility.
The adapter supports display resolutions of up to 1920x1200, allowing you to take full advantage of HDMI video capability.
DP2HDMI2 is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
DisplayPort to HDMI Adapter - DP 1.2 to HDMI Video Converter 1080p - DP to HDMI Monitor/TV/Display Cable Adapter Dongle - Passive DP to HDMI Adapter - Latching DP Connector
Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer
The StarTech.com DP2HDMI2 DisplayPort® to HDMI® Adapter lets you connect an HDMI-enabled display or projector to a DisplayPort out port from a computer (desktop or laptop), eliminating the expense of having to upgrade your display for DisplayPort compatibility.
The adapter supports display resolutions of up to 1920x1200, allowing you to take full advantage of HDMI video capability.
DP2HDMI2 is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
| DisplayPort to HDMI Converter Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x DisplayPort (20 pin) |
| Connector B | 1 x HDMI (19 pin) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Humidity | 10% to 85% RH |
| Hardware | |
| Adapter Type | Passive |
| AV Input | DisplayPort 1.2 |
| AV Output | HDMI |
| Audio | Yes |
| Chipset ID | NXP Semiconductors PTN3361B |
| Packaging Information | |
| Package Length | 4.5 in (11.5 cm) |
| Package Width | 7.8 in (19.8 cm) |
| Package Height | 0.8 in (2.1 cm) |
| Shipping Weight | 1.9 oz (54.0 g) |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | HDMI - 7.1 Channel Audio |
| Maximum Cable Distance to Display | 49.9 ft (15.2 m) |
| Maximum Digital Resolutions | 1920 x 1200 / 1080p |
| MTBF | 93,353 hours |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 8.3 in (210 mm) |
| Product Length | 10.4 in (26.5 cm) |
| Product Width | 1.0 in (2.5 cm) |
| Product Height | 0.6 in (1.4 cm) |
| Weight of Product | 1.1 oz (32.0 g) |
| Special Notes / Requirements | |
| System Requirements | Requires DP++ port on video card or source (must support DVI/HDMI pass-through) |
| What's in the Box | |
| Included in Package | 1 x DisplayPort to HDMI Converter |
