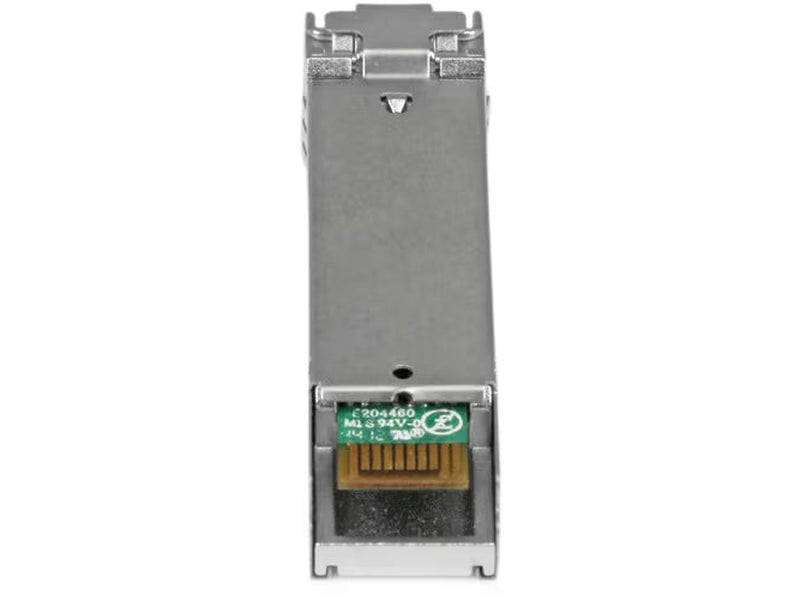

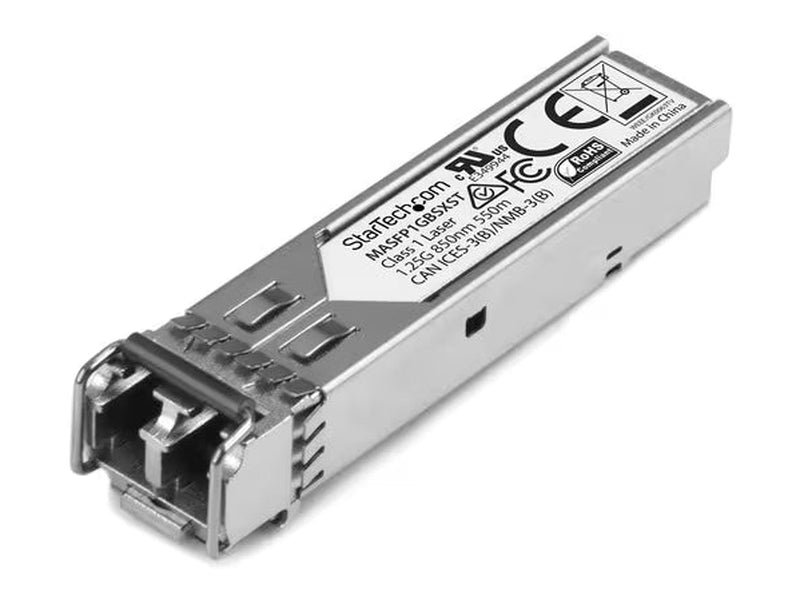

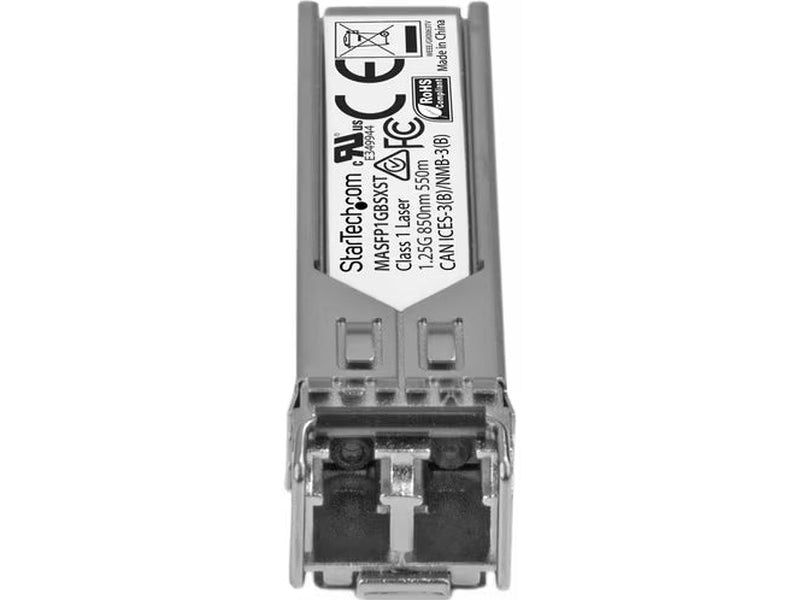

StarTech Gigabit Fiber 1000Base-SX SFP Transceiver Module- Cisco Meraki MA-SFP-1GB-SX Compatible - MM LC- 550m (1804 ft)

StarTechSKU: MASFP1GBSXST

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup currently unavailable at PC LAN Store

Price:
Sale price$65.00
1

Description

StarTech Gigabit Fiber 1000Base-SX SFP Transceiver Module- Cisco Meraki MA-SFP-1GB-SX Compatible - MM LC- 550m (1804 ft)

This StarTech.com Gigabit fiber SFP is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Cisco® switches and routers that support the Cisco Meraki MA-SFP-1GB-SX transceiver module, as well as other major brands of networking equipment.

This 1000Base-SX SFP delivers Gigabit connectivity over multimode fiber cable, with a range of up to 550 m (1804 ft.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.

Built for reliable network performance

This multimode SFP transceiver is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Fully compatible with Cisco Meraki and other major brands

The MM Gigabit SFP is engineered to the highest quality standards and is 100% Cisco Meraki compatible, equivalent to the Cisco Meraki MA-SFP-1GB-SX SFP transceiver. The StarTech.com SFP transceiver is configured and fully tested to ensure it works seamlessly with Cisco Meraki or other major brands of networking equipment.

You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.

Convenient and scalable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with a multitude of Gigabit networking devices.

Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SFP supports multimode fiber cable with a maximum distance of 550 m or 1804 ft., and maximum data rates of up to 1.25Gbps. This GbE fiber SFP also supports Digital Diagnostics Monitoring (DDM / DOM).

You can count on MASFP1GBSXST for reliable performance, backed by a lifetime warranty and free lifetime technical support.

Specification

Technical Information
Application/Usage Data Networking
Optical Network
Interfaces/Ports
Interfaces/Ports Details 1 x LC Duplex 1000Base-SX Network
Connector Type LC
Total Number of Ports 1
Media & Performance
Network Technology 1000Base-SX
Ethernet Technology Gigabit Ethernet
Media Type Supported Optical Fiber
Fiber Mode Supported Multi-mode
Miscellaneous
Compatibility
  • MSA Compliant
Cisco Meraki Switches:
  • MS225
  • MX400
  • MS250
  • MS350
  • MX84
REACH Declaration URL https://media.startech.com/cms/pdfs/masfp1gbsxst_rohs.pdf
EU RoHS Declaration URL https://media.startech.com/cms/pdfs/masfp1gbsxst_rohs.pdf
End of Life Manual Availability Yes
REACH free of SVHC Yes
WEEE Statement https://media.startech.com/cms/pdfs/masfp1gbsxst_weee.pdf
Physical Characteristics
Weight (Approximate) 14.2 g
Form Factor Hot-swappable
Hot-pluggable
Height 12.7 mm
Width 12.7 mm
Depth 55.9 mm
General Information
Product Type SFP (mini-GBIC)
Manufacturer Part Number MASFP1GBSXST
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1 Each
Manufacturer StarTech.com
Product Name Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX
Brand Name StarTech.com
