Description
Overview

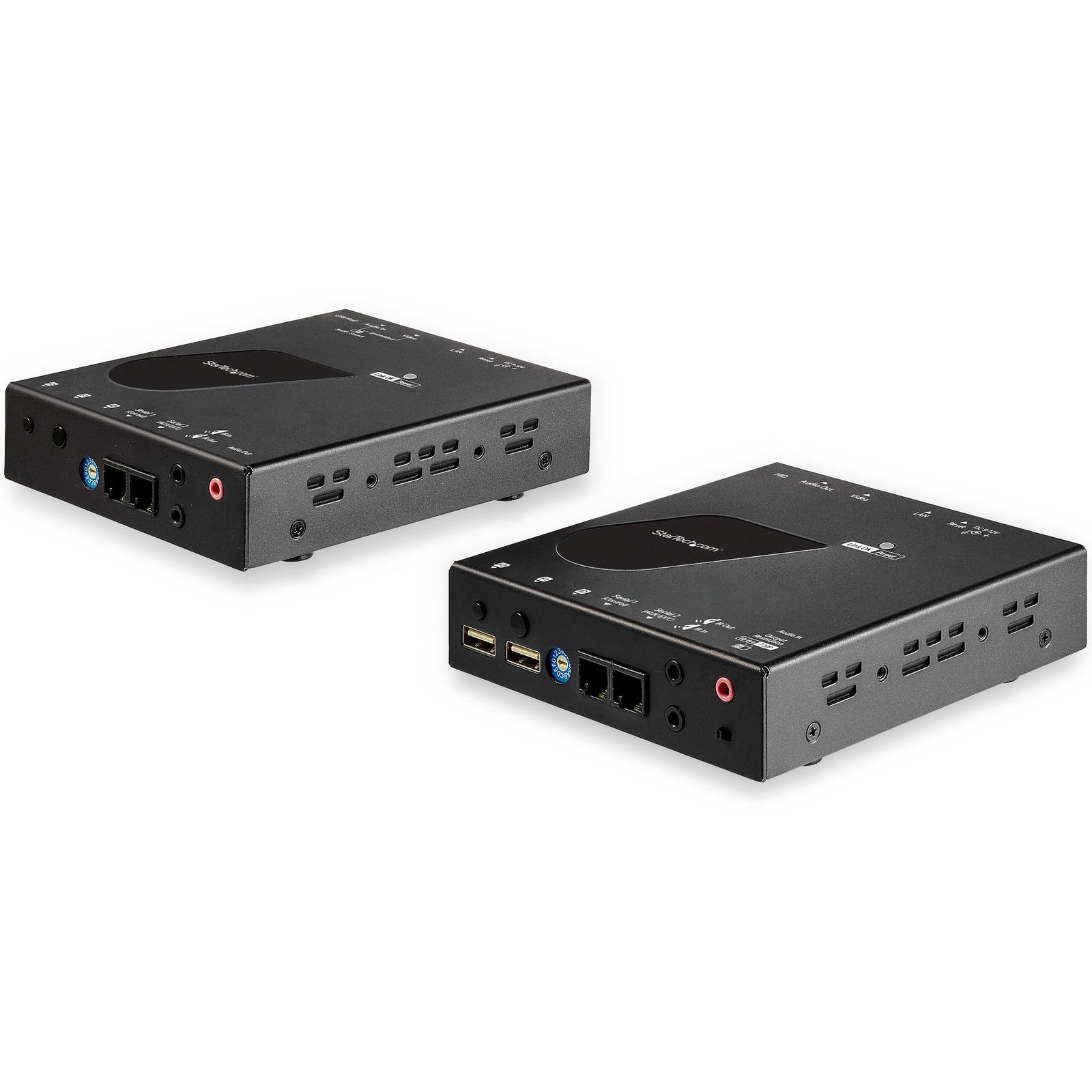

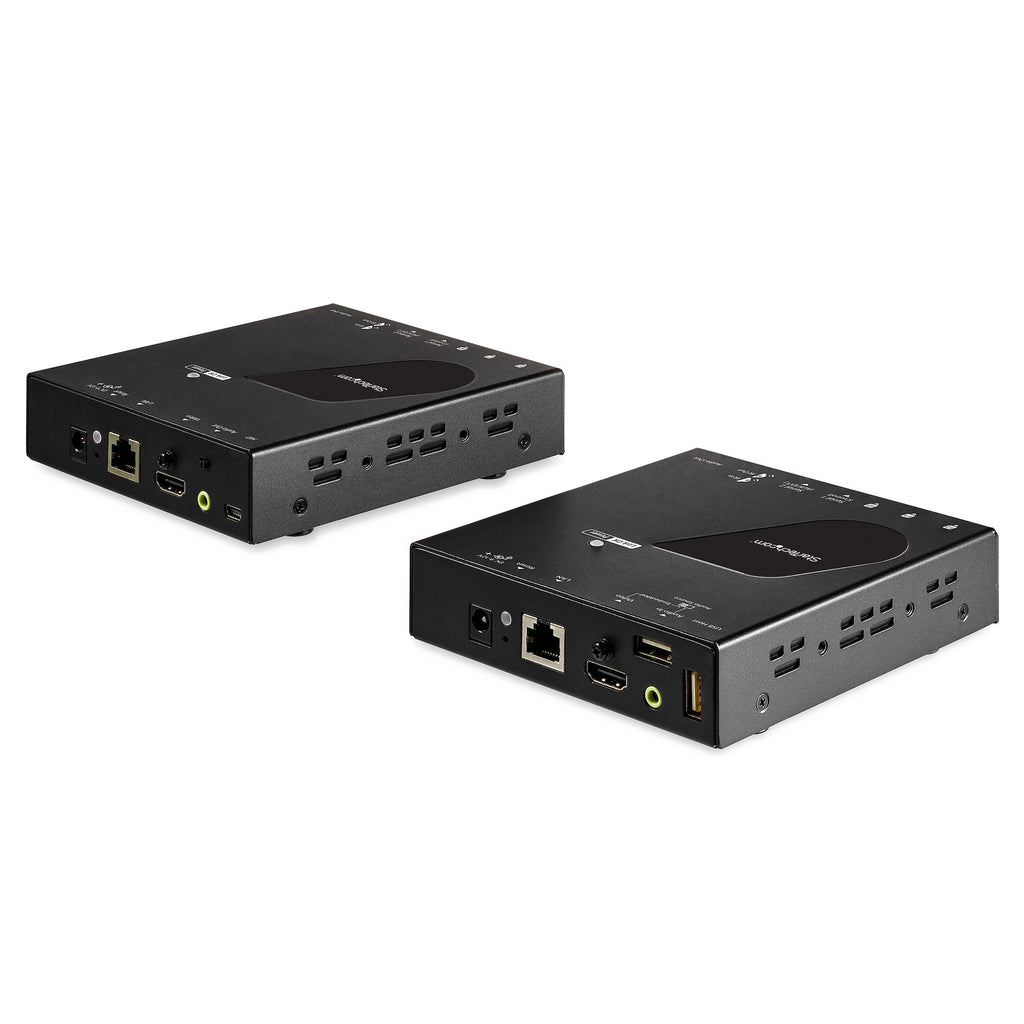

HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit - TAA
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit - TAA
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
HDMI KVM Extender Specifications | |
---|---|
General Features | |
On-Screen Display | Yes |
KVM Ports | 1 |
PC Interface | USB |
PC Video Type | HDMI |
Number of Monitors Supported | 1 |
DVI Support | Yes |
IP Control | No |
Hot-Key Selection | No |
Cables Included | Yes |
Max Transfer Distance | 100m [328ft] |
Connector(s) | |

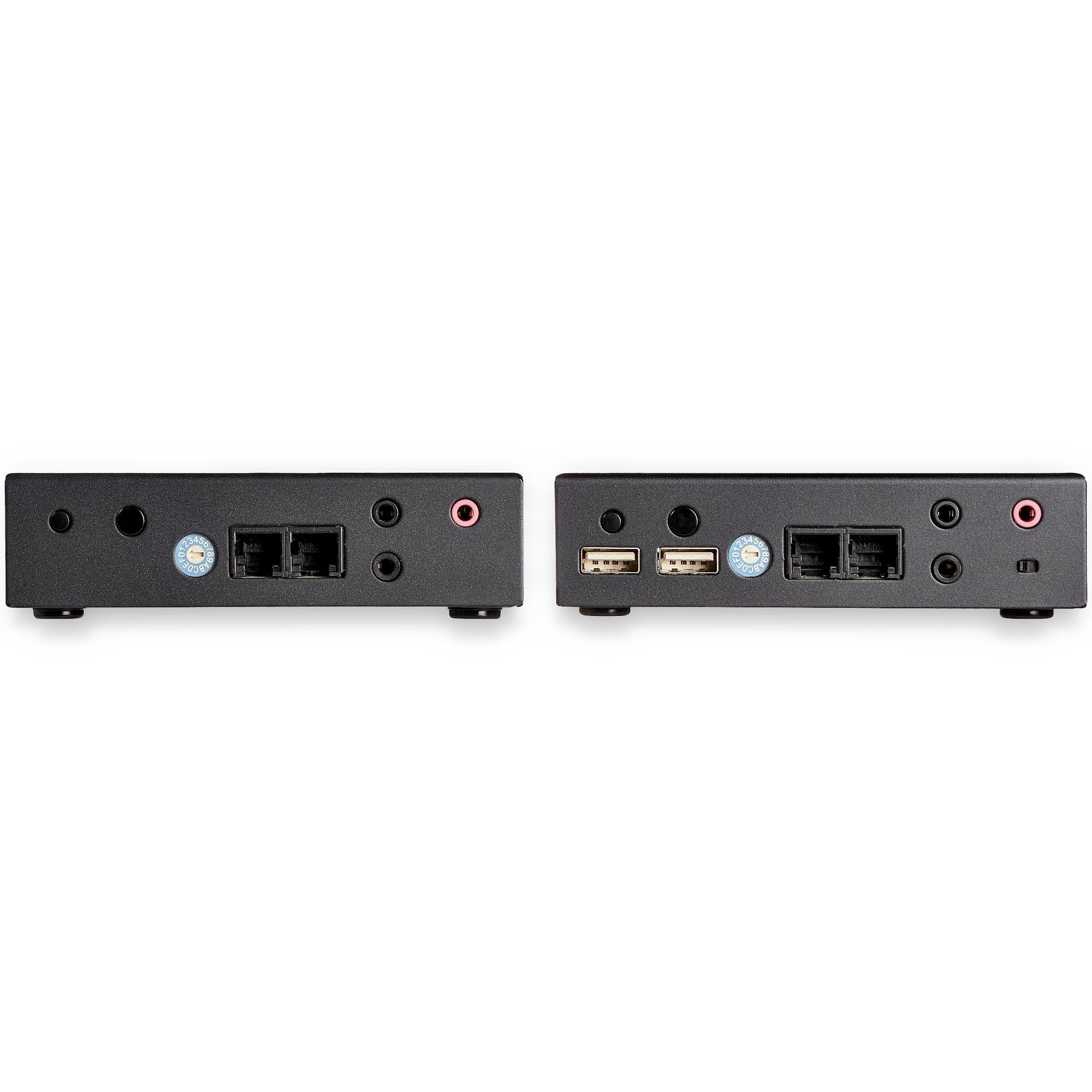

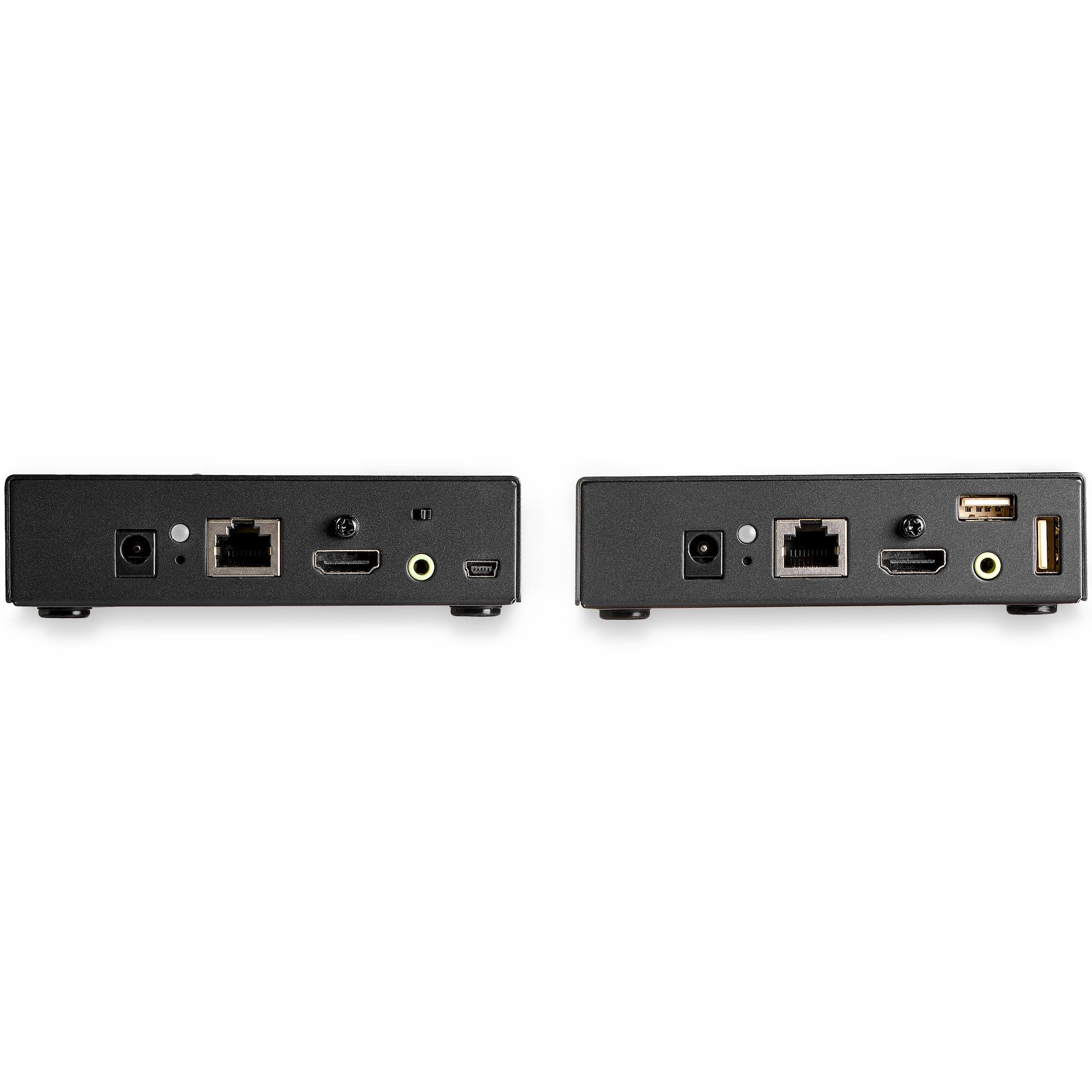

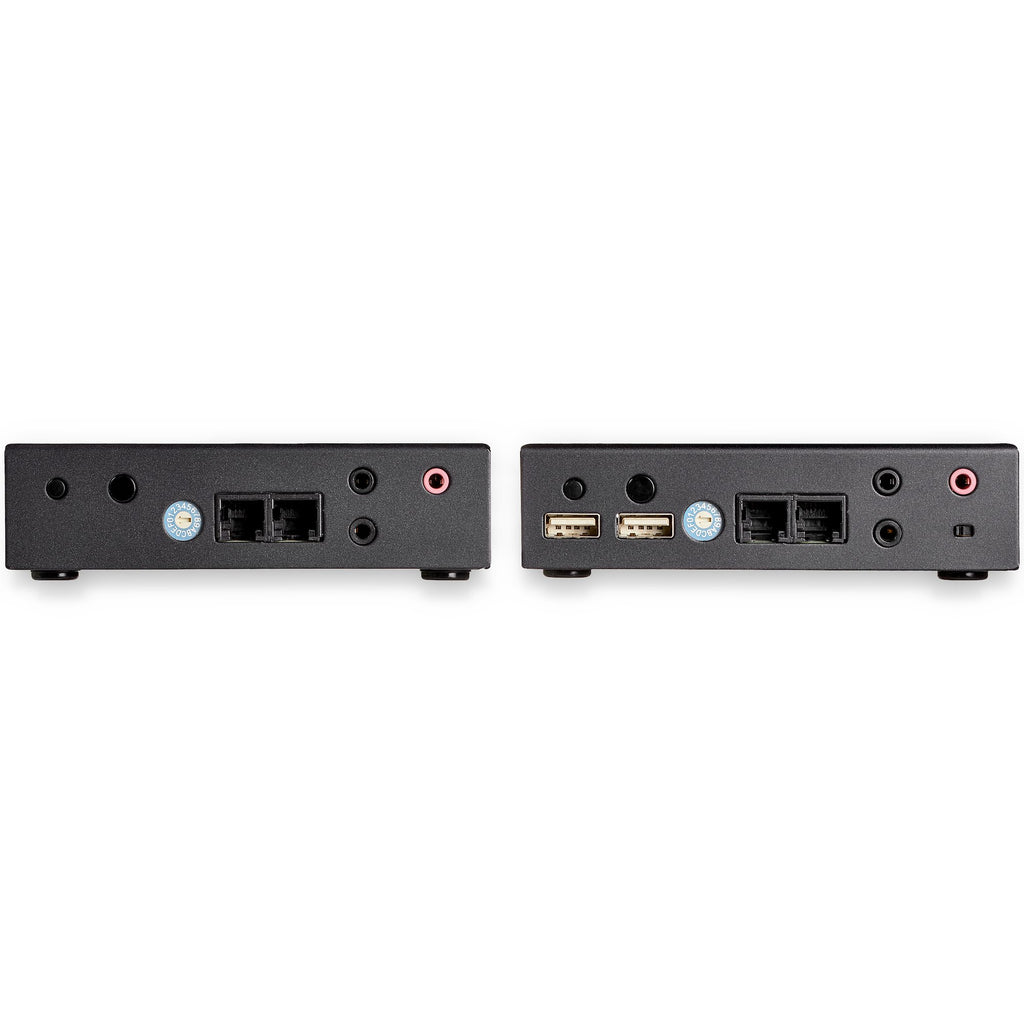

Local Unit Connectors | 1 - RJ-45 1 - HDMI (19 pin) 2 - RJ-11 2 - 3.5 mm Audio 2 - 3.5 mm Mini-Jack (3 Position) 1 - USB Mini-B (5 pin) |
Remote Unit Connectors | 1 - RJ-45 1 - HDMI (19 pin) 2 - RJ-11 2 - 3.5 mm Audio 2 - 3.5 mm Mini-Jack (3 Position) 2 - USB 2.0 Type-A (4 pin, 480Mbps) 2 - USB Type-A (4 pin; HID Port) USB 1.1 |
Environmental | |
Operating Temperature | 0℃ to 40℃ (32°F to 104°F) |
Storage Temperature | -10℃ to 60℃ (14°F to 140°F) |
Humidity | 0% to 80% |
Hardware | |
Audio | Yes |
Chipset ID | ASPEED - AST1520 |
Daisy-Chain | No |
Indicators | |
LED Indicators | 1 - Transmitter: Green - No Link; Blue - Good Link; Flashing Blue/Green - Linked but no video 1 - Transmitter: Flashing Orange - Network connection 1 - Receiver: Red - No Link; Blue - Good Link; Flashing Blue/Red - Linked but no video 1 - Receiver: Flashing Orange - Network connection |
Packaging Information | |
Shipping (Package) Weight | 5.4 lb [2.4 kg] |
Package Quantity | 1 |
Package Length | 14.5 in [36.8 cm] |
Package Width | 13.9 in [35.4 cm] |
Package Height | 3.1 in [8.0 cm] |
Performance | |
Maximum Data Transfer Rate | 12MBps |
Maximum Cable Length | 328.0 ft [100 m] |
Maximum Digital Resolutions | 3840 x 2160 @ 30Hz (4K) |
Supported Resolutions | 3840x2160 (4K) @ 30Hz 2560x1600 1920x1200 @ 60Hz 1920x1080 (1080p) 1280x720 (720p) |
Wide Screen Supported | Yes |
Audio Specifications | Yes |
MTBF | 60000 hours |
Physical Characteristics | |
Color | Black |
Material | Steel |
Product Length | 5.1 in [13.0 cm] |
Product Width | 4.6 in [11.7 cm] |
Product Height | 1.1 in [2.8 cm] |
Weight of Product | 1.3 lb [0.6 kg] |
Power | |
Power Source | 2 AC Adapters Included |
Input Voltage | 100 - 240 AC |
Input Current | 0.6 A |
Output Voltage | 12V DC |
Output Current | 1.5A |
Center Tip Polarity | Positive |
Plug Type | M |
Power Consumption | 18W |
Special Notes / Requirements | |
Note | Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled |
What's in the Box | |

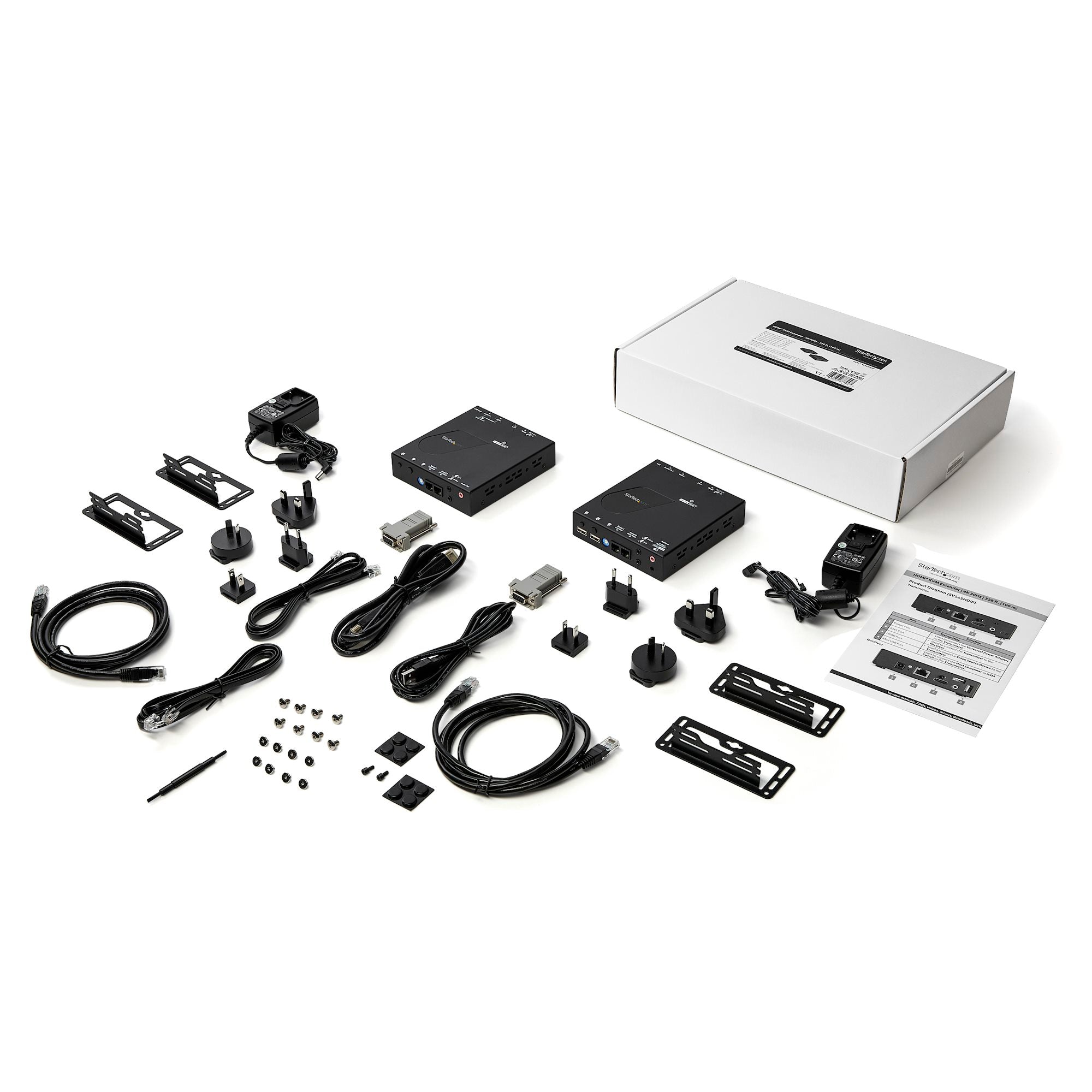

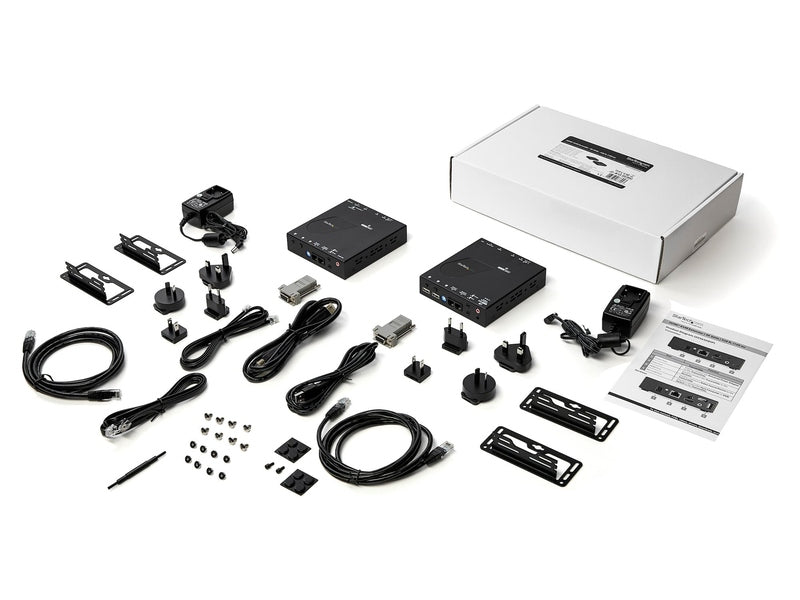

Included in Package | 1 - Transmitter Unit 1 - Receiver Unit 2 - Universal Power Adapters (NA, JP, EU, UK, AU/NZ) 2 - Mounting Kits 2 - Ethernet Cables 2 - DB9 Serial Adapters 2 - RJ11 Serial Cables 1 - HDMI Cable (1.2 m) 1 - USB Cable (1.5 m) 8 - Rubber Feet 1 - Plastic Screwdriver 1 - Quick-Start Guide |
