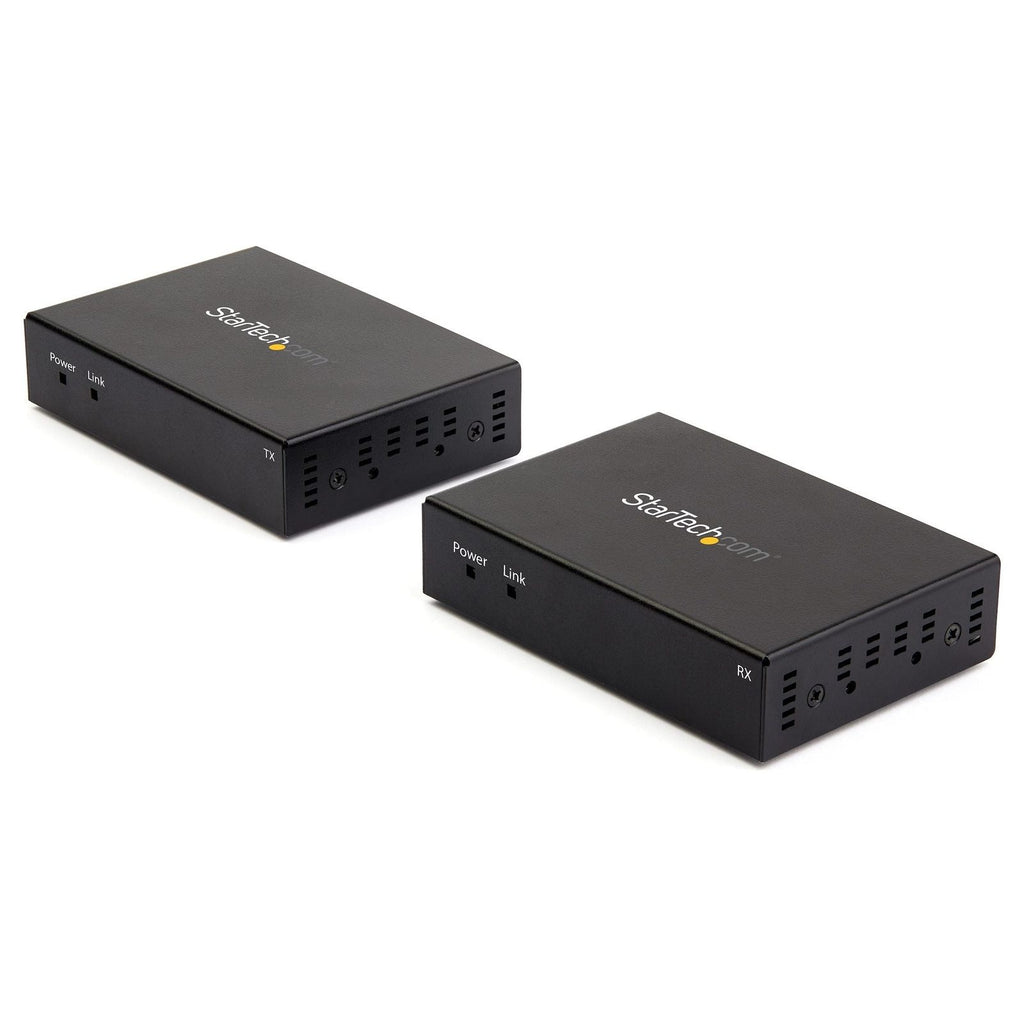

HDMI over CAT6 Extender - 4K 60Hz - 330 ft. (100 m) - TAA
4K HDMI® Balun | Visually Lossless Compression | IR Support
This HDMI® over CAT6 extender lets you transmit your HDMI signal over a CAT6 cable up to 330 ft. (100 m) away. The extender supports Ultra HD 4K with support for 3D and the accompanying digital audio.
Long-Distance Transmission
Extend your HDMI signal to up to 330 ft. (100 m) with this HDMI over Ethernet extender. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.
The extender also works to extend an infrared (IR) signal, enabling you to control your video source from the remote location.
Astonishing 4K Picture Quality
This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) UHD resolution, providing four times the picture quality of high-definition (1080p), ensuring a crystal-clear picture that's ideal for displaying your 4K video content in office buildings, airports, retail settings and more.
Plus, because the extender supports 1080p and lower resolutions at up to 460 feet away, you can comfortably use this extender to make any video source look great.
Compatible with HDCP 2.2 Devices
Connect your HDMI devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.
HDMI over CAT6 Extender - 4K 60Hz - 330 ft. (100 m) - TAA
4K HDMI® Balun | Visually Lossless Compression | IR Support
This HDMI® over CAT6 extender lets you transmit your HDMI signal over a CAT6 cable up to 330 ft. (100 m) away. The extender supports Ultra HD 4K with support for 3D and the accompanying digital audio.
Long-Distance Transmission
Extend your HDMI signal to up to 330 ft. (100 m) with this HDMI over Ethernet extender. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.
The extender also works to extend an infrared (IR) signal, enabling you to control your video source from the remote location.
Astonishing 4K Picture Quality
This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) UHD resolution, providing four times the picture quality of high-definition (1080p), ensuring a crystal-clear picture that's ideal for displaying your 4K video content in office buildings, airports, retail settings and more.
Plus, because the extender supports 1080p and lower resolutions at up to 460 feet away, you can comfortably use this extender to make any video source look great.
Compatible with HDCP 2.2 Devices
Connect your HDMI devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.
| HDMI over Cat6 Extender Kit Specifications | |
|---|---|
| Connector(s) | |

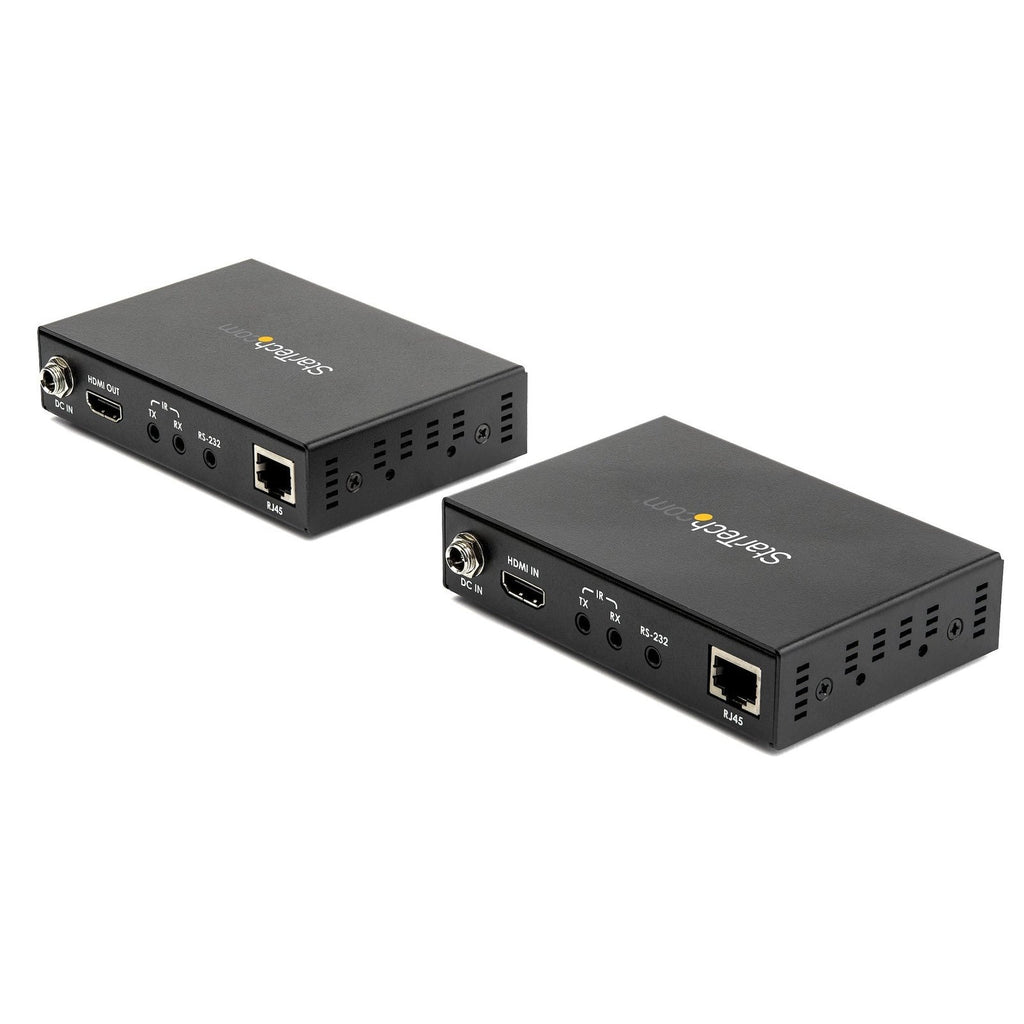

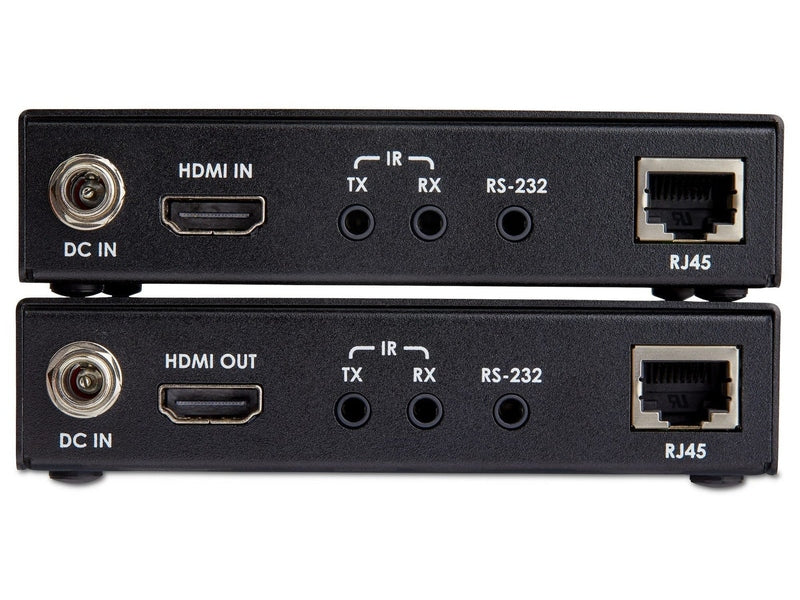

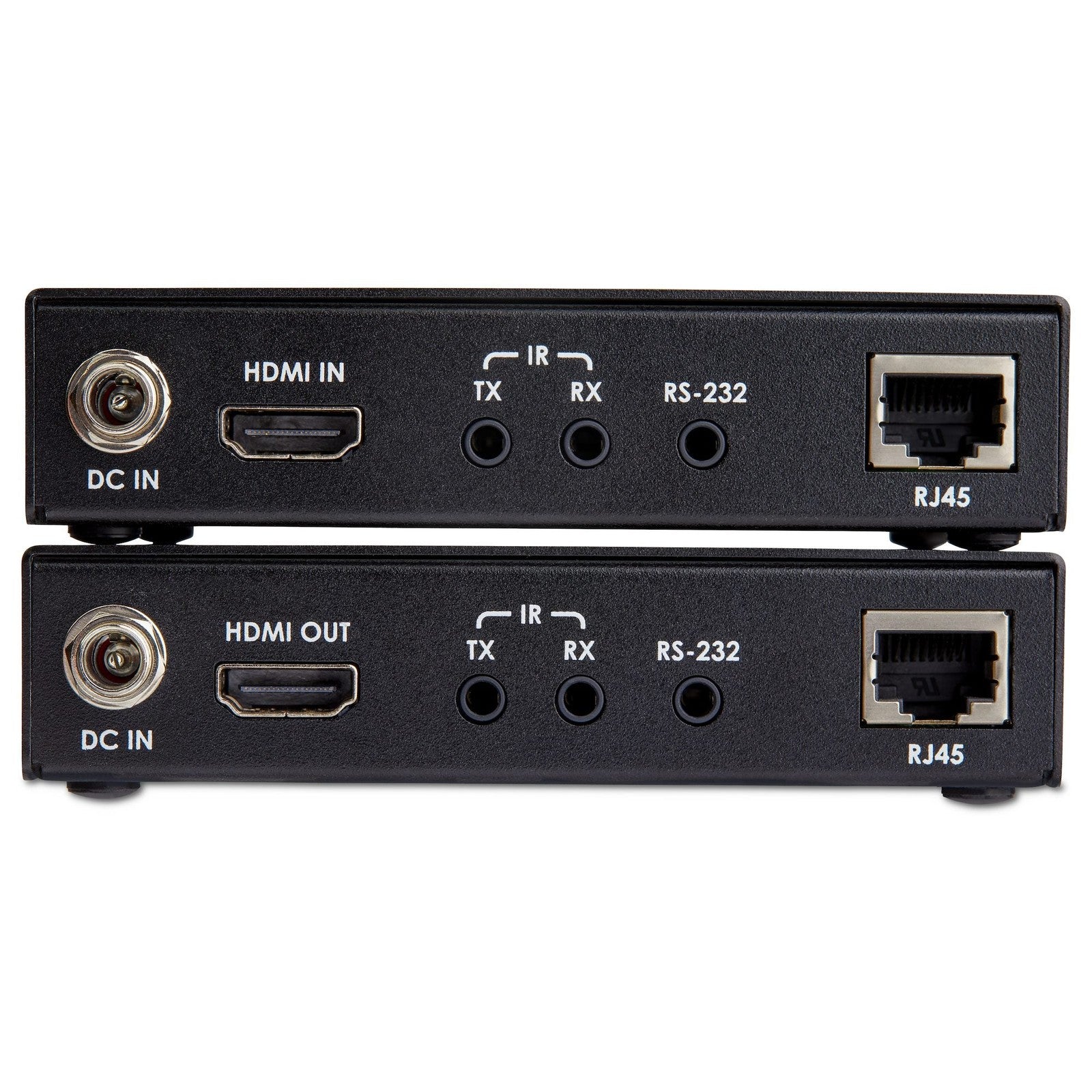

| Connector A | 1 × HDMI (19 pin) 1 × RJ-45 3 × 3.5 mm Mini-Jack (3 Position) |
| Connector B | 1 × HDMI (19 pin) 1 × RJ-45 3 × 3.5 mm Mini-Jack (3 Position) |
| Environmental | |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Storage Temperature | -15°C to 55°C (5°F to 131°F) |
| Humidity | 0% – 95% RH (No Condensation) |
| Hardware | |
| AV Input | HDMI |
| AV Output | HDMI |
| Cabling | Cat 6 UTP |
| Audio | Yes |
| Chipset ID | Norelsys NS5730, NS5731 |

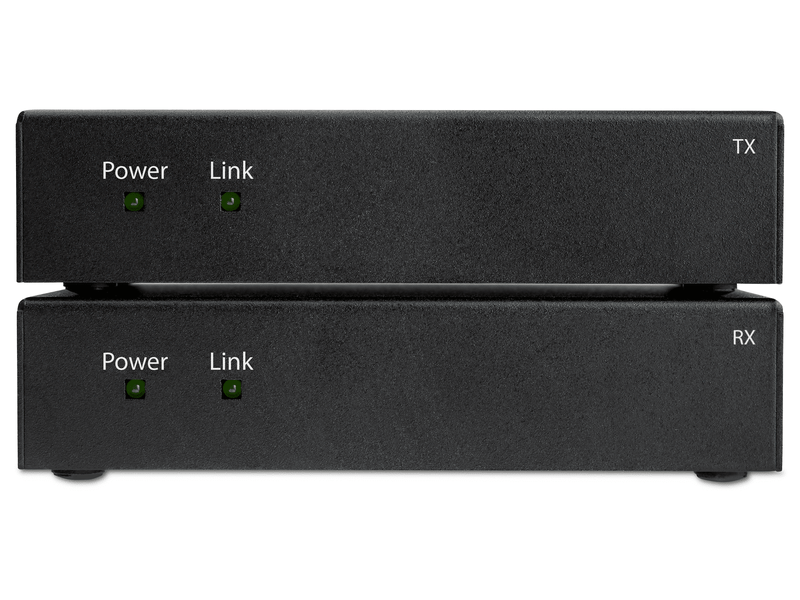

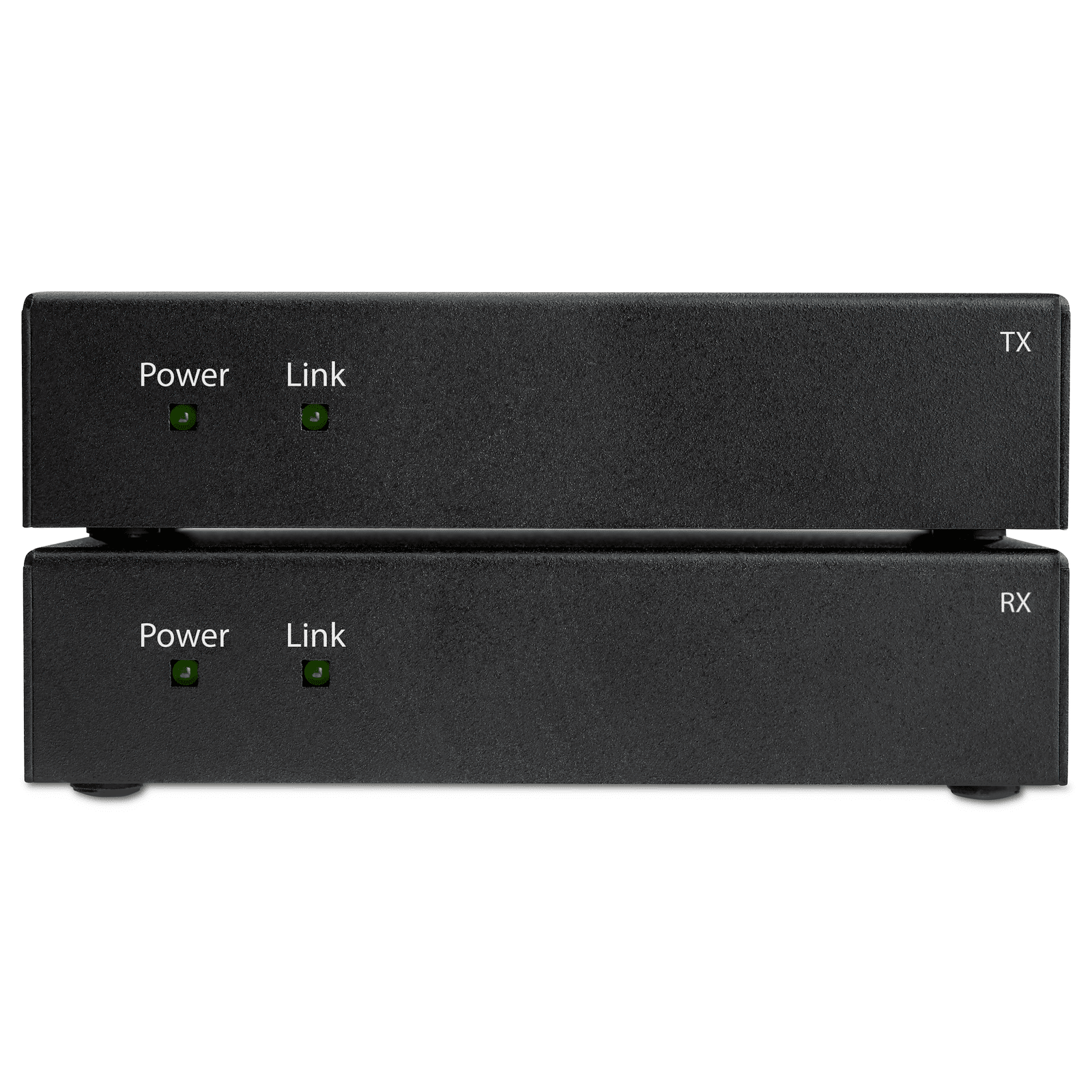

| LED Indicators | 2 × Power LED 2 × Link LED |
| Packaging Information | |
| Package Height | 3.9 in [9.9 cm] |
| Package Length | 7.9 in [20.1 cm] |
| Package Width | 9.8 in [25.0 cm] |
| Package Weight | 3.3 lb [1.5 kg] |
| Package Quantity | 1 |
| Performance | |
| Max Distance | 100m [328 ft] |
| Supported Resolutions | 3840×2160 (4K) @ 60Hz 2560×1600 @ 60Hz 1920×1200 @ 60Hz 1920×1080 (1080p) @ 60Hz 1280×720 (720p) @ 60Hz Lower resolutions and refresh rates may also be supported |
| Wide Screen Supported | Yes |
| Audio Specifications | Integrated via HDMI and 3.5 mm jacks |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Length | 4.3 in [11.0 cm] |
| Product Width | 3.0 in [7.5 cm] |
| Product Height | 1.0 in [2.6 cm] |
| Product Weight | 19.0 oz [537.0 g] |
| Power | |
| Power Source | 2 × AC Adapters Included |
| Input Voltage | 110V–240V AC |
| Output Voltage | 5V DC |
| Output Current | 3 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| What's in the Box | |
| Included Items | 1 × HDMI Transmitter 1 × HDMI Receiver 1 × CAT6 Cable 1 × IR Kit 2 × Universal Power Adapters (NA/JP, EU, UK, ANZ) 2 × 3.5 mm to DB-9 RS-232 Adapters 4 × Mounting Brackets 1 × Quick-Start Guide |
