HDMI to VGA Adapter Converter for Desktop PC / Laptop / Ultrabook - 1920x1080
Connect an HDMI® equipped Laptop, Ultrabook, or Desktop Computer to your VGA Display, or Projector

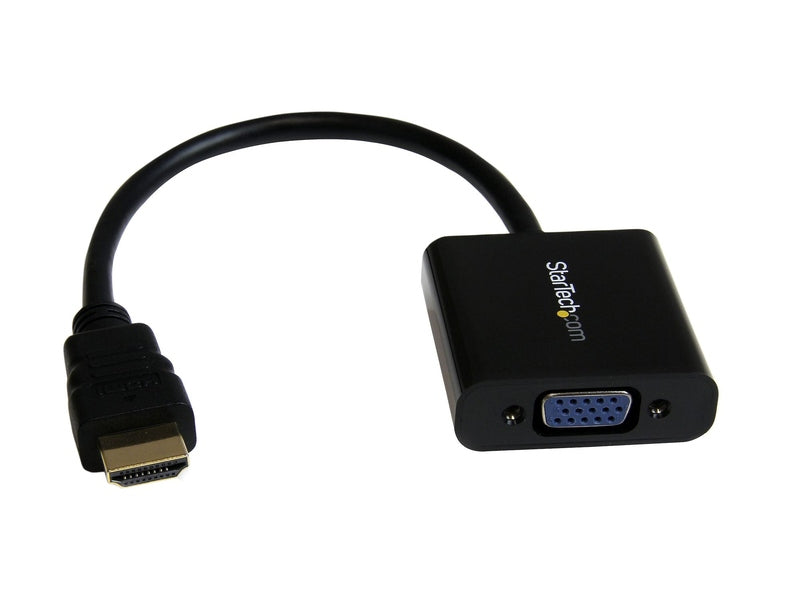

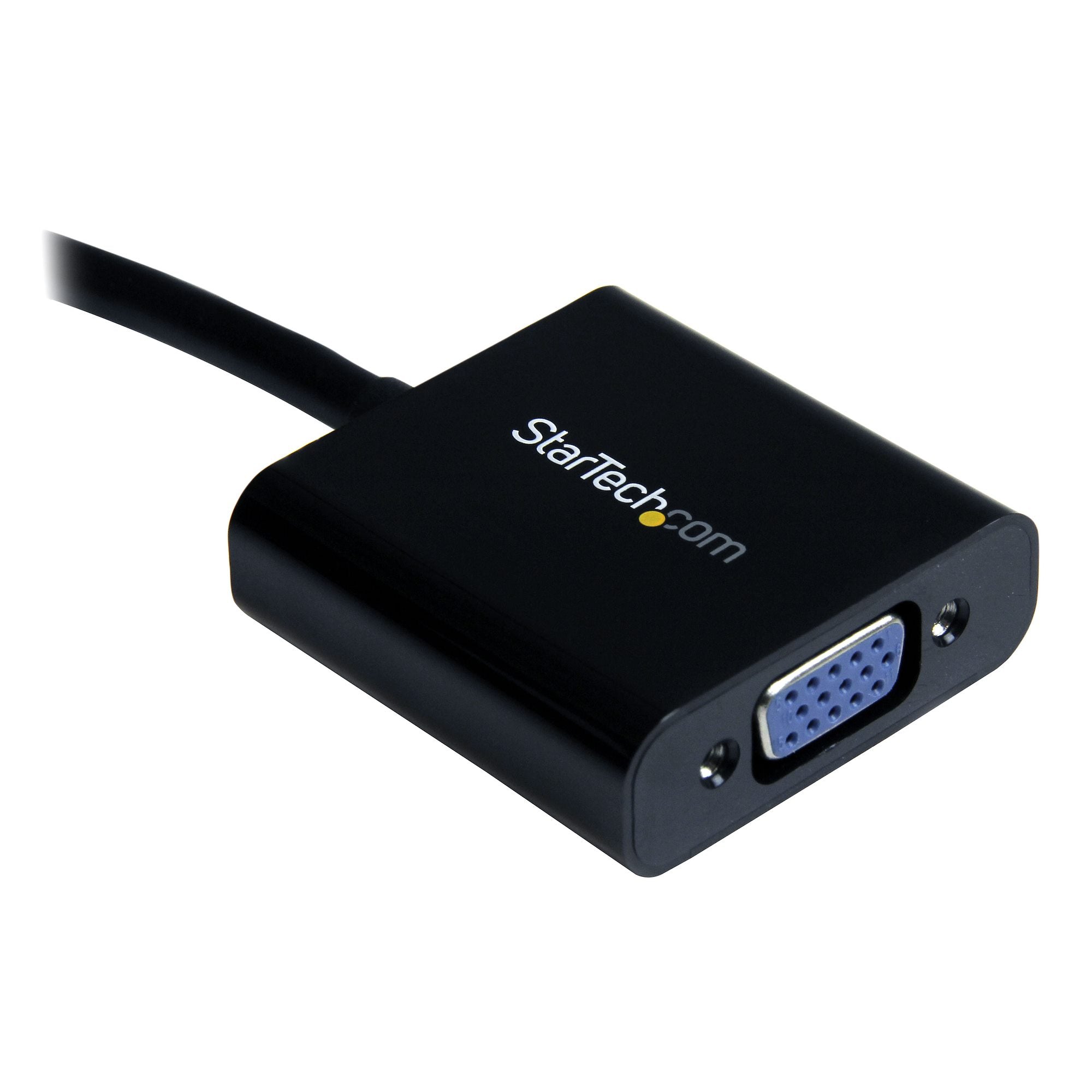

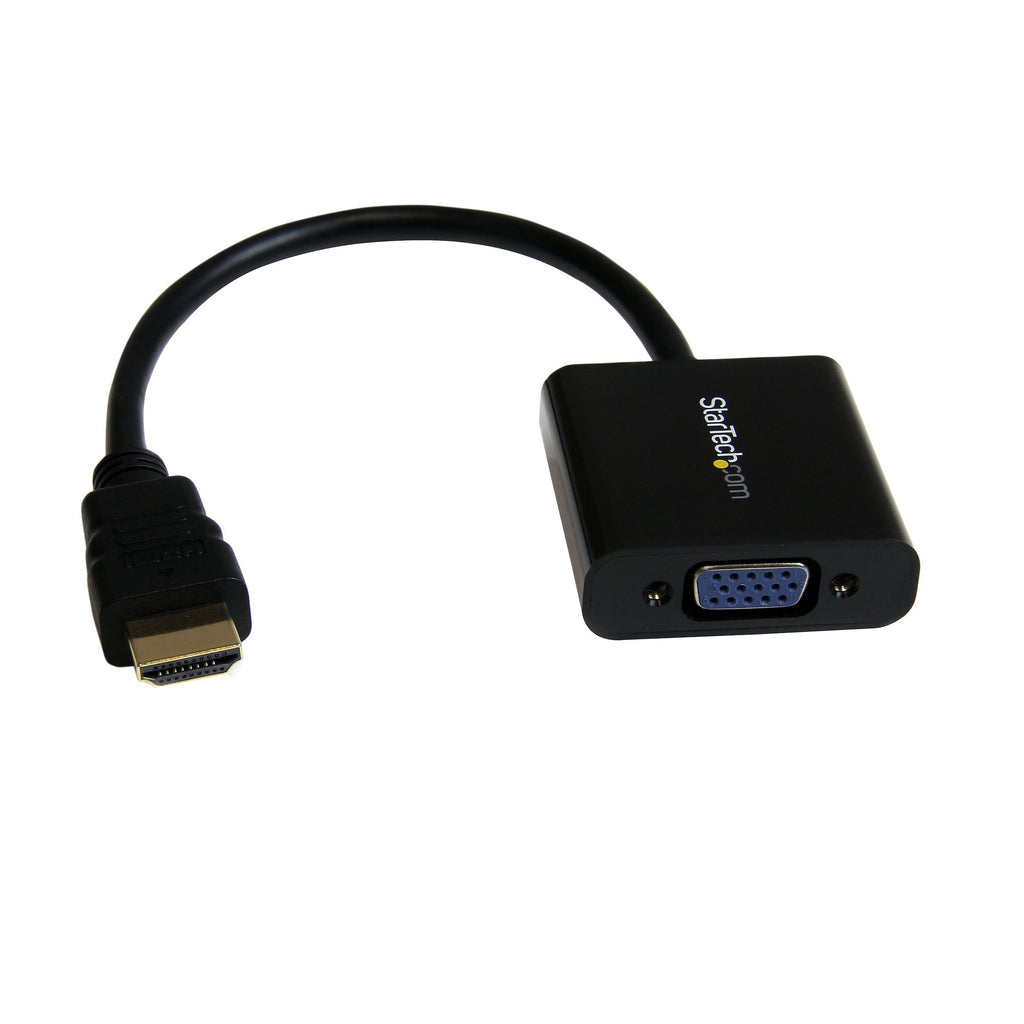

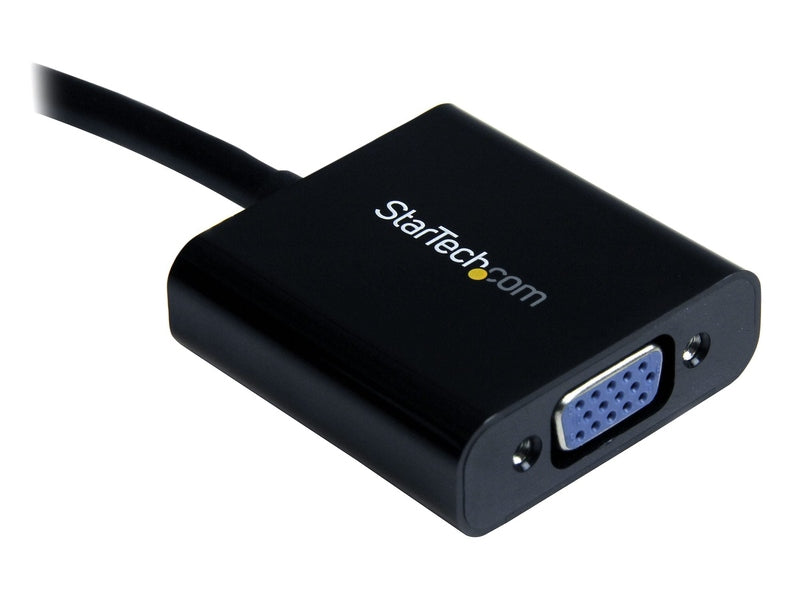

The HD2VGAE2 HDMI® to VGA adapter allows you to connect an HDMI output from your laptop, ultrabook, or desktop computer onto a VGA monitor or projector, saving the cost of upgrading to an HDMI compatible display. Intended for outputting user generated content such as presentations, and work documents, the HDMI to VGA converter can also work to increase your productivity by extending your computer's desktop onto a secondary monitor, doubling available workspace.
With no need for an external power source, and support for resolutions up to 1080p (1920x1080), this active HDMI to VGA adapter offers a compact and portable solution for connecting a High-Definition VGA display.
Looking for an HDMI to VGA coverter for your Chromebook? Use the HD2VGAMICRO.
HDMI to VGA Adapter Converter for Desktop PC / Laptop / Ultrabook - 1920x1080
Connect an HDMI® equipped Laptop, Ultrabook, or Desktop Computer to your VGA Display, or Projector
The HD2VGAE2 HDMI® to VGA adapter allows you to connect an HDMI output from your laptop, ultrabook, or desktop computer onto a VGA monitor or projector, saving the cost of upgrading to an HDMI compatible display. Intended for outputting user generated content such as presentations, and work documents, the HDMI to VGA converter can also work to increase your productivity by extending your computer's desktop onto a secondary monitor, doubling available workspace.
With no need for an external power source, and support for resolutions up to 1080p (1920x1080), this active HDMI to VGA adapter offers a compact and portable solution for connecting a High-Definition VGA display.
Looking for an HDMI to VGA coverter for your Chromebook? Use the HD2VGAMICRO.
| HDMI to VGA Converter Adapter Specifications | |
|---|---|
| Connector(s) | |

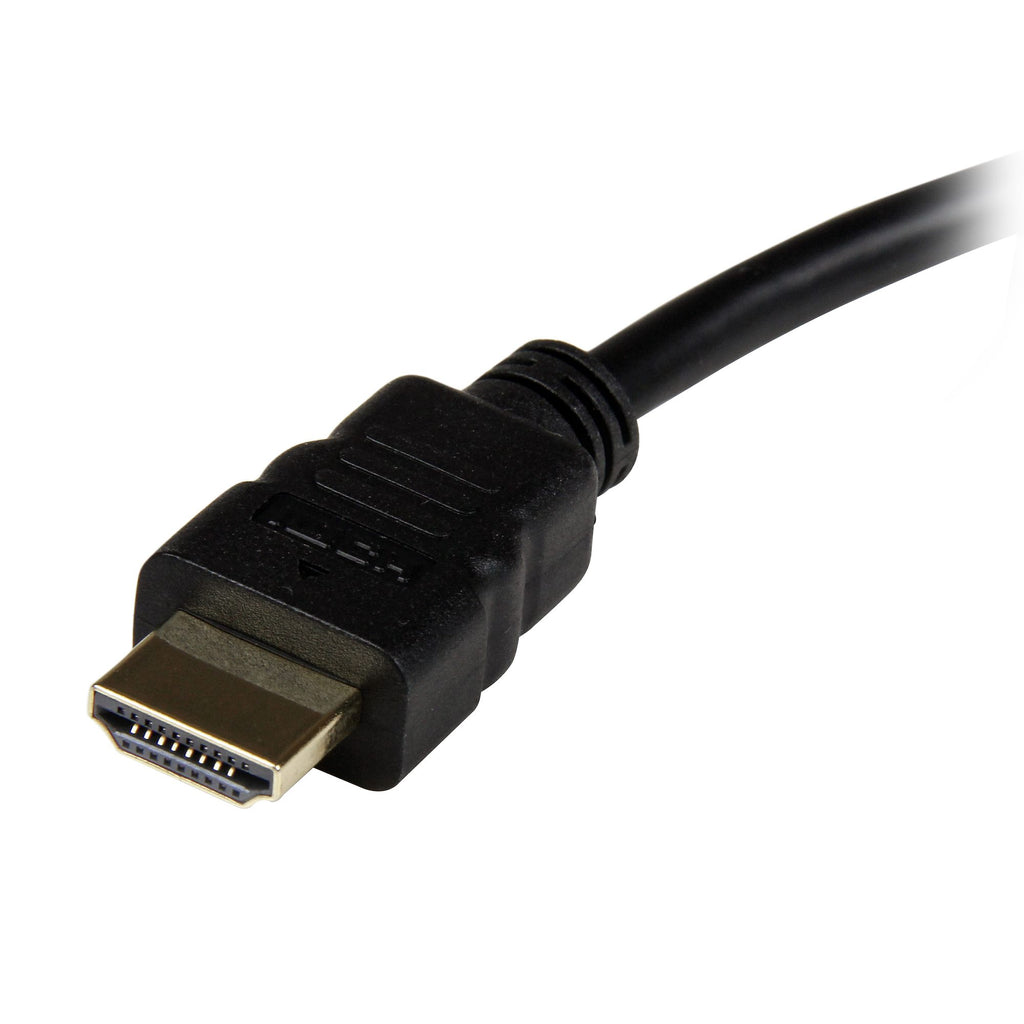

| Connector A | 1 x HDMI (19 pin) |
| Connector B | 1 x VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 40% to 85% RH (Non-Condensing) |
| Hardware | |
| Adapter Type | Active |
| AV Input | HDMI |
| AV Output | VGA |
| Ports | 1 |
| Audio | No |
| Industry Standards | High Speed HDMI® |
| Chipset ID | ITE - IT6695FN |
| Packaging Information | |
| Package Length | 6.7 in (17.0 cm) |
| Package Width | 7.7 in (19.6 cm) |
| Package Height | 0.8 in (2.1 cm) |
| Shipping Weight | 1.8 oz (50.0 g) |
| Package Quantity | 1 |
| Performance | |
| Maximum Analog Resolutions | 1920 x 1080 |
| Maximum Digital Resolutions | 1920 x 1080 |
| Supported Resolutions | 1920 x 1080 (1080p) @ 60Hz |
| Wide Screen Supported | Yes |
| MTBF | 1,754,784 hours |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Cable Length | 7.9 in (200 mm) |
| Product Length | 9.6 in (24.5 cm) |
| Product Width | 1.6 in (4.0 cm) |
| Product Height | 0.6 in (1.5 cm) |
| Weight of Product | 1.4 oz (40 g) |
| Special Notes / Requirements | |
| Note | This adapter will not work with Samsung Chromebooks. HD2VGAMICRO is recommended for this application. |
| What's in the Box | |
| Included in Package | 1 x HDMI to VGA Converter Adapter |
