Overview

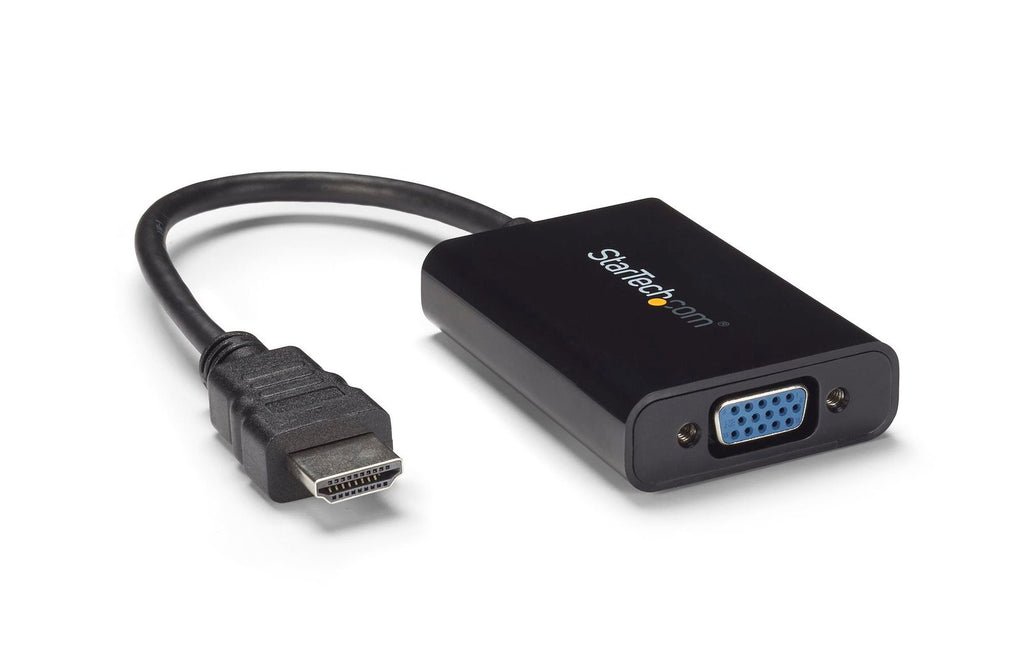

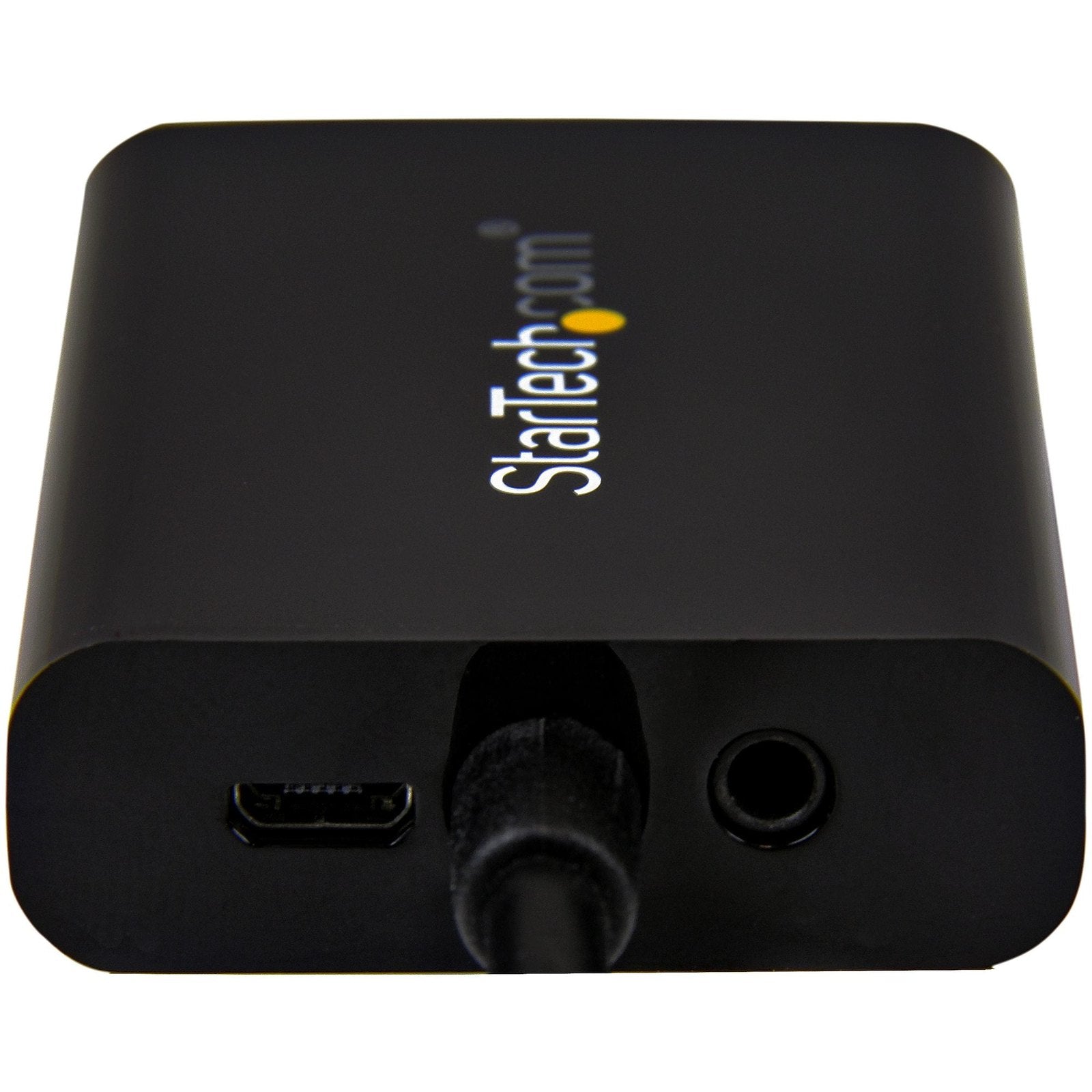

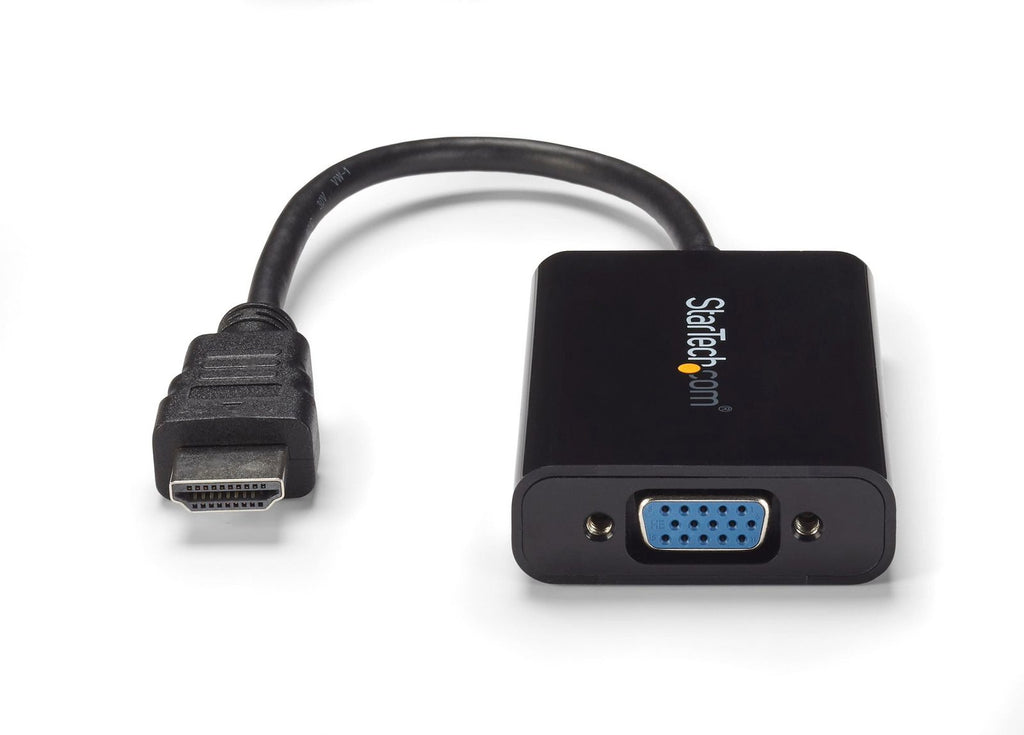

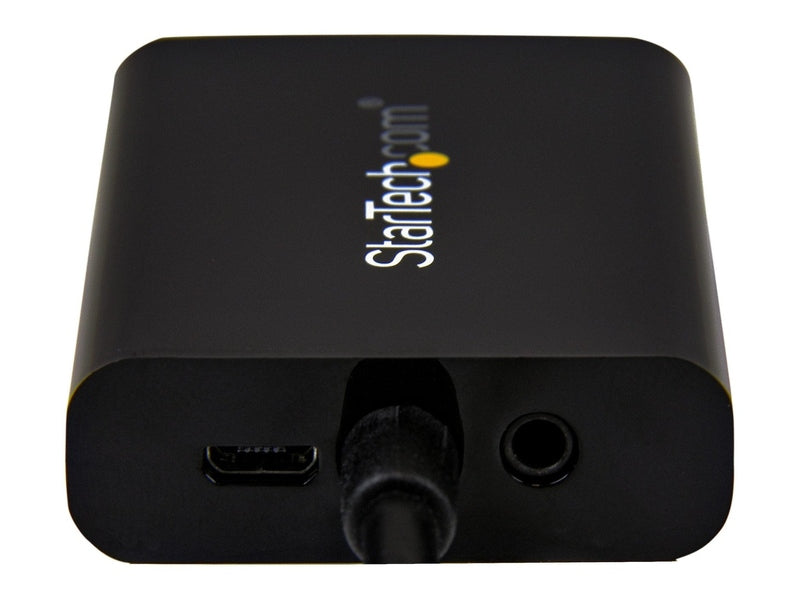

HDMI to VGA Video Adapter Converter with Audio for Desktop PC / Laptop / Ultrabook - 1920x1080
Convert an HDMI® video signal to VGA, with discrete audio output
The HD2VGAA2 HDMI® to VGA Adapter Cable enables you to connect an HDMI output device, such as a laptop video output or digital media extender to a VGA display device (monitor, projector) by converting the HDMI video signal from the output device into a VGA output and separate 2-channel analog audio. The HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor. The adapter can also extend your computer's desktop to double your workspace and increase productivity.
The versatile converter supports resolutions including high definition 1080p, which eliminates the expense of upgrading a VGA display for the sake of compatibility, and doesn't require a separate power adapter which saves installation time and hassle.
HDMI to VGA Video Adapter Converter with Audio for Desktop PC / Laptop / Ultrabook - 1920x1080
Convert an HDMI® video signal to VGA, with discrete audio output
The HD2VGAA2 HDMI® to VGA Adapter Cable enables you to connect an HDMI output device, such as a laptop video output or digital media extender to a VGA display device (monitor, projector) by converting the HDMI video signal from the output device into a VGA output and separate 2-channel analog audio. The HDMI to VGA adapter is intended for displaying user generated content such as presentations, documents, and work sheets onto a VGA projector or monitor. The adapter can also extend your computer's desktop to double your workspace and increase productivity.
The versatile converter supports resolutions including high definition 1080p, which eliminates the expense of upgrading a VGA display for the sake of compatibility, and doesn't require a separate power adapter which saves installation time and hassle.
| HDMI to VGA Adapter Converter Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x HDMI (19 pin) 1 x USB Micro-B (5 pin) |
| Connector B | 1 x VGA (15 pin, High Density D-Sub) 1 x 3.5 mm Mini-Jack (3 Position) |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 40% to 85% RH |
| Hardware | |
| Adapter Type | Active |
| AV Input | HDMI |
| AV Output | VGA 3.5 mm Stereo Audio |
| Audio | Yes |
| Chipset ID | ITE - IT6695FN |
| Packaging Information | |
| Package Length | 8.0 in (20.3 cm) |
| Package Width | 4.7 in (12.0 cm) |
| Package Height | 0.7 in (1.7 cm) |
| Shipping Weight | 1.6 oz (46.0 g) |
| Package Quantity | 1 |
| Performance | |
| Maximum Analog Resolutions | 1920 x 1080 |
| Maximum Digital Resolutions | 1920 x 1080 |
| Supported Resolutions | 1920 x 1080 (1080p) @ 60Hz |
| Wide Screen Supported | Yes |
| MTBF | 1,332,330 hours |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Cable Length | 6.9 in (175 mm) |
| Product Length | 9.8 in (25.0 cm) |
| Product Width | 1.8 in (4.5 cm) |
| Product Height | 0.6 in (1.5 cm) |
| Weight of Product | 1.5 oz (42 g) |
| What's in the Box | |
| Included in Package | 1 x HDMI to VGA Adapter Converter |
