Description
Overview
KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter - TAA
Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more

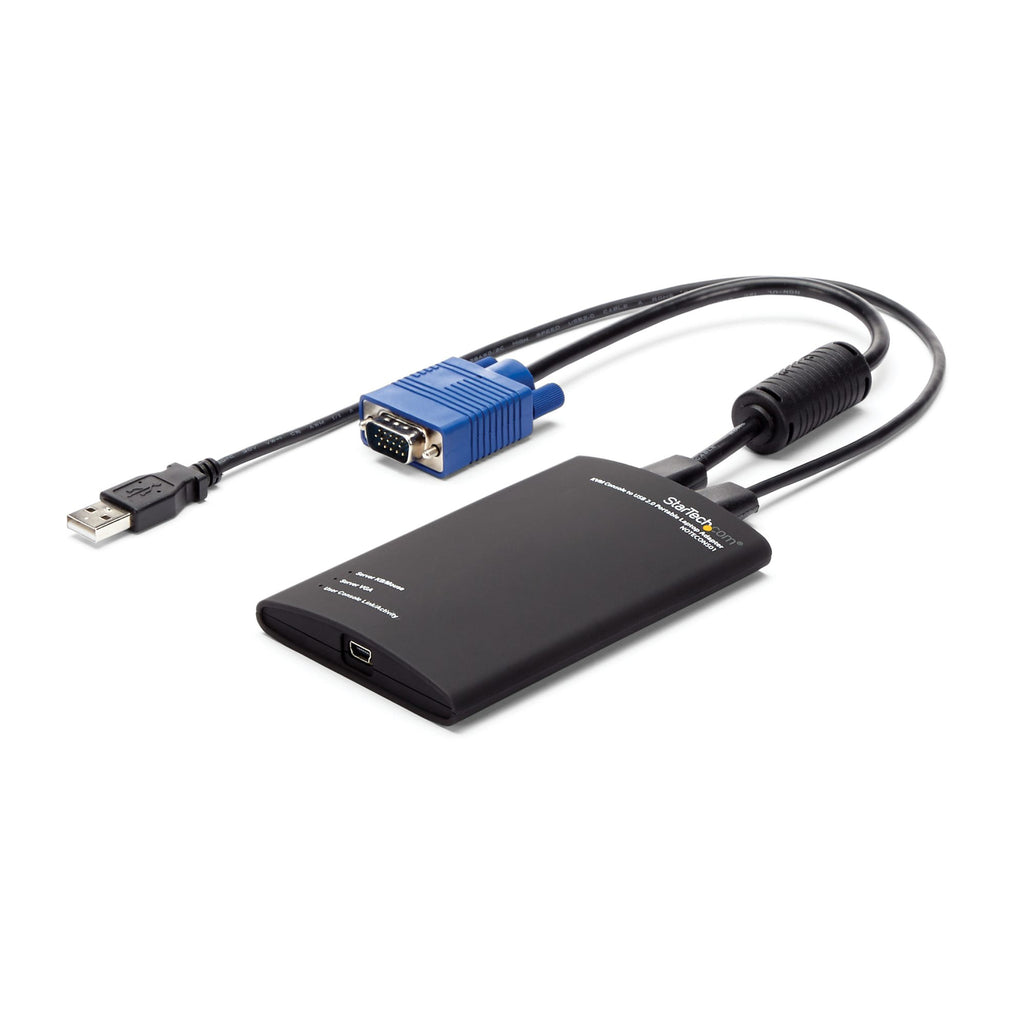

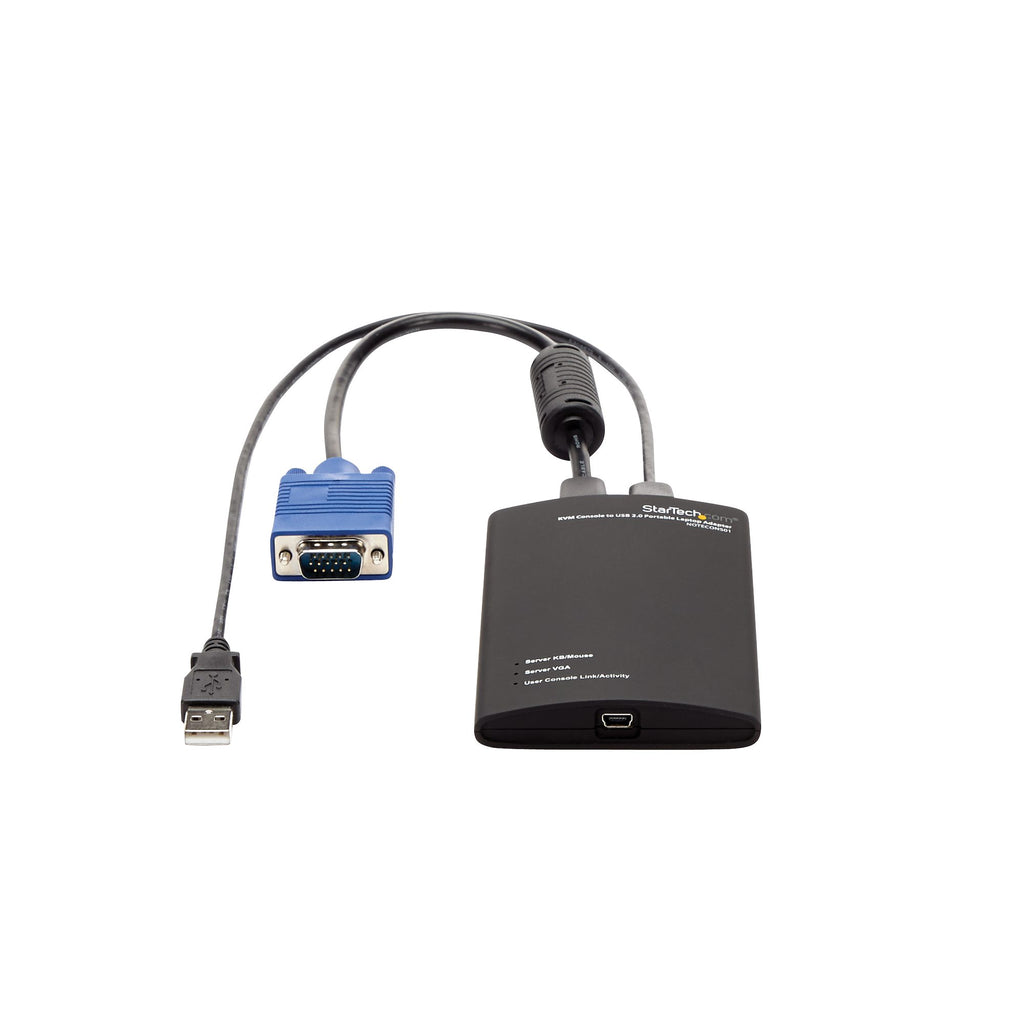

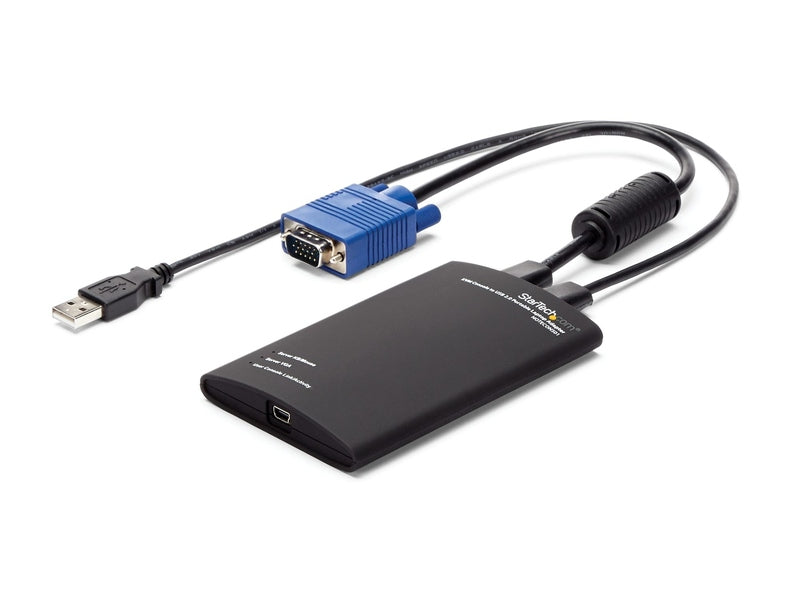

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.
With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.
Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.
How it works:

KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter - TAA
Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more
The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.
With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.
Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.
How it works:

| USB PS/2 KVM Console Adapter Specifications | |
|---|---|
| Connector(s) | |
| Console Interface(s) | 1 - USB Mini-B (5 pin) |
| Host Connectors | 1 - PS/2 (6 pin, Mini-DIN) 1 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 80% RH |
| Hardware | |
| Audio | No |
| KVM Ports | 1 |
| PC Interface | USB and PS/2 |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| LED Indicators | 1 - User Console/USB Link 1 - Host/Server Video (VGA) Link 1 - Host/Server Keyboard/Mouse (USB, PS/2) Link |
| Packaging Information | |
| Package Quantity | 1 |
| Package Length | 11.8 in [29.9 cm] |
| Package Width | 6.5 in [16.5 cm] |
| Package Height | 2.1 in [5.3 cm] |
| Shipping (Package) Weight | 13.6 oz [384.0 g] |
| Performance | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| MTBF | 284000 Hrs |
| Physical Characteristics | |
| Product Length | 0.0 in [0.0 mm] |
| Product Width | 2.9 in [7.4 cm] |
| Product Height | 0.6 in [1.5 cm] |
| Product Depth | 4.5 in [115 mm] |
| Weight of Product | 6.0 oz [170.0 g] |
| Color | Black |
| Material | Plastic |
| Cable Length | 1 x 15in (385mm) USB host cable 1 x 11in (290mm) VGA host cable 1 x 6ft (1.8m) USB Console cable |
| Power | |
| Power Source | USB-Powered |
| Input Voltage | 5V DC |
| Output Voltage | 5 DC |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012, 2016, 2019, 2022 macOS 10.6–15.0 Linux 2.6.x and up - LTS Versions only |
| Special Notes / Requirements | |
| Note | Only compatible with standard QWERTY keyboards in U.S English configuration when interfacing with Linux |
| What's in the Box | |

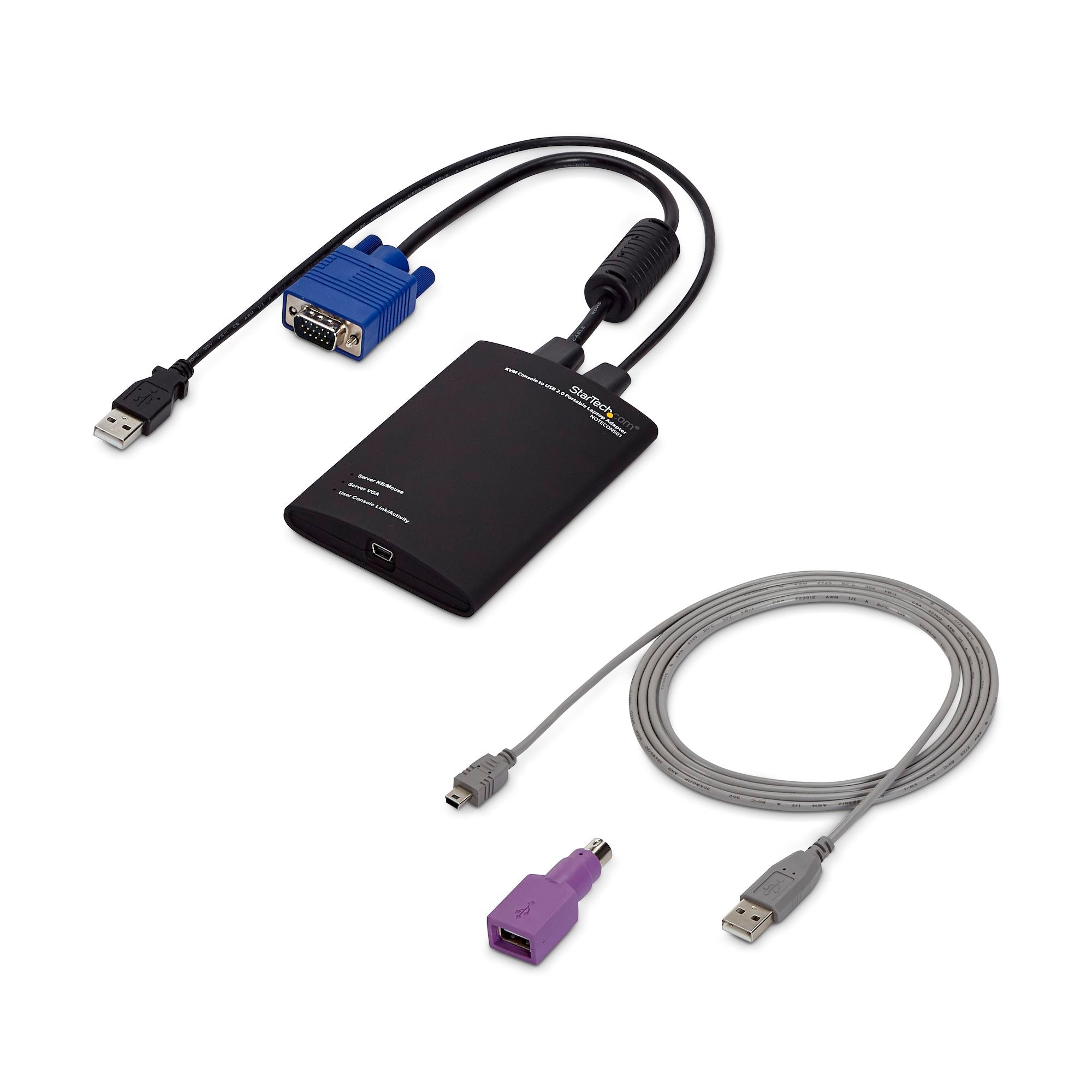

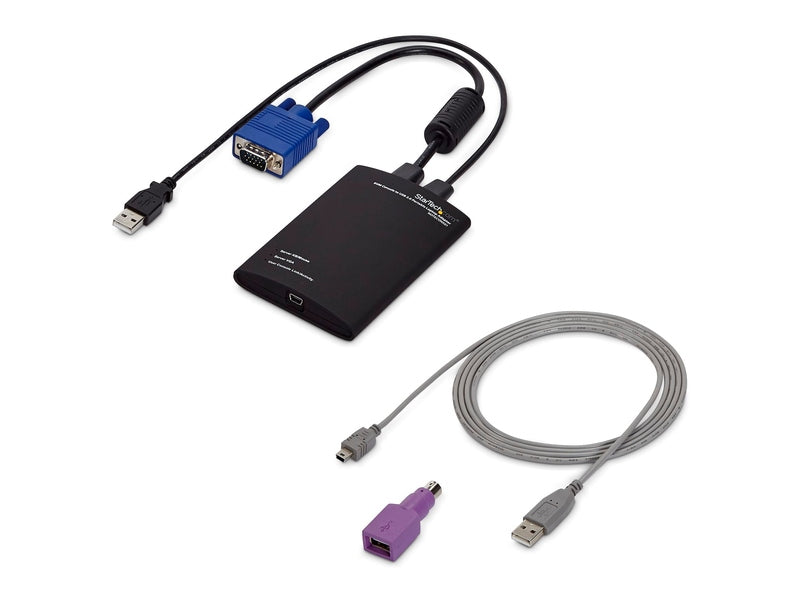

| Included in Package | 1 - USB PS/2 KVM Console Adapter 1 - USB Cable 1 - USB to PS/2 Adapter |
