Description
Overview

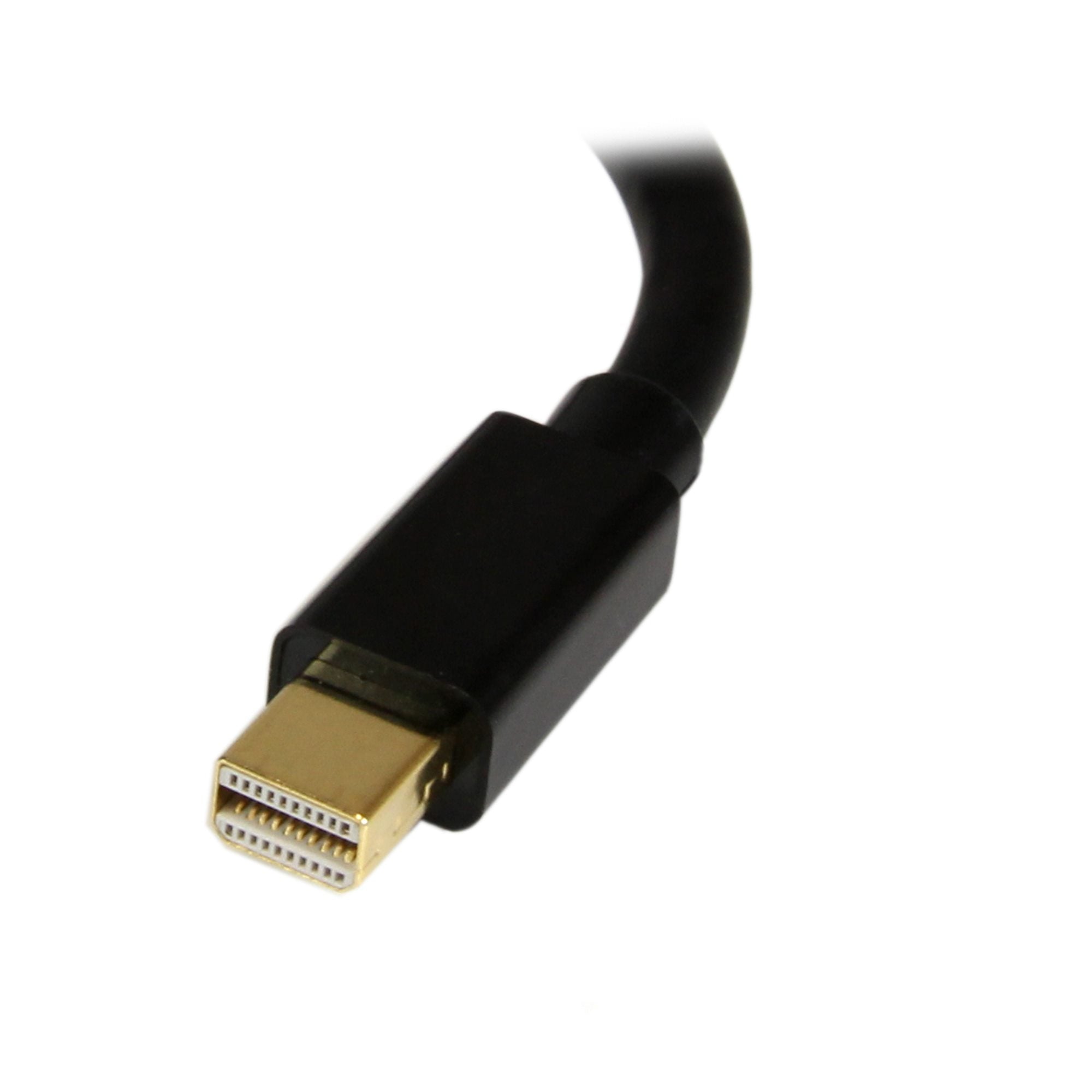

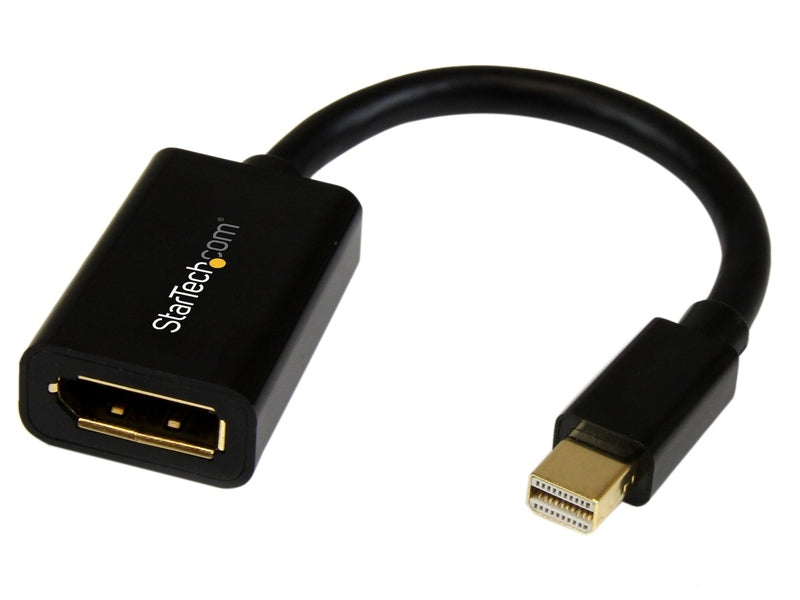

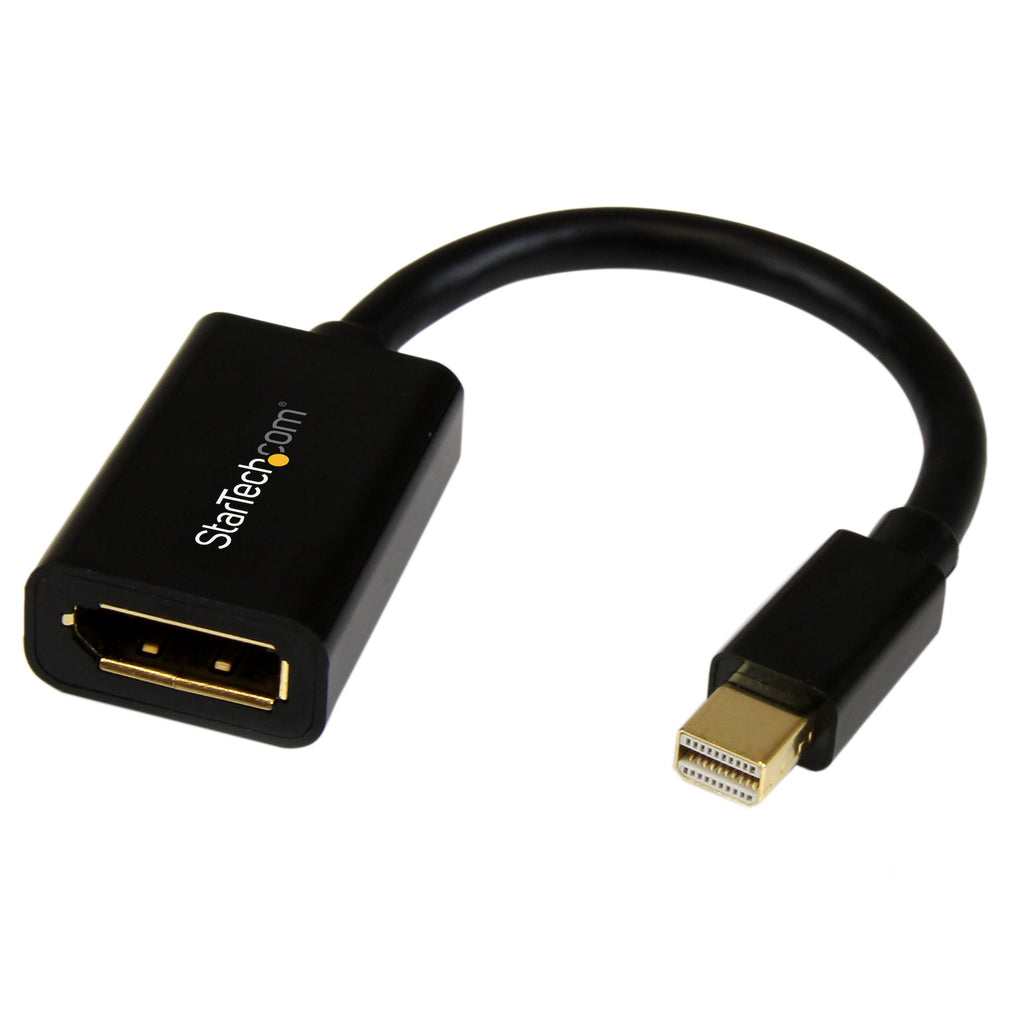

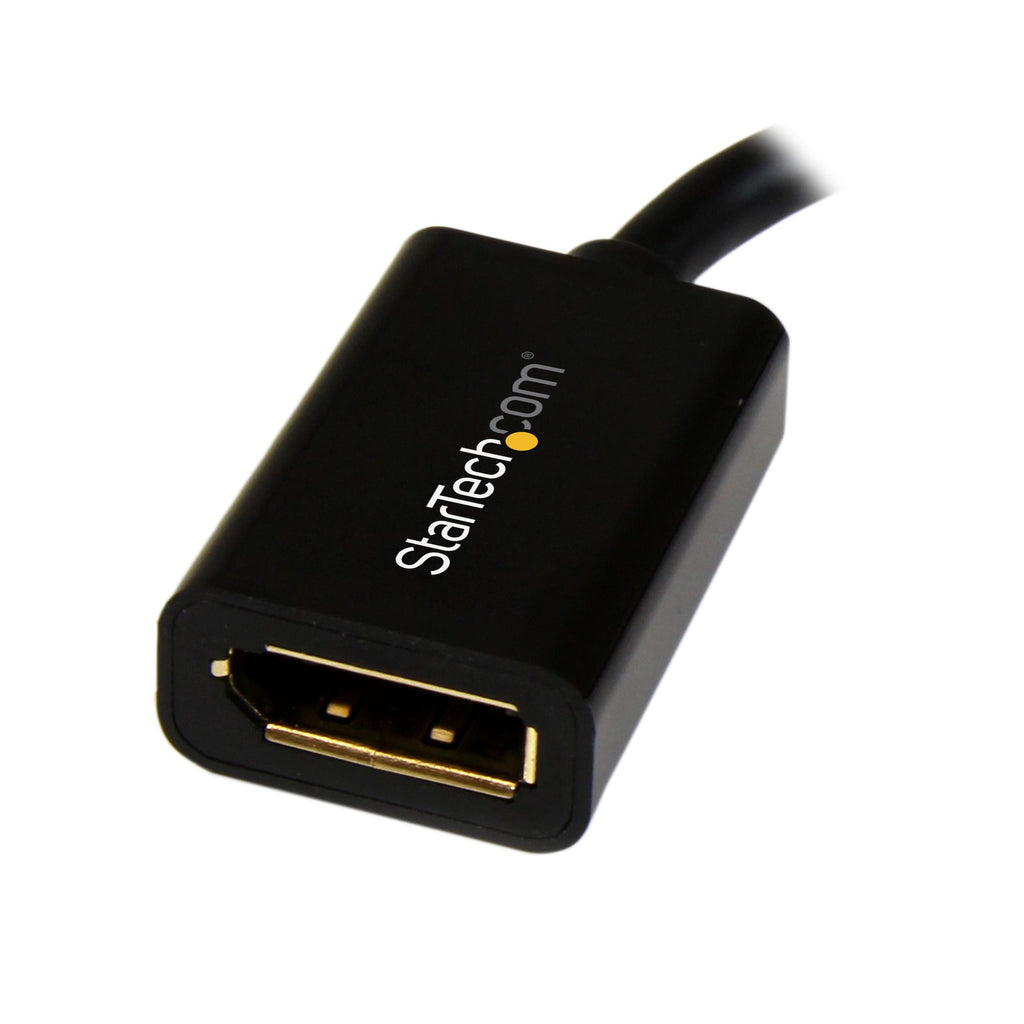

Mini DisplayPort to DisplayPort Adapter - 4K x 2K UHD Video - Mini DP to DP Converter - Mini DisplayPort to DisplayPort 1.2 Adapter - mDP PC/Computer to DP Monitor/Display
Connect your DisplayPort® monitor to a standard Mini DisplayPort source
The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
Mini DisplayPort to DisplayPort Adapter - 4K x 2K UHD Video - Mini DP to DP Converter - Mini DisplayPort to DisplayPort 1.2 Adapter - mDP PC/Computer to DP Monitor/Display
Connect your DisplayPort® monitor to a standard Mini DisplayPort source
The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
| Mini DisplayPort to DisplayPort Extension Cable Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x Mini-DisplayPort (20 pin) |
| Connector B | 1 x DisplayPort (20 pin) |
| Hardware | |
| Number of Conductors | 20 |
| Connector Plating | Gold |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | CMG |
| Industry Standards | DP 1.1 |
| Packaging Information | |
| Package Length | 4.4 in (11.3 cm) |
| Package Width | 5.0 in (12.6 cm) |
| Package Height | 0.7 in (1.9 cm) |
| Shipping Weight | 1.1 oz (30.0 g) |
| Package Quantity | 1 |
| Performance | |
| General Specifications | DP 1.1 |
| Physical Characteristics | |
| Color | Black |
| Connector Style | Straight |
| Wire Gauge | 32 AWG |
| Cable Length | 6.0 in (152.4 mm) |
| Cable OD | 0.2 in (5 mm) |
| Product Length | 6.0 in (15.2 cm) |
| Product Width | 0.4 in (1.1 cm) |
| Product Height | 0.3 in (0.8 cm) |
| Weight of Product | 0.7 oz (19.0 g) |
| What's in the Box | |
| Included in Package | 1 x 6in Mini DisplayPort to DisplayPort Video Extension Cable - M/F |
