Overview

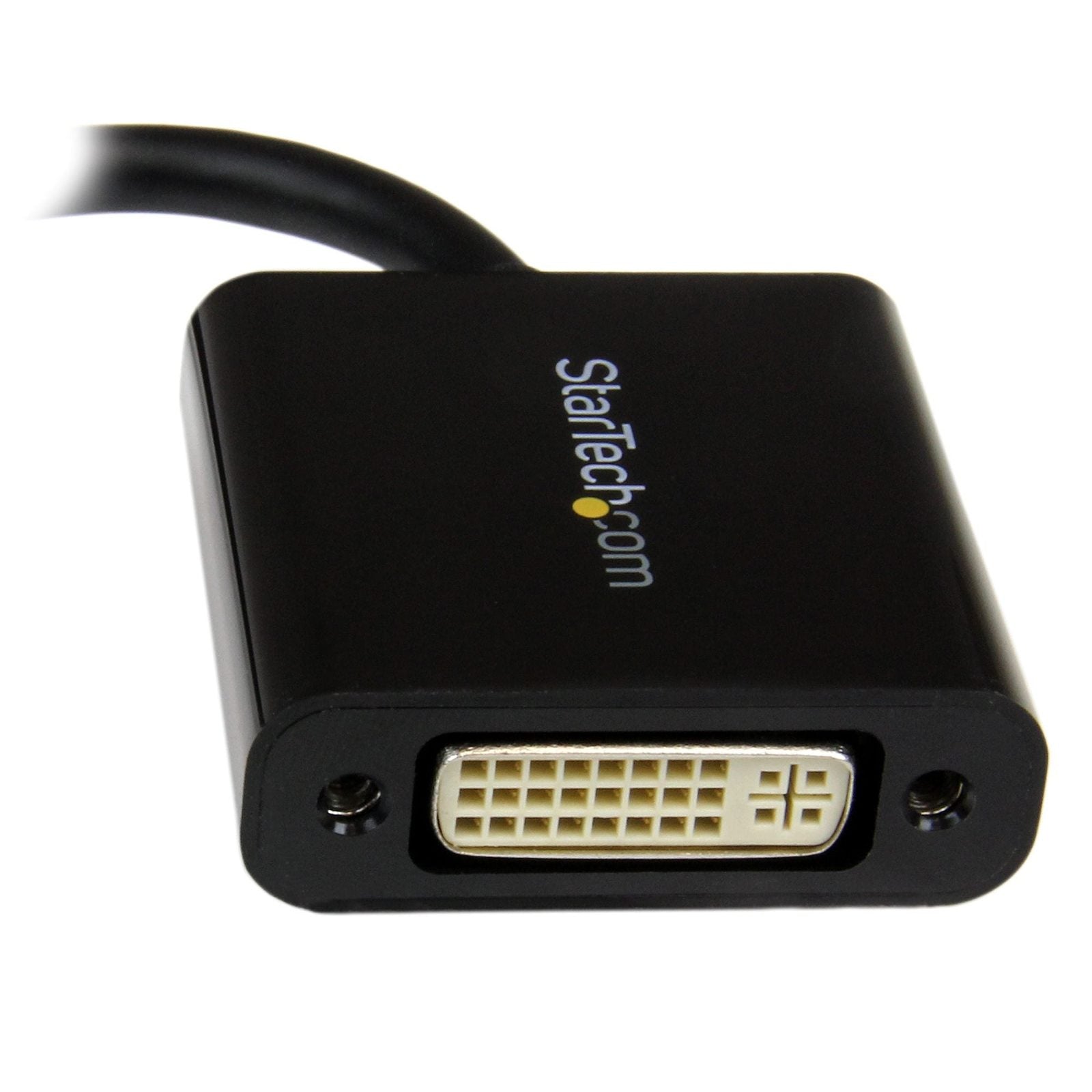

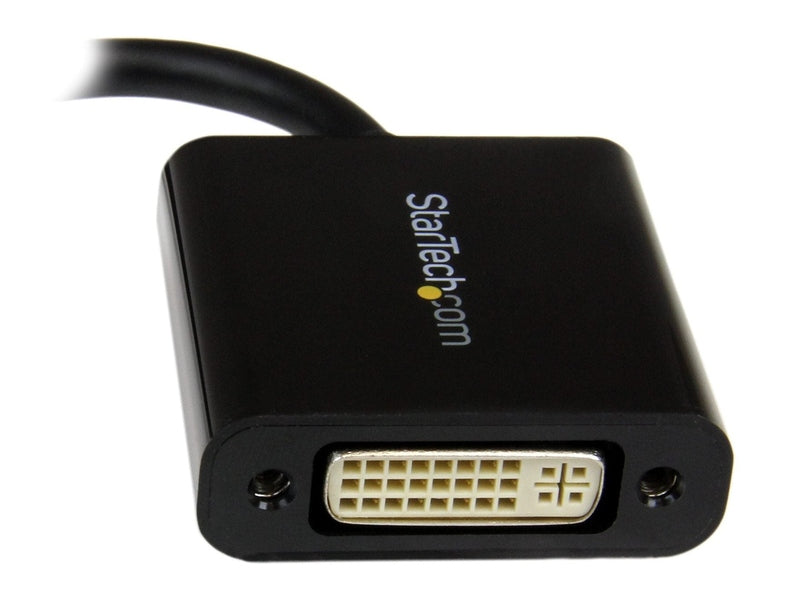

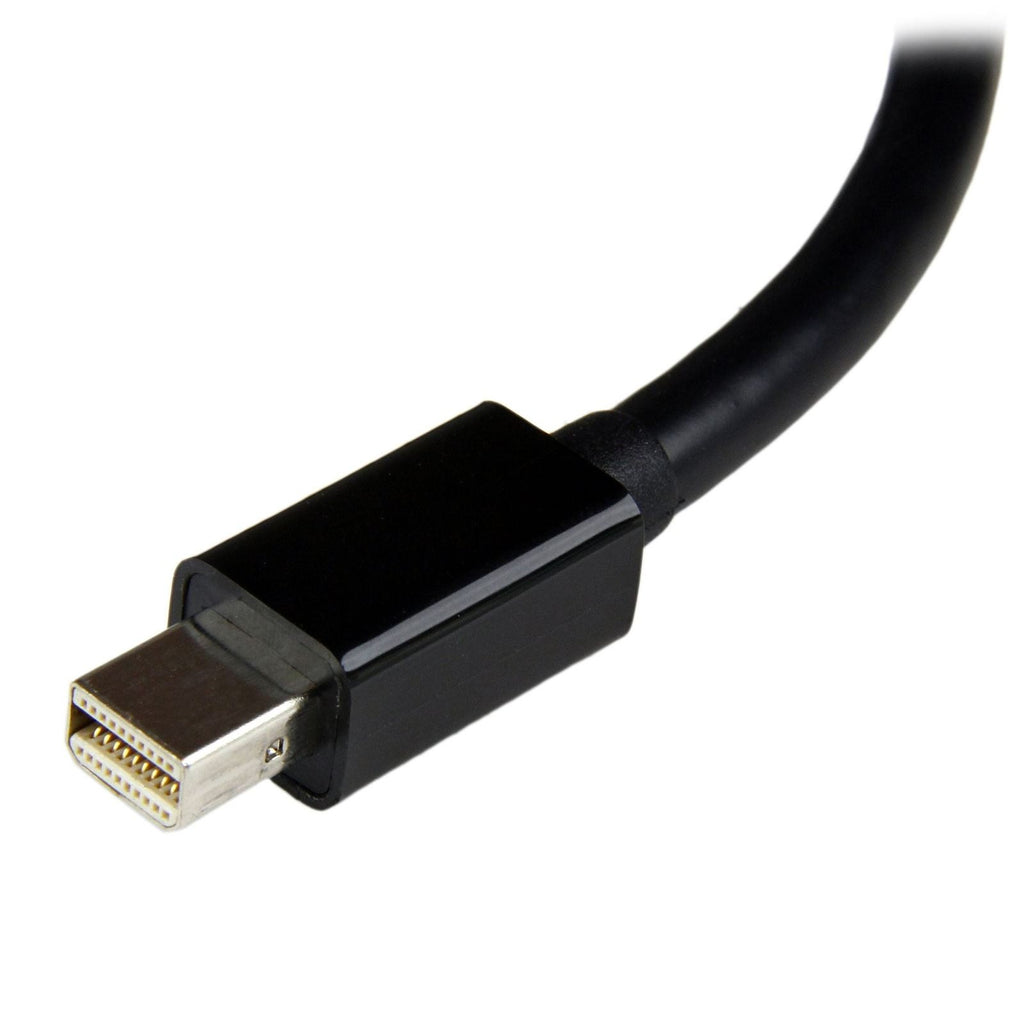

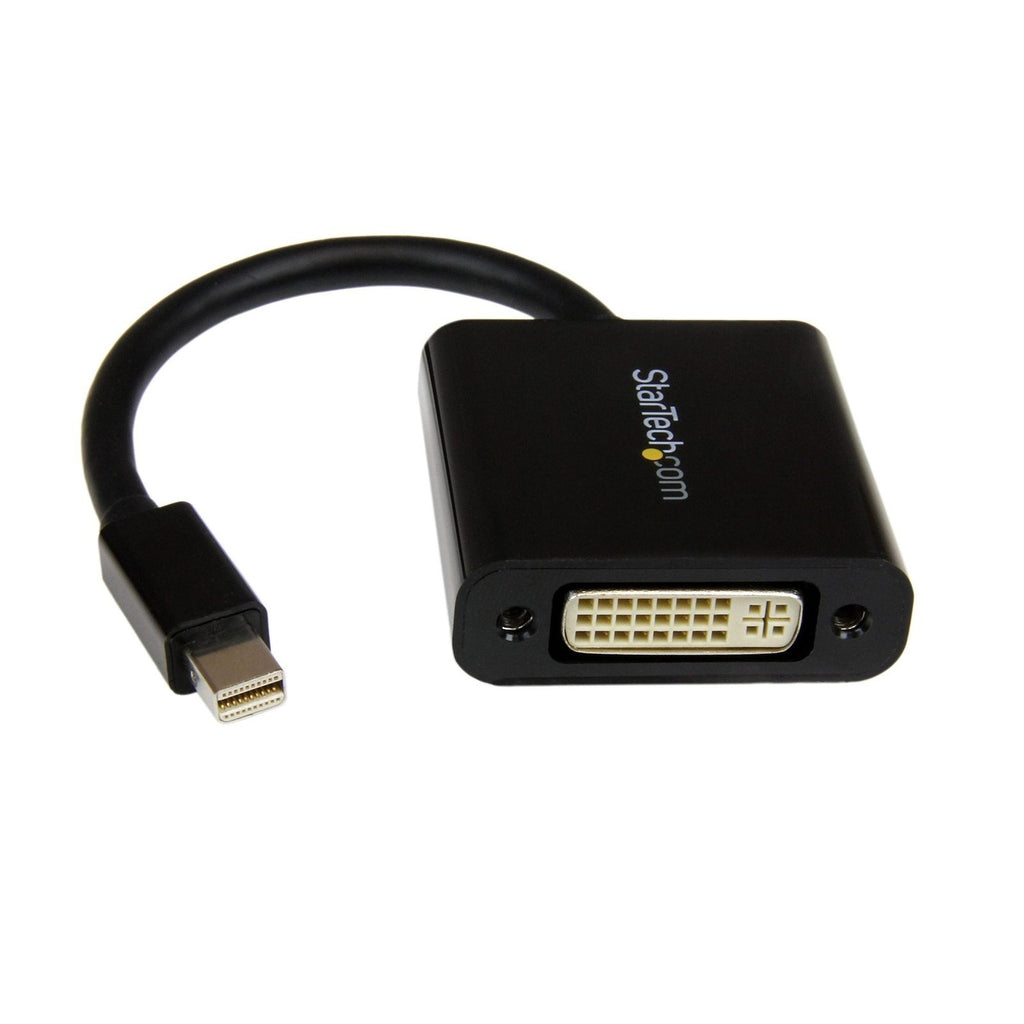

Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle
Connect a DVI Display to a Mini DisplayPort Video Source
The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.
Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - Compact mDP 1.2 to DVI Single-Link Adapter Dongle
Connect a DVI Display to a Mini DisplayPort Video Source
The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.
| Mini DisplayPort to DVI Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x Mini-DisplayPort (20 pin) |
| Connector B | 1 x DVI-I (29 pin) |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Humidity | 40% to 85% RH |
| Hardware | |
| Adapter Type | Passive |
| AV Input | Mini DisplayPort 1.2 |
| AV Output | DVI-I (Digital Only) - Single-Link |
| Audio | No |
| Packaging Information | |
| Package Length | 8.0 in (20.2 cm) |
| Package Width | 2.3 in (5.9 cm) |
| Package Height | 1.3 in (3.2 cm) |
| Shipping Weight | 1.4 oz (40.0 g) |
| Package Quantity | 1 |
| Performance | |
| Maximum Digital Resolutions | 1920 x 1200 / 1080p |
| Wide Screen Supported | Yes |
| Audio Specifications | DVI - No Audio Support |
| MTBF | 2,205,691 hours |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 5.1 in (13 cm) |
| Product Length | 6.9 in (17.5 cm) |
| Product Width | 1.8 in (4.5 cm) |
| Product Height | 0.6 in (1.5 cm) |
| Weight of Product | 1.2 oz (34.0 g) |
| Special Notes / Requirements | |
| System Requirements | DP++ (DisplayPort++) port required for DVI and HDMI® signal pass-through |
| What's in the Box | |
| Included in Package | 1 x Mini DisplayPort to DVI Adapter |
