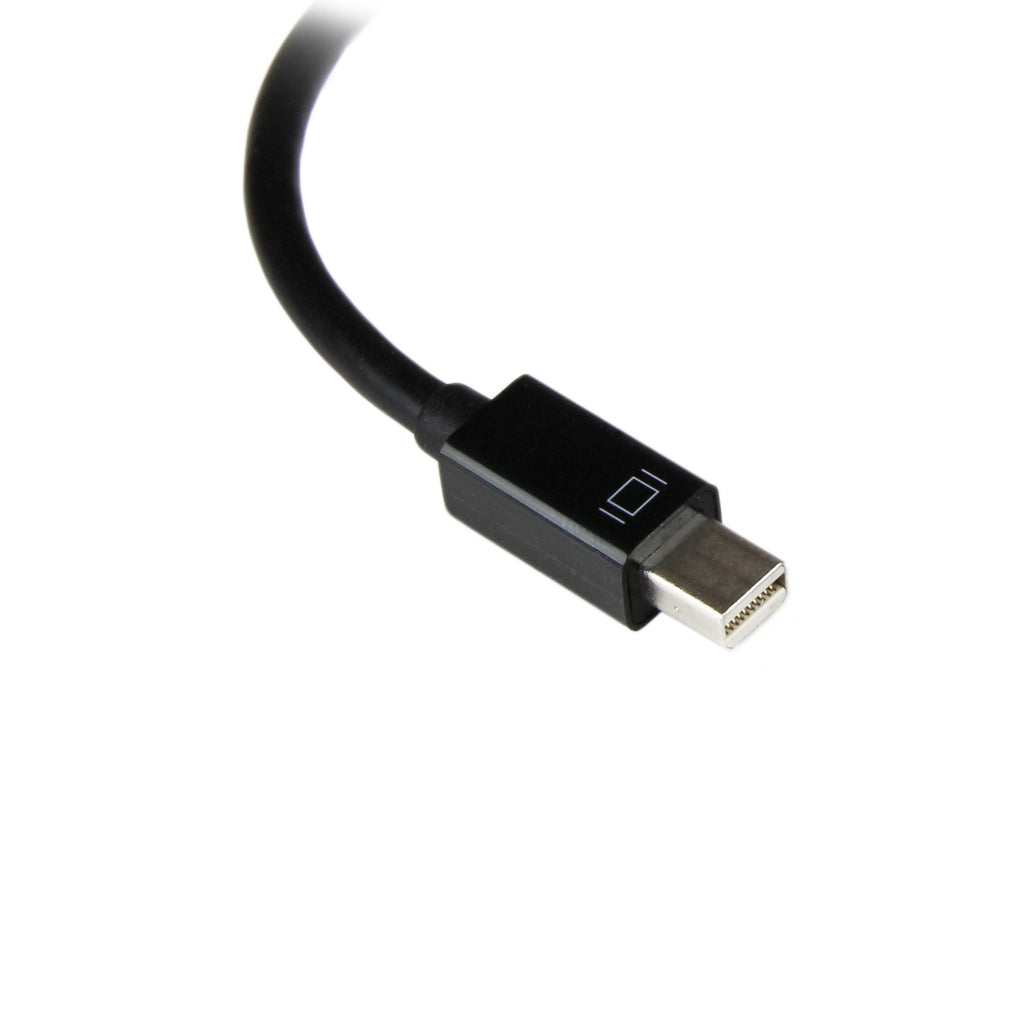

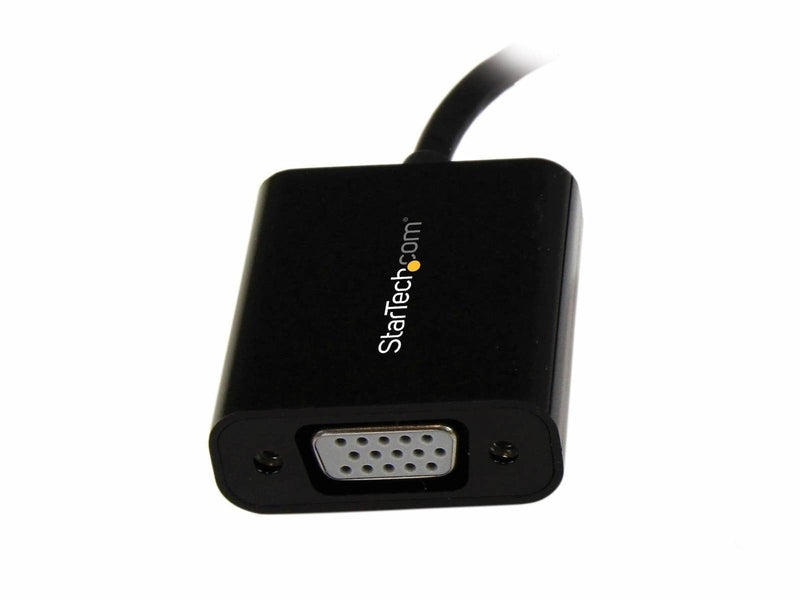

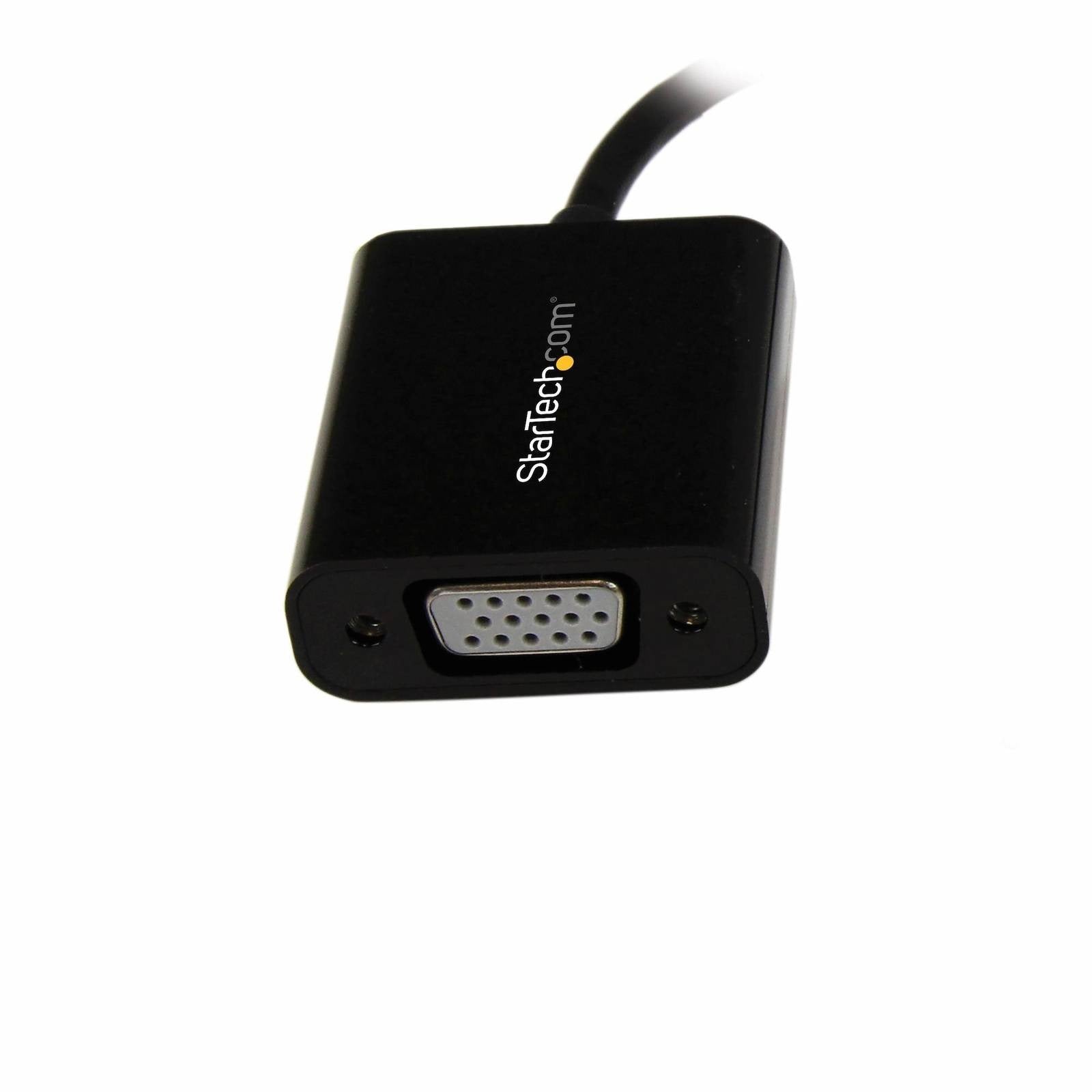

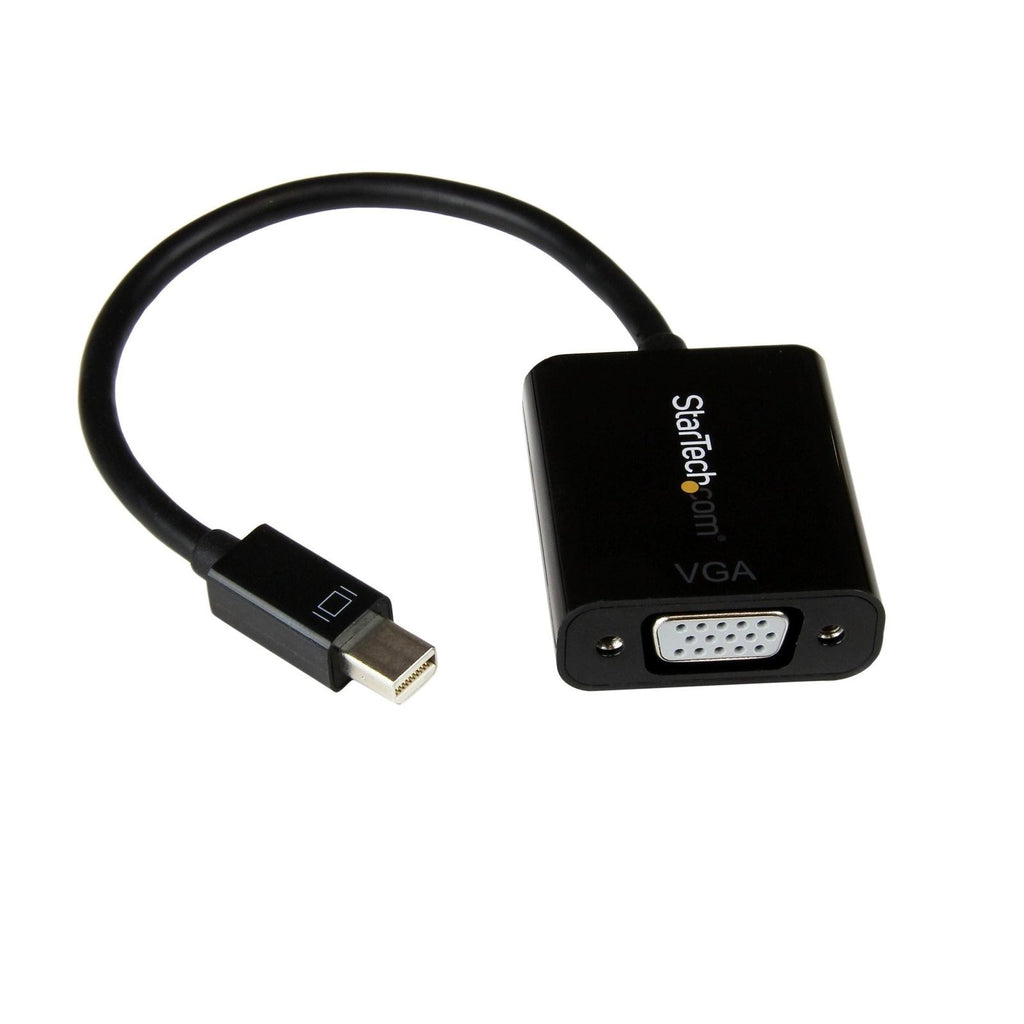

Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black
Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector
The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black
Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector
The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
| Mini DisplayPort to VGA Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x Mini-DisplayPort (20 pin) |
| Connector B | 1 x VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Humidity | 10% to 85% RH |
| Hardware | |
| Adapter Type | Active |
| AV Input | Mini DisplayPort 1.2 |
| AV Output | VGA |
| Audio | No |
| Chipset ID | Analogix - ANX9833 |
| Packaging Information | |
| Package Length | 8.7 in (22.0 cm) |
| Package Width | 7.9 in (20.0 cm) |
| Package Height | 0.7 in (1.8 cm) |
| Shipping Weight | 1.3 oz (36.0 g) |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | VGA - No Audio Support |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 7.1 in (180 mm) |
| Product Length | 8.7 in (22.0 cm) |
| Product Width | 1.4 in (3.5 cm) |
| Product Height | 0.3 in (0.8 cm) |
| Weight of Product | 1.0 oz (27.0 g) |
| What's in the Box | |
| Included in Package | 1 x Mini DisplayPort 1.2 to VGA Adapter |
