StarTech Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

StarTechSKU: ST1000SMPEX

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$61.00
1

Estimate shipping

Description

StarTech Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

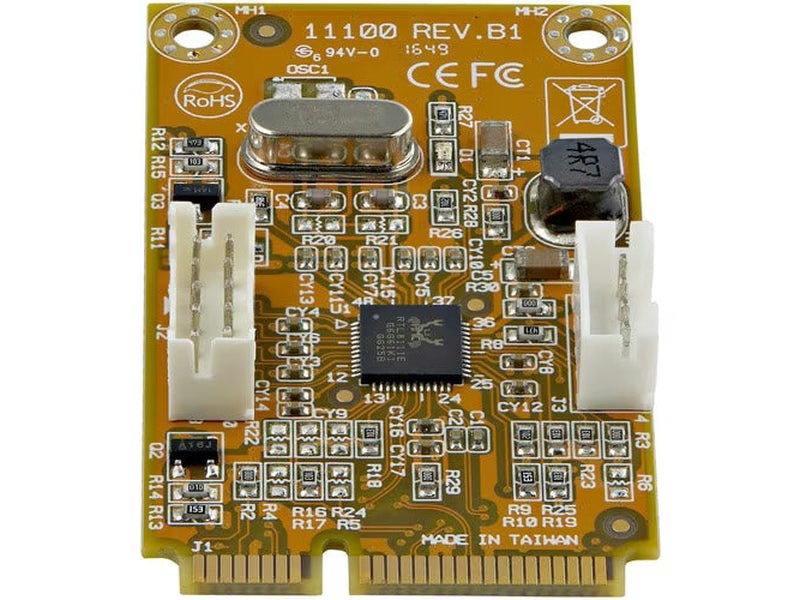

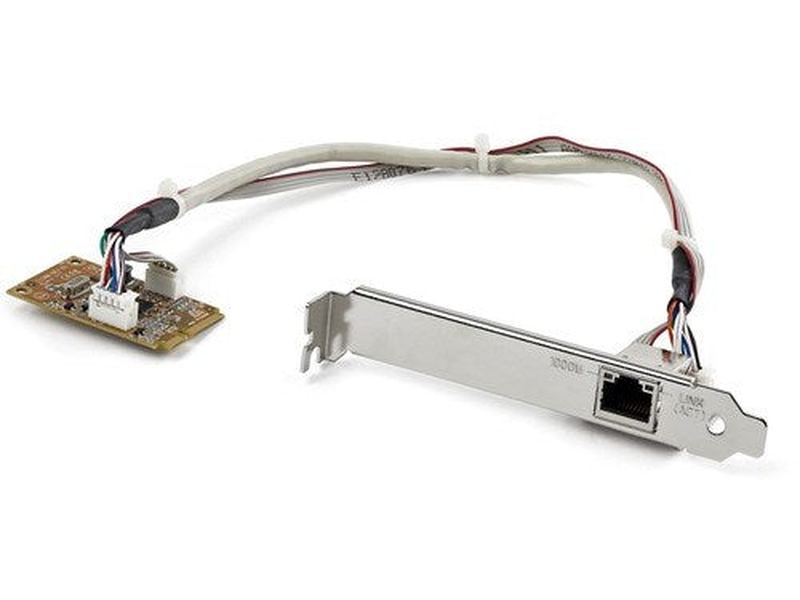

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specification

Media & Performance
Media Type Supported Twisted Pair
Network & Communication
Network Technology 10/100/1000Base-T
Warranty
Additional Warranty Information Free lifetime technical support.
Technical Information
Chipset Manufacturer Realtek
Chipset Model RTL8111E
Miscellaneous
Additional Information
  • Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
  • Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

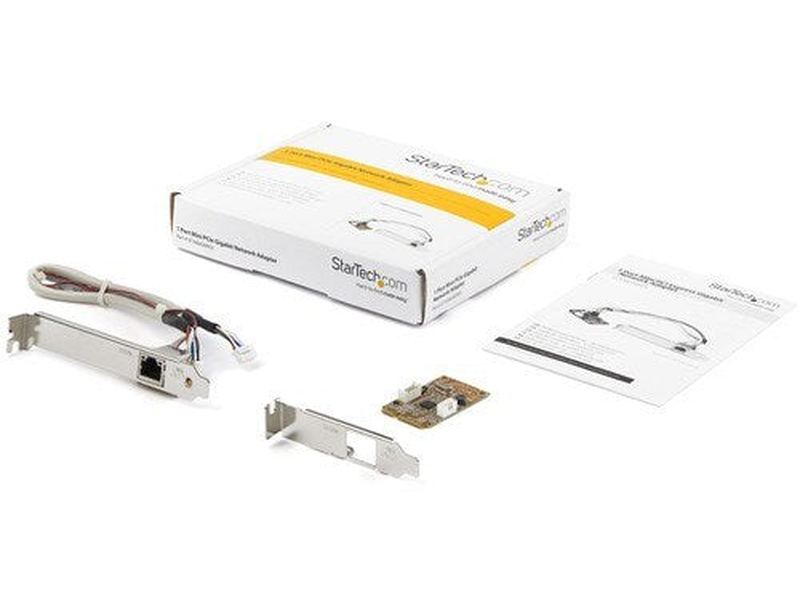

Package Contents
  • Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

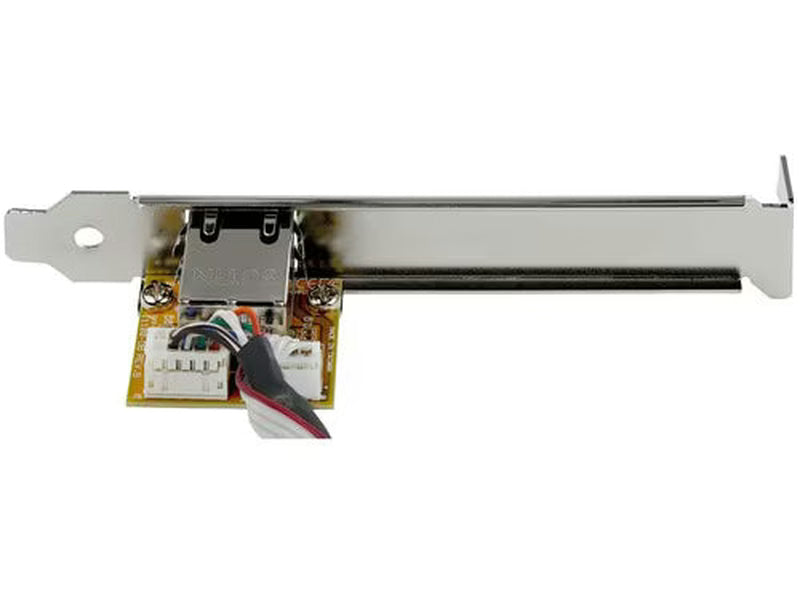

  • 1 x RJ45 Daughter Board
  • 1 x Low Profle Installation Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
System Requirements
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS® 10.4.x and 10.5.x
  • Linux 2.4.x to 4.11.x LTS Versions Only
Interfaces/Ports
Host Interface Mini PCI Express
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Total Number of Ports 1
General Information
Product Type Gigabit Ethernet Card
Manufacturer Part Number ST1000SMPEX
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1 Each
Manufacturer StarTech.com
Product Name Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Brand Name StarTech.com
Physical Characteristics
Thickness 4.1 mm
Weight (Approximate) 5.7 g
Form Factor Plug-in Card
Height 33 mm
Width 144.8 mm
Depth 50.8 mm
Card Height Low-profile
