Description
Overview

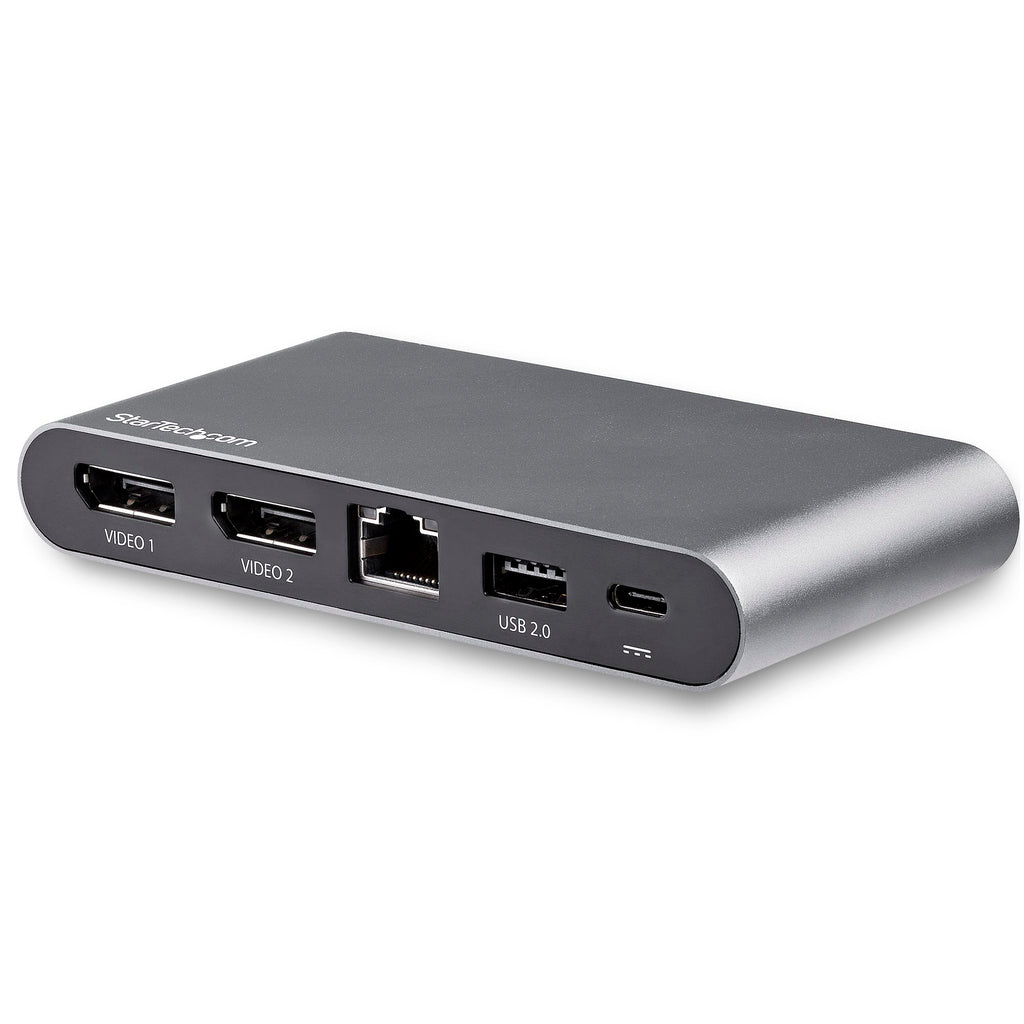

USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable
USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch
Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.

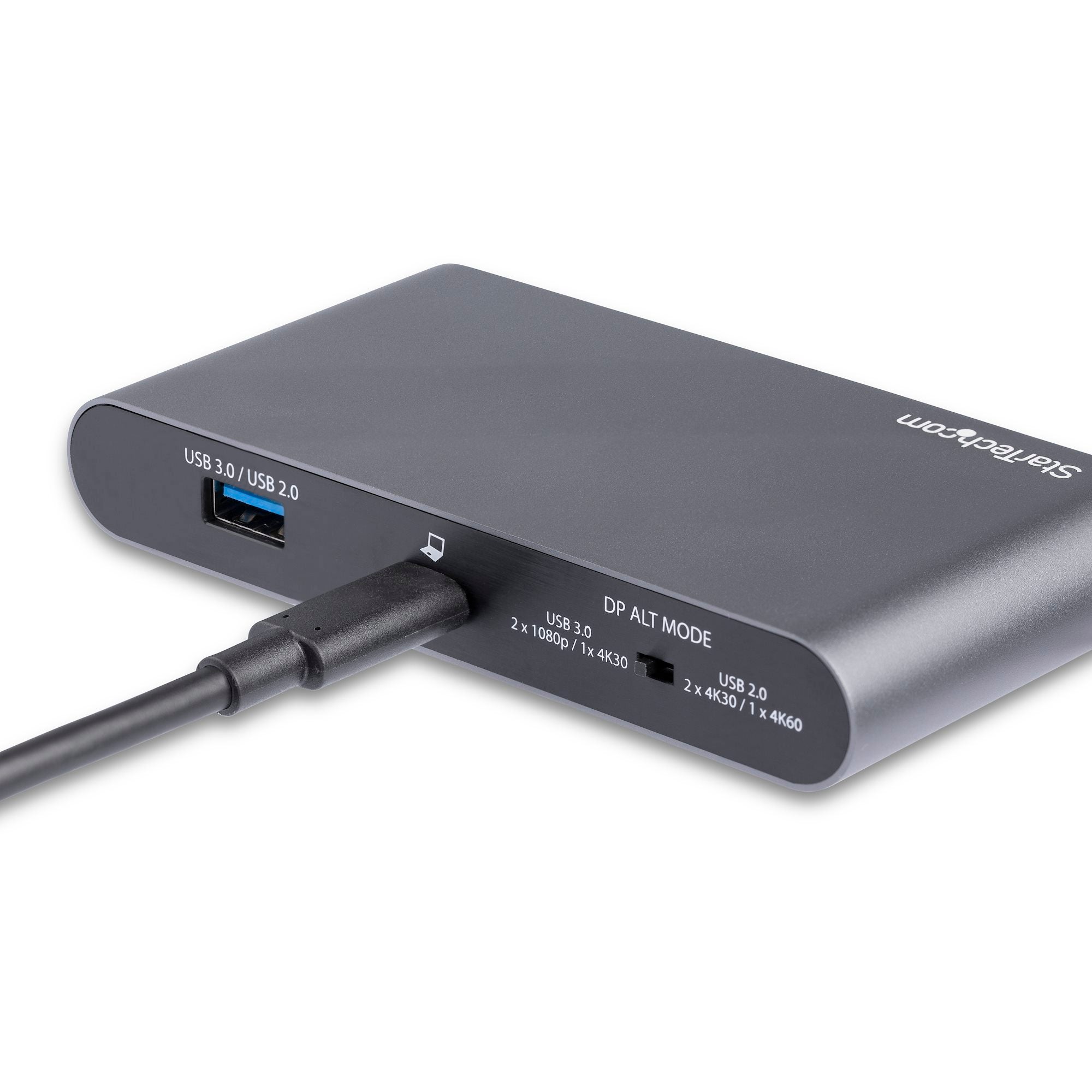

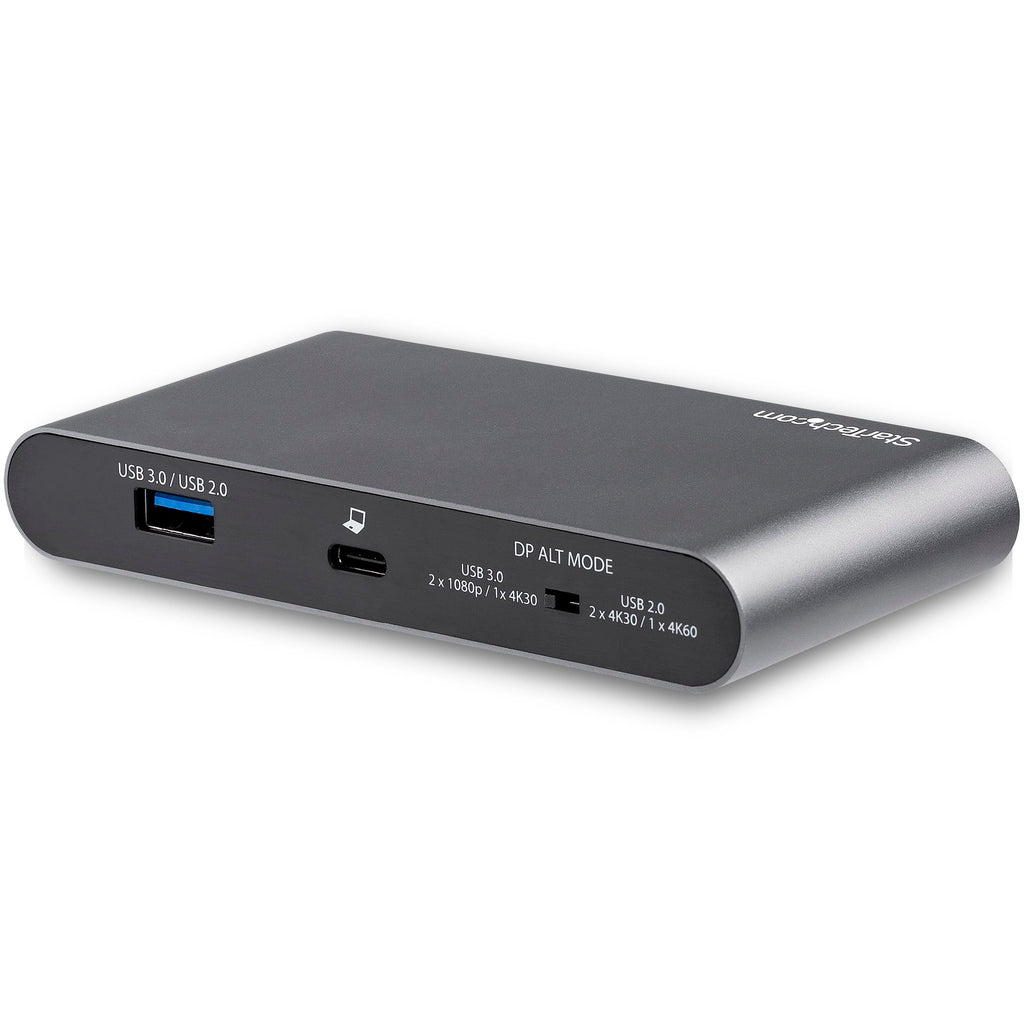

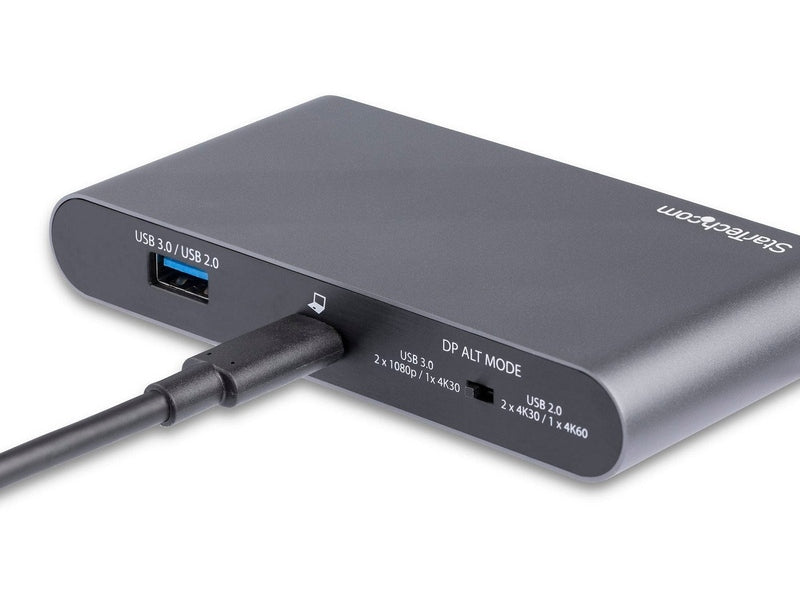

DisplayPort™ Alternate Mode to Choose Your Video Display Output
Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.
Reliable 100W Power Delivery Passthrough
The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.
.jpg)
Multi-Stream Transport for Driverless Displays
The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable
USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch
Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.

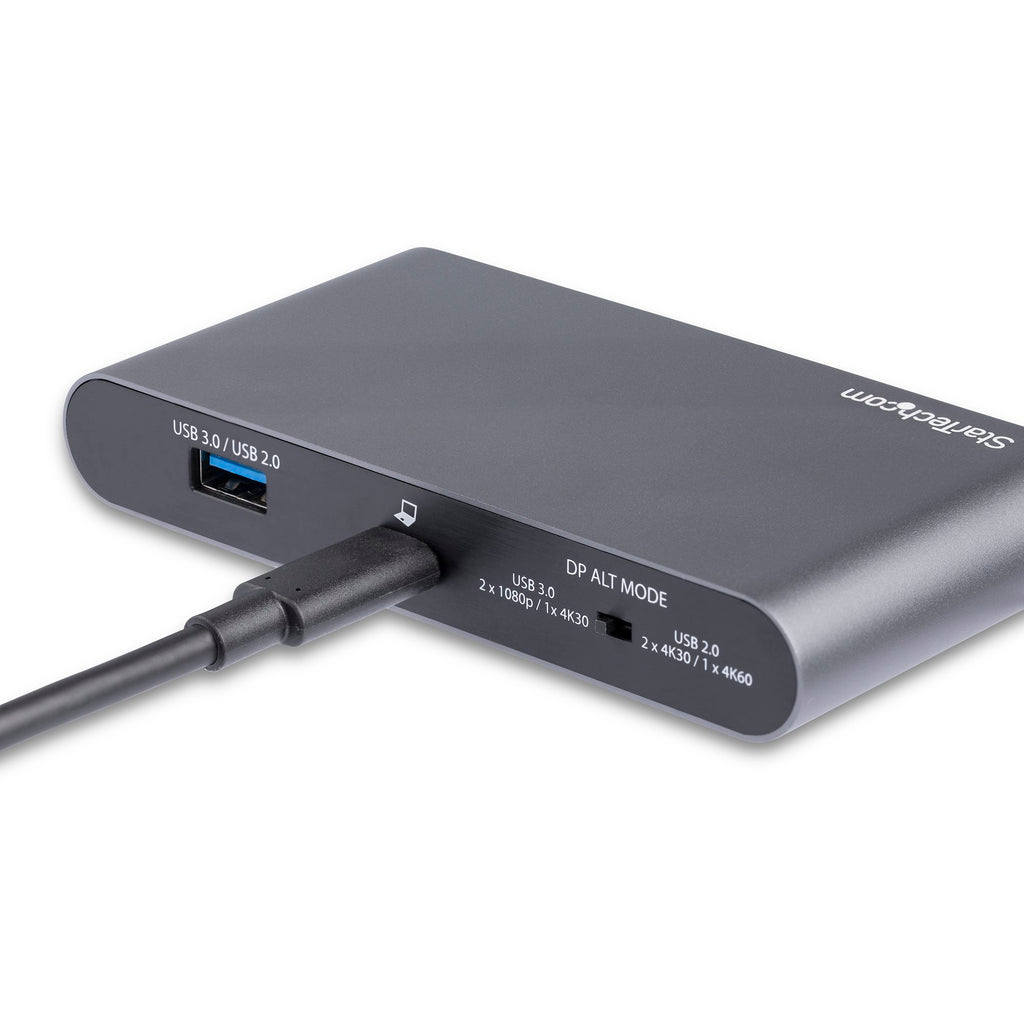

DisplayPort™ Alternate Mode to Choose Your Video Display Output
Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.

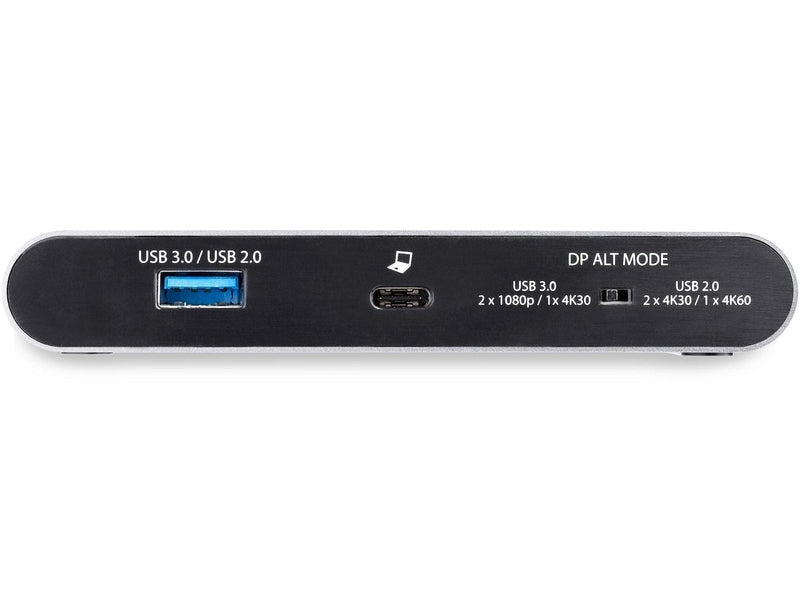

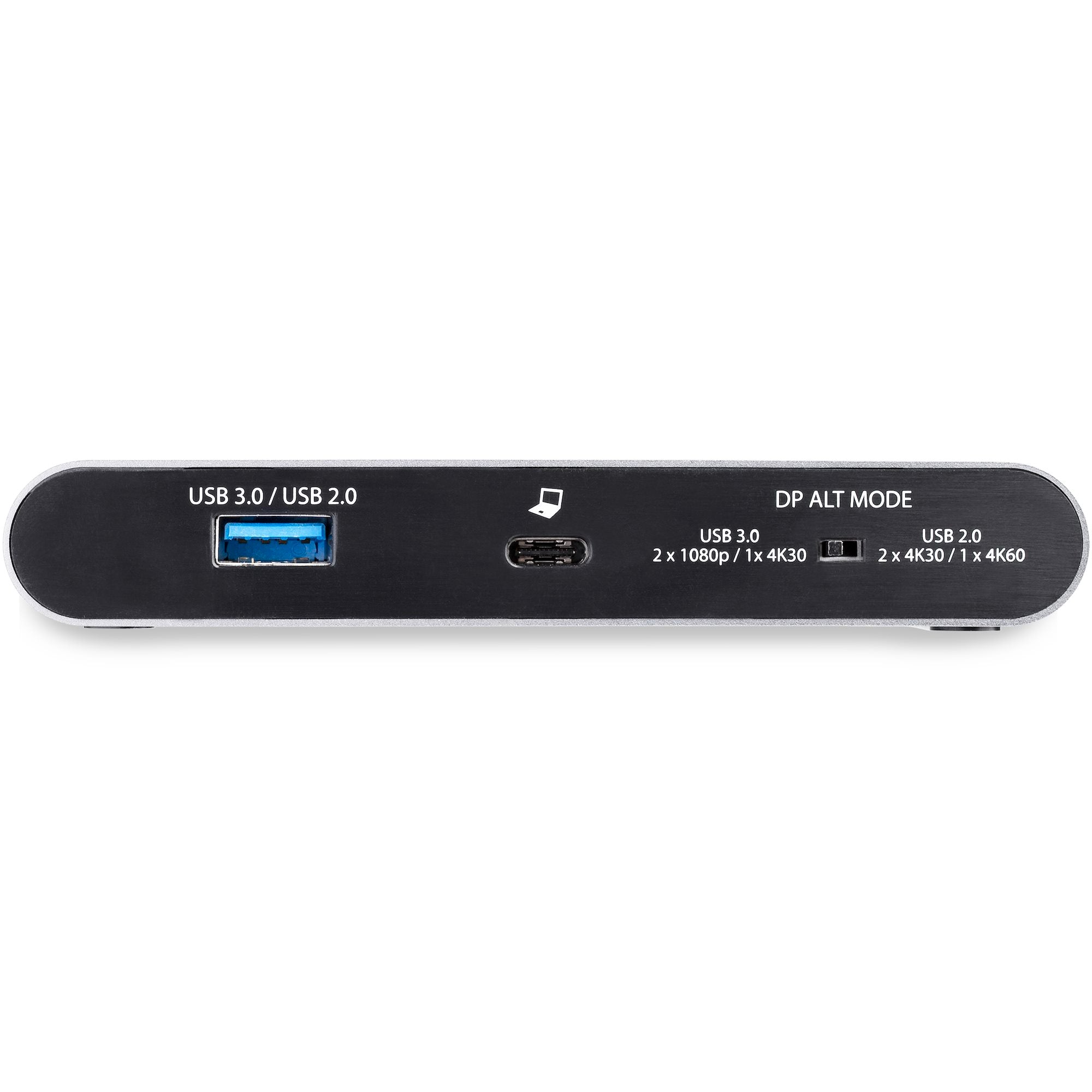

Switch Left | Switch Right |
---|---|
2 Lane DP Alt- Mode | 4 Lane DP Alt Mode |
USB 3.0 (5Gbps) |
USB 2.0 (480 Mbps) |
Dual 1080p Monitors or Single 4K 30Hz Monitor |
Dual 4K 30Hz Monitors or Single 4K 60Hz Monitor |
Reliable 100W Power Delivery Passthrough
The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.
.jpg)
Multi-Stream Transport for Driverless Displays
The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
USB-C Multiport Adapter Specifications | |
---|---|
Connector(s) | |

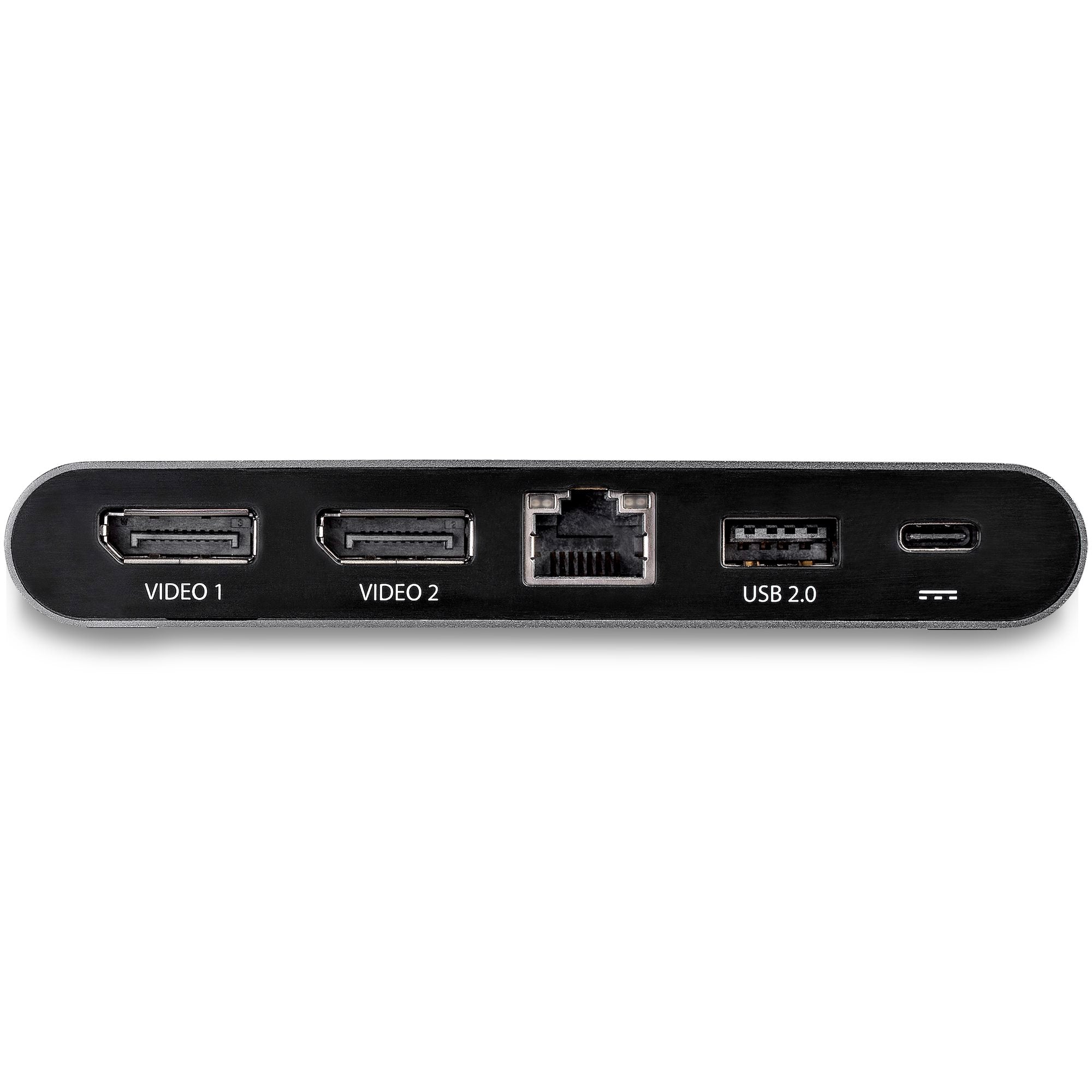

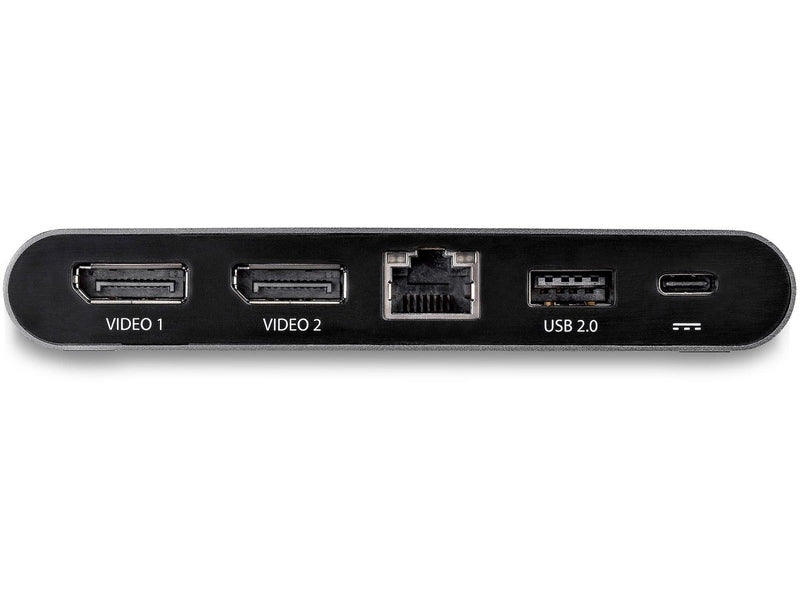

Connector Type(s) | 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - USB Type-C (24 pin) USB Power Delivery Only 2 - DisplayPort (20 pin) 1 - RJ-45 1 - USB Type-A (9 pin, 5 Gbps) 1 - USB 2.0 Type-A (4 pin, 480Mbps) |
Environmental | |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 0~95% RH (Non-condensing) |
Hardware | |
4K Support | Yes |
Fast-Charge Port(s) | No |
Displays Supported | 2 |
Bus Type | USB-C |
Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
Chipset ID | VIA/VLI - VL102 VIA/VLI - VL170 VIA/VLI - VL817 MegaChips - STDP4320 RealTek - RTL8153 |
Packaging Information | |
Shipping (Package) Weight | 10.3 oz [292.0 g] |
Package Quantity | 1 |
Package Length | 8.1 in [20.6 cm] |
Package Width | 5.7 in [14.6 cm] |
Package Height | 1.6 in [4.0 cm] |
Performance | |
Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex) |
Maximum Digital Resolutions | Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz Single UltraWide DisplayPort display: Up to 3440 x 1440p @ 60Hz Lower resolutions are also supported (e.g., 2560 x 1600p, 2560 x 1440p) |
Type and Rate | USB 3.0 - 5 Gbit/s |
UASP Support | Yes |
Auto MDIX | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Color | Black |
Material | Plastic |
Product Length | 4.7 in [12.0 cm] |
Product Width | 2.4 in [6.0 cm] |
Product Height | 0.7 in [1.9 cm] |
Weight of Product | 5.3 oz [150.0 g] |
Power | |
Power Source | Bus Powered and Host USB-C Power Adapter |
Power Delivery | 100W |
Laptop Charging via Power Delivery | 85W |
Output Voltage | 5 DC |
Power Consumption (In Watts) | 15W |
Software | |
OS Compatibility | Windows® 7, 8, 8.1, 10, 11 Chrome OS |
Special Notes / Requirements | |
System and Cable Requirements | A host laptop with an available USB-C port (must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode) Optional: USB-C power adapter (e.g., your laptop’s USB-C based power adapter) |
Note | For dual-monitor configuration, host must support MST Not all USB-C ports support full functionality—verify PD and DP alt mode support Limited Chrome support (no MST; Ethernet only with bus power) Limited Android support (no MST) 4K-capable display required for 3840 x 2160p resolution Video output depends on laptop GPU and hardware specs USB 3.0 = USB 3.1 Gen 1 (5Gbps) Supports USB Power Delivery 3.0 up to 100W; up to 85W for laptop charging Fast Role Swap supported (prevents USB data disruption when switching power sources) Ethernet speed: 1000 Mbps (USB 3.0 mode), 100 Mbps (USB 2.0 mode) |
What's in the Box | |

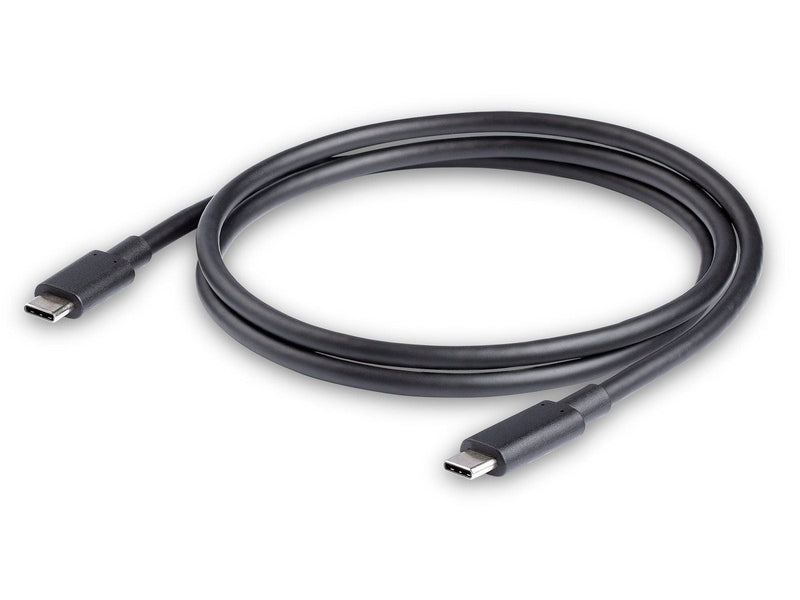

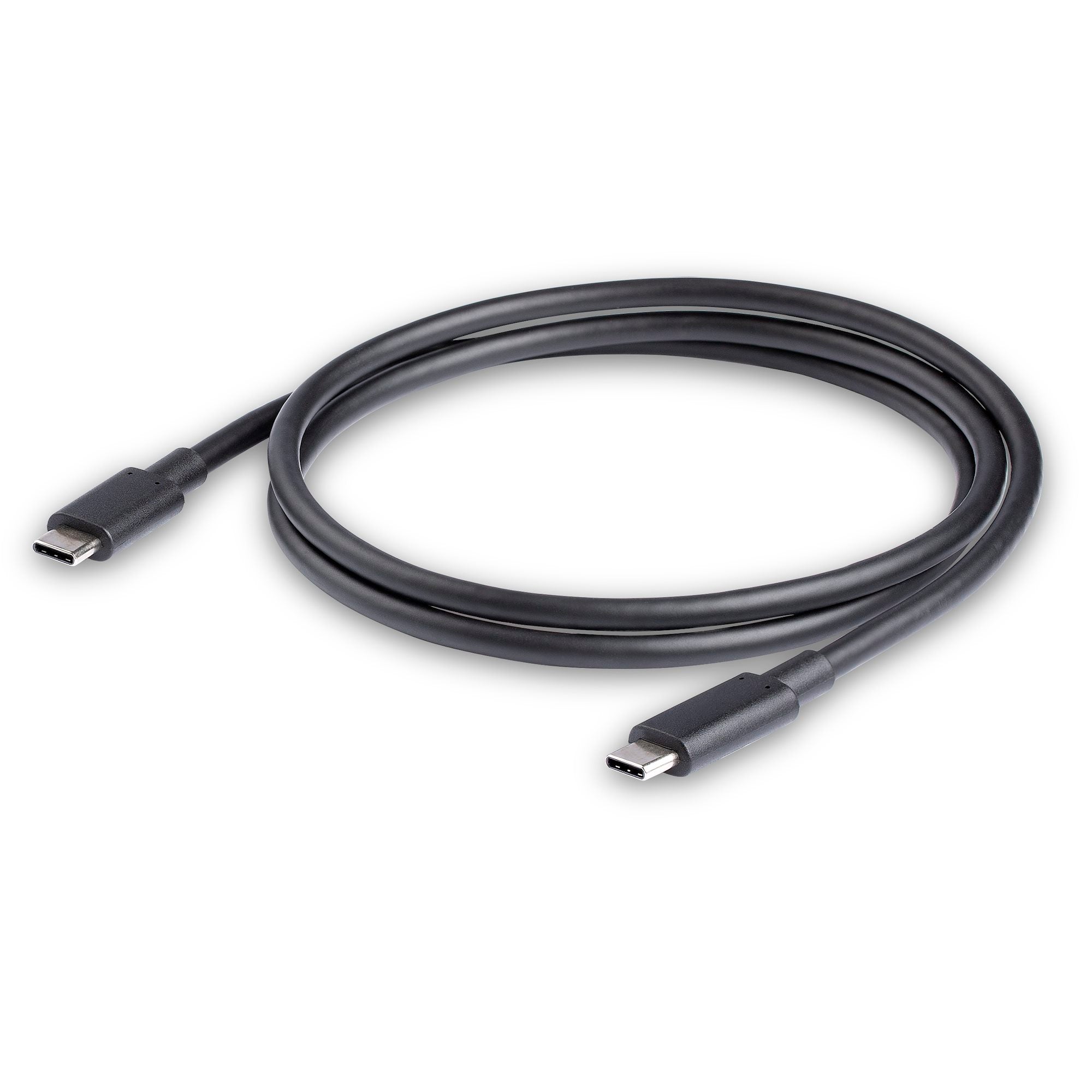

Included in Package | 1 - Multiport Adapter 1 - USB-C Cable 1 - Quick-Start Guide |
