Overview

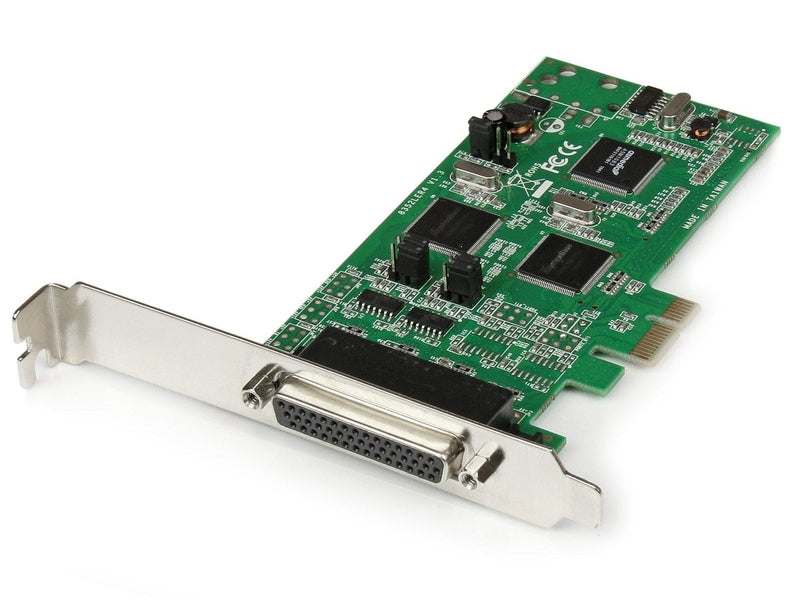

4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - TAA
Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

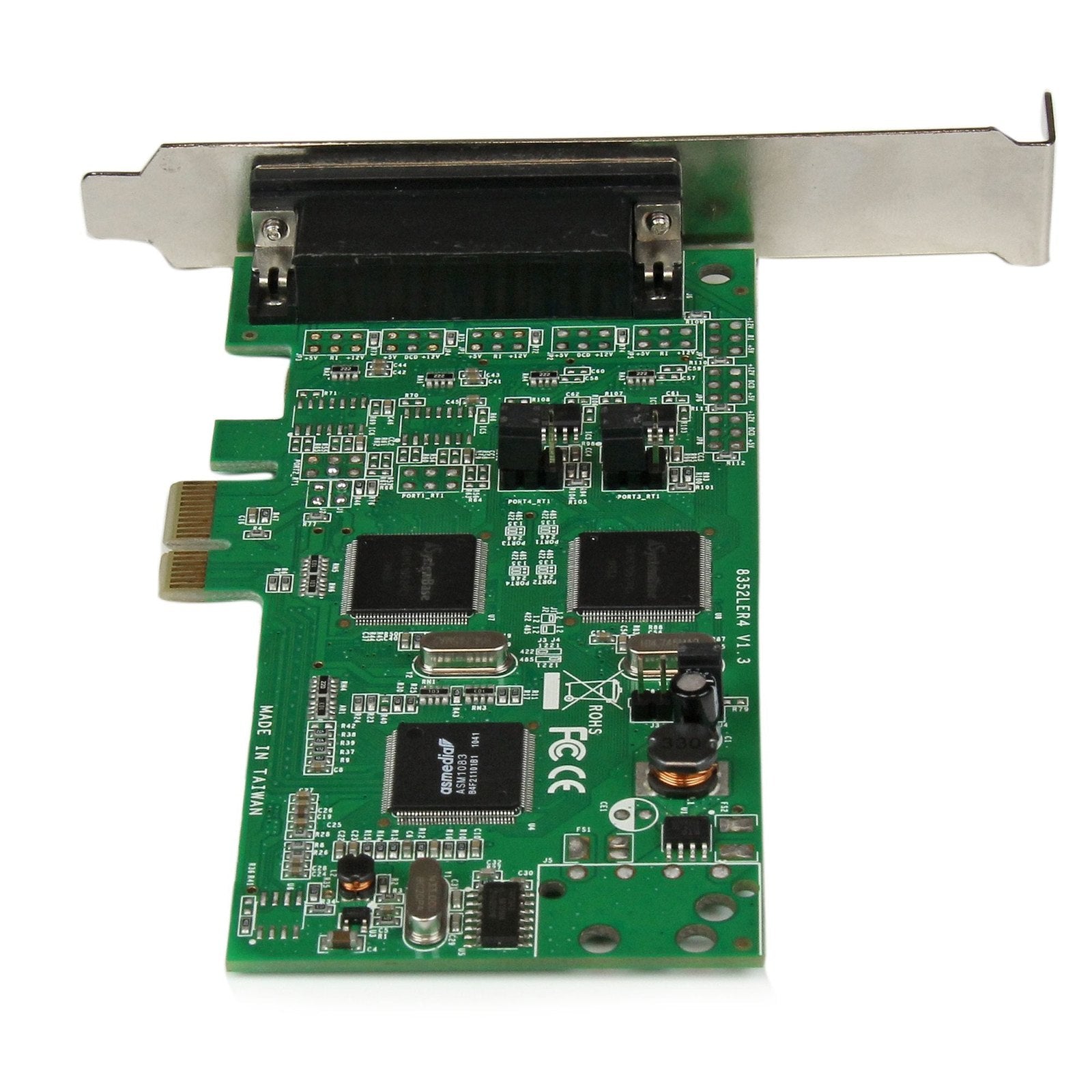

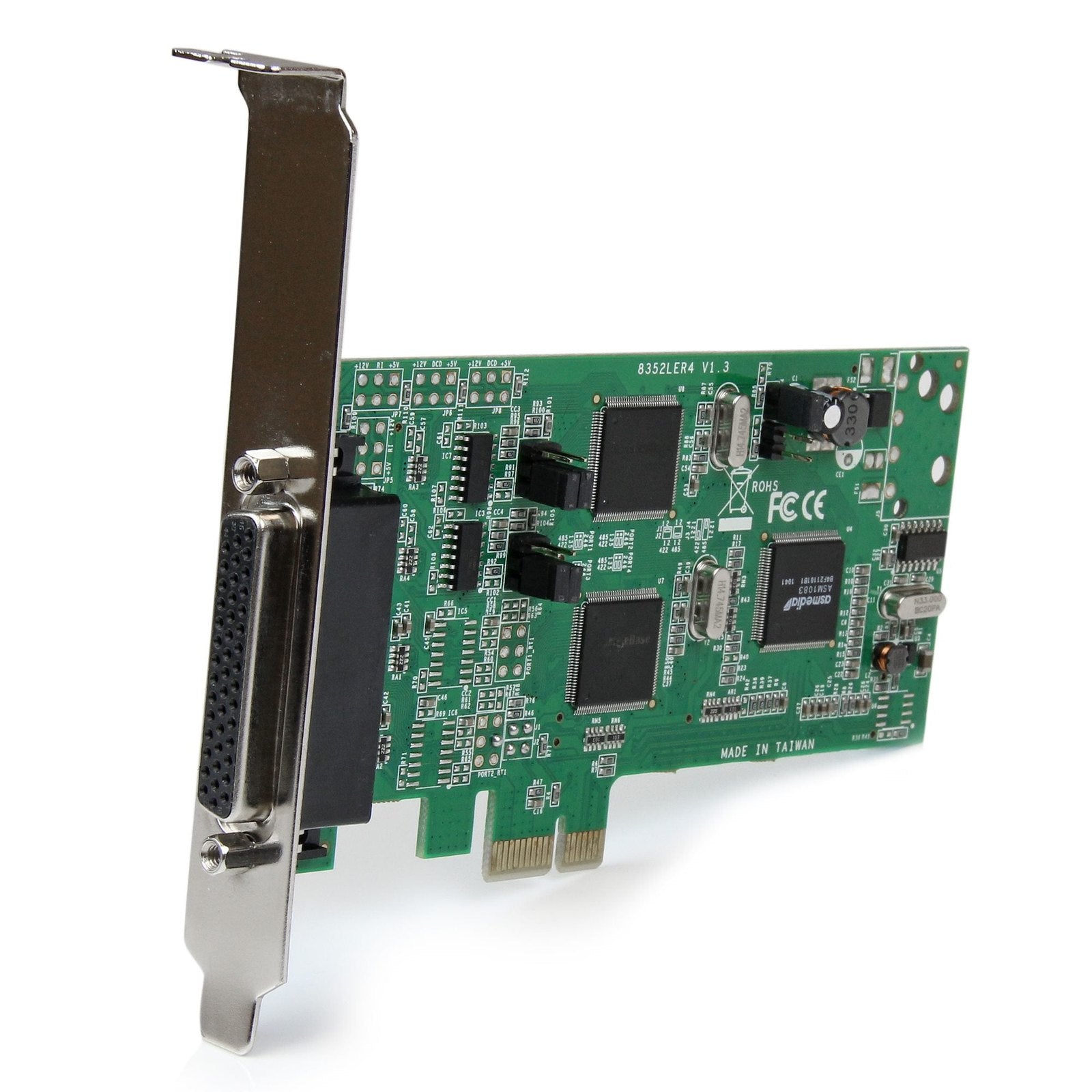

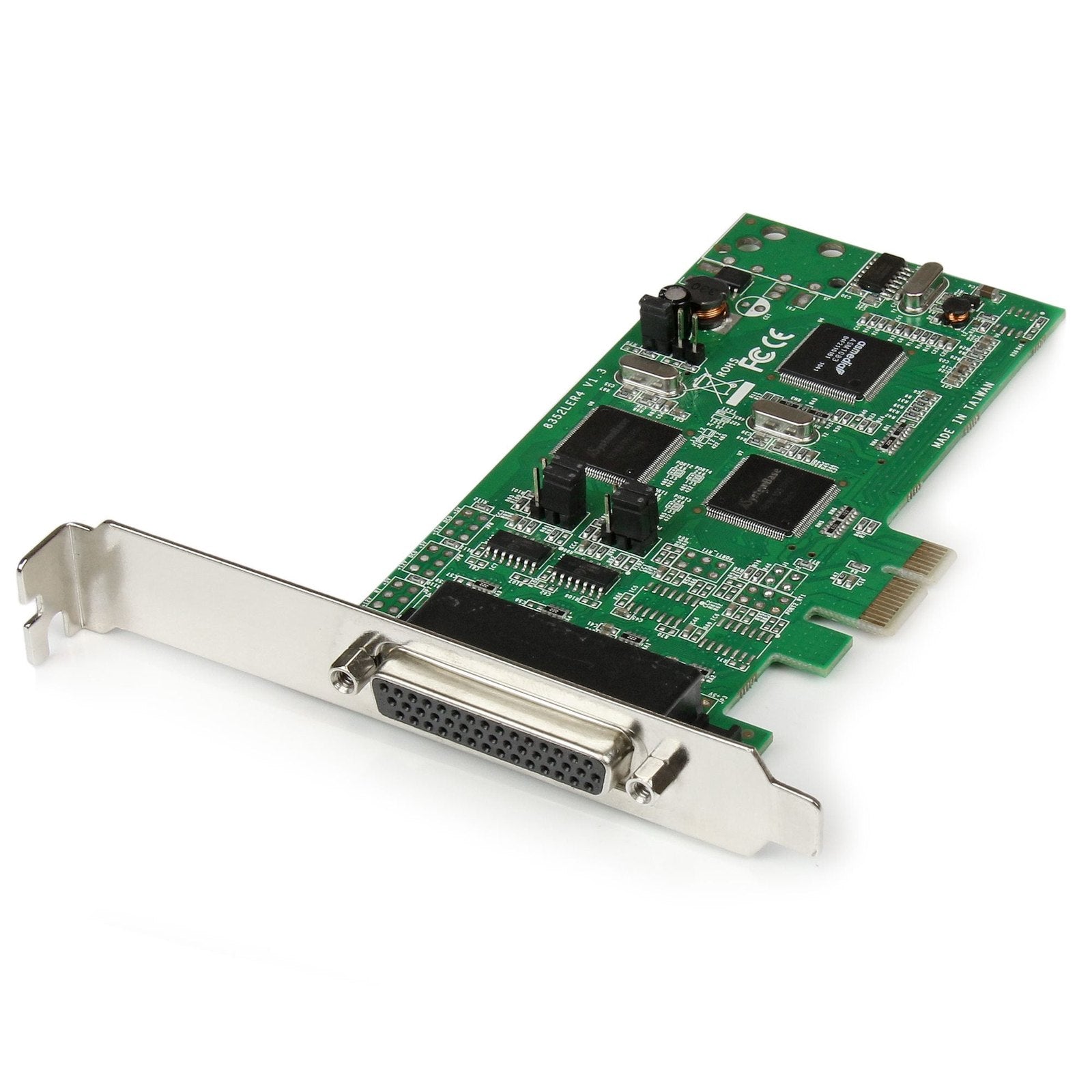

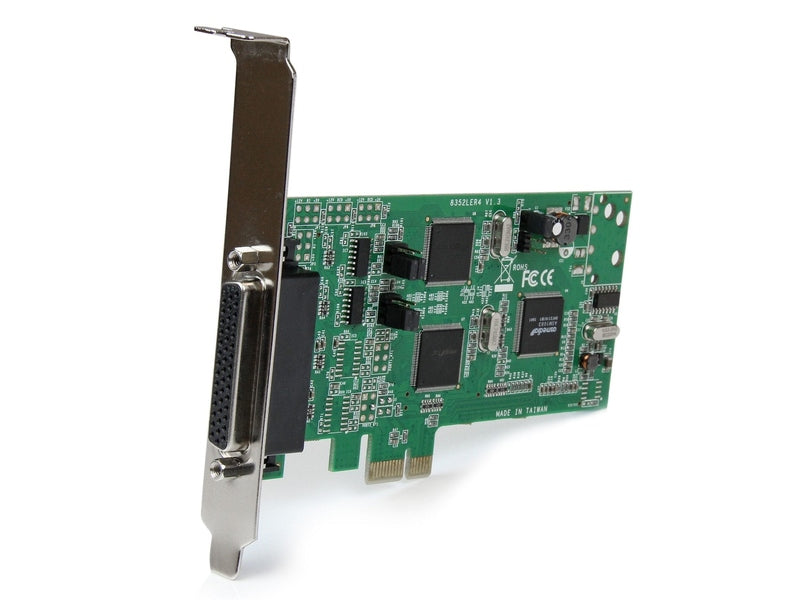

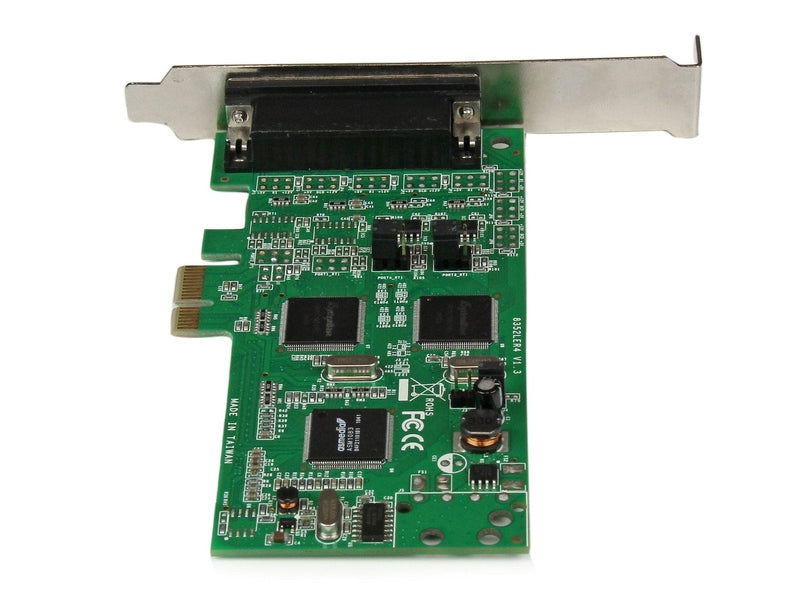

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

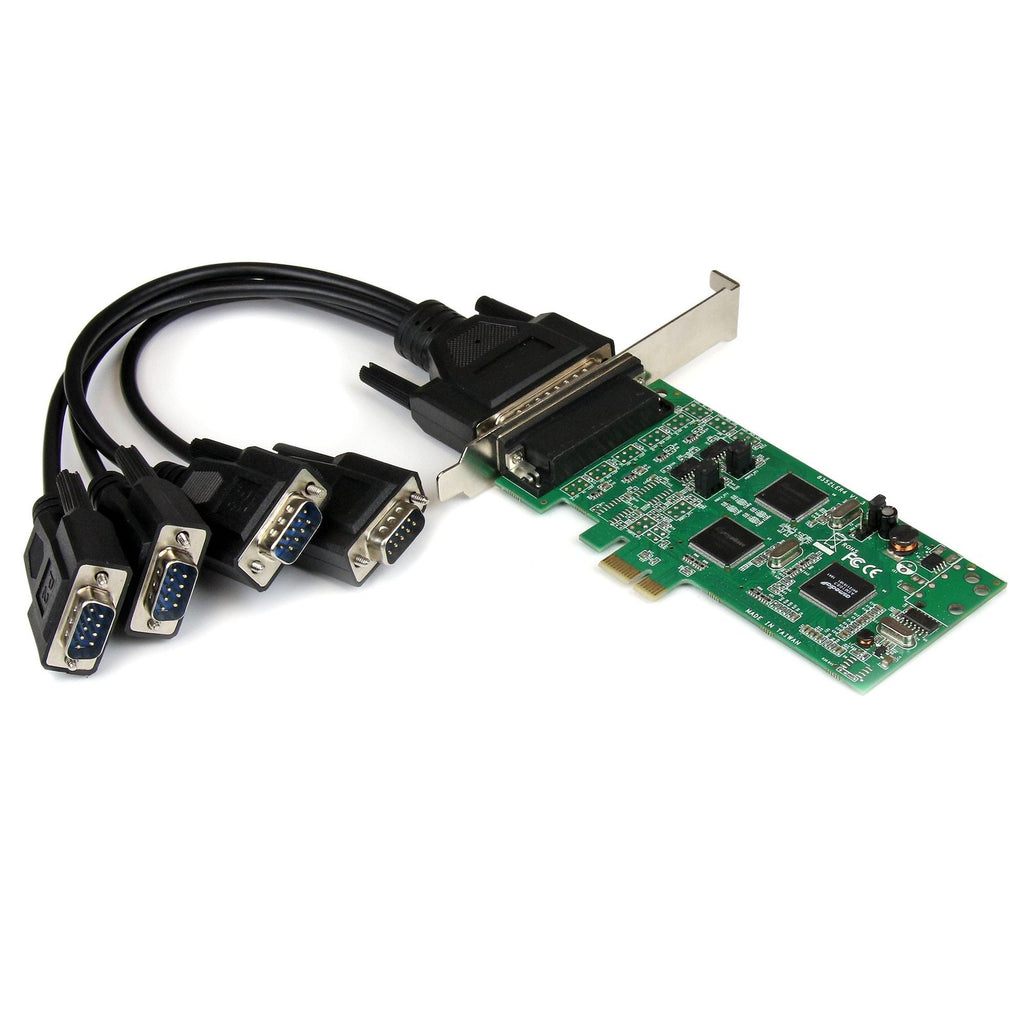

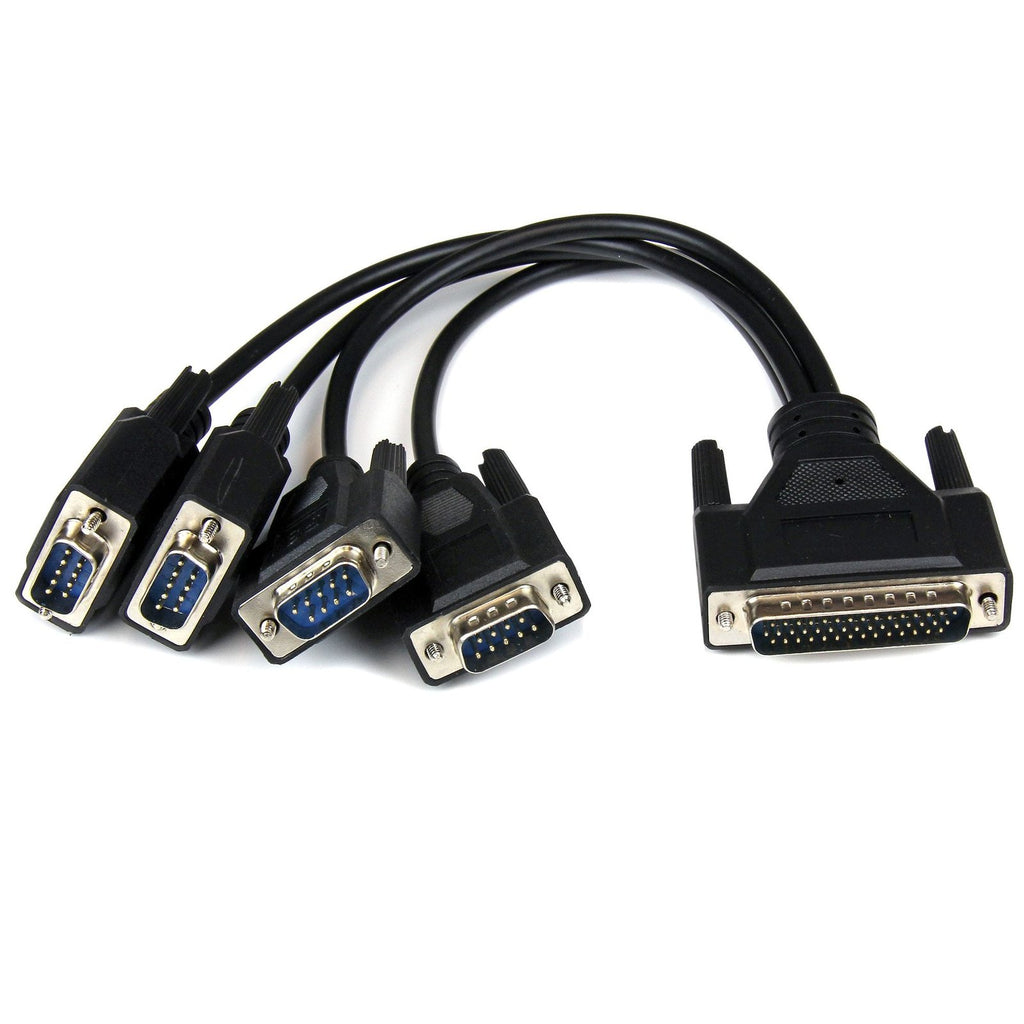

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 - TAA
Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot
The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
| PCI Express Serial Combo Card Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × PCI Express x1 |
| External Ports | 4 × DB-9 (9 pin, D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 100°C (32°F to 212°F) |
| Storage Temperature | 0°C to 150°C (32°F to 302°F) |
| Humidity | 20–80% RH |
| Hardware | |
| Ports | 4 |
| Interface | Serial |
| Bus Type | PCI Express |
| Card Type | Standard Profile (Low Profile bracket included) |
| Port Style | Dongle (Included) |
| Chipset ID | SystemBase SB16C1052PCI |
| Packaging Information | |
| Package Height | 1.6 in [4.1 cm] |
| Package Length | 8.3 in [21.0 cm] |
| Package Width | 5.7 in [14.6 cm] |
| Package Weight | 13.7 oz [388.0 g] |
| Package Quantity | 1 |
| Performance | |
| Serial Protocol | RS-232/422/485 |
| Max Baud Rate | 460.8 Kbps |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 256 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Parity | None, Odd, Even, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| MTBF | 85,288 hours |
| Supported Protocols | RS-232, RS-422, RS-485 (2-wire / 4-wire) |
| Physical Characteristics | |
| Color | Green |
| Material | Steel |
| Product Length | 5.0 in [12.7 cm] |
| Product Width | 0.6 in [1.4 cm] |
| Product Height | 4.1 in [10.5 cm] |
| Product Weight | 2.4 oz [67.4 g] |
| Power | |
| Input Voltage | 12V DC |
| Output Voltage | 12V DC |
| Software | |
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 Linux 2.6.x and up (LTS versions only) |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express slot |
| What's in the Box | |
| Included Items | 1 × PCI Express Serial Combo Card 1 × Breakout Cable 1 × Low Profile Bracket 1 × Driver CD 1 × Instruction Manual |
