StarTech SATA Controller, Serial ATA/600, PCI Express 2.0 x4, Plug-in Card

StarTechSKU: 8P6G-PCIE-SATA-CARD

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$196.00
1

Estimate shipping

Description

StarTech SATA Controller, Serial ATA/600, PCI Express 2.0 x4, Plug-in Card

This 8-port SATA III (6Gbps) controller enables you to add eight SATA 6Gbps hard drives (HDDs) or solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express Gen 2 Specifications and four SATA controllers to deliver a high-performance data storage solution.

Quad Controllers to Deliver 8-Port SATA 6Gbps Performance

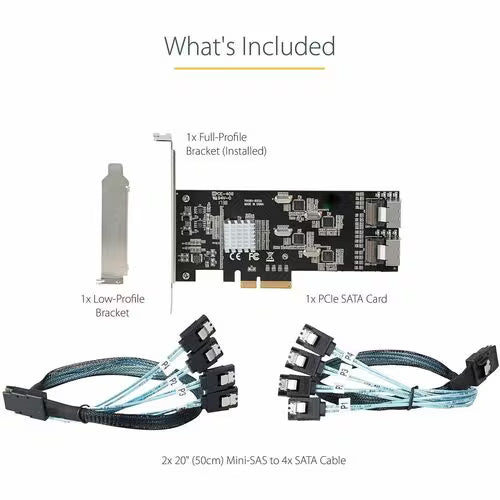

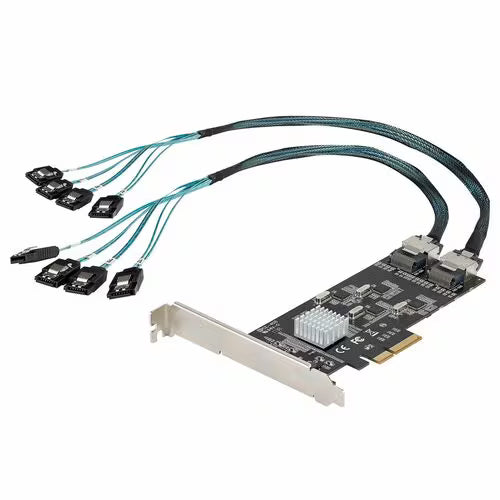

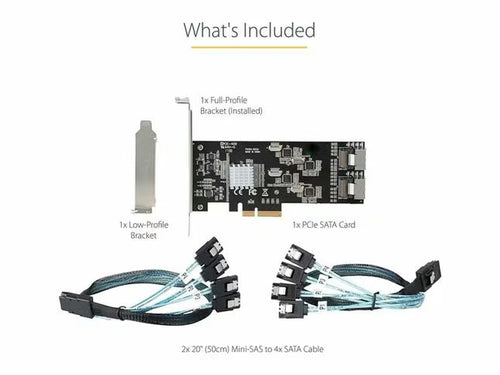

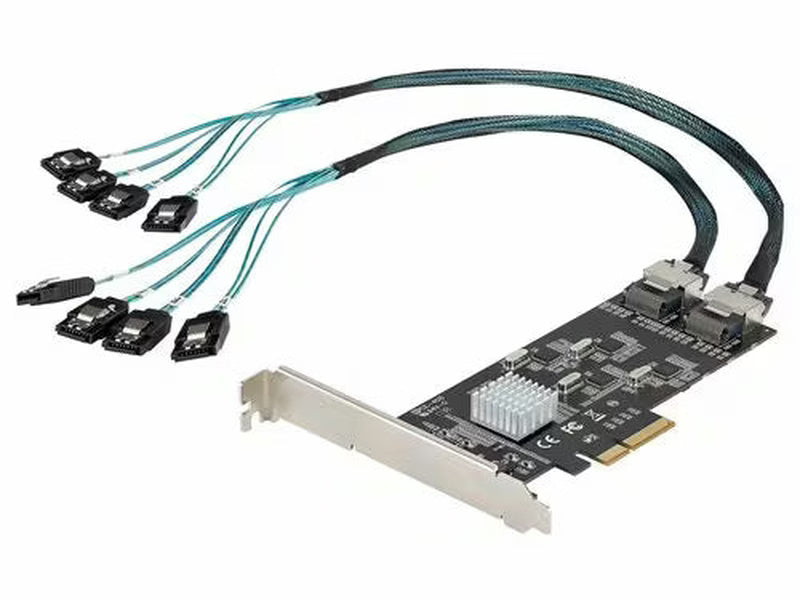

Featuring four 2-Port SATA 6Gbps controllers and a PCIe-x4 MUX, this SATA card enables the connection of eight high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via two Mini-SAS ports with two included Mini-SAS to 4x-SATA adapter cables. To ensure a secure connection, each SATA port on the included cables features a locking connector, that will prevent the drive from accidental disconnection when working inside your computer case.

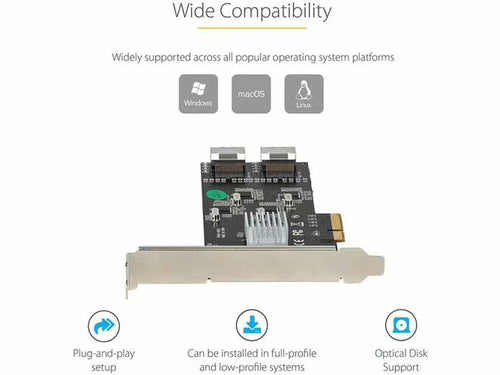

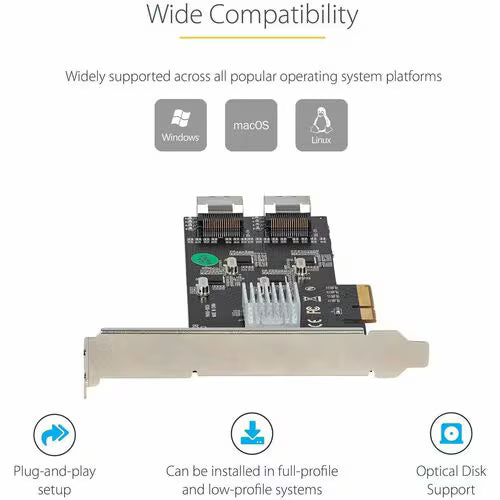

Wide Compatibility

The PCIe MUX that's built into this controller card manages the downstream controllers, which improves motherboard compatibility by ensuring the card will work with motherboards that support bifurcation and motherboards that do not. To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with supports for PCIe Gen 2 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe Gen 1) at lower performance.

The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 - 11) and Linux (2.6.32 and above).

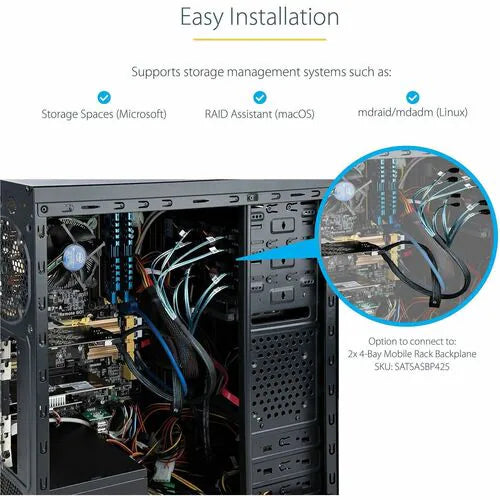

Hassle-Free Installation

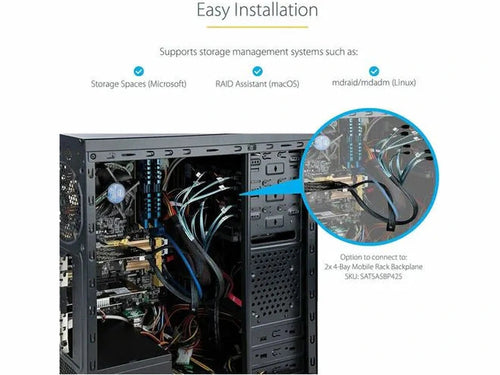

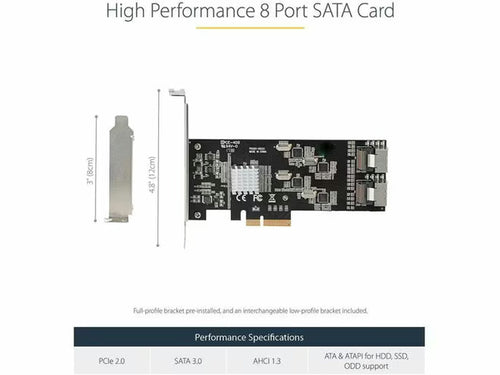

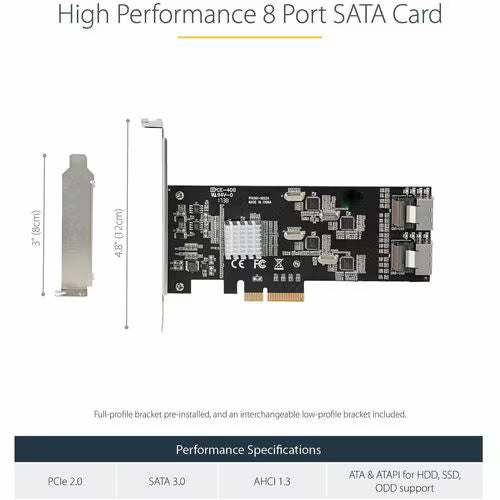

The SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

8P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

Specification

Interfaces/Ports
SAS Connector Details 2 SFF-8087 (36 Pin, Internal Mini-SAS)
Total Number of SATA Ports 8
Number of SATA Ports (Internal) 8
Miscellaneous
Platform Supported Linux
Mac
PC
Country of Origin China
Environmentally Friendly Yes

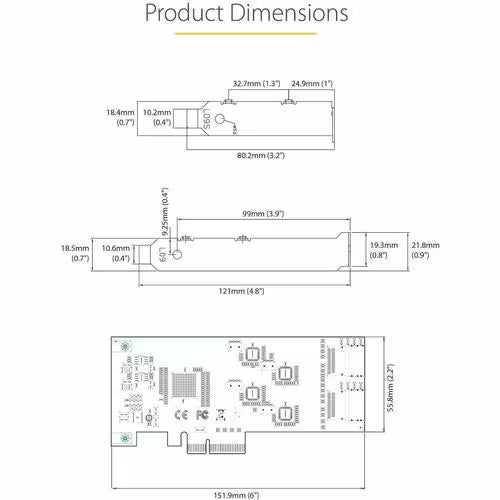

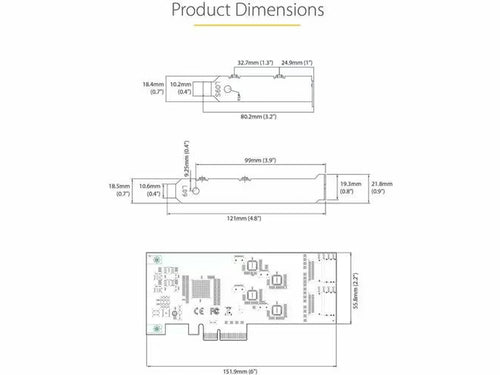

Physical Characteristics
Weight (Approximate) 75 g
Form Factor Plug-in Card
Length 149.9 mm
Height 15.2 mm
Width 68.6 mm
General Information
Product Type SATA Controller
Manufacturer Part Number 8P6G-PCIE-SATA-CARD
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1
Manufacturer StarTech.com
Product Name PCIe SATA Card
Brand Name StarTech.com
Technical Information
Host Interface PCI Express 2.0 x4
Device Supported Server
Controller Type Serial ATA/600
Operating System Supported Windows 7
Windows 11
Windows 10
Mac OS X 13.0 Ventura
Windows 8
Windows Server 2003
Windows Server 2008 R2
Windows Server 2012
Windows Server 2019
Windows Server 2022
Windows Server 2012 R2
Windows Server 2016
Mac OS X 11.0 Big Sur
Mac OS X 10.15 Catalina
Mac OS X 10.14 Mojave
Mac OS X 10.13 High Sierra
Mac OS X 10.12 Sierra
Mac OS X 10.11 El Capitan
Mac OS X 10.10 Yosemite
Linux 2.6.32
Windows 8.1
Mac OS X 12.0 Monterey
Maximum Data Transfer Rate 5.86 Gbit/s
RAID Supported No
