Description
Overview

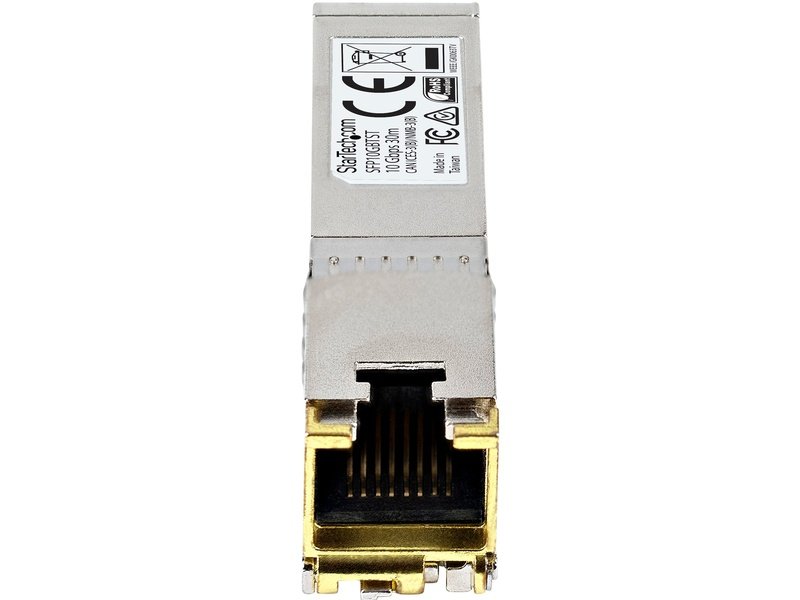

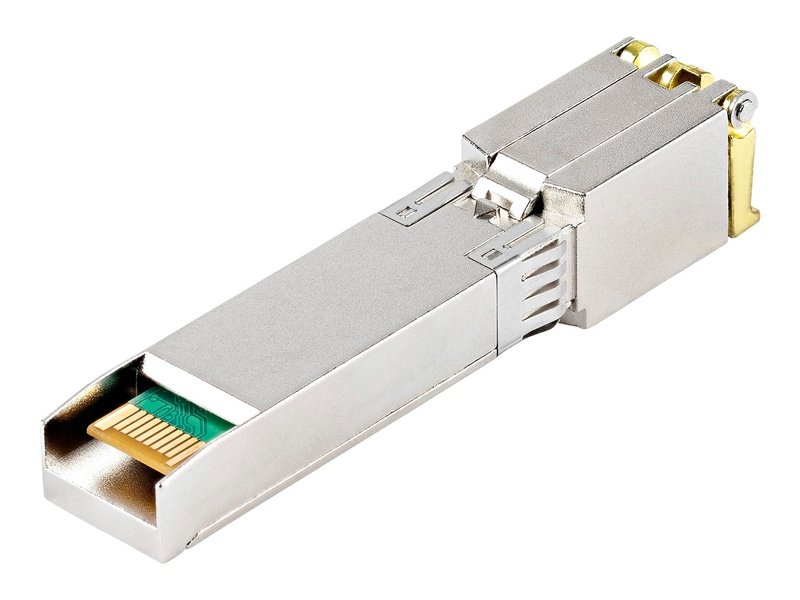

The SFP10GBTST is an MSA compliant copper SFP transceiver that's designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Specifications
The SFP10GBTST is an MSA compliant copper SFP transceiver that's designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Specifications
| Application/Usage | Data Networking |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Interfaces/Ports Details | 1 x RJ-45 Duplex 10GBase-T Network LAN |
| Connector Type | RJ-45 |
| Total Number of Ports | 1 |
| Network Technology | 10GBase-T |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 28.3 g |
| Form Factor | Hot-swappable |
| Hot-pluggable | |
| Height | 12.7 mm |
| Width | 12.7 mm |
| Depth | 71.1 mm |
