Description
Overview

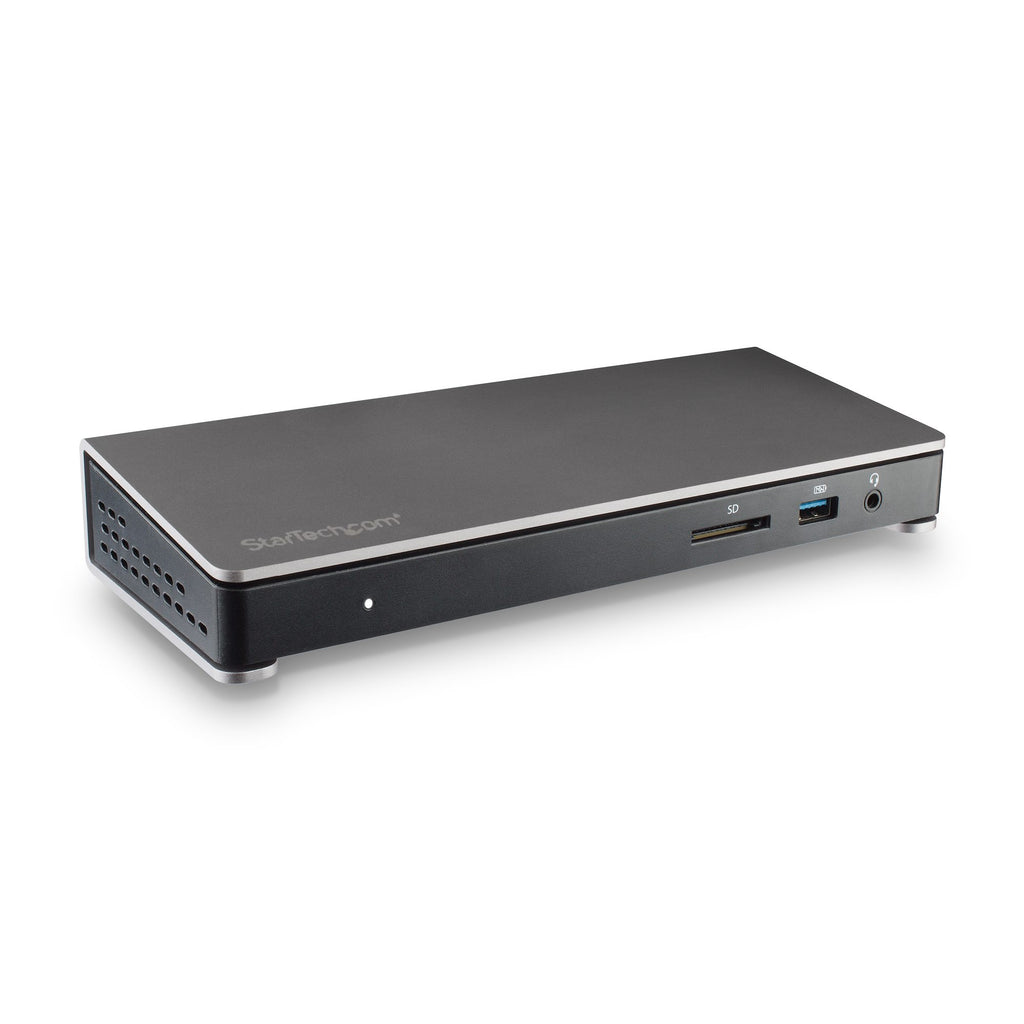

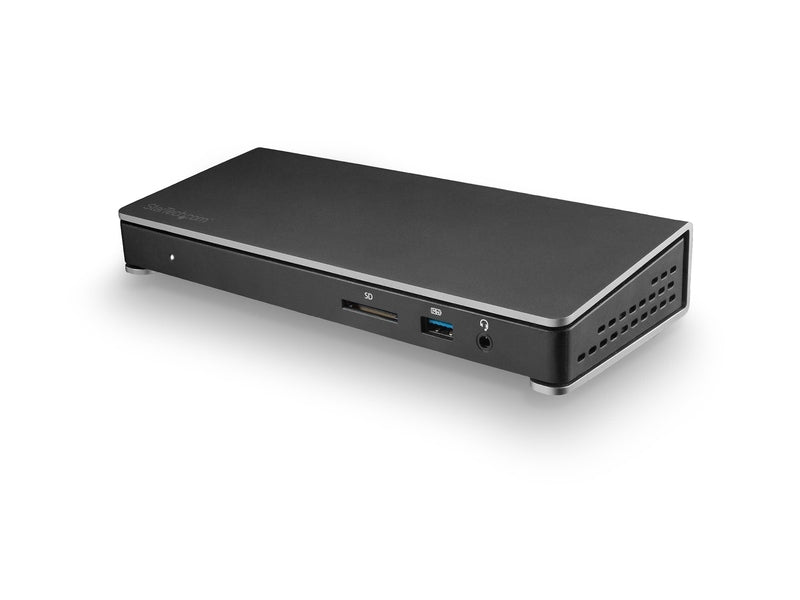

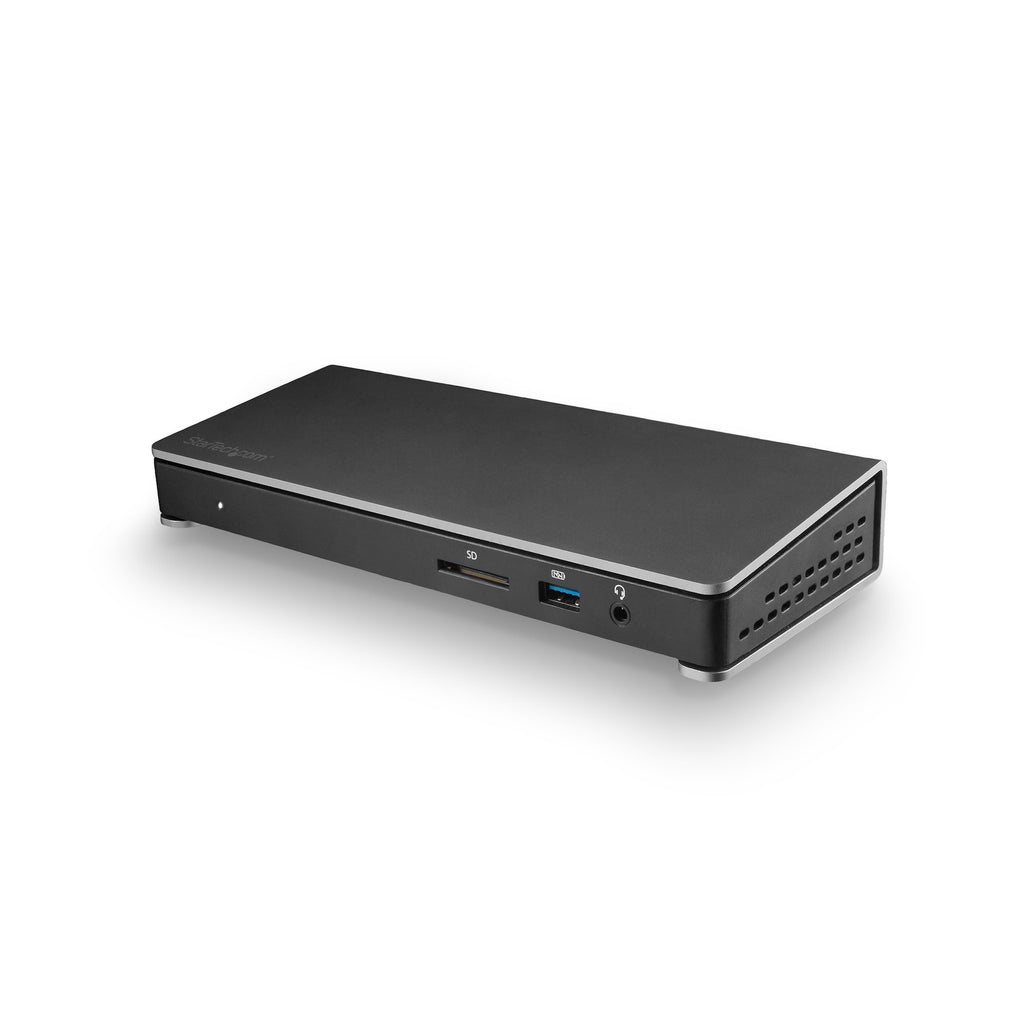

Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac
Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD
Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.
Create a Dual-4K 60Hz Workstation
This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.
Connect your laptop to:
- 1 x 4K monitor via the DP Port
- 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
- 1 x 5K monitor via the DP and TB3 USB-C ports
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.
Plenty of Ports Including SD Card Reader

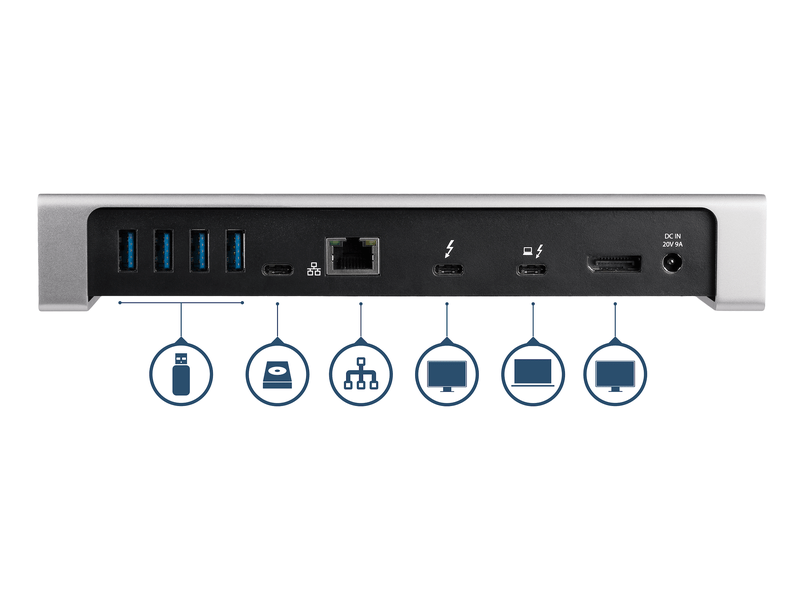

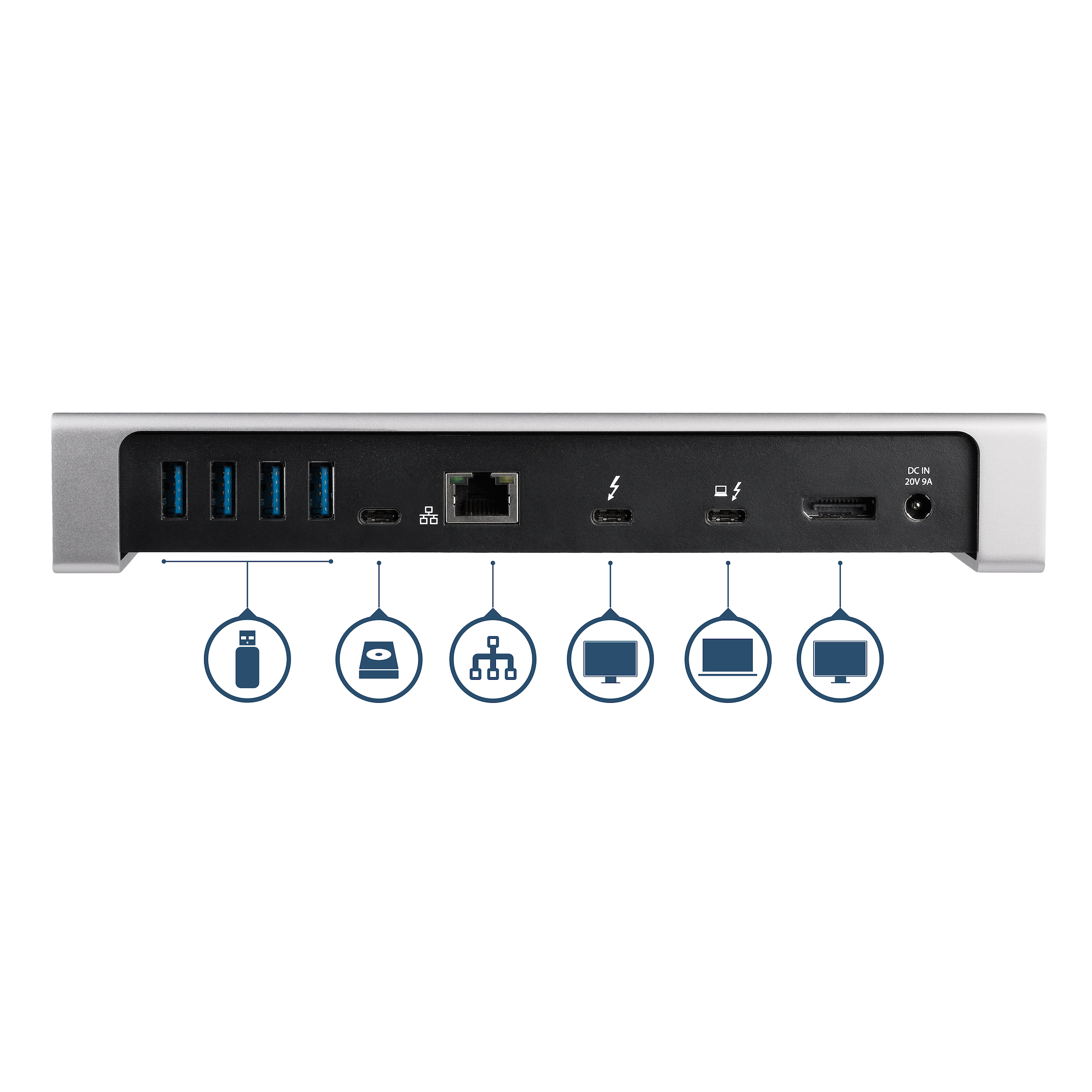

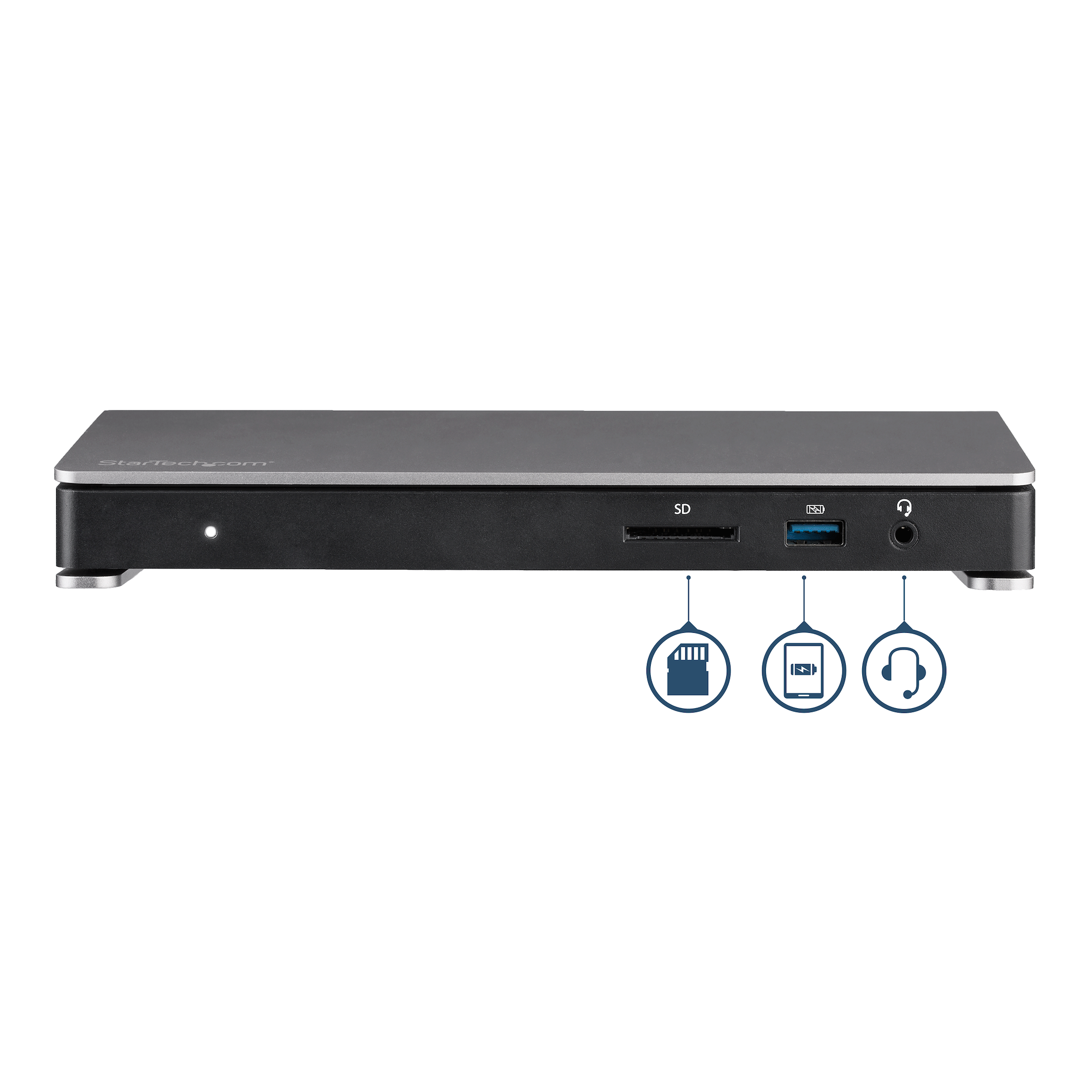

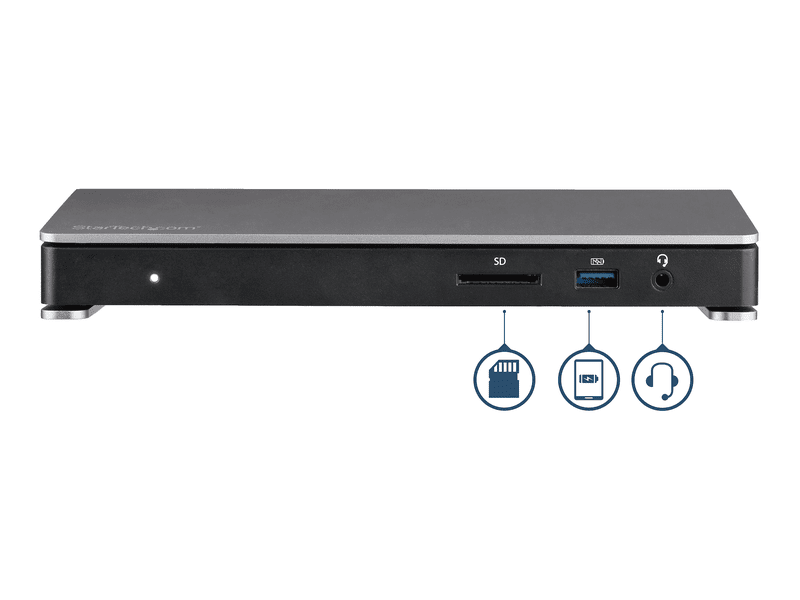

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac
Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD
Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.
Create a Dual-4K 60Hz Workstation
This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.
Connect your laptop to:
- 1 x 4K monitor via the DP Port
- 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
- 1 x 5K monitor via the DP and TB3 USB-C ports
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.
Plenty of Ports Including SD Card Reader
The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Thunderbolt 3 Docking Station Specifications | |
---|---|
Connector(s) | |
Connector Type(s) | 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) 1 - DisplayPort (20 pin) 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - USB 3.2 Type-A (9 pin, Fast-Charge) 4 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) 1 - RJ-45 1 - 3.5 mm Mini-Jack (4 Position) |
Environmental | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 0~95% RH |
Hardware | |
4K Support | Yes |
Fast-Charge Port(s) | Yes |
Displays Supported | 2 |
Bus Type | Thunderbolt 3 |
Industry Standards | Thunderbolt 3 USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
Chipset ID | Intel - Alpine Ridge JHL6540 Texas Instruments - TPS65983 Fresco - FL1100EX Intel - WGI210AT C-Media - CM6533 Genesys Logic - GL3226 |
Packaging Information | |
Shipping (Package) Weight | 4.0 lb [1.8 kg] |
Package Quantity | 1 |
Package Length | 11.7 in [29.8 cm] |
Package Width | 5.8 in [14.8 cm] |
Package Height | 3.7 in [9.5 cm] |
Performance | |
Maximum Data Transfer Rate | 40 Gbps (Thunderbolt 3) 10 Gbps (USB 3.1 Gen 2) 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
Maximum Digital Resolutions | Dual displays - DisplayPort and Thunderbolt 3 USB-C: 4096 x 2160p / 3840 x 2160p @ 60Hz Single 4K display - DisplayPort or Thunderbolt 3 USB-C: 4096 x 2160p / 3840 x 2160p @ 60Hz Single 5K display - 5120 x 2880p (via Thunderbolt 3 USB-C) |
Type and Rate | Thunderbolt 3 - 40 Gbit/s |
UASP Support | Yes |
Memory Media Type | SD/MMC SDHC SDXC microSD (adapter required) microSDHC (adapter required) microSDXC (adapter required) |
Compatible Networks | 10/100/1000 Mbps |
Auto MDIX | Yes |
PXE | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Color | Space Gray |
Material | Aluminum |
Product Length | 8.7 in [22.2 cm] |
Product Width | 3.4 in [8.7 cm] |
Product Height | 1.3 in [3.4 cm] |
Weight of Product | 1.1 lb [0.5 kg] |
Power | |
Power Source | AC Adapter Included |
Power Delivery | 85W |
Input Voltage | 100 - 240 AC |
Input Current | 2.5 A |
Output Voltage | 20V DC |
Output Current | 9 A |
Center Tip Polarity | Positive |
Plug Type | N |
Power Consumption | 180 W |
Software | |
OS Compatibility | Windows® 8, 8.1, 10, 11 macOS 10.12–15.0 |
Special Notes / Requirements | |
System and Cable Requirements | Thunderbolt 3 equipped computer with Thunderbolt 3 port Port must support USB Power Delivery 2.0 to charge laptop |
Note | 4K-capable display required for 4K x 2K resolution USB-C video adapter may be needed depending on display input USB 3.0 = USB 3.1 Gen 1 (5Gbps); USB 3.1 Gen 2 = 10Gbps Apple M1 Macs support only one external display via Thunderbolt 3 Intel-based Macs are not affected by this limitation |
What's in the Box | |
Included in Package | 1 - docking station 1 - Thunderbolt 3 cable 1 - USB-C to DisplayPort cable 1 - universal power adapter 2 - power cords (NA/JP, ANZ) 1 - instruction manual |
