Description
Overview

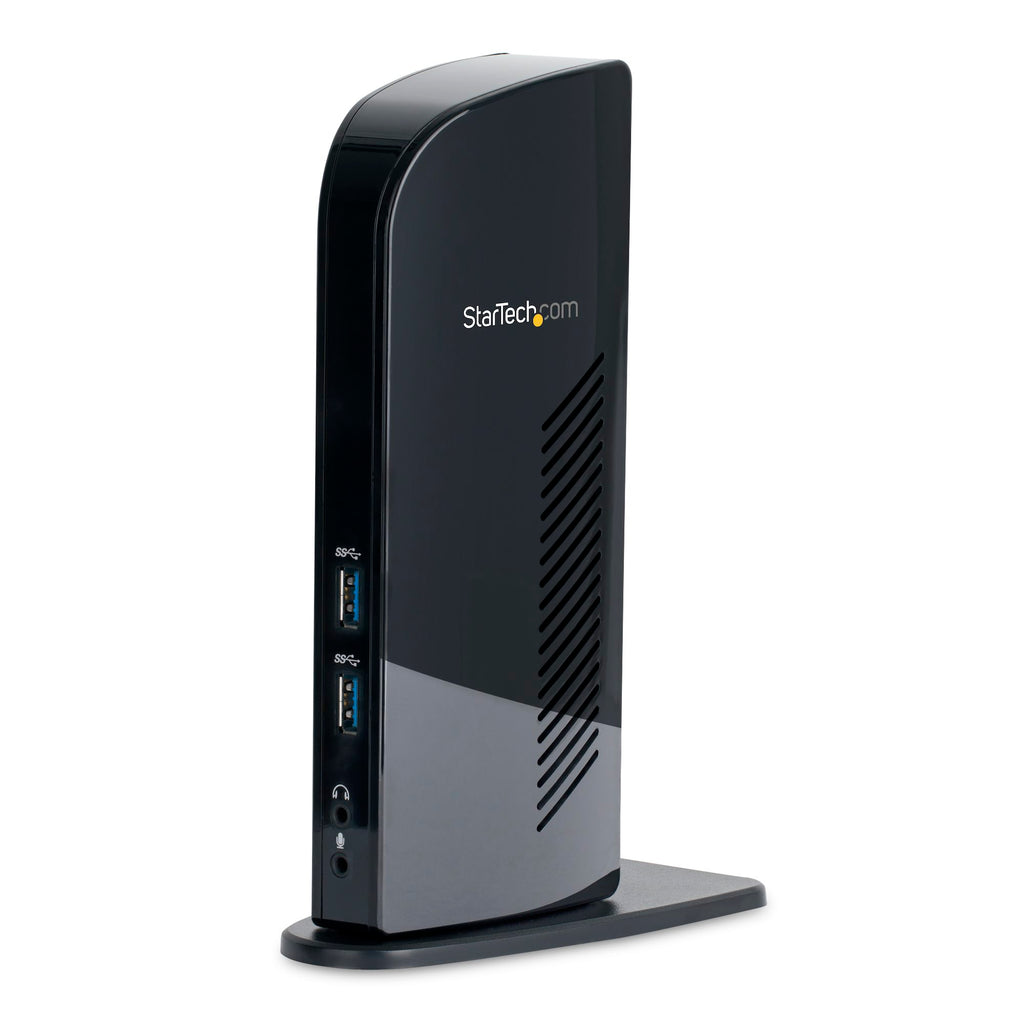

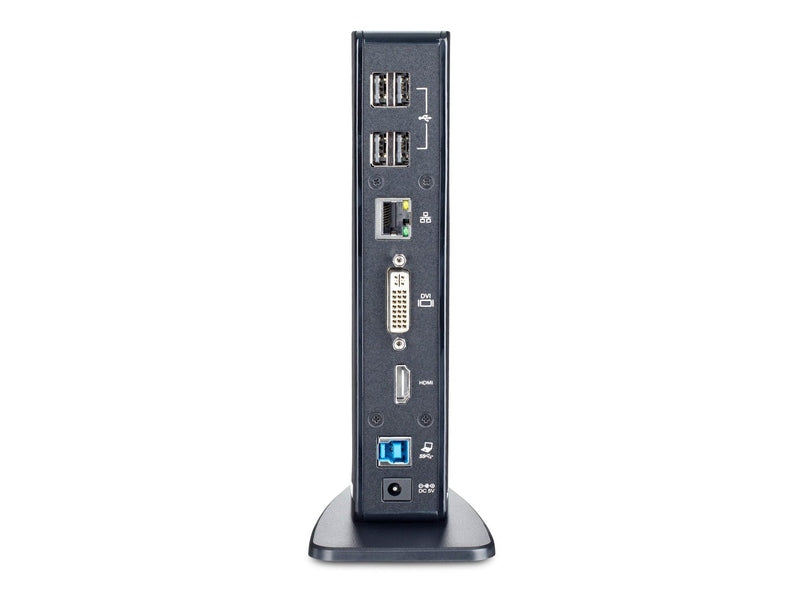

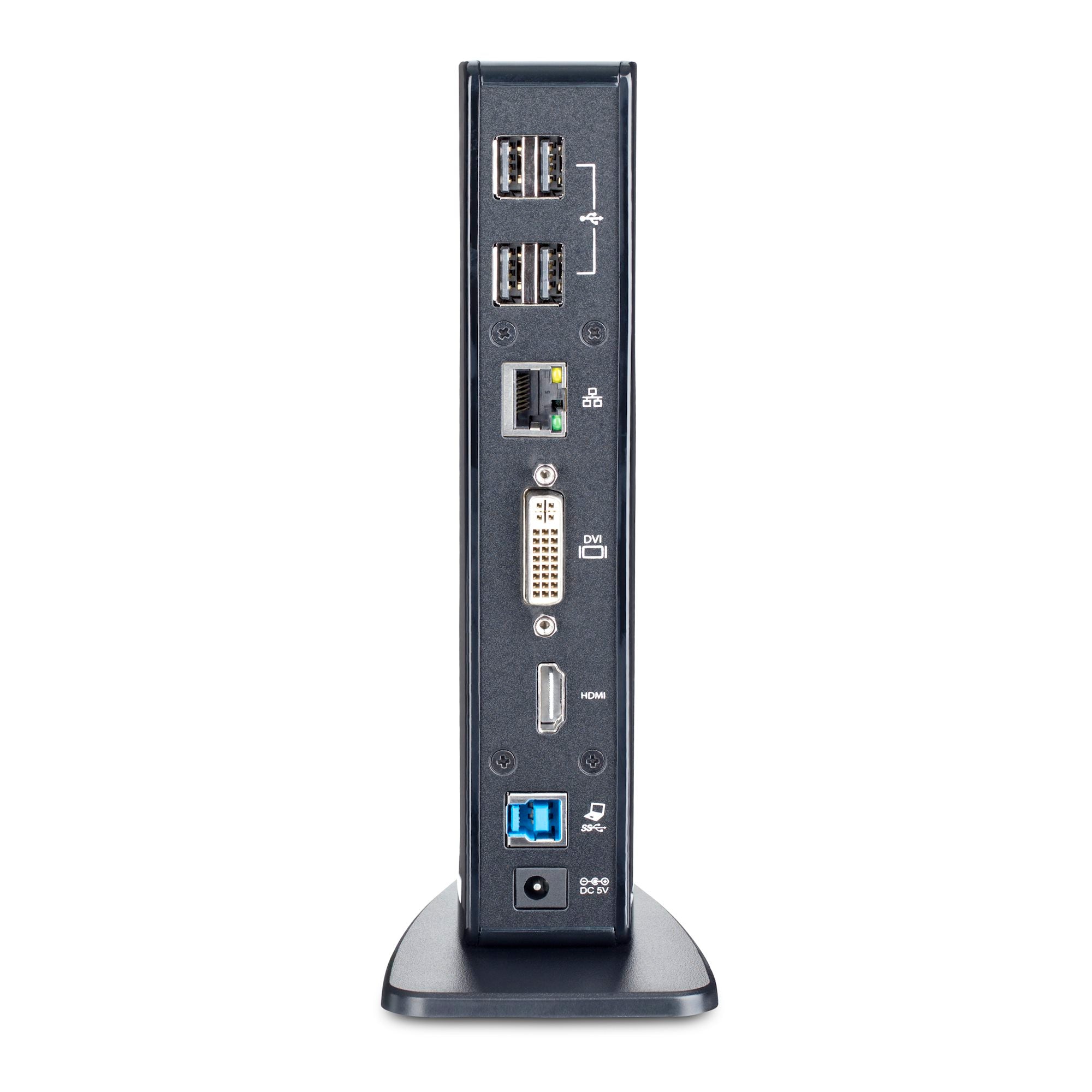

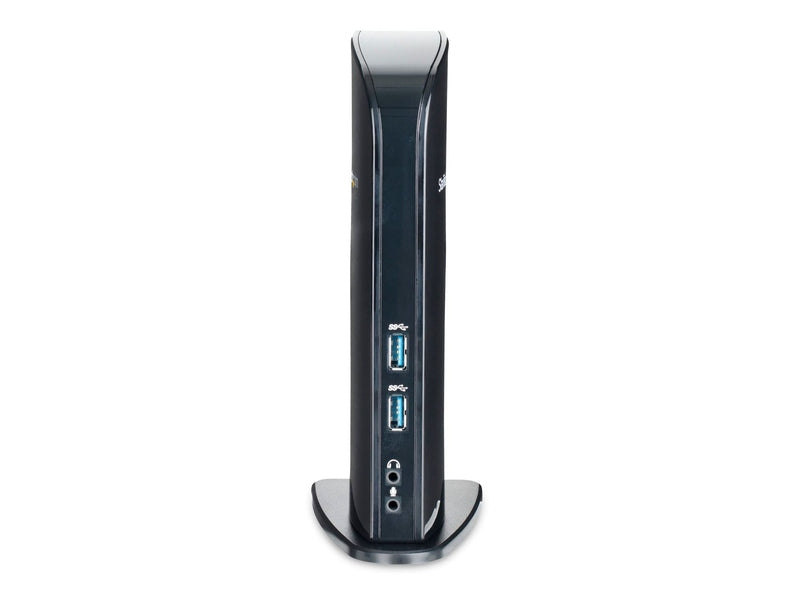

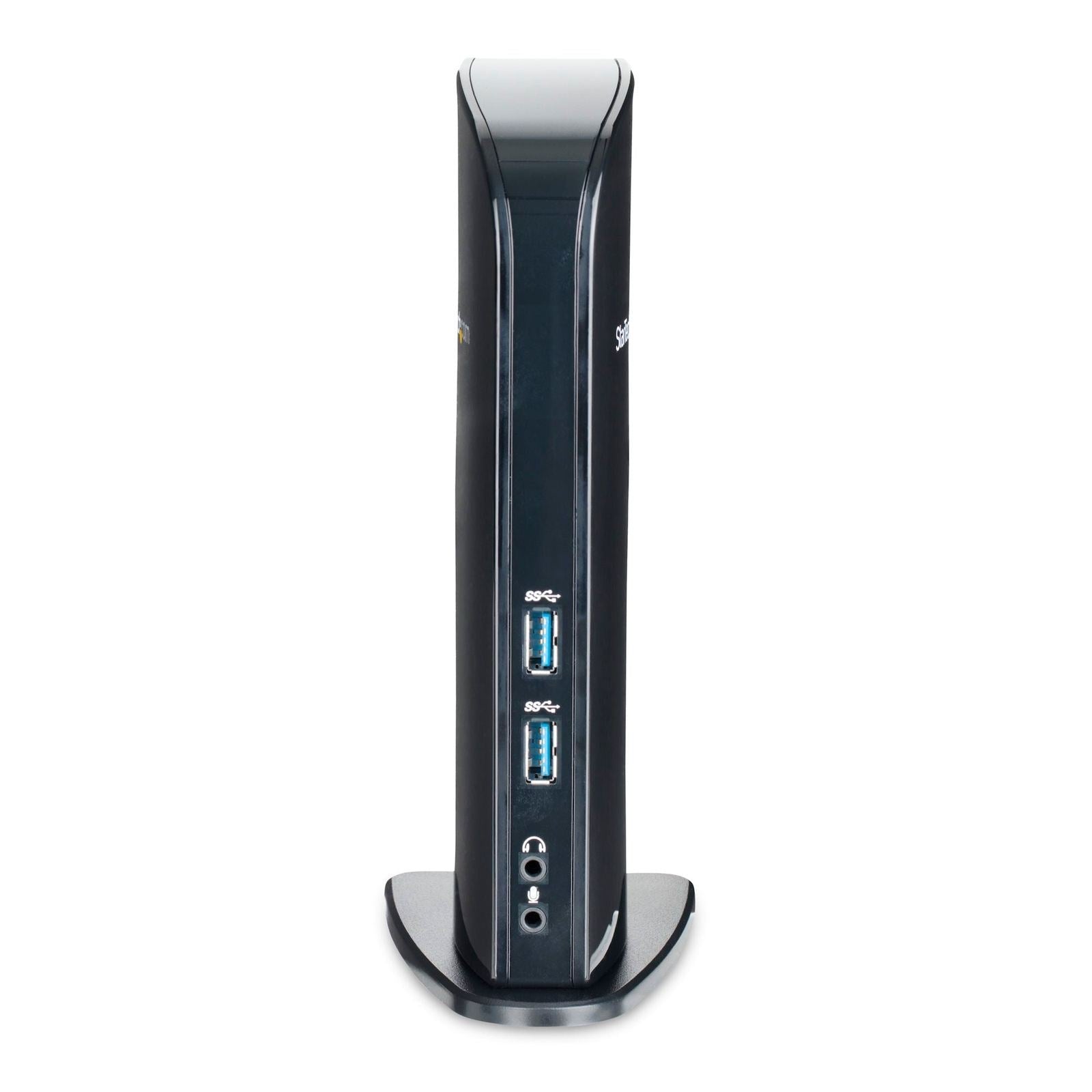

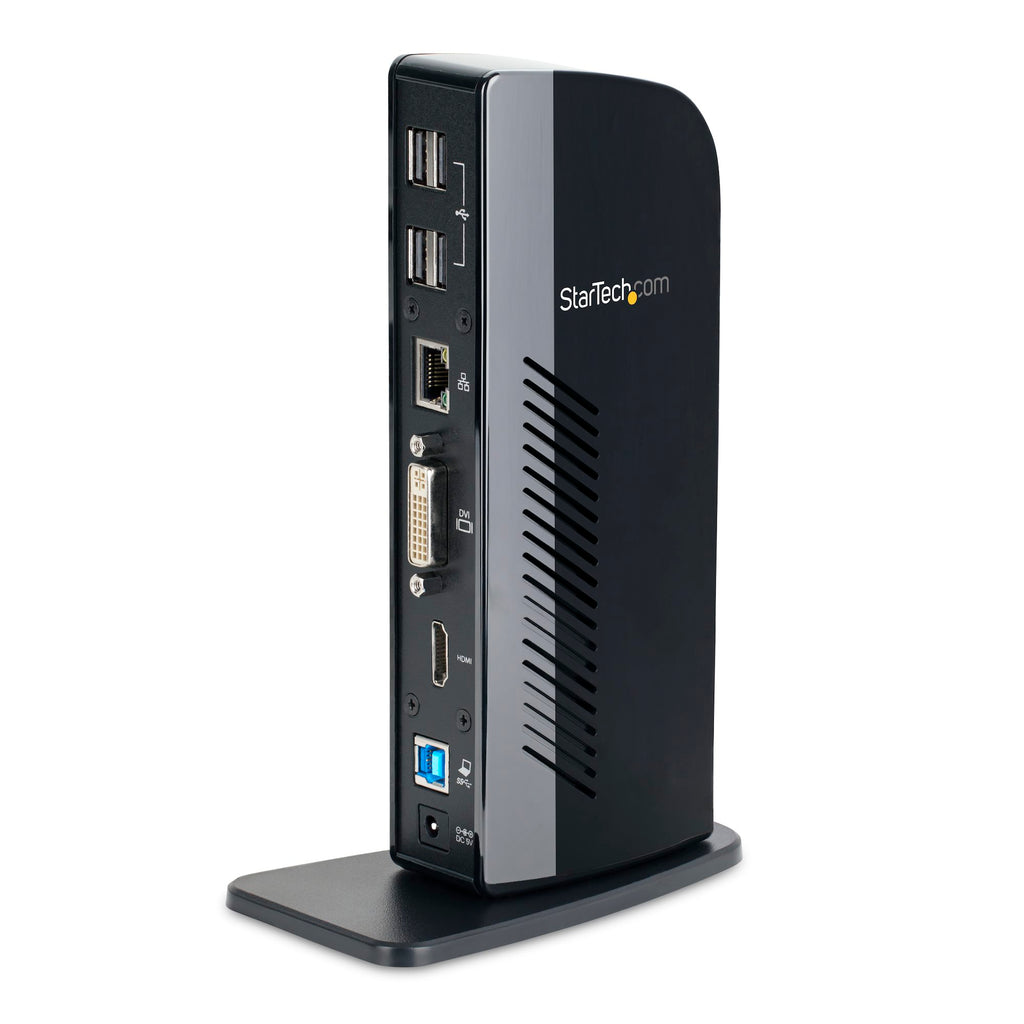

Dual Monitor USB 3.0 Laptop Docking Station with HDMI & DVI/VGA, 6x USB-A Hub, GbE, Audio, Universal Type-A Dock - Windows/macOS/ChromeOS - TAA
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
Dual Monitor USB 3.0 Laptop Docking Station with HDMI & DVI/VGA, 6x USB-A Hub, GbE, Audio, Universal Type-A Dock - Windows/macOS/ChromeOS - TAA
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
USB 3.0 Docking Station Specifications | |
---|---|
Connector(s) | |
Connector Type(s) | 2 - 3.5 mm Mini-Jack (3 Position) 1 - DVI-I (29 pin) 1 - HDMI (19 pin) 1 - RJ-45 2 - USB Type-A (9 pin, 5 Gbps) 4 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
Environmental | |
Operating Temperature | 10°C to 40°C (50°F to 104°F) |
Storage Temperature | -10°C to 80°C (14°F to 176°F) |
Hardware | |
4K Support | No |
Fast-Charge Port(s) | No |
Displays Supported | 2 |
Bus Type | USB 3.2 Gen 1 (5Gbps) |
Industry Standards | IEEE 802.3, 802.3u, and 802.3ab |
Chipset ID | DisplayLink - DL-3900 VIA/VLI - VL810 Terminus - FE1.1 Realtek - RTL8211E |
LED Indicators | 1 - USB Hub Link (Blue) 1 - Power (Blue) |
Packaging Information | |
Package Height | 4.3 in [10.9 cm] |
Package Length | 7.5 in [19.1 cm] |
Package Width | 11.1 in [28.3 cm] |
Shipping (Package) Weight | 2.0 lb [0.9 kg] |
Package Quantity | 1 |
Performance | |
Maximum Digital Resolutions | 1920 x 1200 Lower resolutions are also supported. |
Type and Rate | USB 2.0 - 480 Mbit/s USB 3.0 - 5 Gbit/s |
Compatible Networks | 10/100/1000 Mbps |
Auto MDIX | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Weight of Product | 13.1 oz [370.0 g] |
Color | Black |
Material | Plastic |
Product Length | 4.9 in [12.5 cm] |
Product Width | 2.8 in [7.0 cm] |
Product Height | 7.7 in [19.5 cm] |
Power | |
Power Source | AC Adapter Included |
Input Voltage | 100 - 240 AC |
Input Current | 0.8A |
Output Voltage | 5 DC |
Output Current | 4A |
Plug Type | C |
Power Consumption (In Watts) | 20 |
Software | |
OS Compatibility | Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10, 11 macOS 10.6–10.12, 10.14–15.0 Chrome OS™ v55+ Ubuntu 18.04, 20.04, 22.04, 24.04 |
Special Notes / Requirements | |
System and Cable Requirements | CPU: i3 Dual core 2.8GHz or better RAM: 2GB or higher Available USB 3.0 port |
Note | The DVI-I connector supports DVI-I signaling (digital and analog) |

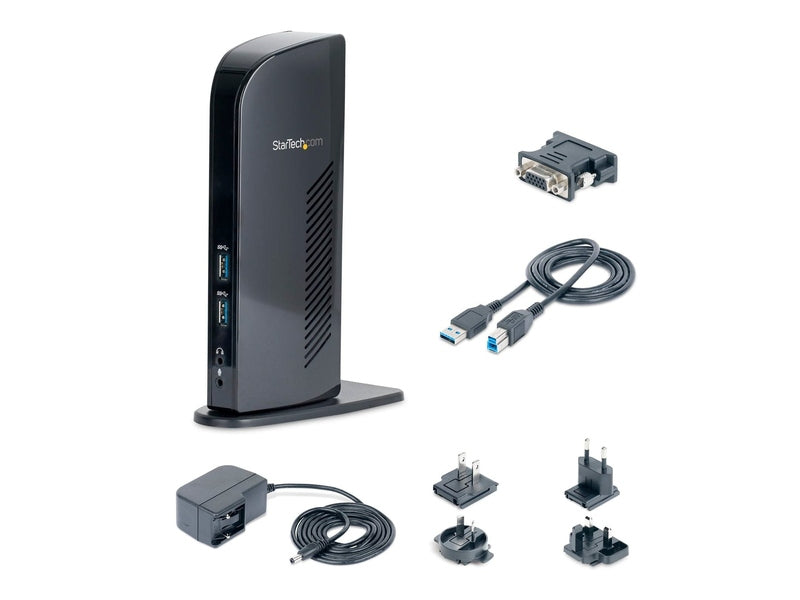

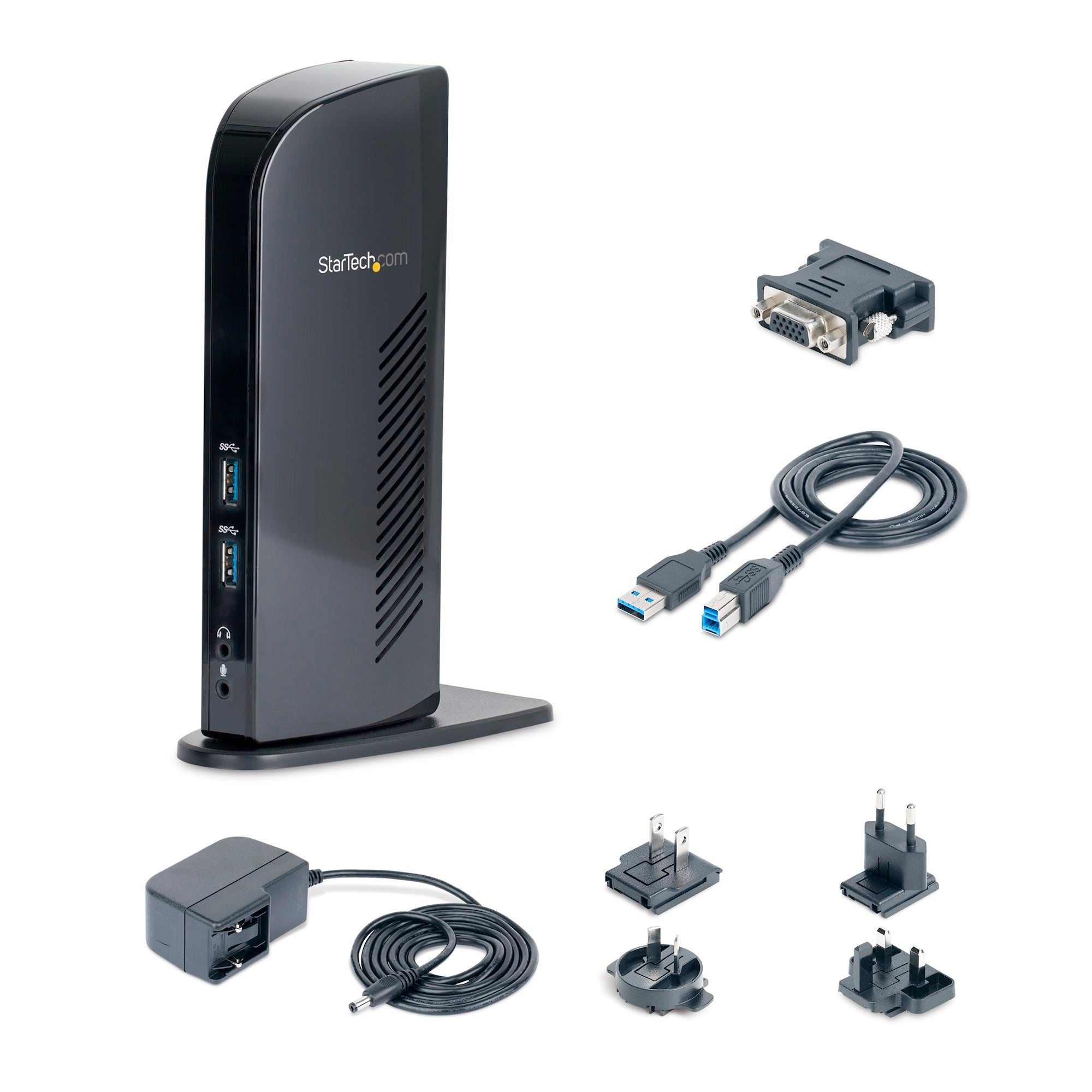

What's in the Box | |
Included in Package | 1 - USB 3.0 Docking Station 1 - 3.3 ft [1 m] USB 3.0 Cable 1 - DVI to VGA Adapter 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ) 1 - Instruction Manual |
