USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac
Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter

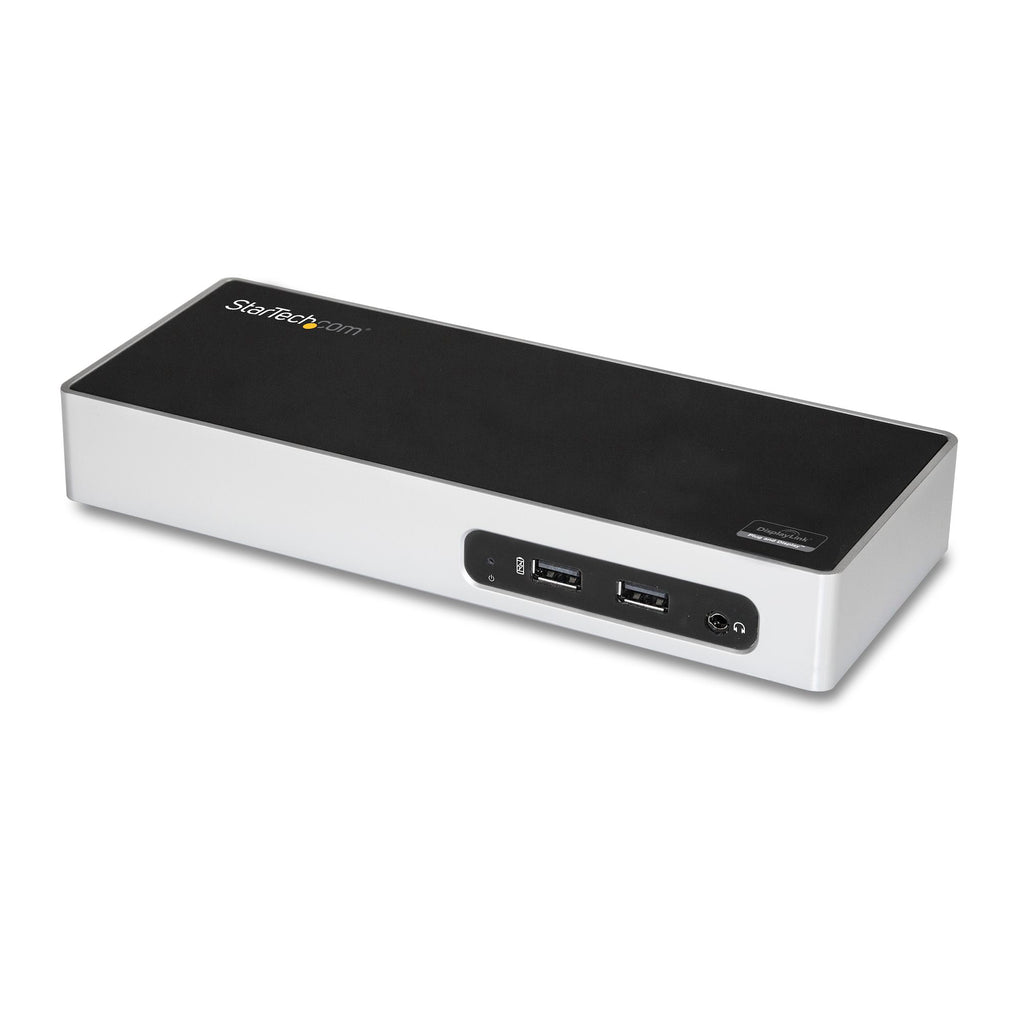

This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
- 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
- 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need

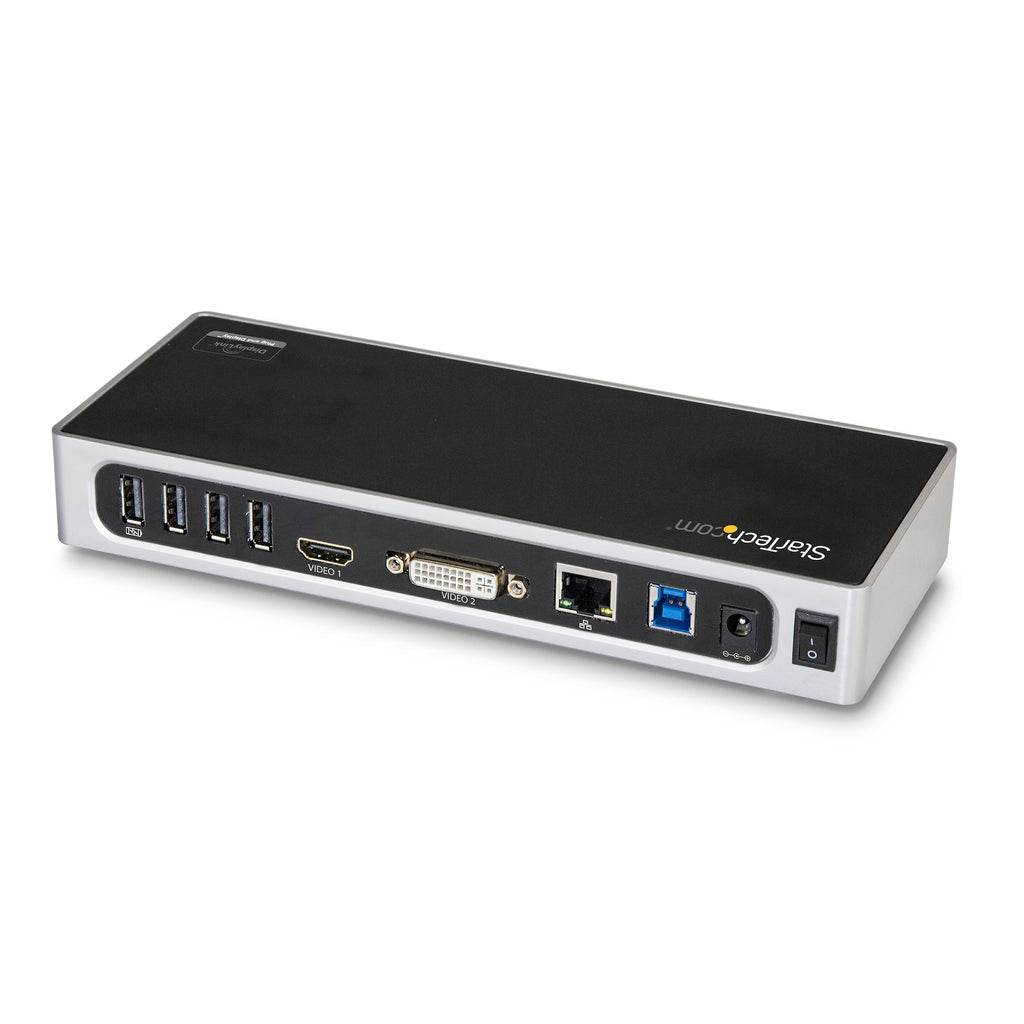

Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac
Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter
This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
- 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
- 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need
Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
Docking Station Specifications | |
---|---|
Connector(s) | |
Connector Type(s) | 1 - DVI-I (29 pin) 1 - HDMI (19 pin) 2 - USB 3.2 Type-A (9 pin, Fast-Charge) 4 - USB Type-A (9 pin, 5 Gbps) 1 - RJ-45 1 - 3.5 mm Mini-Jack (3 Position) 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps) |
Environmental | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -10°C to 70°C (14°F to 158°F) |
Humidity | 10–90% non-condensing |
Hardware | |
4K Support | No |
Fast-Charge Port(s) | Yes |
Displays Supported | 2 |
Interface | USB 3.2 Gen 1 (5Gbps) |
Bus Type | USB 3.2 Gen 1 (5Gbps) |
Industry Standards | USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1 |
Chipset ID | DisplayLink - DL-3900, VIA/VLI - VL813 |
LED Indicators | 1 - Power |
Packaging Information | |
Shipping (Package) Weight | 1.7 lb [0.8 kg] |
Package Quantity | 1 |
Package Length | 5.6 in [14.2 cm] |
Package Width | 12.1 in [30.7 cm] |
Package Height | 2.4 in [6.2 cm] |
Performance | |
Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex) |
Maximum Digital Resolutions | Dual displays - HDMI + DVI - 2048 x 1152 @ 60Hz Dual displays - HDMI 2048 x 1152 + VGA 1920 x 1200 @ 60Hz |
Type and Rate | USB 3.0 - 5 Gbit/s |
UASP Support | Yes |
Compatible Networks | 10/100/1000 Mbps |
Auto MDIX | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Color | Black & Silver |
Material | Plastic |
Cable Length | 39.4 in [1000 mm] |
Product Length | 8.5 in [21.6 cm] |
Product Width | 3.4 in [8.6 cm] |
Product Height | 1.2 in [3.1 cm] |
Weight of Product | 10.3 oz [291.0 g] |
Power | |
Power Source | AC Adapter Included |
Input Voltage | 110V–240V AC |
Input Current | 2A |
Output Voltage | 20V DC |
Output Current | 2A |
Center Tip Polarity | Positive |
Plug Type | N |
Power Consumption (In Watts) | 40W |
Software | |
OS Compatibility | Windows® 7, 8, 8.1, 10, 11 macOS 10.10–10.12, 10.14–10.15, 11.0–15.0 Ubuntu 18.04, 20.04, 22.04, 24.04 |
Special Notes / Requirements | |
System and Cable Requirements | A host laptop with an available USB-A port. |
Note | USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. A DVI to VGA adapter is included. |
What's in the Box | |
Included in Package | 1 - docking station 1 - USB 3.0 cable 1 - DVI to VGA adapter 1 - universal power adapter (NA/JP, UK, EU, ANZ) 1 - quick-start guide |
