Description
Overview

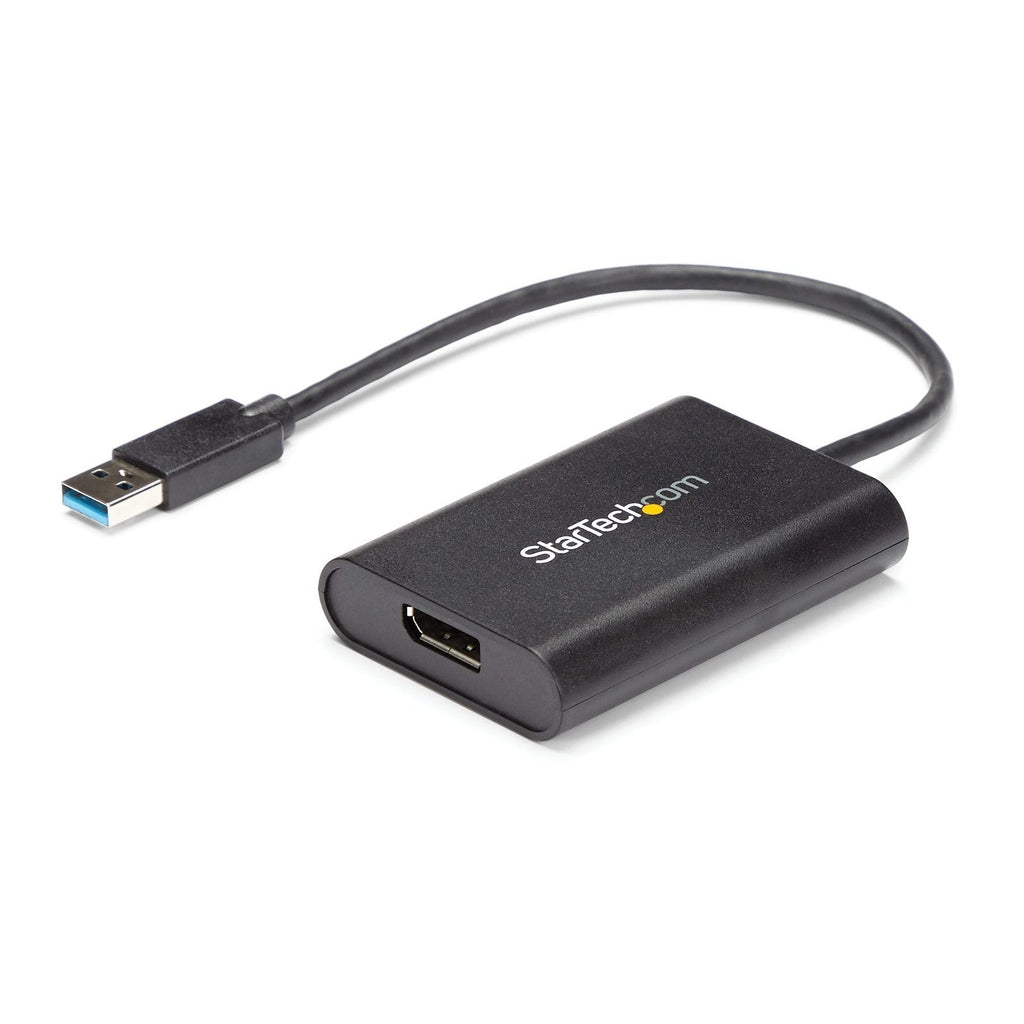

USB 3.0 to DisplayPort Adapter, USB DP Monitor Converter for Windows, 4K (no support for macOS/ChromeOS/Linux) - TAA
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
This USB to DisplayPort adapter lets you connect your computer to a 4K DisplayPort monitor using a USB 3.0 Type-A port, even if your computer doesn't support 4K video.
Increase your productivity by adding a 4K display
This USB to DP adapter can boost your productivity by providing more screen space to work with. Having multiple displays gives you the freedom to access two full-screen applications simultaneously, enabling you to reference material on one display while composing on another. The adapter even supports display rotation for a vertical screen that's ideal for viewing spreadsheets, newsfeeds or stock tickers.
Easy-to-install
The multi-monitor adapter is powered by your computer's USB Type-A port, so you won't need to connect a bulky external power adapter. Plus, the drivers install quickly and easily and only need to be installed once, regardless of how many USB video adapters you want to connect.
Get astonishing picture quality with 4K video
Even if your system doesn't natively support 4K video output, this USB video adapter lets you enjoy the picture quality of Ultra HD video. With support for 4K at 30Hz, you get sharp and crisp picture quality that's richer and more true-to-life than traditional HD, with far greater detail in both darker and brighter images.
USB 3.0 to DisplayPort Adapter, USB DP Monitor Converter for Windows, 4K (no support for macOS/ChromeOS/Linux) - TAA
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
This USB to DisplayPort adapter lets you connect your computer to a 4K DisplayPort monitor using a USB 3.0 Type-A port, even if your computer doesn't support 4K video.
Increase your productivity by adding a 4K display
This USB to DP adapter can boost your productivity by providing more screen space to work with. Having multiple displays gives you the freedom to access two full-screen applications simultaneously, enabling you to reference material on one display while composing on another. The adapter even supports display rotation for a vertical screen that's ideal for viewing spreadsheets, newsfeeds or stock tickers.
Easy-to-install
The multi-monitor adapter is powered by your computer's USB Type-A port, so you won't need to connect a bulky external power adapter. Plus, the drivers install quickly and easily and only need to be installed once, regardless of how many USB video adapters you want to connect.
Get astonishing picture quality with 4K video
Even if your system doesn't natively support 4K video output, this USB video adapter lets you enjoy the picture quality of Ultra HD video. With support for 4K at 30Hz, you get sharp and crisp picture quality that's richer and more true-to-life than traditional HD, with far greater detail in both darker and brighter images.
| USB 3.0 to DisplayPort Video Adapter Specifications | |
|---|---|
| Connector(s) | |

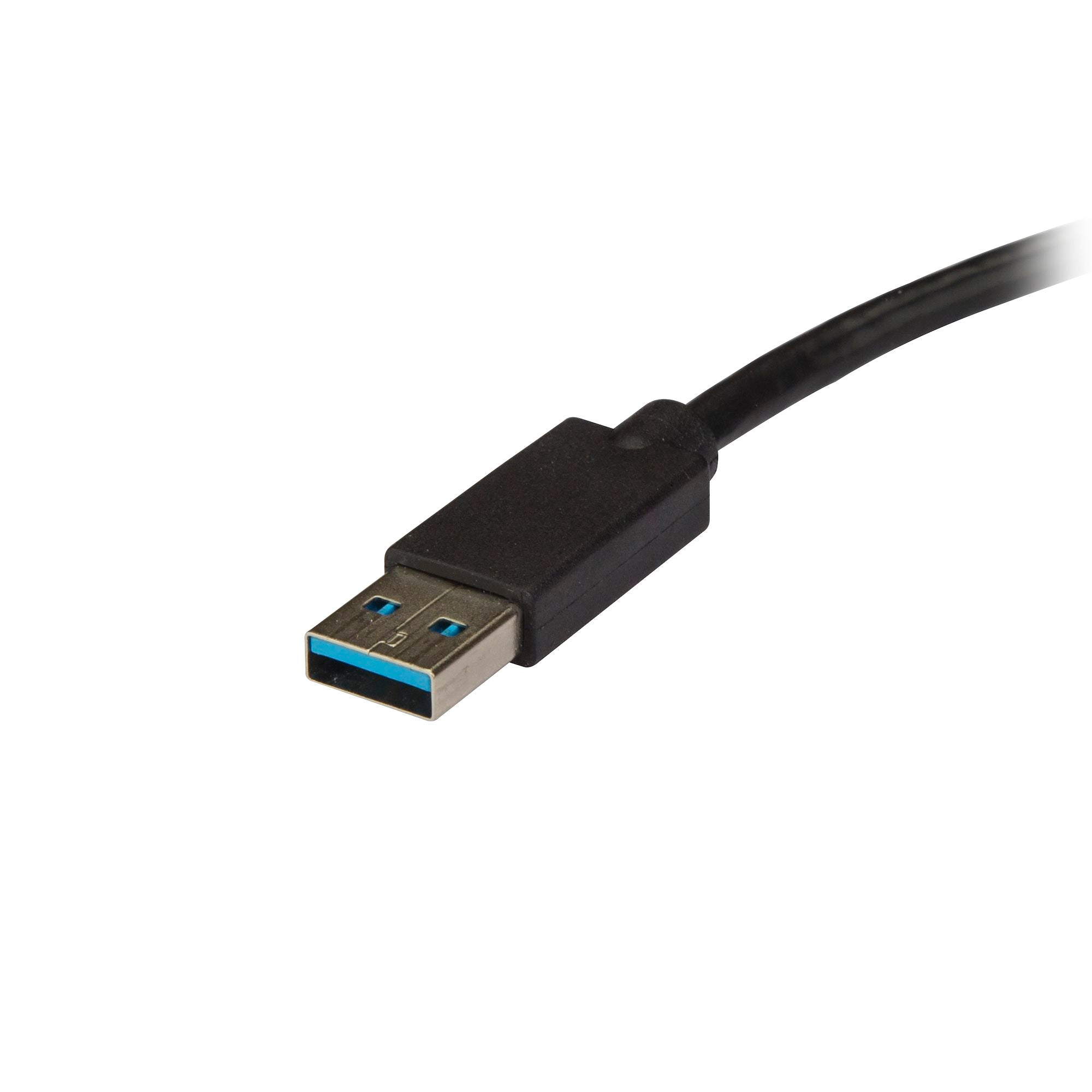

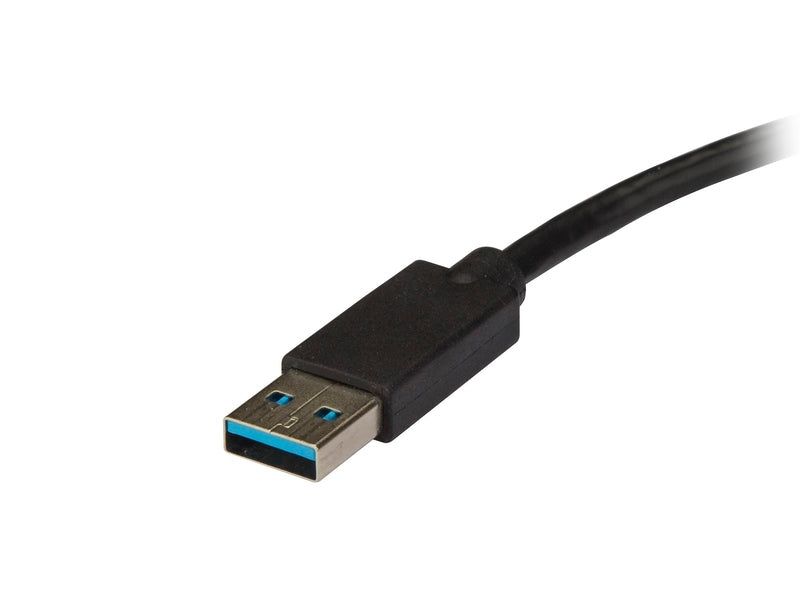

| Connector A | 1 × USB Type-A (9 pin, 5 Gbps) |

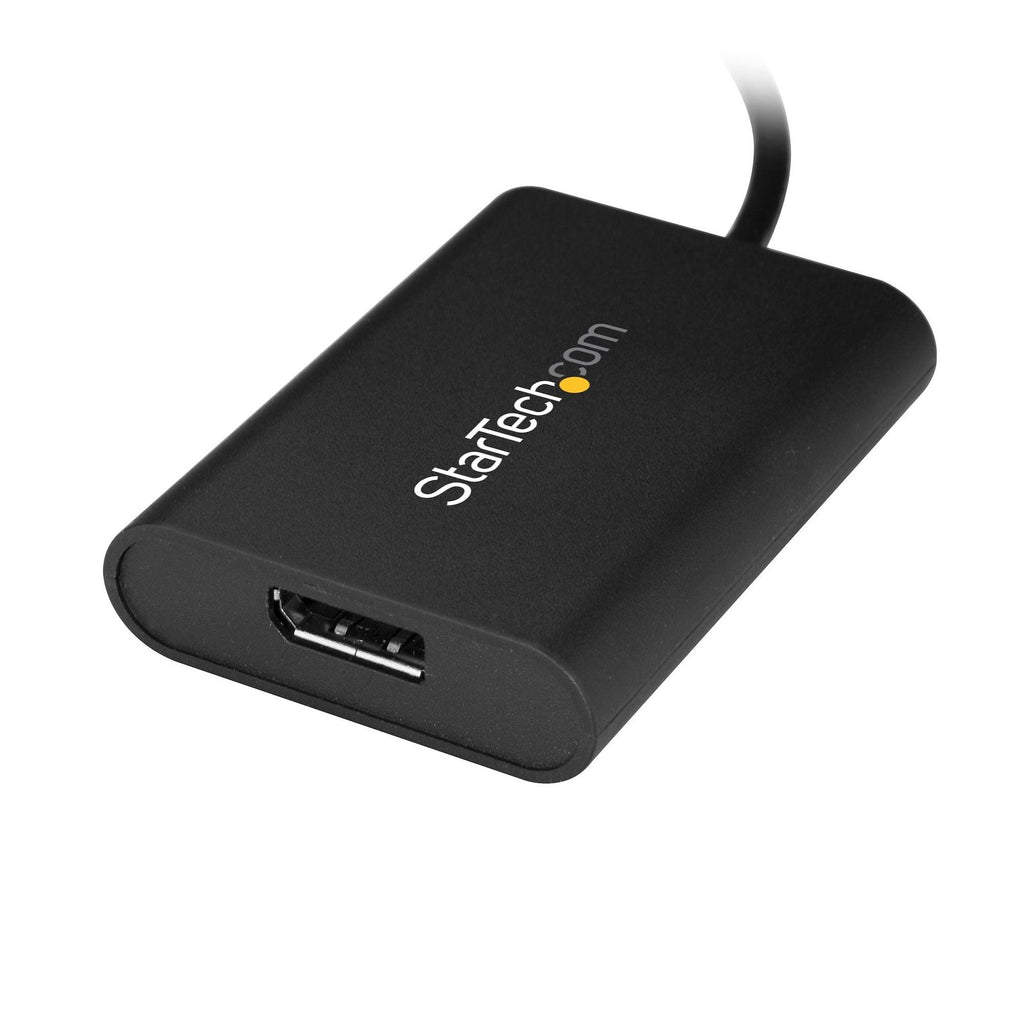

| Connector B | 1 × DisplayPort (20 pin) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 133°F) |
| Storage Temperature | -15°C to 75°C (5°F to 167°F) |
| Humidity | < 85% non-condensing |
| Hardware | |
| Ports | 1 |
| AV Input | USB 3.2 Gen 1 (5Gbps) |
| AV Output | DisplayPort |
| Audio | Yes |
| USB Pass-Through | No |
| Memory | 64MB |
| Chipset ID | Trigger T6-688L |
| Packaging Information | |
| Package Height | 1.7 in [4.2 cm] |
| Package Length | 5.7 in [14.6 cm] |
| Package Width | 8.4 in [21.3 cm] |
| Package Weight | 6.4 oz [182.0 g] |
| Package Quantity | 1 |
| Performance | |
| Maximum Digital Resolutions | 4K × 2K @ 30Hz |
| Supported Resolutions |
Widescreen (16/32 bit): 3840×2160, 2048×1152, 1920×1200, 1920×1080, 1680×1050, 1366×768, 1280×800, 1280×768, 1280×720 Standard (16/32 bit): 1600×1200, 1400×1050, 1280×1024, 1024×768, 800×600, 640×480 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Cable Length | 7.9 in [200 mm] |
| Product Length | 3.0 in [7.5 cm] |
| Product Width | 2.2 in [5.5 cm] |
| Product Height | 0.6 in [1.6 cm] |
| Product Weight | 2.0 oz [58.0 g] |
| Power | |
| Power Source | USB-Powered |
| Input Voltage | 5V DC |
| Output Voltage | 5V DC |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM macOS 10.6–10.12, 10.14–15.0 Ubuntu 18.04, 20.04, 22.04, 24.04 Chrome OS™ v55+ |
| Microsoft WHQL Certified | Yes |
| Special Notes / Requirements | |
| System and Cable Requirements | Quad Core 2.4GHz processor (i5 recommended), 4GB RAM |
| Note | Maximum of five USB video adapters per system. Not intended for graphically intensive applications such as gaming |
| What's in the Box | |
| Included Items | 1 × USB Video Adapter 1 × Quick-Start Guide |
