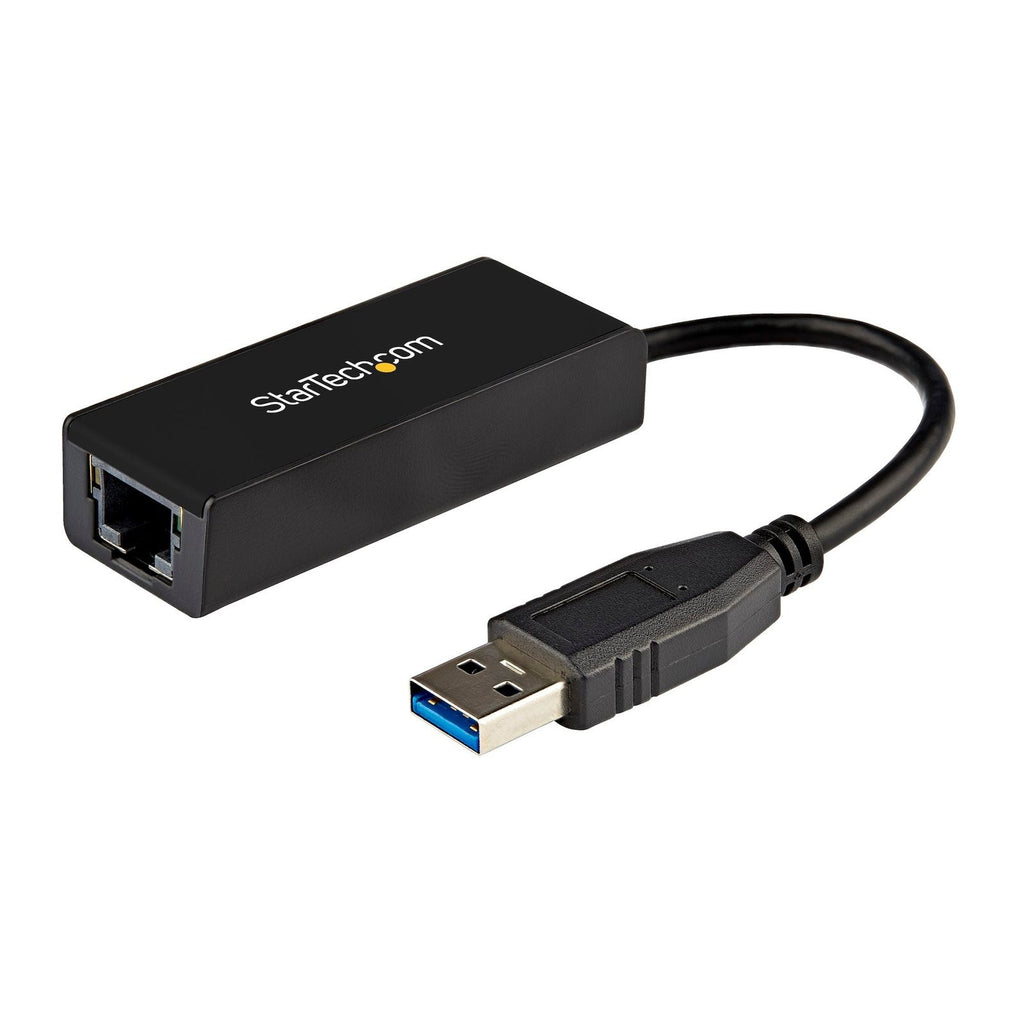

USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB to RJ45, USB 3.0 to LAN Adapter, USB 3.0 Ethernet Adapter (GbE), TAA Compliant
Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port
The USB31000S USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.
USB 3.0 to Gigabit Ethernet Network Adapter, 10/100/1000 Mbps, USB to RJ45, USB 3.0 to LAN Adapter, USB 3.0 Ethernet Adapter (GbE), TAA Compliant
Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port
The USB31000S USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.
| USB 3.0 Gigabit Ethernet Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 × RJ-45 1 × USB Type-A (9 pin, 5 Gbps) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | < 80% RH |
| Hardware | |
| Ports | 1 |
| Interface | RJ-45 (Gigabit Ethernet) |
| Bus Type | USB 3.2 Gen 1 (5Gbps) |
| Industry Standards | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3az IEEE 802.1Q VLAN tagging |
| Chipset ID | ASIX AX88179A |
| LED Indicators | 1 × Link (Amber) 1 × Activity (Green) |
| Packaging Information | |
| Package Height | 0.7 in [1.8 cm] |
| Package Length | 6.9 in [17.6 cm] |
| Package Width | 5.0 in [12.6 cm] |
| Package Weight | 1.4 oz [40.0 g] |
| Package Quantity | 1 |
| Performance | |
| Wake On LAN | Yes |
| Max Distance | 100m [328 ft] |
| Type and Rate | USB 3.0 – 5 Gbit/s |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Physical Characteristics | |
| Form Factor | Attached Cable |
| Color | Black |
| Material | Plastic |
| Cable Length | 5.3 in [135 mm] |
| Product Length | 8.5 in [21.5 cm] |
| Product Width | 1.0 in [2.6 cm] |
| Product Height | 0.6 in [1.6 cm] |
| Product Weight | 1.0 oz [28.0 g] |
| Power | |
| Power Source | USB-Powered |
| Input Voltage | 5V DC |
| Output Voltage | 5V DC |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10, 11, 11 ARM Windows® Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 macOS 10.6 to 15.0 (VLAN tagging not supported) Ubuntu 20.04 Kernel 5.15 and up (LTS versions only) ChromeOS 55+ |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB port |
| Note | Jumbo Frames are no longer supported in macOS |
| What's in the Box | |
| Included Items | 1 × USB 3.0 Gigabit Adapter 1 × Instruction Manual |
