Description

StarTech USB Adapter - PCI Express x4 - 1.25 GB/s, 640 MB/s, 60 MB/s, 1.50 MB/s, 140.80 kB/s

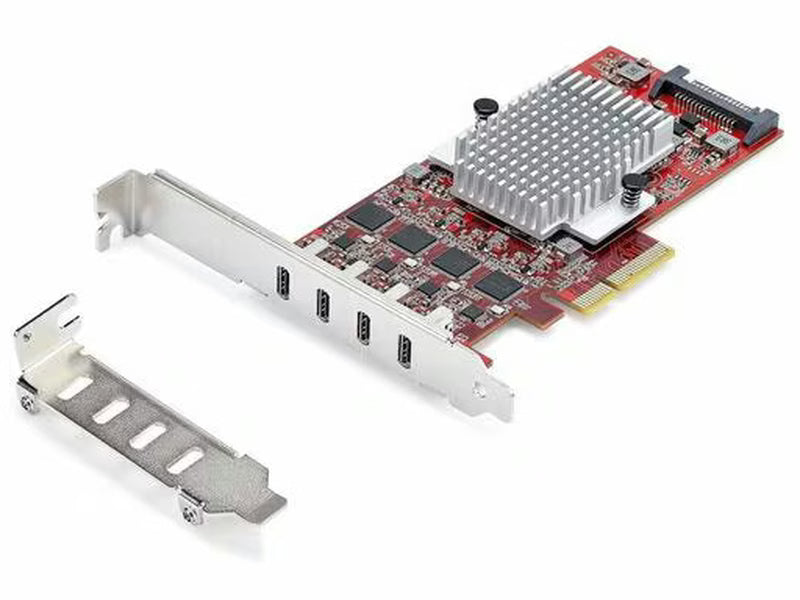

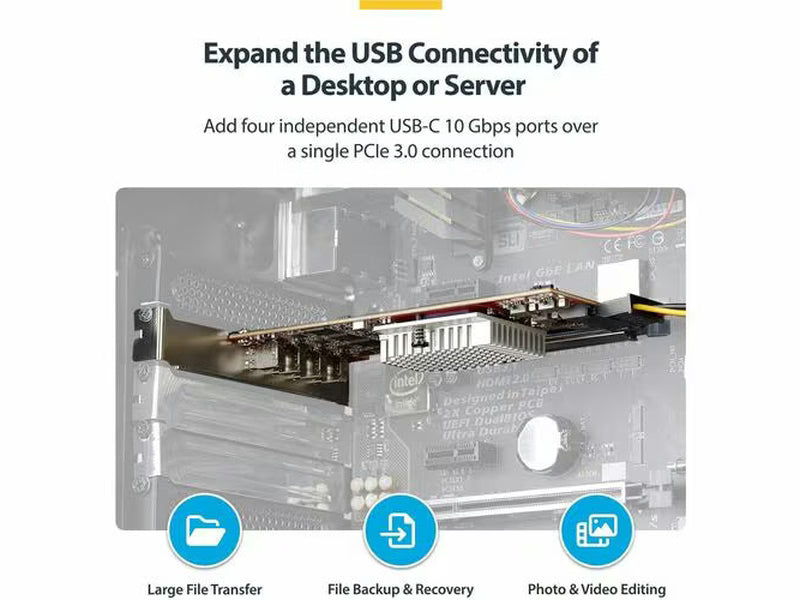

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

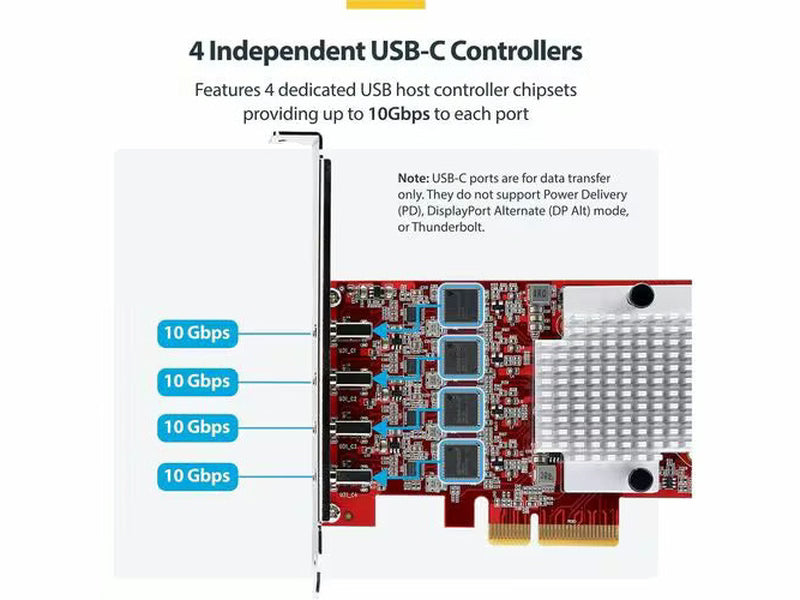

Dedicated USB Controllers

Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

USB 3.2 Gen 2 (10Gbps) Performance

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

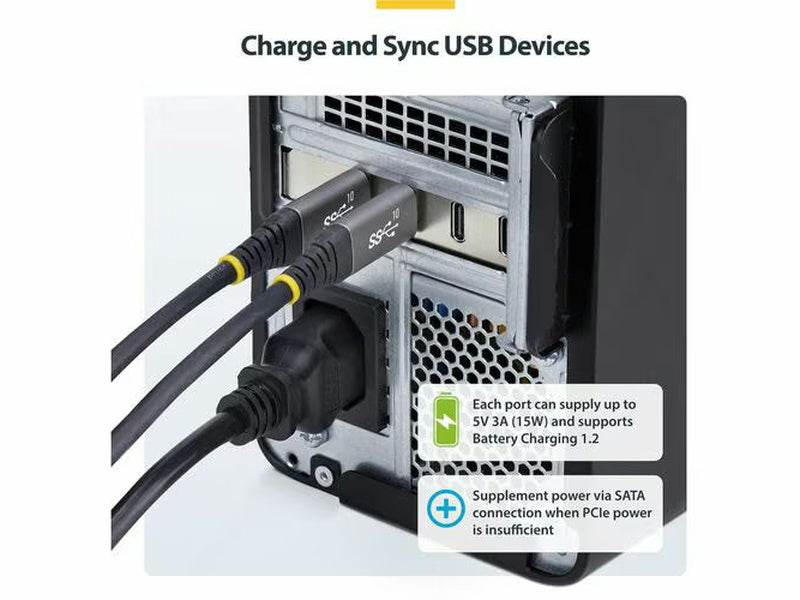

Charge and Sync USB Devices

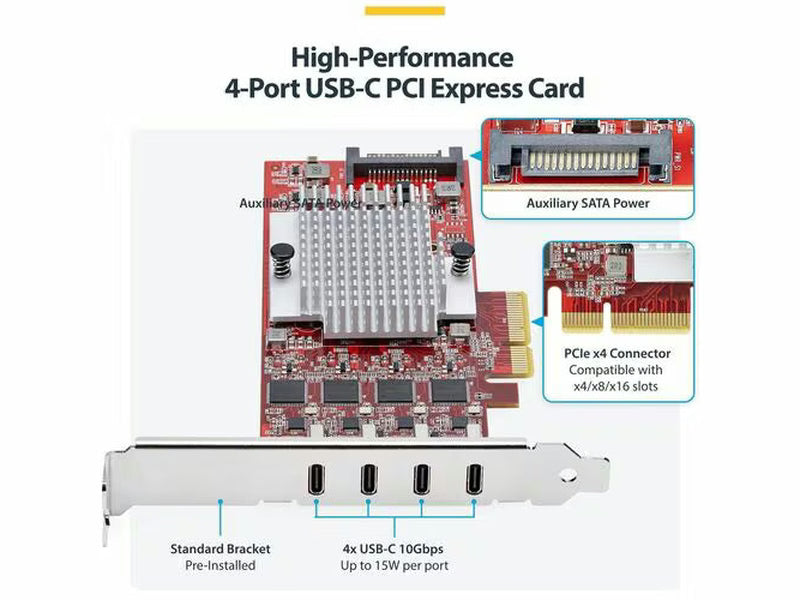

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.

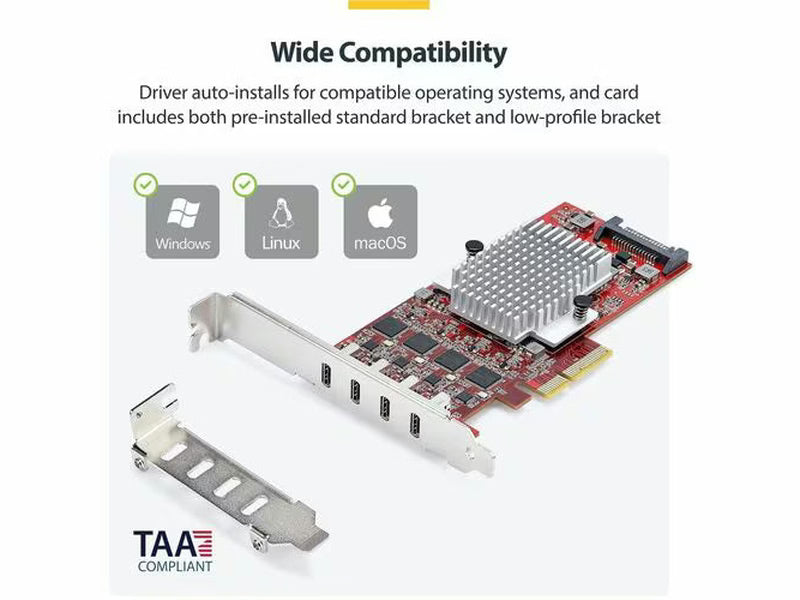

Compatibility

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.

  • USB Adapter plug-in with PCI Express x4 host interface
  • With 4 USB ports, connect/disconnect devices while not having to shut down the system

Specification

Technical Information
Host Interface PCI Express x4
Features Plug and Play
Interfaces/Ports
Total Number of USB Ports 4
Number of SATA Ports 1
USB Connector Type Type-C
USB Version 3.2 Gen 2
Miscellaneous
Application/Usage Server
Desktop
Platform Supported Mac
PC
TAA Compliant Yes
Media & Performance
Data Transfer Rate 640 MB/s
1.25 GB/s
1.50 MB/s
140.80 kB/s
60 MB/s
UASP Support Yes
General Information
Product Type USB Adapter
Manufacturer Part Number P10Q4C-USB-CARD
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1
Manufacturer StarTech.com
Product Name USB Adapter
Brand Name StarTech.com

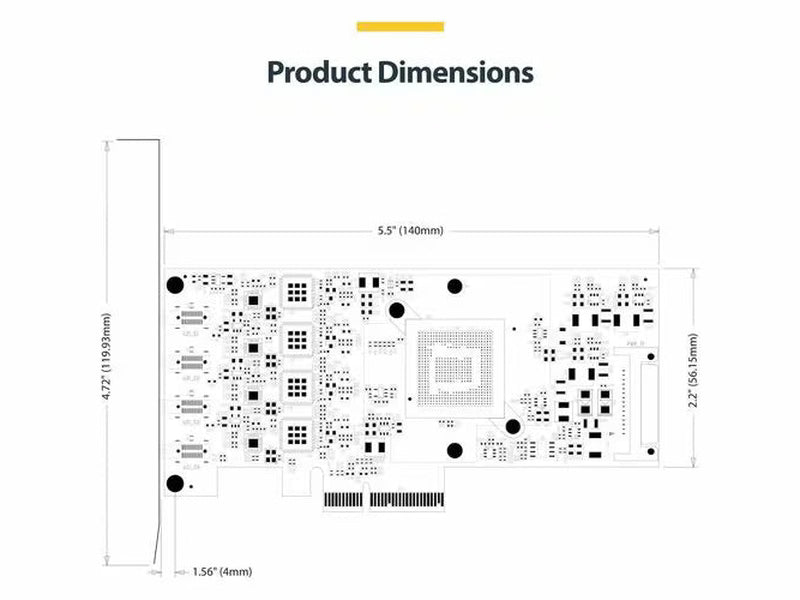

Physical Characteristics
Weight (Approximate) 119.1 g
Form Factor Internal
Length 139.7 mm
Height 119.4 mm
Width 55.9 mm
Product Color Red
Color Family Red
Software
Operating System Supported Linux 2.6.31
macOS Sonoma
Windows Server 2022
Windows Server 2019
Windows 11
Windows 10
macOS Ventura
